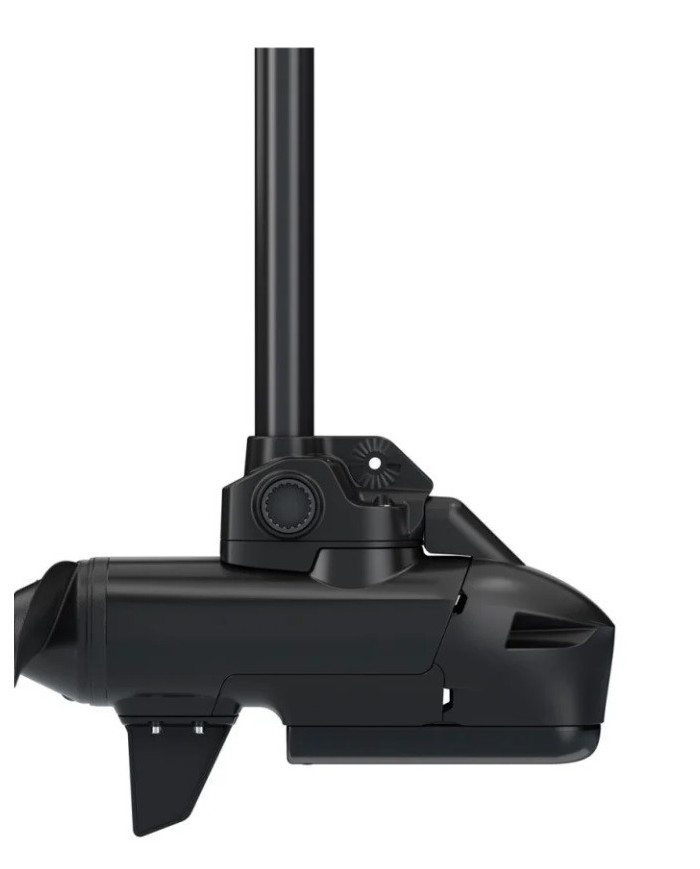

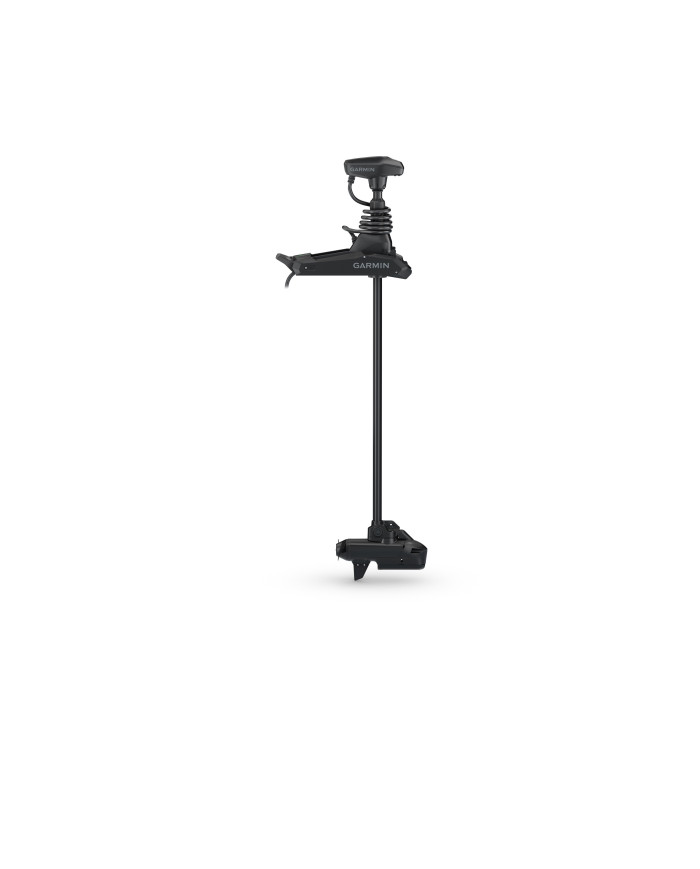

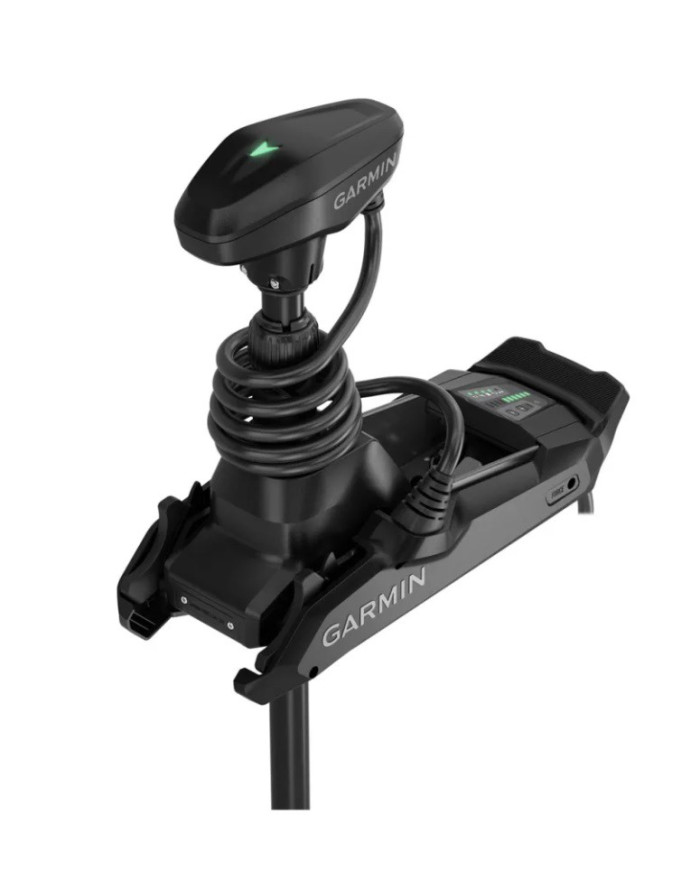

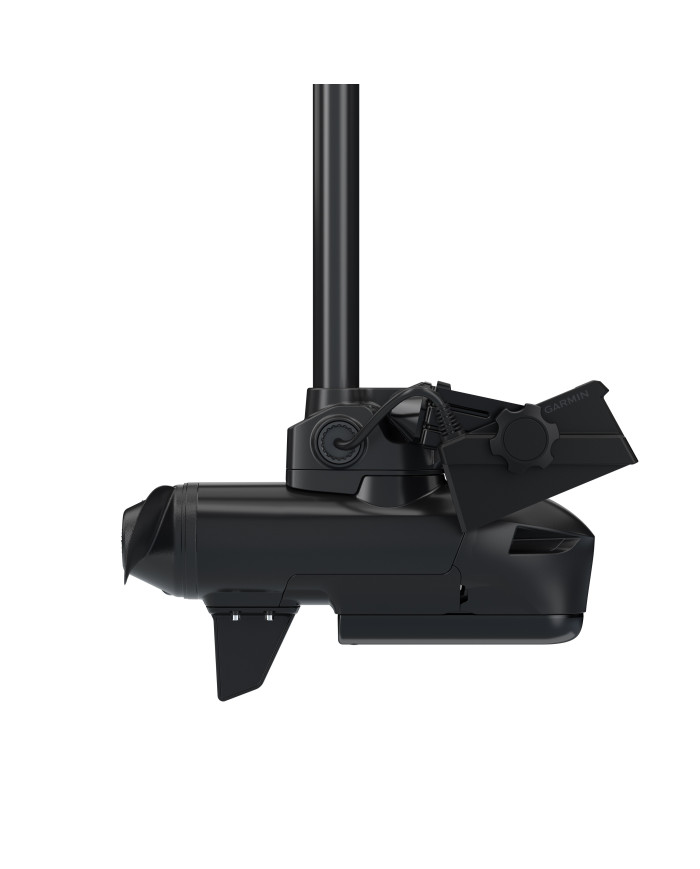

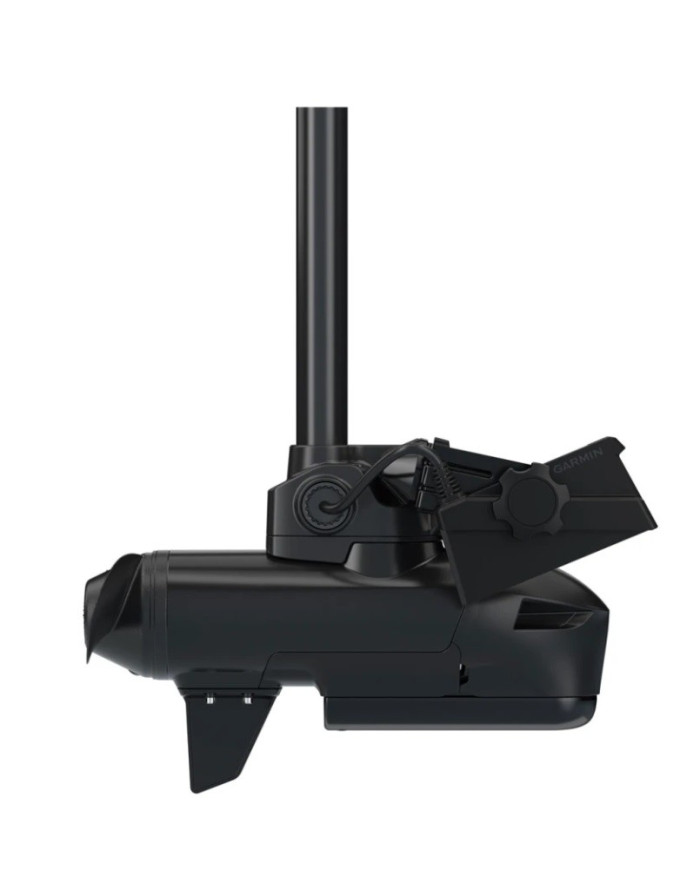

Garmin Force Kraken Trolling Motor Black 75 inch with GT56 Transducer
Harness the power of the Force Kraken trolling motor, the most powerful trolling motor on the market.
Focus on fishing with our most precise anchor lock technology and wireless chartplotter integration
Recipient :
* Required fields
or Cancel
There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market(in compliance with ISO standard 13342). It’s designed for deep V hulls where bow space is limited. Get a clear view of what’s below your boat with the included GT56 transducer. Once you’ve found the spot, stay put with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck, and the 63”, 75” and 90” shaft lengths accommodate boats with high freeboards. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. Plus, it’s saltwater-rated for advanced corrosion protection.
Fact Sheet
TECHNICAL SPECIFICATIONS
General |
|
COLOUR | Black |
---|---|
FOR USE IN | Freshwater, brackish water and saltwater |
MOUNT STYLE | Pivot-style mount |
MAX THRUST | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc |
VOLTAGE | 24 V or 36 V |
ELECTRIC STEERING | Yes |
BUILT-IN HEADING SENSOR | Yes |
BUILT-IN GPS | Yes (dual frequency GPS) |
WARRANTY | 3-year, limited lifetime on shaft |
WATER RATING | IPX7 |
MOUNTING LOCATION | Bow |
WIRELESS REMOTE | Yes (included) |
FOOT PEDAL COMPATIBLE | Yes |
BATTERY INDICATOR | Yes |
VARIABLE SPEED CONTROL | Yes (20 steps) |
LIGHTED DIRECTION INDICATOR | Yes |
QUATIX REMOTE CONTROL SUPPORTED | Yes |
Sonar features & specifications |
|
FREQUENCIES SUPPORTED | CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) SideVü:455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
---|---|
TRANSMIT POWER | Traditional: 350 W ClearVü/SideVü 500 W |
MAXIMUM DEPTH | CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft |
DEPTH/SPEED/TEMPERATURE | Depth and temperature |
NUMBER OF PINS | 12-pin (orange connector) |
LIVESCOPE CABLE INTEGRATION | Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
AutoPilot features |
|
ROUTE FOLLOWING | Yes |
---|---|
ANCHOR LOCK | Yes |
ANCHOR LOCK JOG | Yes |
HEADING HOLD | Yes |
CRUISE CONTROL | Yes |
GESTURE FEATURES | Yes (manual+, heading hold+, jog+) |
Foot Pedal Features |
|
DIMENSIONS | 12″ L x 9″ W x 4 1/2″ H |
---|---|
WIRELESS COMMUNICATION | Yes |
POWER INSTALLATION | 12V/24V/36V wired or battery powered (2 AA) |
AA BATTERY LIFE | 1 full season |
WATER RATING | IPX7 |
ADJUSTABLE PEDAL RESISTANCE | Yes |
Remote features |
|
DISPLAY SIZE | 1.2″ (30.4 mm) diameter |
---|---|
DISPLAY RESOLUTION | 240 x 240 pixels |
DISPLAY TYPE | Colour, sunlight-visible, transflective memory-in-pixel (MIP) |
CHARTPLOTTER USER-PROGRAMMABLE KEYS | Yes |
AUTOPILOT FEATURE CONTROL | Yes |
WATER RATING | IPX7 |
BATTERY LIFE | Typical use with backlight at low, 43.2 weeks |
FLOATS: Yes |
