Lowrance Active Target 2 Kit with Module Transducer and Mounts

000-15959-001

New

Lowrance ActiveTarget 2 (Module + Transducer + Mounts)

ActiveTarget® 2 gives you the highest resolution, widest, and clearest live views of fish and structure. By watching fish respond to

your lure in real-time, you can make the quick adjustments that make the difference and help you catch more fish.

COMPATABLE WITH

HDS PRO

HDS LIVE

HDS CARBON

ELITE FS

More details

In Stock at World of Fishing

R37,800.00

-10%

R42,000.00

More info

Lowrance ActiveTarget 2 (Module + Transducer + Mounts)

ActiveTarget® 2 gives you the highest resolution, widest, and clearest live views of fish and structure. By watching fish respond to your lure

in real-time, you can make the quick adjustments that make the difference and help you catch more fish.

Key Features

  • High-resolution, live action images clearly reveal what’s happening underwater in real time
  • Clearest live action views of fish and structure
  • Widest underwater images for quicker interpretation

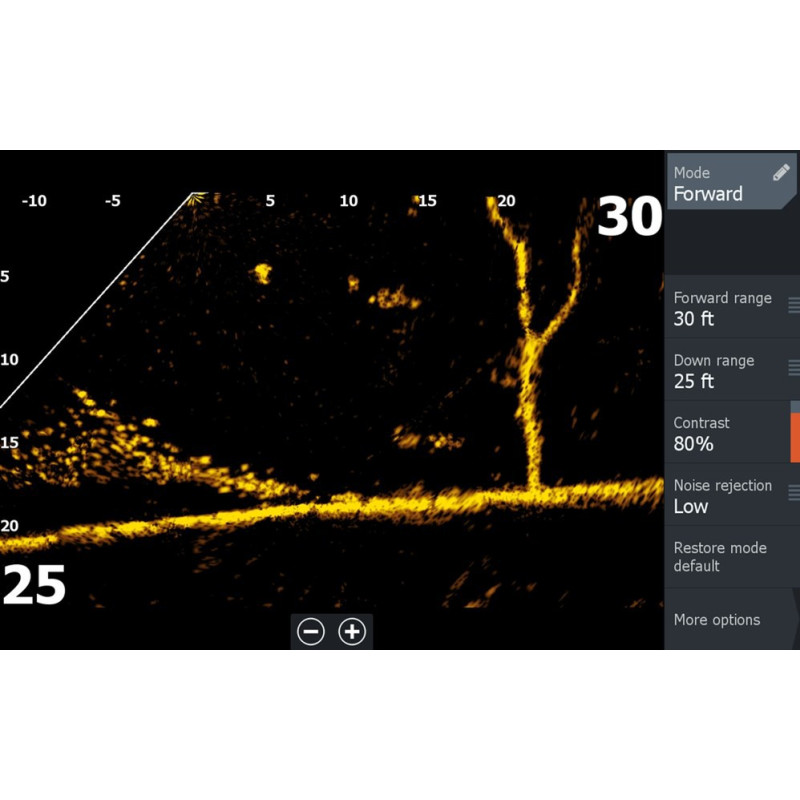

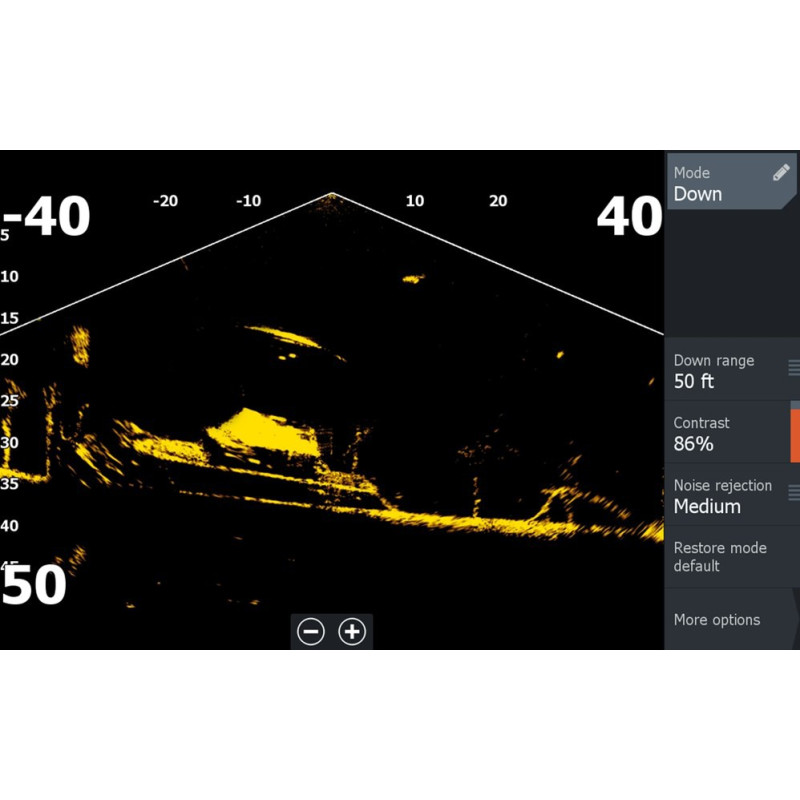

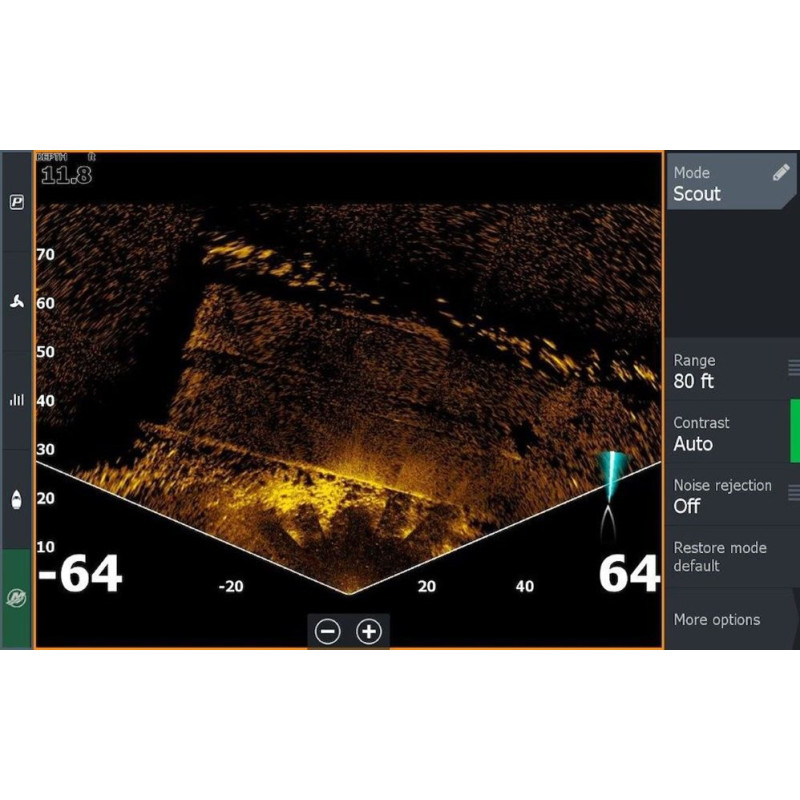

  • See all around your boat with Forward, Down and Scout views
  • See multiple views simultaneously and enable Forward+Back and Scout Wide views for more effective bait tracking ahead of boat with second optional ActiveTarget 2 transducer
  • Compatible with HDS LIVE, HDS Carbon and Elite FS

IN A LEAGUE OF ITS OWN

Catching fish is easier when you can see them interacting with structure and responding to your lure – in real time – with Lowrance® high-resolution ActiveTarget® 2 Live Sonar.

GET THE BEST PICTURE

See the clearest, highest-resolution images of fish swimming in and around cover and structure with ActiveTarget® 2 Live Sonar.

HIGHEST RESOLUTION

Get the best picture every time with optimized image and stabilization settings that deliver crisp and clear live action views

of fish and structure, even in rough conditions.

EASY TO USE

Quickly recognize if your lure presentation is working or if you need to make an adjustment to get fish to strike – i

nformation that is harder to get from traditional sonar or structure imaging.

HIGHEST RESOLUTION

Get the best picture every time with optimized image and stabilization settings that deliver crisp and clear live action views

of fish and structure, even in rough conditions.

Specifications

Connectivity:
Ethernet PortsYes: 1 - 100 Mbit Ethernet Port
Electrical
Power Consumption max: 1.5A @ 13.8VDC
Power Consumption typical: 1.5A @ 13.8VDC
Recommended Fuse Rating: 3A
Supply Voltage: 10.8 VDC - 31.2 VDC
Environment
Humidity60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Shock Vibration100,000 cycles of 20 G
Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )
WaterproofratingIP67
Physical
Dimensions W x H x D

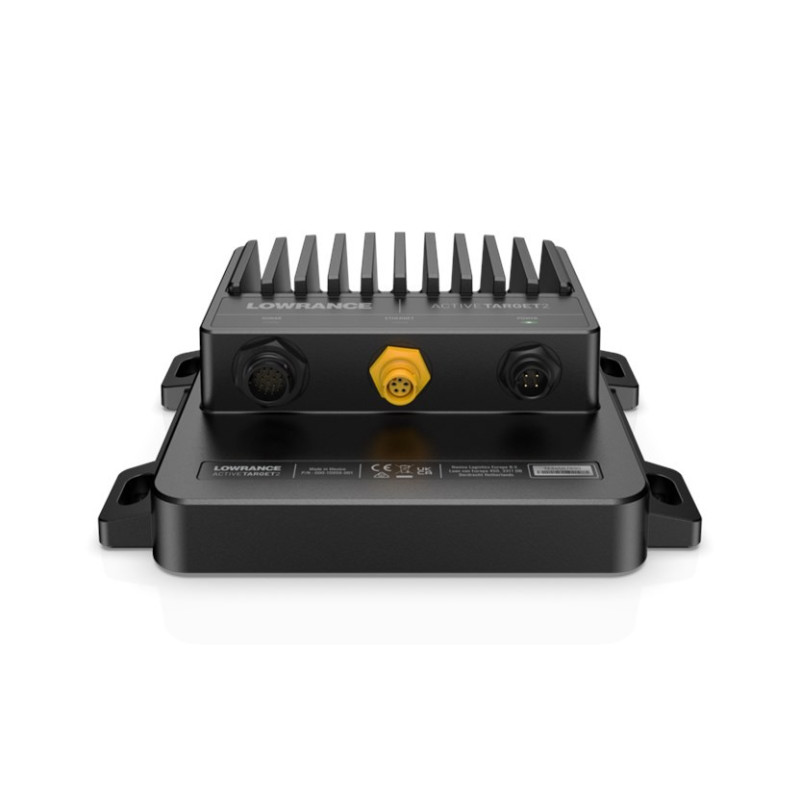

Module: 8.63 in (219.3mm) x 7.56 in (192.1mm) x 2.86 in (72.9mm)

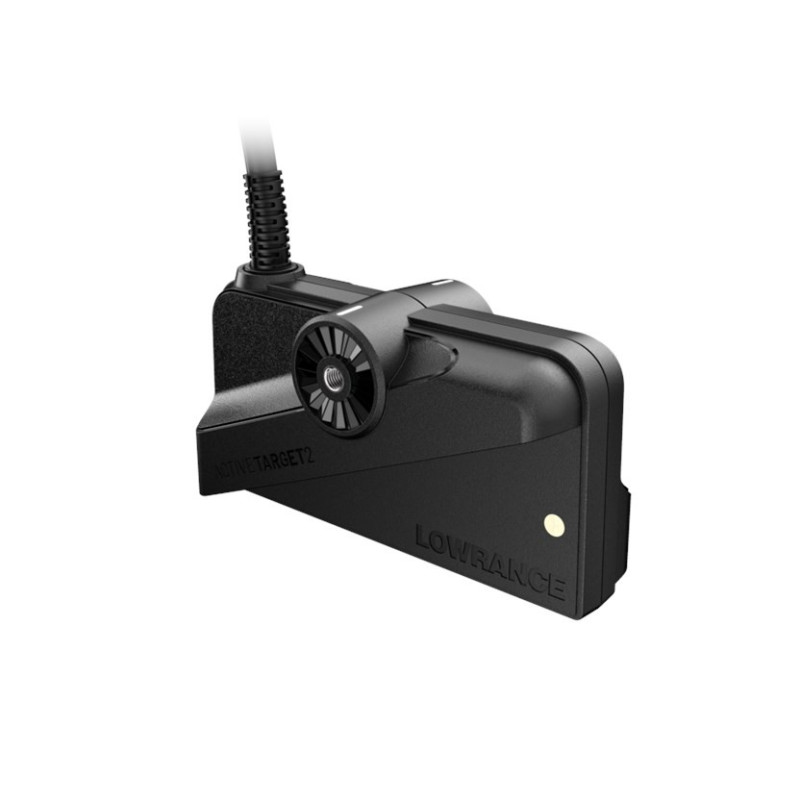

Transducer: 5.90 in (149.8mm) x 3.24 in (82.4mm) x 2.28 in (58.0mm)
Mounting : Surface Mount Transducer: Bracket Mount
Weight
Module: 4.12 lbs (1.86 kg)
Transducer: 2.67 lbs (1.21 kg)
Other
Interface: Ethernet to HDS Pro HDS Live, HDS Carbon & Elite FS
Warranty Period: 1 Year + 4 additional years of upgrade options Totaling 5 years
