Lowrance HDS PRO 9 Fishfinder Chartplotter Combo (No Transducer)

See more and catch more with HDS® PRO, the ultimate fishfinding tool. With built-in

support for the new, ultra high-definition Active Imaging™ HD and the new, highest-

resolution live sonar ActiveTarget® 2 you’ll see more clearly and find more fish than

ever before.

CASHBACK REBATE PROMOTION VALUE R 3 600

EFFECTIVE PRICE AFTER REBATE CLAIM TAKEN: R 37 157.50

(OFFER VALID FOR PURCHASES FROM 09 SEPTEMBER TO 30 NOVEMBER 2024!

CLICK HERE TO VIEW CASH BACK PROMOTION INSTRUCTIONS

CLICK HERE TO DOWNLOAD CASH BACK REBATE CLAIM FORM

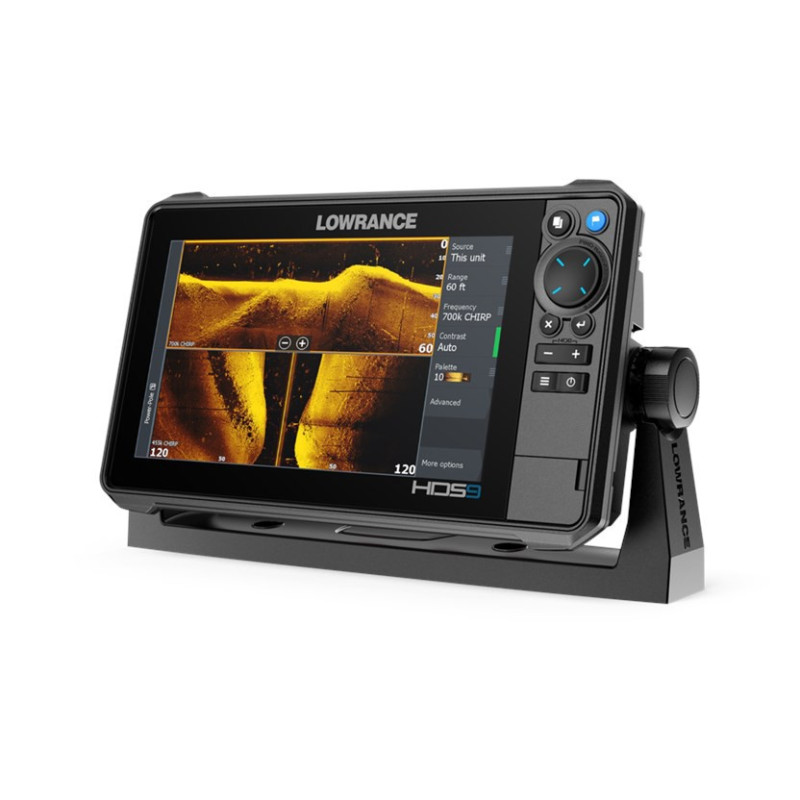

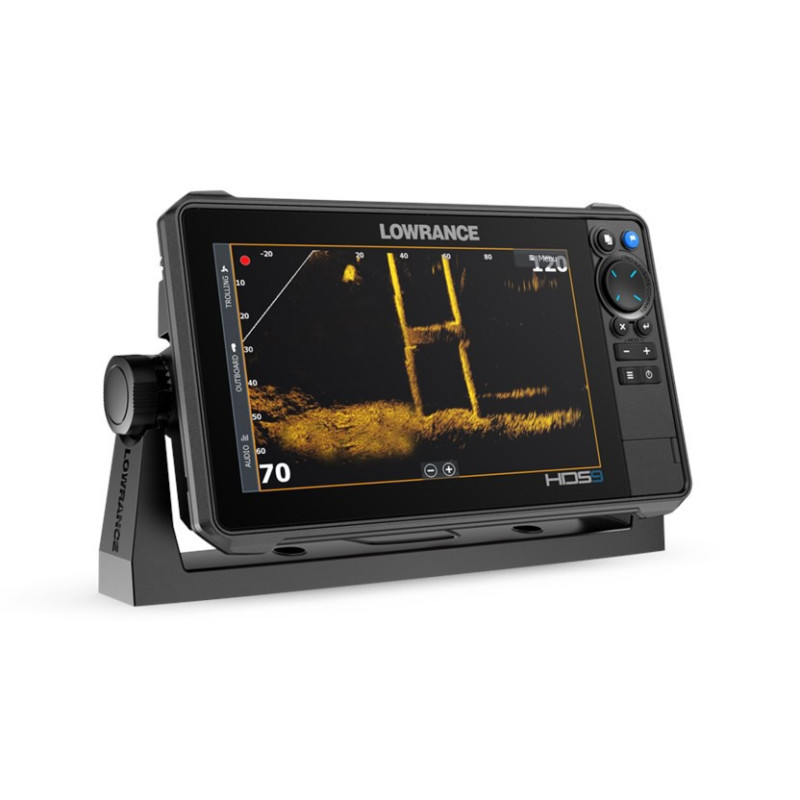

Lowrance HDS-9 PRO, No Transducer. 9 inch SolarMAX IPS display, Dual 1kW sonar with CHIRP, ActiveImaging™ HD

ready. Networkable to Lowrance performance sonars (ActiveTarget™ and ActiveTarget™2) , Radars, Trolling Motors,and

Autopilots along with waypoint, chart, and sonar sharing.

Includes Worlwide basemap (chart card required).

Key Features

SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses

New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)

New! High-resolution ActiveTarget® 2 Live Sonar ready

FishReveal™ with new SideScan view, (Requires AI 3-in-1HD "Fish Reveal" Transducer and S3100 Module

Downscan Fish Reveal with all HDI and AI Transducers

Available in 9, 10, 12 and 16-inch display size

Real-time mapping available with C-MAP® Genesis Live.

Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views

Large programmable keys for 10, 12 and 16-inch sizes

Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot

NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications

Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

*SidescanFishReveal requires S3100 module and a compatible transducer

Experience the next level of fishfinding with new HDS® PRO displays, featuring the ultimate clarity of enhanced

Lowrance sonar, the latest C-MAP® charts and easy bow-to-stern control.

ACTIVE IMAGING™ HD

Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and

DownScan Imaging™.

ULTIMATE CLARITY

Multiple live sonar views

Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget® 2 Live Sonar

displays at the same time.

TOGETHER IN BOX

1. LOWRANCE PC-30 POWER / DATA CABLE & FUSE
2. HDS-9 LIVE/PRO Bracket and Knobs
3. HDS-9 LIVE/PRO Suncover

SPECIFICATIONS

SKU 10-02-234

Display

Backlight Color	Pure White LED
Display Resolution	1280 x 720
Screen Brightness	>1200 Nits
Viewing Angles	80° top/bottom, 80° left/right

Electrical

Power Consumption max	2.9A @ 13VDC with Full Backlight, Sonar on
Power Consumption min	2.0A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical	2.0A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating	3A
Supply Voltage	12 v DC (10.8-17 V DC)

Physical

Dimensions	W x H x D 11.02in (280.0mm) x 6.56in (166.7mm) x 3.05in (77.7mm)
Weight	4.14lb (2.00kg)
Compass Safe	12″ (300mm)
Mounting Type	Panel mount or bracket mount

Environment

Humidity	60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Shock Vibration	100,000 cycles of 20 G
Storage Temperature Range	4°F to 140°F (-20°C to 60°C )
Waterproof rating	IPX7 with card door closed

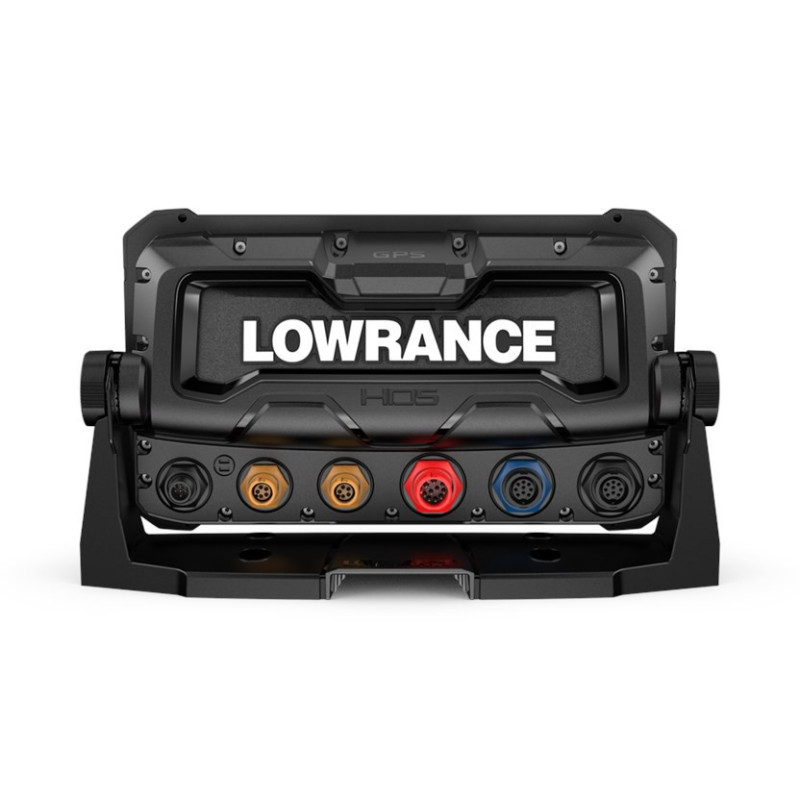

Interface

Touchscreen	Full Multi-touch touchscreen
Keypad	8-way directional keypad
Buttons	Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light

Connectivity

Bluetooth® 5.2 with support for Bluetooth® classic

Ethernet Ports	2 x 100 Mbit, 6 max MFD’s on a network
Connectivity Wi Fi	Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000	1x Micro-C
SD Card Storage	2 micro SD cards up to 32GB FAT32, Larger if formatted NTFS
NMEA 0183	via Power cable

Video

Output	None
Input	Composite video RCA – single channel via optional adaptor

GPS

Correction	DGPS, WAAS
GPS Receiver Channels	16
Position Accuracy	20m RMS
Time to First Fix	30s
Update rate	10 Hz

MFD

Sonar Compatibility	Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
Radar	All HALO Radars
Weather	SiriusXM via WM-4 (USA only)
AIS	AIS Chart and Radar overlay. Target vessel details.
Autopilot	NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital Switching	CZone, Naviop, DDS
GPS	10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage	8.0 GB Internal
Multimedia	SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power	1kW
Waypoints, Routes, Tracks	3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5	Support for third part HTML apps
Autopilot Maneuvers Turn Patterns	Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes	Course, Heading, Waypoint, Power Steer

Other

NMEA2000 PGNs Receive only
65240	ISO Commanded Address
127245	Rudder
127251	Rate of Turn
	127257|Attitude
127488	Engine Parameters, Rapid Update
127489	Engine Parameters, Dynamic
127493	Transmission Parameters, Dynamic
127505	Fluid Level, 127508| Battery Status
129033	Time and Date
129038	AIS Class A Position Report
129039	AIS Class B Position Report
129040	AIS Class B Extended Position Report
129794	AIS Class A Static and Voyage-Related Data
129801	AIS Address Safety Related Message
129802	AIS Safety Related Broadcast Message
129808	DSC Call Information
130313	Humidity
130314	Actual Pressure
130576	Small Craft Status
65285	Temperature with Instance
65325	Reprogramming Status
65480	Parameter Reply
130817	Product Information
130820	Reprogramming Status
130832	Fuel Used – High Resolution
130834	Engine and Tank Configuration
130838	Fluid Level Warning
130842	AIS and VHF Message Transport
130843	Sonar Status – Frequency and DSP Voltage

Transmit and Receive:

59392	ISO Acknowledgement
59904	ISO Request
60160	ISO Transport Protocol, Data Transfer
60416	ISO Transport Protocol, Connection Management
60928	ISO Address Claim
126208	NMEA Group Function
126464	Receive/Transmit PGN’s group function
126992	System Time
126996	Product Information
127237	Heading/Track Control
127250	Vessel Heading
127258	Magnetic Variation
128259	Speed
128267	Water Depth
128275	Distance Log
129025	Position, Rapid Update
120296	COG and SOG, Rapid Update
129029	GNSS Position Data
129283	Cross Track Error
129284	Navigation Data
129539	GNSS DOPs
129540	GNSS Sats In View
130074	Route and WP Service – WP List – WP Name and Position
130310	Environmental Parameters
130311	Environmental Parameters
130312	Temperature
130577	Direction Data
61184	Parameter Command
65292	Clear Fluid Level Warnings
65293	LGC-2000 Configuration
65323	Data User Group Request
130831	EP-20 Suzuki Engine and EP-50 Storage Device Configuration
130835	Set Engine and Tank Configuration
130839	EP-45 Pressure Configuration
130840	Data User Group Configuration
130845	Parameter Handle
130850	Event Command
130851	Event ReplyTransmit only
65287	Temperature Sensor Configuration
65289	Trim Tab Configuration
65290	Paddle Wheel Speed Configuration
130818	Reprogramming Data
130819	Request Reprogram
130828	Set Serial Number
130836	Fluid Level Configuration
130837	Fuel Flow Turbine Configuration

NMEA 0183 Sentences supported

GPS Receive	GGA GLL GSA GSV VTG ZDA Transmit GGA GLL GSA GSV VTG ZDA GLCTX / RX
Navigation Receive	RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX
Sonar Receive	DBT DPT MTW VLW VHM, Transmit DBT DPT MTW VLW VHMTX / RX
Compass Receive	HDG HDT HDM, Transmit HDGTX / RX
Wind Receive	MWV MWD, Transmit MWV MWDTX / RX
AIS / DSCReceive	DSC DSE VDM



Languages

Language on products will vary depending on where you purchase the unit. Basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portuguese (Brazil)/Português (BR), Portuguese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Approvals

Approvals Compliance

FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
