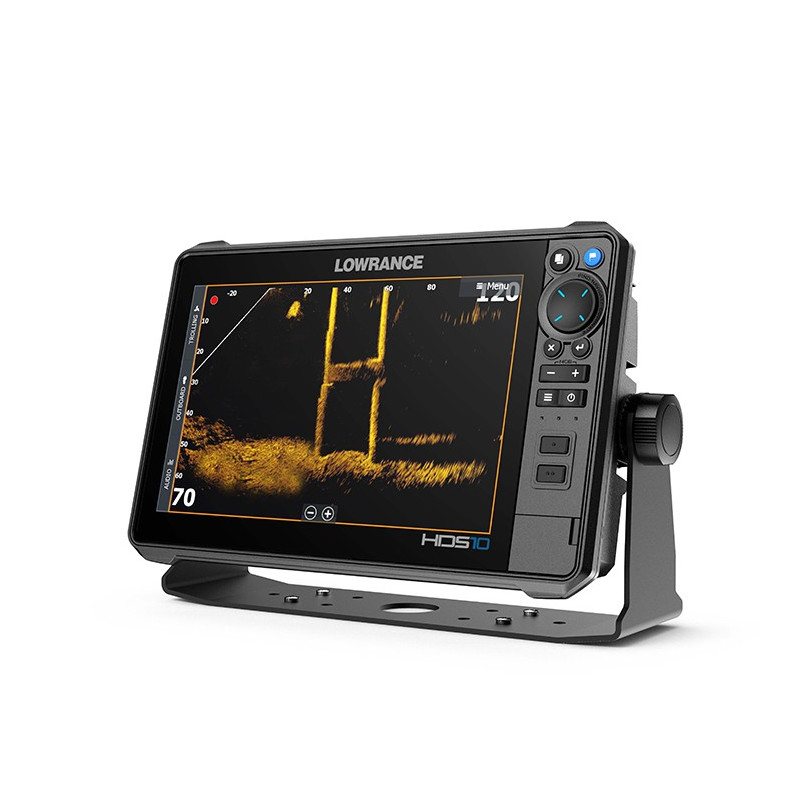

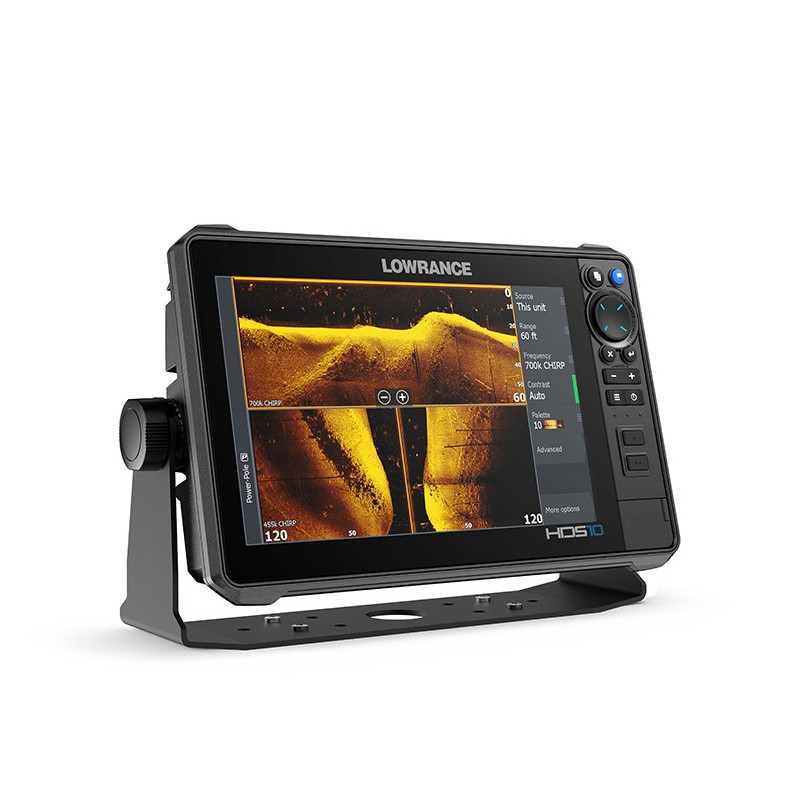

Lowrance HDS PRO 10 No Transducer Fishfinder Chartplotter Combo
R59,400.00
R50,490.00
Tax included
Lowrance HDS PRO - 10 Fishfinder Chartplotter Combo (No Transducer)
10 inch SolarMAX IPS display, Dual 1kW sonar with CHIRP, ActiveImaging™ HD ready. Networkable to Lowrance performance sonars (ActiveTarget™ and ActiveTarget™2), Radars, Trolling Motors, and Autopilots along with waypoint, chart, and sonar sharing. Worlwide basemap (chart card required).
REBATE VALUE R 9 000
Lowrance HDS PRO - 10 Fishfinder Chartplotter Combo (No Transducer)
See more and catch more with HDS® PRO, the ultimate fishfinding tool. With built-in support for the new, ultra high-definition Active Imaging™ HD and the new, highest-resolution live sonar ActiveTarget® 2 you’ll see more clearly and find more fish than ever before.
CASHBACK REBATE PROMOTION VALUE R 9 000
EFFECTIVE PRICE AFTER REBATE CLAIM TAKEN: R 41 490.00
(OFFER VALID FOR PURCHASES FROM 09 SEPTEMBER TO 30 NOVEMBER 2024!
CLICK HERE TO VIEW CASH BACK PROMOTION INSTRUCTIONS
CLICK HERE TO DOWNLOAD CASH BACK REBATE CLAIM FORM
Lowrance HDS-10 PRO, No Transducer. 10 inch SolarMAX IPS display, Dual 1kW sonar with CHIRP, ActiveImaging™ HD ready. Networkable to Lowrance performance sonars (ActiveTarget™ and ActiveTarget™2), Radars, Trolling Motors, and Autopilots along with waypoint, chart, and sonar sharing. Worlwide basemap (chart card required).
Transducer not included.
SEE MORE. CATCH MORE.
Experience the next level of fishfinding with new HDS® PRO displays, featuring the ultimate clarity of enhanced Lowrance sonar, the latest C-MAP® charts and easy bow-to-stern control.
NEW LOWRANCE SONAR
Key Features
SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
New! High-resolution ActiveTarget® 2 Live Sonar ready
FishReveal™ with new SideScan view, as well as Downscan*
Available in 9, 10, 12 and 16-inch display size
Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap
Real-time mapping available with C-MAP® Genesis Live.
Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
Large programmable keys for 10, 12 and 16-inch sizes
Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.
*SidescanFishReveal requires S3100 module and a compatible transducer
Experience the next level of fishfinding with new HDS® PRO displays, featuring the ultimate clarity of enhanced Lowrance sonar, the latest C-MAP® charts and easy bow-to-stern control.
ACTIVE IMAGING™ HD
Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™.
FISHREVEAL™
FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat.
*SideScan with FishReveal™ requires S3100 module and compatible transducer
ACTIVETARGET® 2 LIVE SONAR
ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure.
ADDITIONAL LIVE SONAR VIEWS
HDS® PRO also supports plug-and-play installation of two ActiveTarget® systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.
NEW CHART OVERLAY
HDS® PRO also introduces a new chart overlay option, allowing you to view ActiveTarget® Scout Mode or Ghost® 360 trolling motor mode directly on the chart screen.
THIRD-PARTY COMPATIBILITY
For anglers that want to select their own chart, HDS® PRO supports a wide range of third-party chart options, including C-MAP®, Navionics®, Florida Marine Tracks and more.
BUILT-IN SUPPORT
HDS® PRO offers support for the complete range of top fish-finding technologies – from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Ghost® Trolling Motor, Power-Pole® Anchors and more.
CONNECTIVITY
Expand your system -- taking advantage of radar, autopilot and NMEA 2000® compatibility -- and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.
PLUG 'N PLAY
Beyond the 9, 10, 12 and 16-inch screen sizes, HDS® PRO can also be expanded to deliver additional views and features. With plug-and-play installation, expanding your fishing has never been easier.
FishReveal™ SideScan
Simply add an S3100 sonar module and compatible Active Imaging™ HD transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat.
SCOUT WIDE VIEW
ULTIMATE CLARITY
Multiple live sonar views
Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget® 2 Live Sonar displays at the same time.
TOGETHER IN BOX
- LOWRANCE PC-30 POWER / DATA CABLE & FUSE
- HDS-9 LIVE/PRO Bracket and Knobs
- HDS-9 LIVE/PRO Suncover
SPECIFICATIONS
SKU 10-02-232
Display
| Backlight Color | Pure White LED |
| Display Resolution | 1280 x 800 |
| Screen Brightness | >1200 Nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
Electrical
| Power Consumption max | 2.9A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption min | 2.0A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption typical | 2.0A @ 13VDC with Full Backlight, Sonar on |
| Recommended Fuse Rating | 3 A |
| Supply Voltage | 12 v DC (10.8-17 V DC) |
Physical
| Dimensions | W x H x D 11.06in (294.6 mm) x 7.6in (193.15 mm) x 3.3 in (82.5 mm) |
| Weight | 3.66lb (1.66kg) |
| Compass Safe | 1.6 ft (50 cm) |
| Mounting Type | Panel mount or bracket mount |
Environment
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Shock Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Waterproof rating | IPX7 with card door closed |
Interface
| Touchscreen | Full Multi-touch touchscreen |
| Keypad | 8-way directional keypad |
| User programable keys | 2 |
| Buttons | Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light |
Connectivity
Bluetooth® 5.2 with support for Bluetooth® classic
| Ethernet Ports | 2 x 100 Mbit, 6 max MFD’s on a network |
| Connectivity Wi Fi | Internal 802.11b/g/n and Compatible with WiFi-1 Module |
| NMEA 2000 | 1x Micro-C |
| SD Card Storage | 2 micro SD cards up to 32GB FAT32, Larger if formatted NTFS |
| NMEA 0183 | via Power cable |
Video
| Output | None |
| Input | Composite video RCA – single channel via optional adaptor cable |
GPS
| Correction | DGPS, WAAS |
| GPS Receiver Channels | 16 |
| Position Accuracy | 20m RMS |
| Time to First Fix | 30s |
| Update rate | 10 Hz |
MFD
| Sonar Compatibility | Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub |
| Radar | All HALO Radars |
| Weather | SiriusXM via WM-4 (USA only) |
| AIS | AIS Chart and Radar overlay. Target vessel details. |
| Autopilot | NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway |
| Digital Switching | CZone, Naviop, DDS |
| GPS | 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS |
| Internal Storage | 8.0 GB Internal |
| Multimedia | SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products |
| Sonar Output Power | 1kW |
| Waypoints, Routes, Tracks | 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail |
| HTML5 | Support for third part HTML apps |
| Autopilot Maneuvers Turn Patterns | Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S |
| Steering Modes | Course, Heading, Waypoint, Power Steer |
Other
| NMEA2000 PGNs Receive only | |
| 65240 | ISO Commanded Address |
| 127245 | Rudder |
| 127251 | Rate of Turn |
| 127257|Attitude | |
| 127488 | Engine Parameters, Rapid Update |
| 127489 | Engine Parameters, Dynamic |
| 127493 | Transmission Parameters, Dynamic |
| 127505 | Fluid Level, 127508| Battery Status |
| 129033 | Time and Date |
| 129038 | AIS Class A Position Report |
| 129039 | AIS Class B Position Report |
| 129040 | AIS Class B Extended Position Report |
| 129794 | AIS Class A Static and Voyage-Related Data |
| 129801 | AIS Address Safety Related Message |
| 129802 | AIS Safety Related Broadcast Message |
| 129808 | DSC Call Information |
| 130313 | Humidity |
| 130314 | Actual Pressure |
| 130576 | Small Craft Status |
| 65285 | Temperature with Instance |
| 65325 | Reprogramming Status |
| 65480 | Parameter Reply |
| 130817 | Product Information |
| 130820 | Reprogramming Status |
| 130832 | Fuel Used – High Resolution |
| 130834 | Engine and Tank Configuration |
| 130838 | Fluid Level Warning |
| 130842 | AIS and VHF Message Transport |
| 130843 | Sonar Status – Frequency and DSP Voltage |
Transmit and Receive:
| 59392 | ISO Acknowledgement |
| 59904 | ISO Request |
| 60160 | ISO Transport Protocol, Data Transfer |
| 60416 | ISO Transport Protocol, Connection Management |
| 60928 | ISO Address Claim |
| 126208 | NMEA Group Function |
| 126464 | Receive/Transmit PGN’s group function |
| 126992 | System Time |
| 126996 | Product Information |
| 127237 | Heading/Track Control |
| 127250 | Vessel Heading |
| 127258 | Magnetic Variation |
| 128259 | Speed |
| 128267 | Water Depth |
| 128275 | Distance Log |
| 129025 | Position, Rapid Update |
| 120296 | COG and SOG, Rapid Update |
| 129029 | GNSS Position Data |
| 129283 | Cross Track Error |
| 129284 | Navigation Data |
| 129539 | GNSS DOPs |
| 129540 | GNSS Sats In View |
| 130074 | Route and WP Service – WP List – WP Name and Position |
| 130310 | Environmental Parameters |
| 130311 | Environmental Parameters |
| 130312 | Temperature |
| 130577 | Direction Data |
| 61184 | Parameter Command |
| 65292 | Clear Fluid Level Warnings |
| 65293 | LGC-2000 Configuration |
| 65323 | Data User Group Request |
| 130831 | EP-20 Suzuki Engine and EP-50 Storage Device Configuration |
| 130835 | Set Engine and Tank Configuration |
| 130839 | EP-45 Pressure Configuration |
| 130840 | Data User Group Configuration |
| 130845 | Parameter Handle |
| 130850 | Event Command |
| 130851 | Event ReplyTransmit only |
| 65287 | Temperature Sensor Configuration |
| 65289 | Trim Tab Configuration |
| 65290 | Paddle Wheel Speed Configuration |
| 130818 | Reprogramming Data |
| 130819 | Request Reprogram |
| 130828 | Set Serial Number |
| 130836 | Fluid Level Configuration |
| 130837 | Fuel Flow Turbine Configuration |
NMEA 0183 Sentences supported
| GPS Receive | GGA GLL GSA GSV VTG ZDA Transmit GGA GLL GSA GSV VTG ZDA GLCTX / RX |
| Navigation Receive | RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX |
| Sonar Receive | DBT DPT MTW VLW VHM, Transmit DBT DPT MTW VLW VHMTX / RX |
| Compass Receive | HDG HDT HDM, Transmit HDGTX / RX |
| Wind Receive | MWV MWD, Transmit MWV MWDTX / RX |
| AIS / DSCReceive | DSC DSE VDM |
| Languages | Language on products will vary depending on where you purchase the unit. Basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portuguese (Brazil)/Português (BR), Portuguese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano |
Approvals
| Approvals Compliance | FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM |
