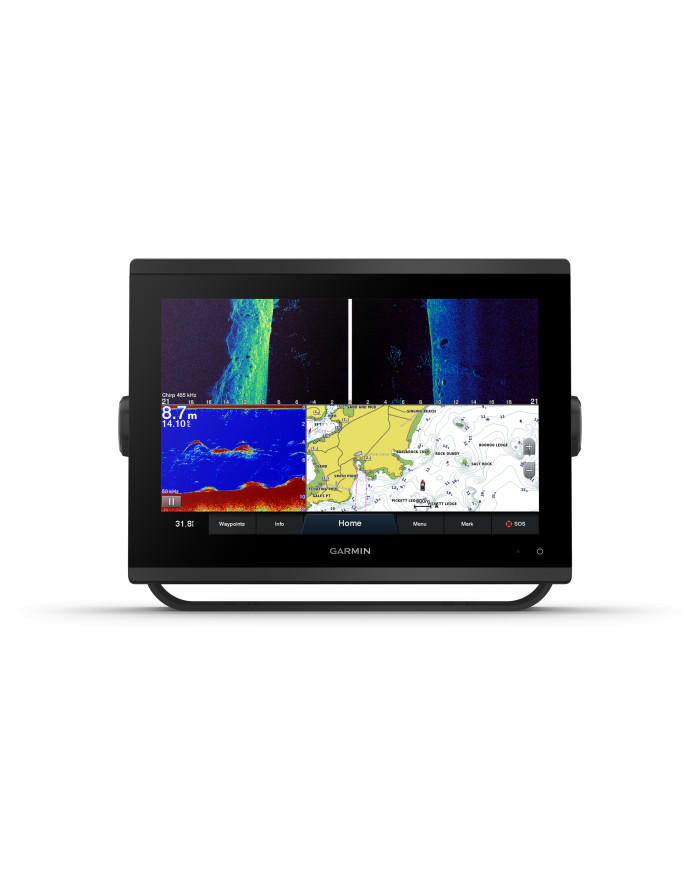

Garmin GPSMAP 1223xsv - Sonar Ready - No Transducer with Worldwide Basemap SALE
Recipient :
* Required fields
or Cancel
With its sleek design, powerful processing and upgraded IPS display, this advanced 7″, 9″ or 12″ chartplotter integrates seamlessly into your Garmin marine system.

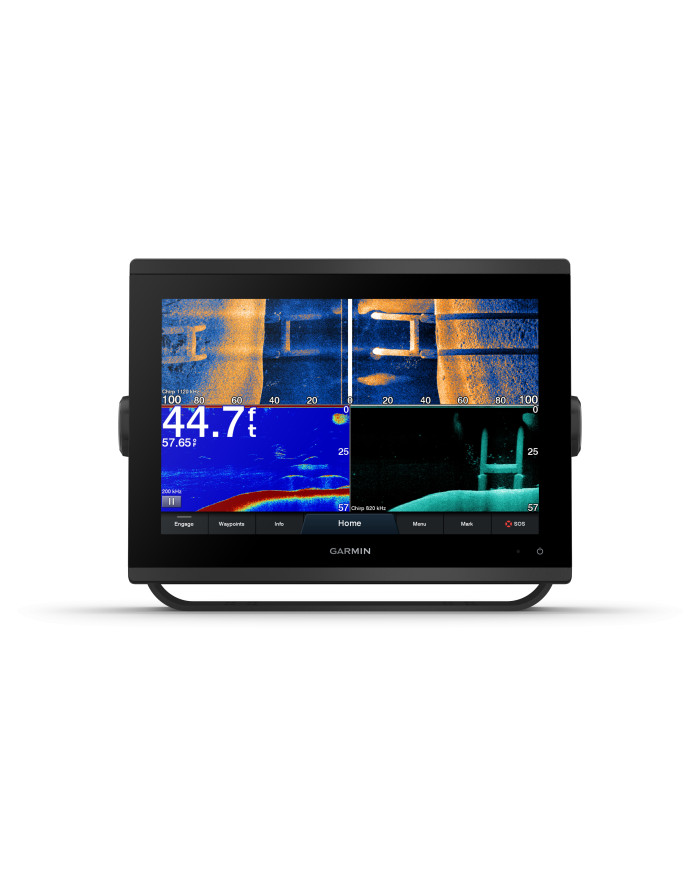

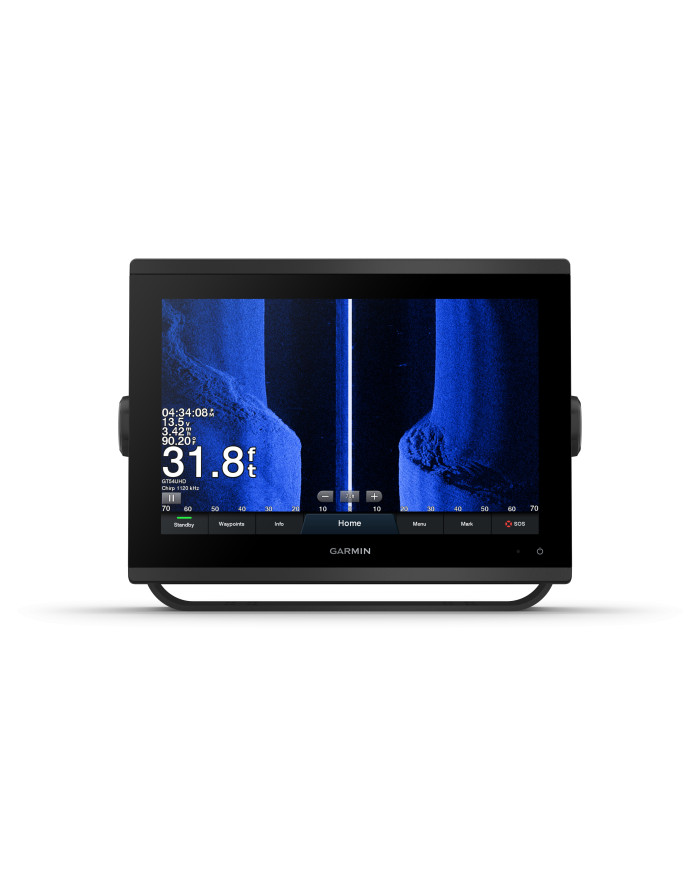

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities. Built-in sonar compatibility only available on xsv models.
Pair with Panoptix or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.
New higher-resolution IPS displays for 9″ and 12″ plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9″ GPSMAP devices.
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+™ or premium Garmin Navionics Vision+™ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+™ technology2 and more.

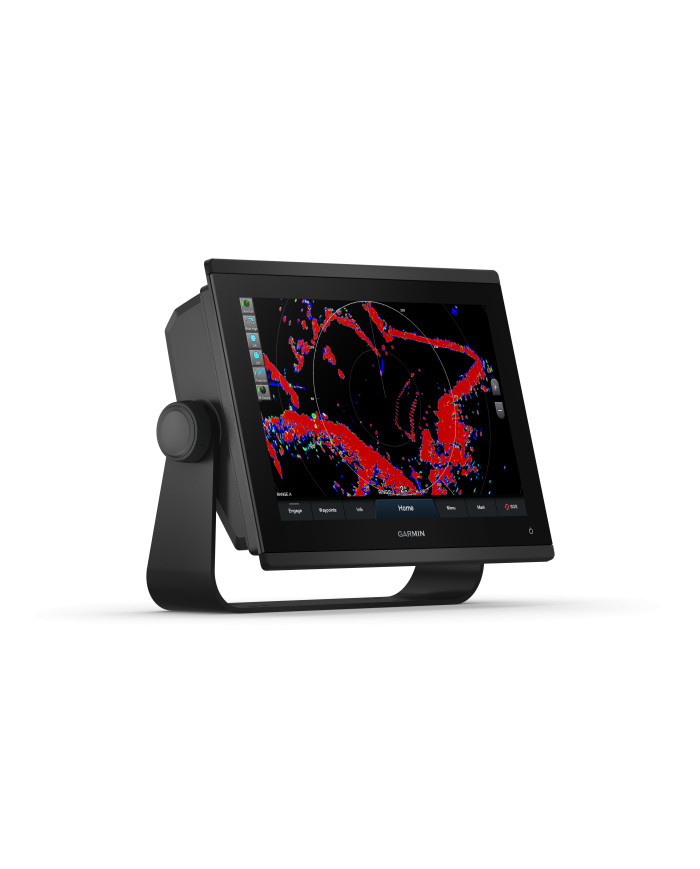

To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features.
Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

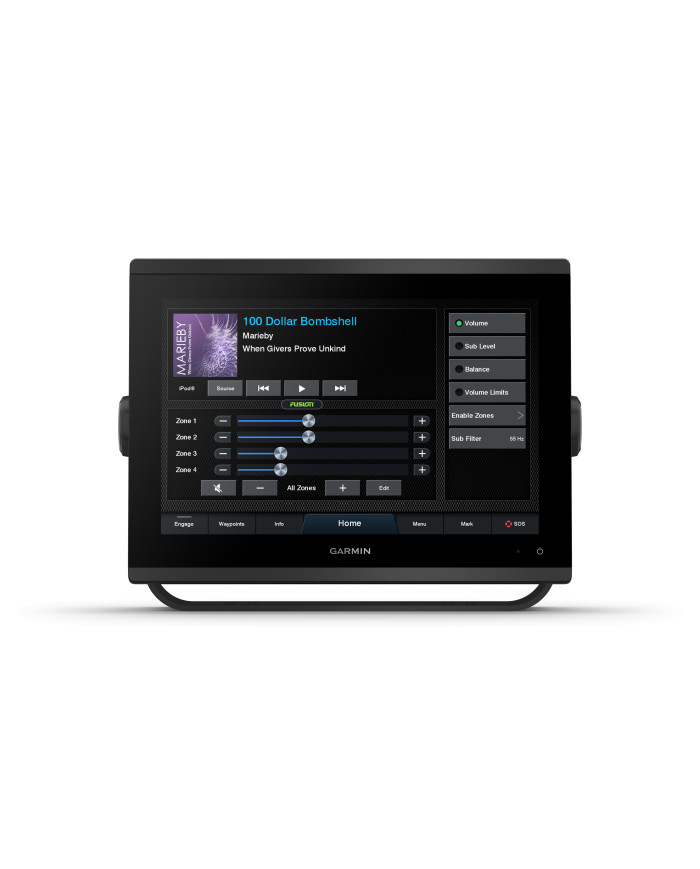

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community 4.
Connect with some of your favourite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers transducers, GNX™ Wind marine instruments and wireless remote controls.

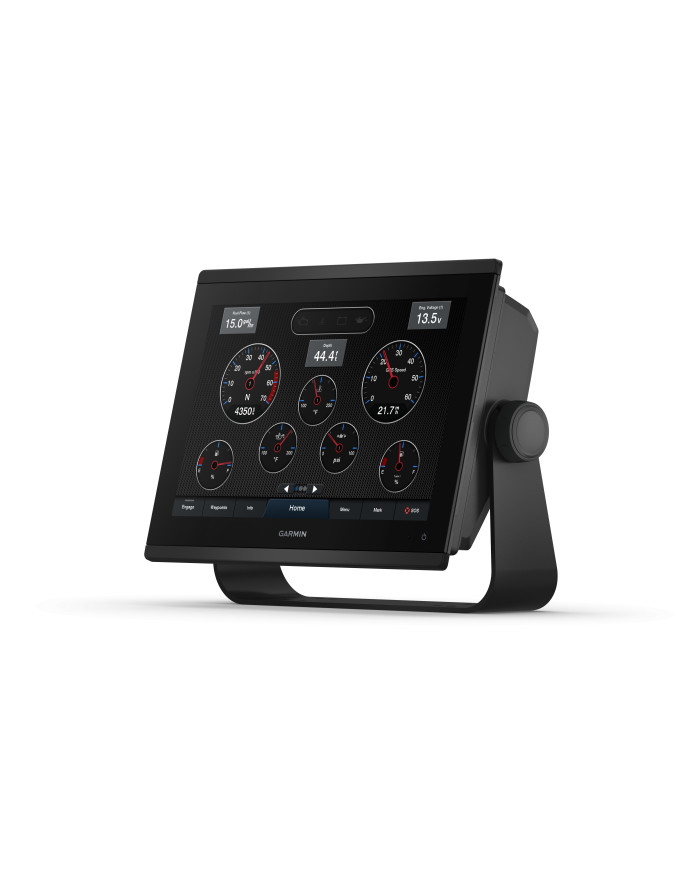

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
Pair your inReach satellite communicator5 to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.
Display Size |
10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) |
Power Input | 10 to 32 Vdc |
Display Resolution | 1280 x 800 pixels |
GPS | Yes |
Dimension | 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) |
Receiver | 10 Hz high-sensitivity |
Waterproof | IPX7 |
Weight | 6.6 lbs. (3.0 kg) |

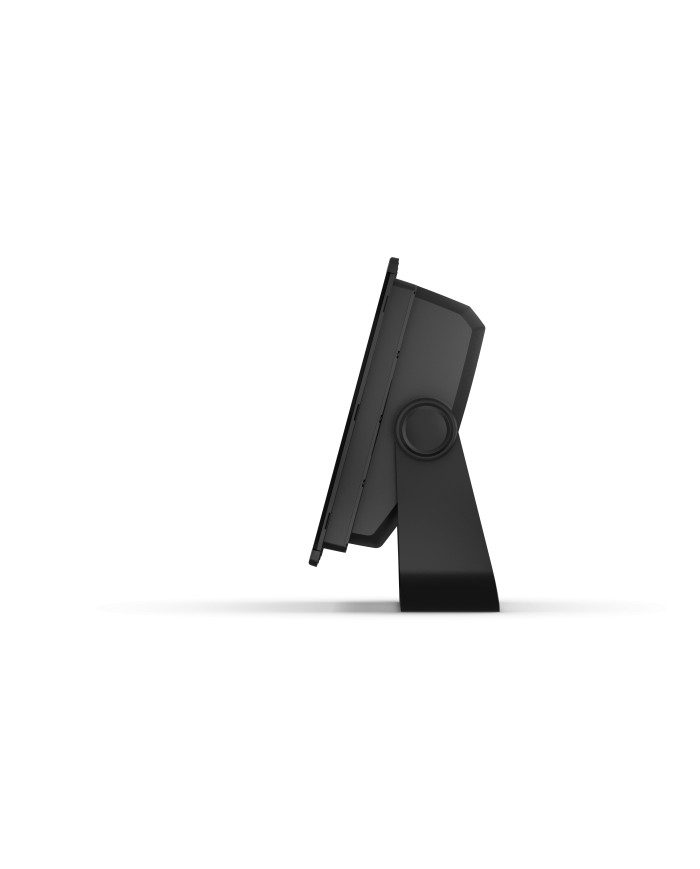

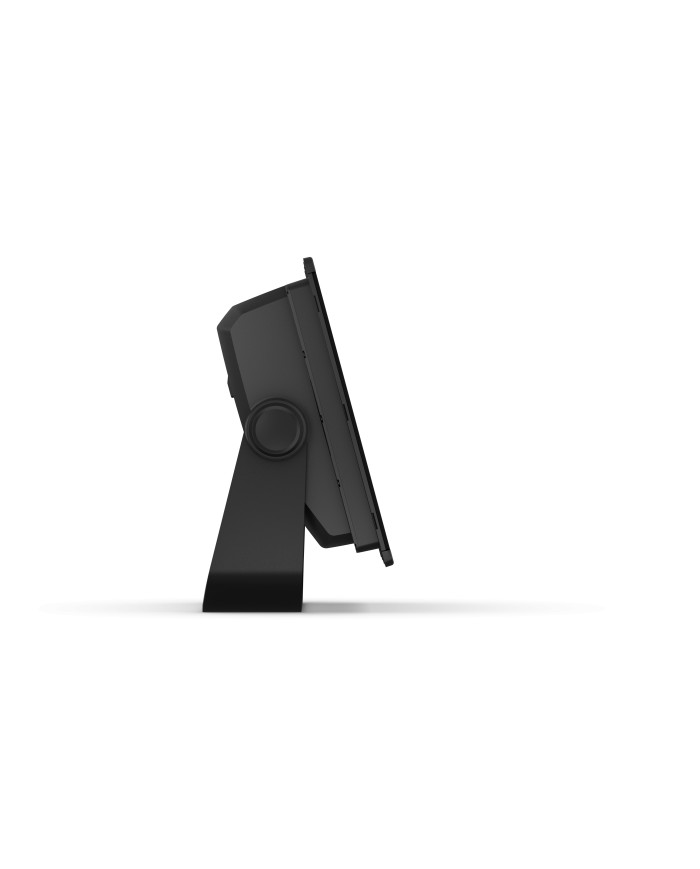

Mounting Options | Bail or flush |
Display Type | WXGA display |
Garmin Navionics Vision+™ | Yes |
Accepts Data Cards | 2 microSD™ cards (back of unit) |
Navigation Routes | 100 |
Garmin Navionics+™ | Yes |
Waypoints | 5,000 |
Sailing features | Yes |
NMEA 0183 Compatible | Yes |
Has built-in receiver | Yes |
USB ports | Yes |
TOPO | Yes |
SideVü | Built-in 260/455/800/1000/1200 kHz |
DSC | Yes |
Touchscreen | Yes |
LakeVü g3 Ultra | Yes |
NMEA 2000® compatible | Yes |
ActiveCaptain Mobile Planning Compatible |
yes |
Typical current draw at 12 Vdc | 1.68 A |
NMEA 2000® ports | 1 |
Tide tables | Yes |
GLONASS | Yes |
Track points | 50,000 |
Panoptix™ sonar | Yes |
Garmin Marine Network Ports | 2 |
LakeVü g3 | Yes |
Supports WAAS | Yes |
GSD Black Box Sonar Support | Yes |
Maximum current draw at 12 Vdc | 3.56 A |
Garmin SmartMode compatible (customisable monitor presets) | Yes |
Built-in Auto Guidance | Yes |
Maximum power usage at 10 Vdc | 43.0W |
BlueChart g3 | Yes |
Standard Mapping | Yes |
LakeVu (inland) | Yes |
Displays sonar | Yes |
ANT+ (Connectivity) | Yes |
GCV Black Box Sonar Support | Yes |
BNC external GPS antenna port | Yes |
Connections NMEA0183 Input Ports | 1 |
Spoken audio alerts | Yes |
BlueChart g3 Vision | Yes |
Garmin Wi-Fi network (local connection) | Yes |
J1939 ports | 1 |
Input | Touchscreen |
Garmin Quickdraw Contours | Yes |
Bluetooth® calling | Yes |
AIS | Yes |
Video output ports | 1 HDMI |
Raster chart support | Yes |
NMEA 0183 input (Tx) ports | 1 |
OneHelm support | Yes |
ClearVü | Built-in 260/455/800/1000/1200 kHz |
Tracks | 50 saved tracks |
Wireless remote compatible | Yes |
Supports Fusion-Link™ compatible radios | Yes |
Galileo | Yes |
LiveScope | Yes |
Power output | 1 kW |
12-pin transducer ports | 1 |
BlueChart (coastal) | Yes |
Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
GRID™ (Garmin Remote Input Device) compatible | Yes |
Video input ports | 1 BNC |
