Lowrance Eagle 9 with HDI 50 / 200 Transducer Chartplotter Fishfinder

000-16124-001

New

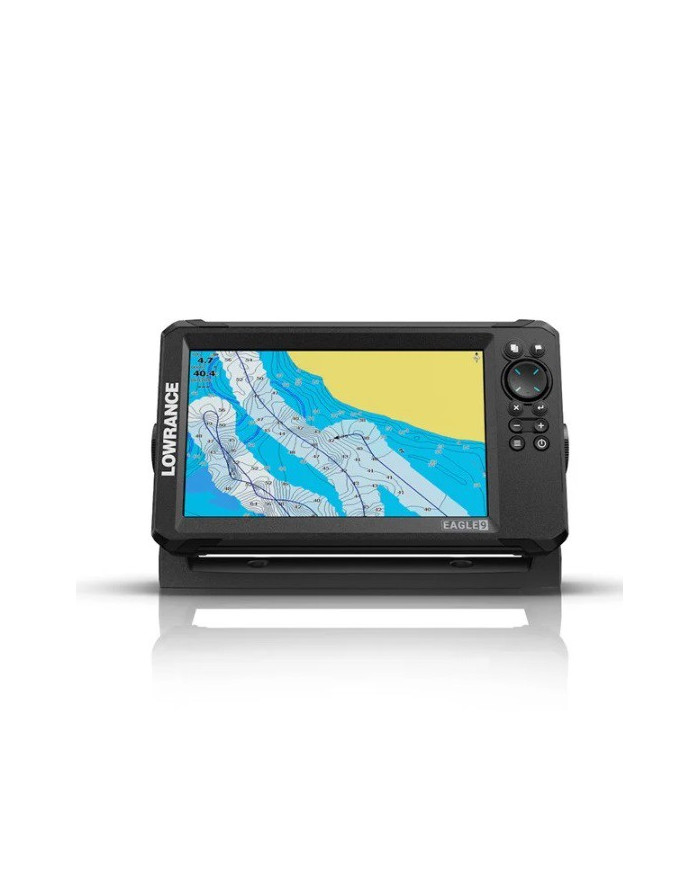

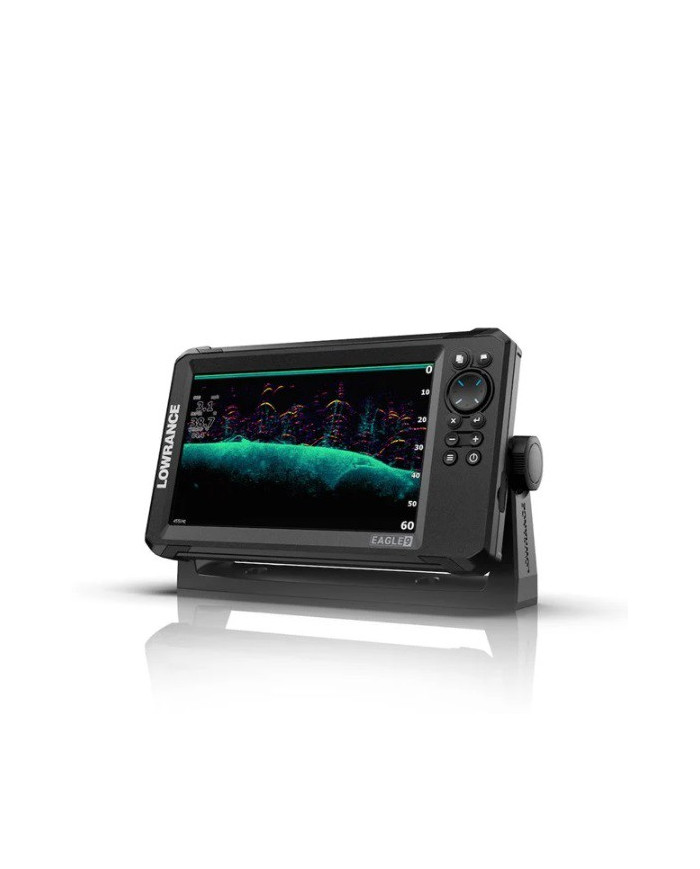

Lowrance Eagle 9 with HDI 50 / 200 Transducer Chartplotter Fishfinder

Eagle® was born to make fishing as simple and enjoyable as possible.

Easy to use and quick to install with the 600 Watt HDI 50/200 CHIRP Transducer with DSI FishReveal for Deep Water Performance

The IPS screen provides higher resolution and visibility from all angles.

With worldwide basemap chart

More details

Can Collect Pre Paid at Durban Trade Counter or Courier Ships to your Door (Towns & Cities in RSA)

R15,159.75

-15%

R17,835.00

More info

Lowrance Eagle 9 with TripleShot HD Transducer Chartplotter Fishfinder

3 YEAR LOWRANCE SA WARRANTY

Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features the 600 Watt 00 Watt HDI 50/200 CHIRP Transducer with DSI FishReveal technology and autotuning for a quick and optimal set up.
A new IPS screen provides higher resolution and visibility from all angles.
This model comes pre-loaded with a worldwide basemap chart.

Perfect for Deep Water Off Shore  & Salt Water Sports Fishing



Unlock FishReveal™

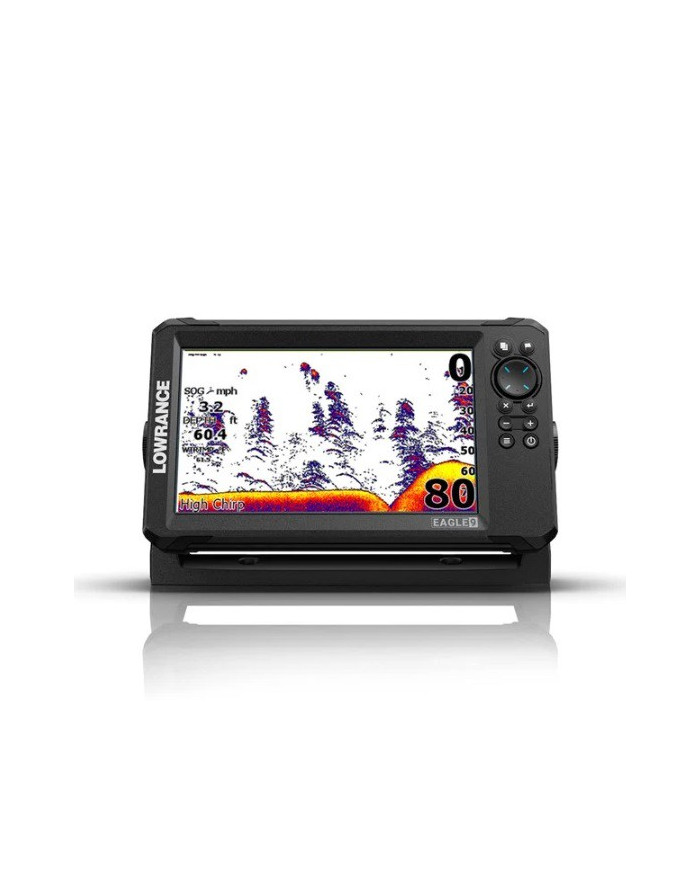

Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.


3 YEAR LOWRANCE SA WARRANTY

Specifications

Specifications

Display
Backlight ColorPure white LED
Display Resolution1024 x 600
Display Size9 inches
Screen Brightness1000 NITS
Viewing Angles80° top/bottom, 80° left/right
Connectivity
SD Card Storage1 slot (microSD® 32 GB maximum)
Cartography
Charts supportedC-MAP® DISCOVER™.
Electrical
Power Consumption max640 mA @ 12 V DC with backlight on full
Power Consumption typical640 mA @ 12 V DC with backlight on full
Recommended Fuse Rating3A
Supply Voltage12v DC (10.8-17VDC)
Environment
Humidity60°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
WaterproofratingIPX7 with card door closed
GPS
CorrectionSBAS
Time to First Fix45s
MFD
Cartography includedC-MAP® Discover OnBoard™ charts for the US and Canada
Waypoints, Routes, Tracks3000 Waypoints 100 Routes 100 Trails
Physical
Compass Safe12" (300mm)
Dimensions W x H x D287.2 mm (11.30") x 162.5 mm (6.39") x 90 (3.54)

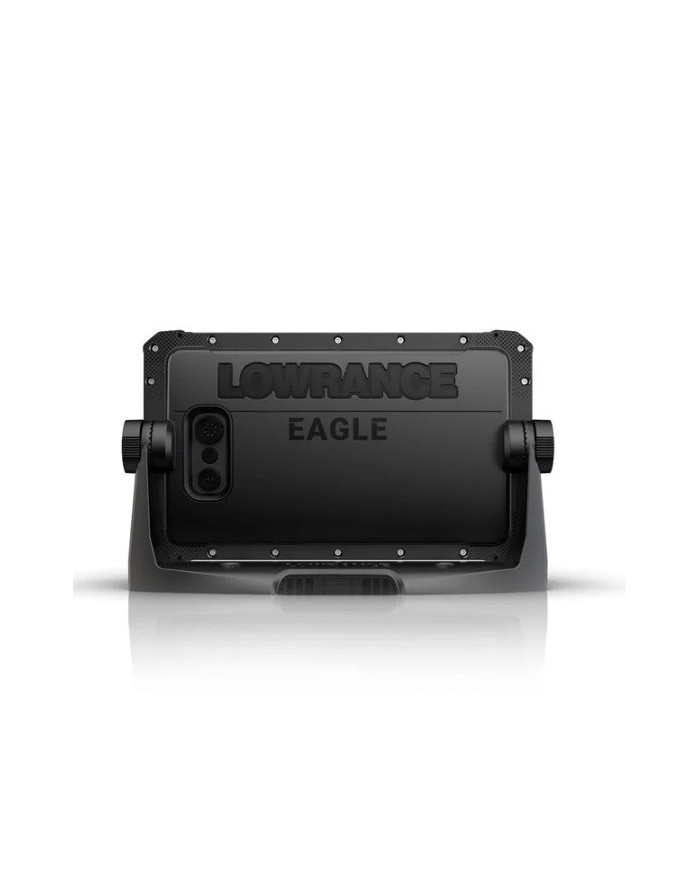

Mounting TypeGimbal bracket or dash mount
Weight0.9 kg (1.98 lb)
Other
InterfaceKeypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
Warranty Period 3 Year Lowrance SA Limited Warranty

In The Box

  • Eagle 9 Display
  • Lowrance Eagle  Tripleshot HD Skimmer Transducer with Mounting Hardware
  • Power Cable, with fuse and connectors
  • Eagle 9 Gimbal Bracket with Knobs

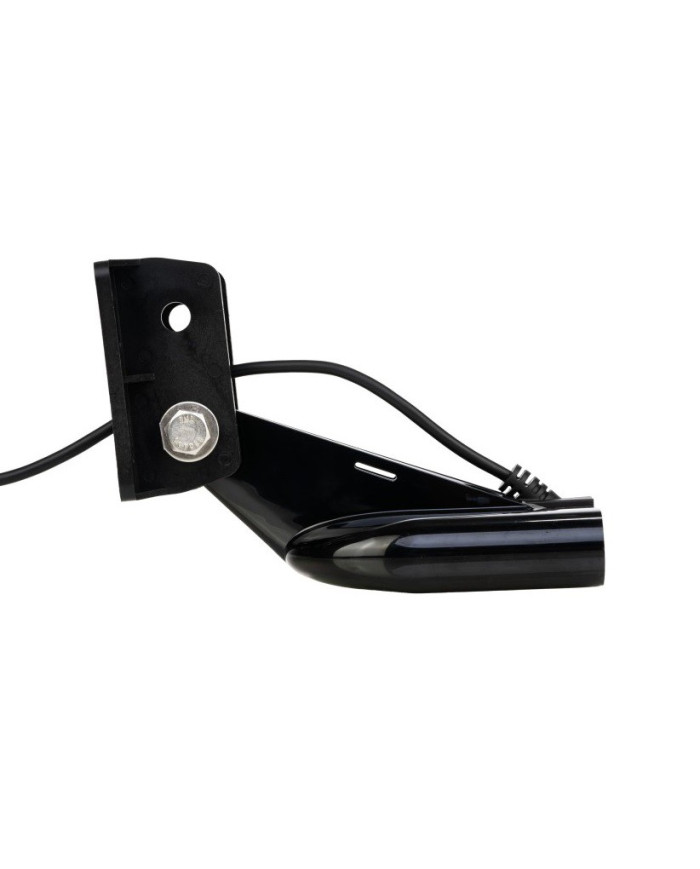

Lowrance HDI 50-200_455-800 khz Skimmer Transducer for Eagle & Hook2 & Hook Reveal

Power 600 Watt

Deep Water (</= 750 m / 2 500 ft)

Cone Angle:

200 khz: 20 Degree

50 khz: 45 Degree

With Temperature

With "Down - Imaging" 455-800 Khz

With "Down - Scan" 455-800 Khz and "Hybrid Dual Imaging" for Eagle, Elite HDI, Elite HDI CHIRP, Elite FS and HDS Series Multi Function Display Units

Features:

Transom Mount

Skimmer type transducer.

20 ft cable.

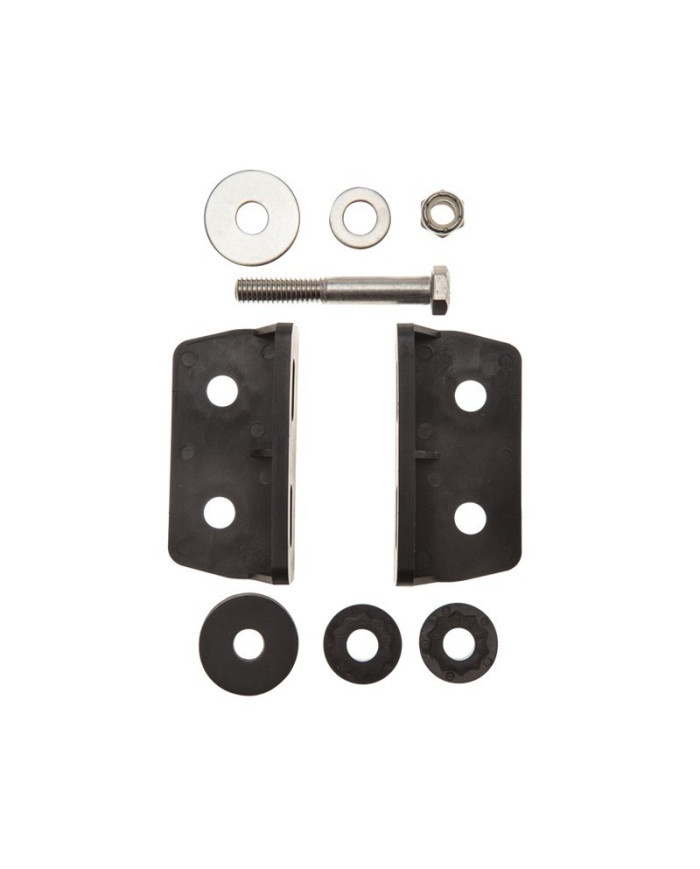

Stainless Steel Mounting Bracket and Fasteners

Weight: 0,8 kg (1.6 lb)

Connecter: For Hook2 - Hook Reveal & Eagle
