> FishFinders and ChartPlotters>Lowrance Eagle 5 WITH HDI 50 - 200 Transducer Chartplotter Fishfinder
New Sale!
Previous Next

Online only

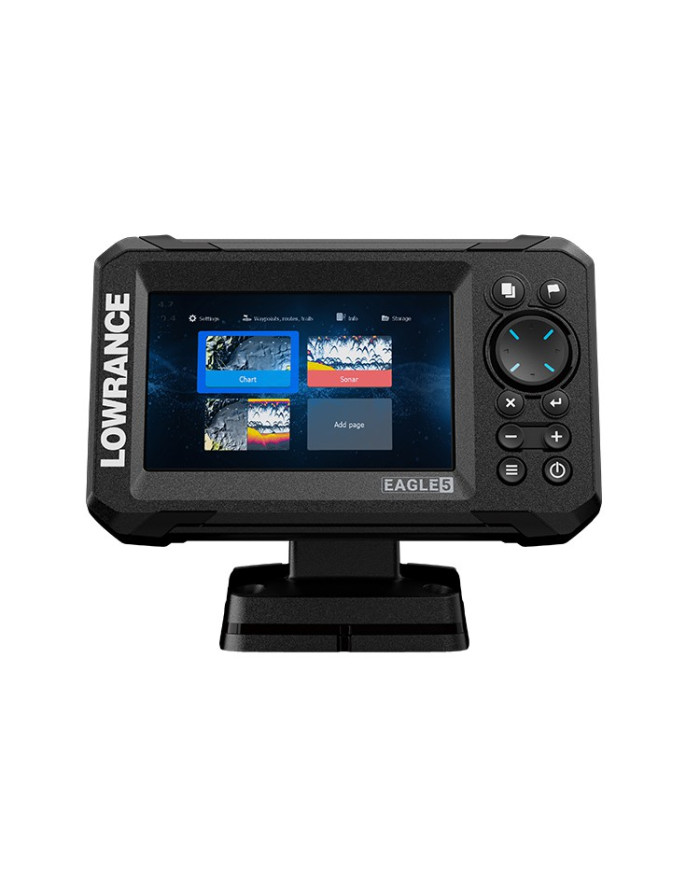

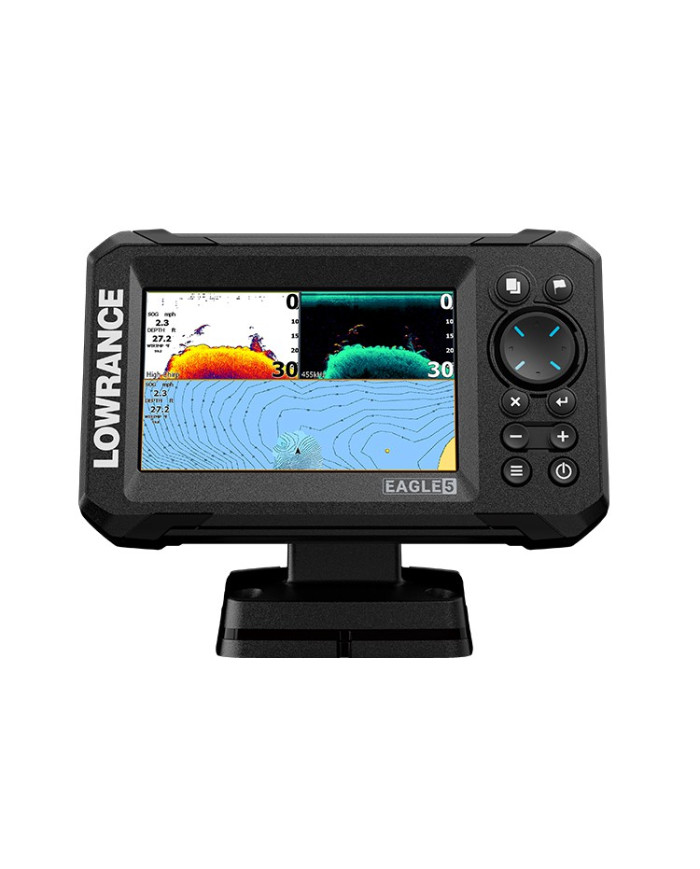

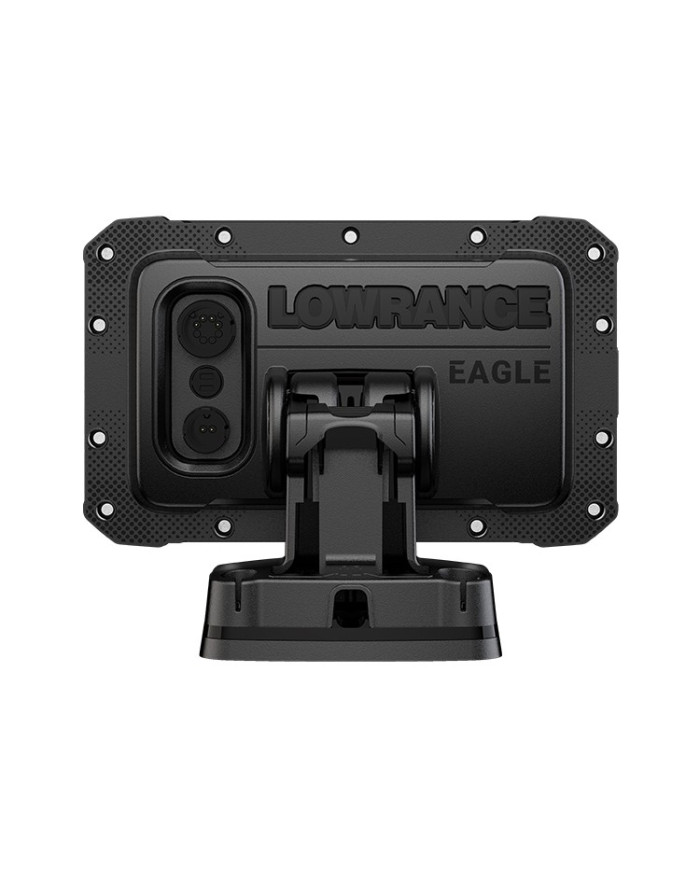

Lowrance Eagle 5 WITH HDI 50 - 200 Transducer Chartplotter Fishfinder

000-16310-001

New

LOWRANCE EAGLE 5 HDI CHARTPLOTTER WITH  50 /200 2-IN-1 MED & HI CHIRP & 450 / 800 KHZ DSI TRANSDUCER

Eagle was born to make fishing as simple and enjoyable as possible

Med & Ho CHIRP and Down Scan Imaging

Easy to use and quick to install, with FishReveal technology and autotuning.

The IPS screen provides higher resolution and visibility from all angles.

With worldwide basemap chart.

More details

Can Collect Durban Trade Counter or Choose COURIER SHIPPING Option (Farms Excluded) on Check Out

R8,461.75

-15%

R9,955.00

More info

LOWRANCE EAGLE 5 HDI CHARTPLOTTER

WITH  50/200 2-IN-1 MED & HI CHIRP & 450 / 800 KHZ DSI TRANSDUCER

SKU: 10.02.243

For the Deep Water Ski Boat Fisherman

Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install,

A new IPS screen provides higher resolution and visibility from all angles. This model comes pre-loaded with a worldwide

basemap chart.

3 YEAR LOWRANCE SA WARRANTY

Specifications

Display: Backlight ColorPure white LED
Display Resolution: 800 x 480
Display Size: 5 inches
Screen Brightness: 1000 NITS
Viewing Angles80° top/bottom, 80° left/right
Connectivity:
SD Card Storage1 slot (microSD® 32 GB maximum)
Cartography: Charts supportedC-MAP® DISCOVER™.
Electrical:
Power Consumption max 280 mA @ 12 V DC with backlight on full
Power Consumption min 190 mA @ 12 V DC with backlight off
Power Consumption typical 280 mA @ 12 V DC with backlight on full
Recommended Fuse Rating: 3A
Supply Voltage: 12v DC (10.8-17VDC)
Environment:
Humidity: 60°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
Waterproofrating: IPX7 with card door closed
GPS:
Correction: SBAS
Time to First Fix: 45s
MFD
Waypoints, Routes, Tracks3000 Waypoints 100 Routes 100 Trails
Physical
Compass Safe12" (300mm)
Dimensions W x H x D182.1 mm (7.17") x 113.2 mm (4.46") x 110.6 (4.35")
Mounting TypeGimbal bracket or dash mount
Weight: 0.46 kg (1.01 lb)
Other
InterfaceKeypad:
8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight

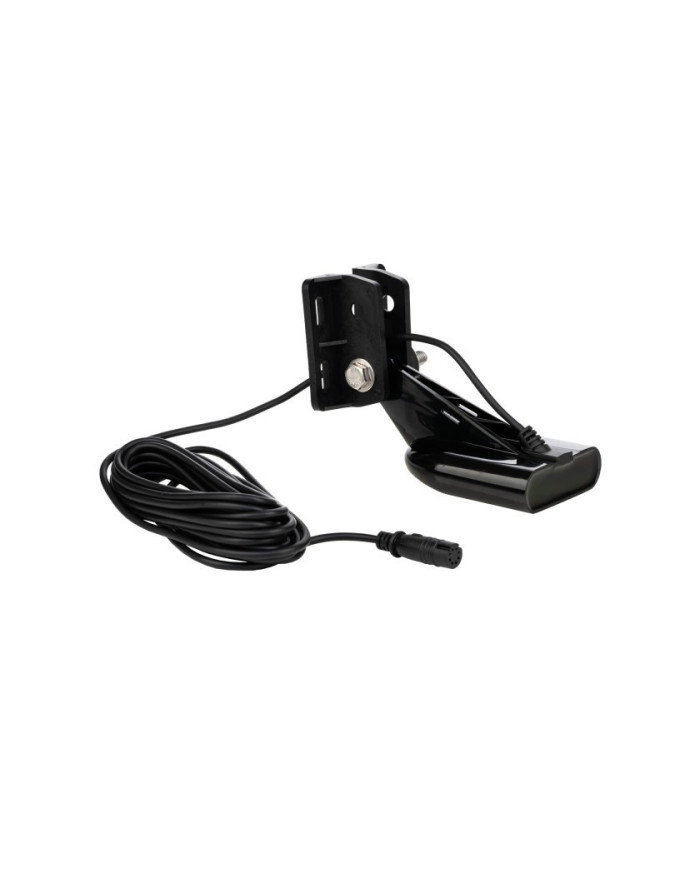

Lowrance HDI 50-200_455-800 khz Skimmer Transducer

Power 600 Watt

Deep Water (</= 750 m / 2 500 ft)

Cone Angle:

200 khz: 20 Degree

50 khz: 45 Degree

With Temperature

With "Down - Imaging" 455-800 Khz

With "Down - Scan" 455-800 Khz and "Hybrid Dual Imaging" for Elite HDI, Elite HDI CHIRP and HDS Series Multi Function Display Units

Features:

Transom Mount

Skimmer type transducer.

20 ft cable.

Stainless Steel Mounting Bracket and Fasteners

(Trolling Mount Bracket Available - Part # 10978-001

Weight: 0,8 kg (1.6 lb)

In The Box

  • Eagle 5 Display
  • HDI 50/200 Transducer & Hardware
  • Power Cable, with fuse and connectors
  • Eagle 5 Quick Release Bracket
