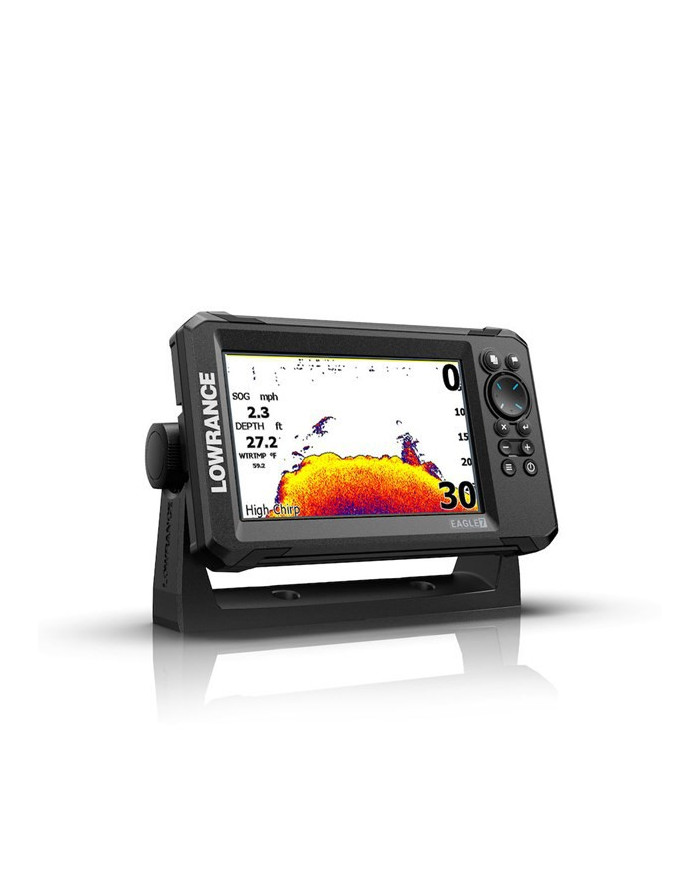

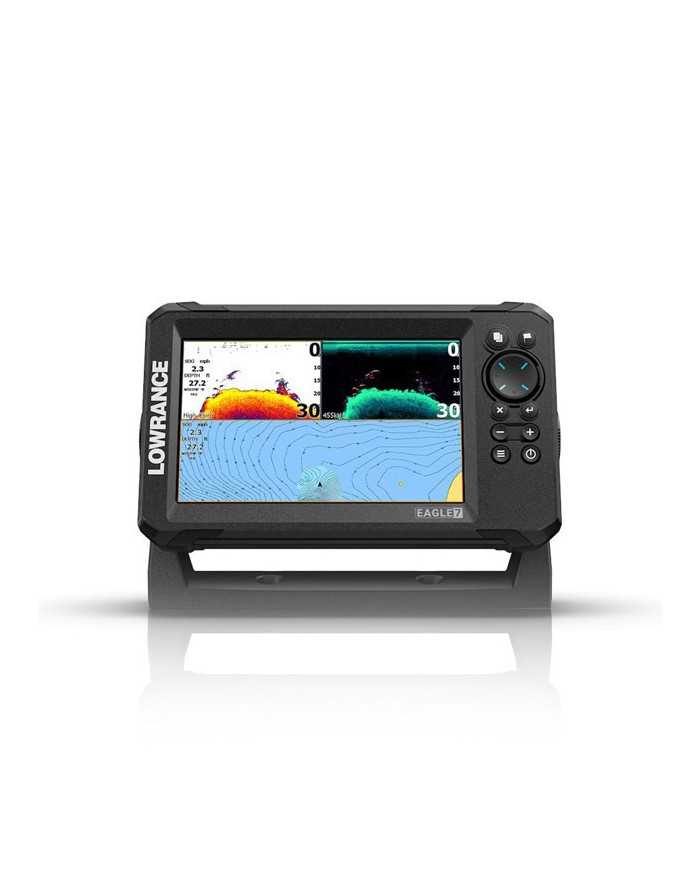

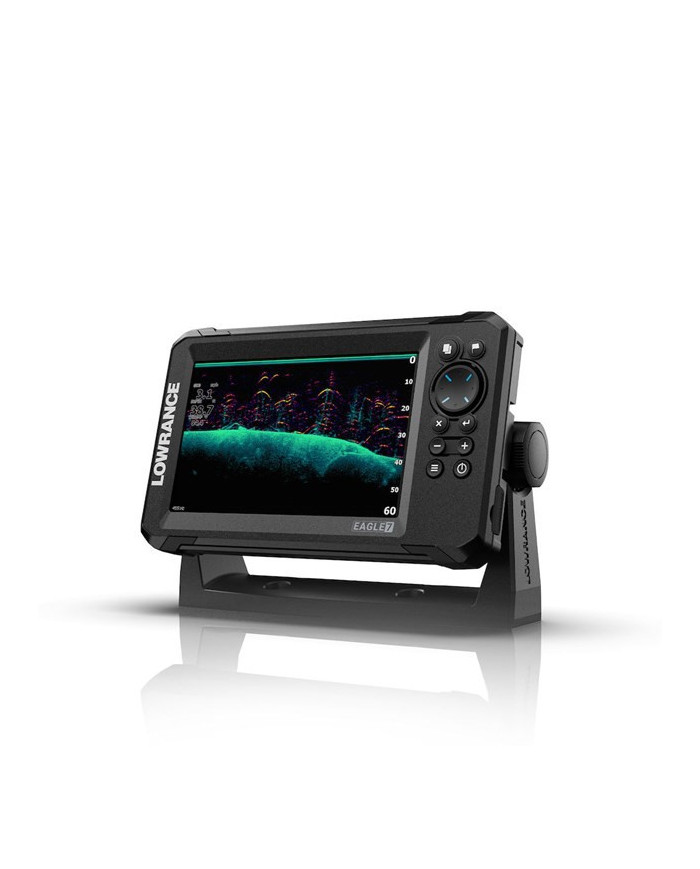

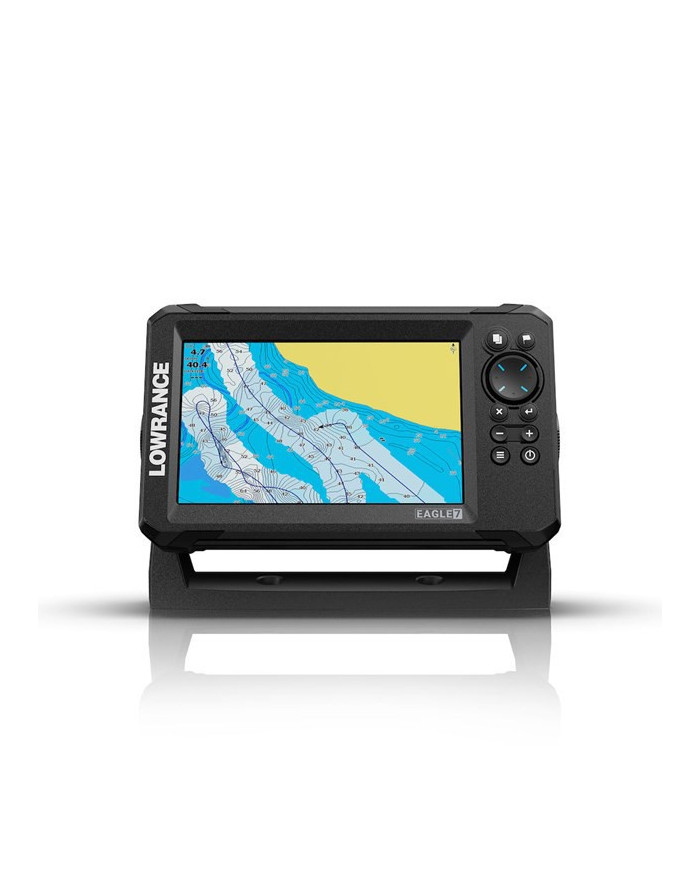

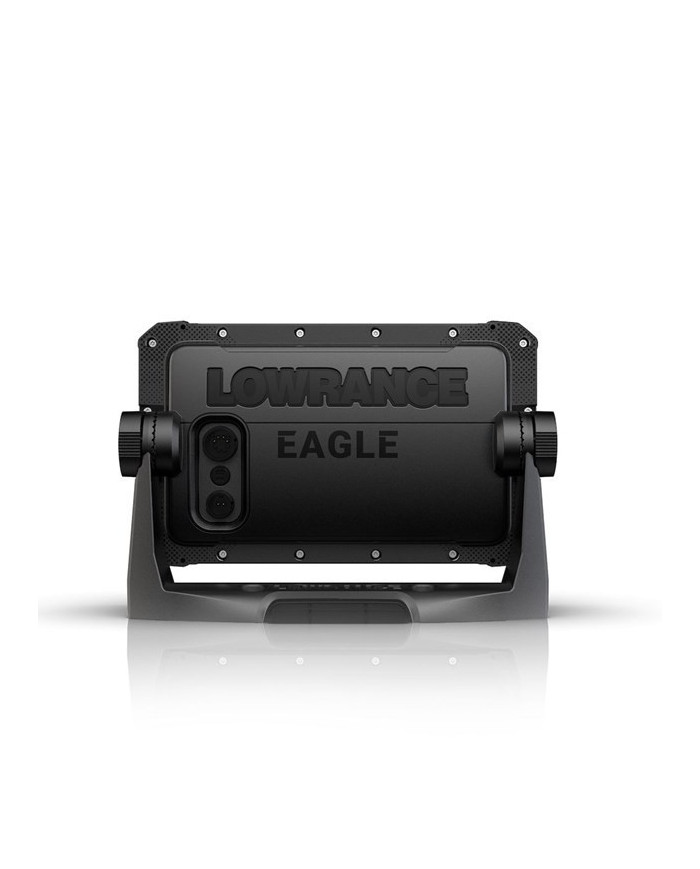

Lowrance Eagle 7 with 83/200 HDI Transducer Chartplotter Fishfinder
R13,360.00
R11,356.00
Tax included
Lowrance Eagle 7 with 83/200 HDI Transducer Chartplotter Fishfinder
C-MAP DISCOVER Ready
Eagle® was born to make fishing as simple and enjoyable as possible.
Easy to use and quick to install, featuring the HDI 83/200 Transducer with FishReveal technology.
The IPS screen provides higher resolution and visibility from all angles.
With worldwide basemap chart.
Lowrance Eagle 7 with 83/200 HDI Transducer Chartplotter Fishfinder
C-MAP DISCOVER Ready
3 YEAR LOWRANCE SA WARRANTY
Eagle® was born to make fishing as simple and enjoyable as possible.
Easy to use and quick to install, featuring the HDI 83/200 Transducer with FishReveal technology and autotuning for a quick and optimal set up.
The IPS screen provides higher resolution and visibility from all angles.
With worldwide basemap chart.
Specifications
Display
Backlight ColorPure white LED
Display Resolution800 x 480
Display Size7 inches
Screen Brightness1000 NITS
Viewing Angles80° top/bottom, 80° left/right
Connectivity
SD Card Storage1 slot (microSD® 32 GB maximum)
Cartography
Charts supportedC-MAP® DISCOVER™.
Electrical
Power Consumption max550 mA @ 12 V DC with backlight on full
Power Consumption min250 mA @ 12 V DC with backlight off
Power Consumption typical550 mA @ 12 V DC with backlight on full
Recommended Fuse Rating3A
Supply Voltage12v DC (10.8-17VDC)
Environment
Humidity60°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
WaterproofratingIPX7 with card door closed
GPS
CorrectionSBAS
Time to First Fix45s
MFD
Cartography includedC-MAP® Discover OnBoard™ charts for the US and Canada
Waypoints, Routes, Tracks3000 Waypoints 100 Routes 100 Trails
Physical
Compass Safe12" (300mm)
Dimensions W x H x D225.9 mm (8.89") x 139.8 mm (5.5") x 88.5 (3.48)
Mounting TypeGimbal bracket or dash mount
Weight0.67 kg (1.48 lb)
Other
InterfaceKeypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
Warranty Period1 Year + 4 additional years of upgrade options totaling 5 years
In The Box
- Eagle 7 Display
- Lowrance HDI 83/200 & 455 / 800 khZ Skimmer Transducer with Mounting Hardware
- Power Cable, with fuse and connectors
- Eagle 7 Gimbal Bracket with Knobs

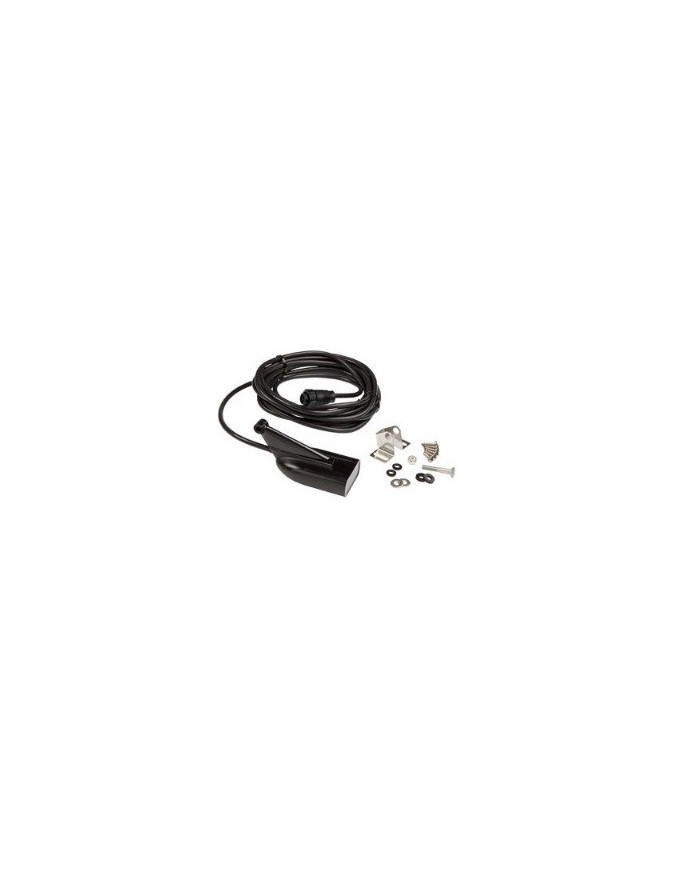

Lowrance HDI 83-200_455-800 khz xSonic Skimmer Transducer with Hook Reveal / Eagle Plug
Power 200 Watt
Shallow Water
Broadband Sonar </= 300 m / 1 000 ft.
Down-Scan Dual Hybrid Imaging </= 105 m / 350 ft.
Cone Angle:
200 khz: 20 Degree
83 khz: 60 Degree
With "Down - Scan" 455-800 Khz and "Hybrid Dual Imaging" for Elite HDI, Elite HDI CHIRP and HDS Series Multi Function Display Units
Features:
Transom Mount
Skimmer type transducer.
20 ft cable.
Stainless Steel Mounting Bracket and Fasteners
(Trolling Mount Bracket Available - Part # 10978-001
Weight: 0,8 kg (1.6 lb)
Supplied with Hook Reveal / Eagle Plug
