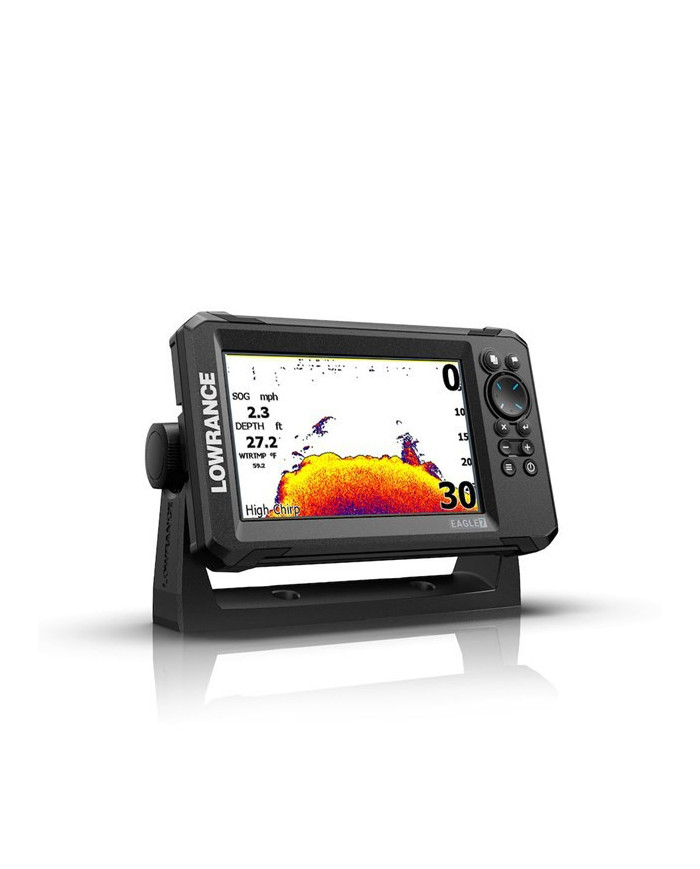

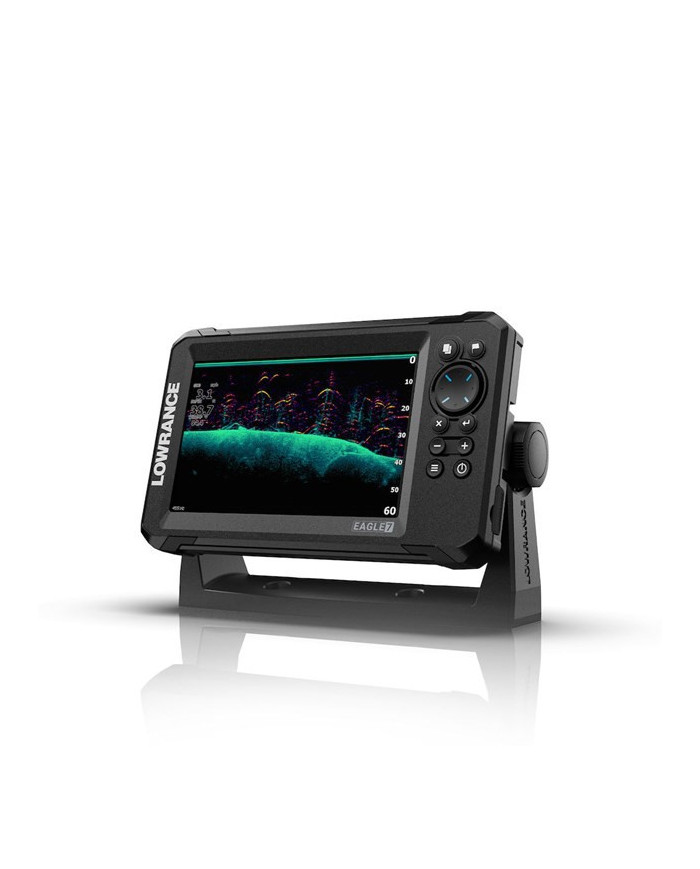

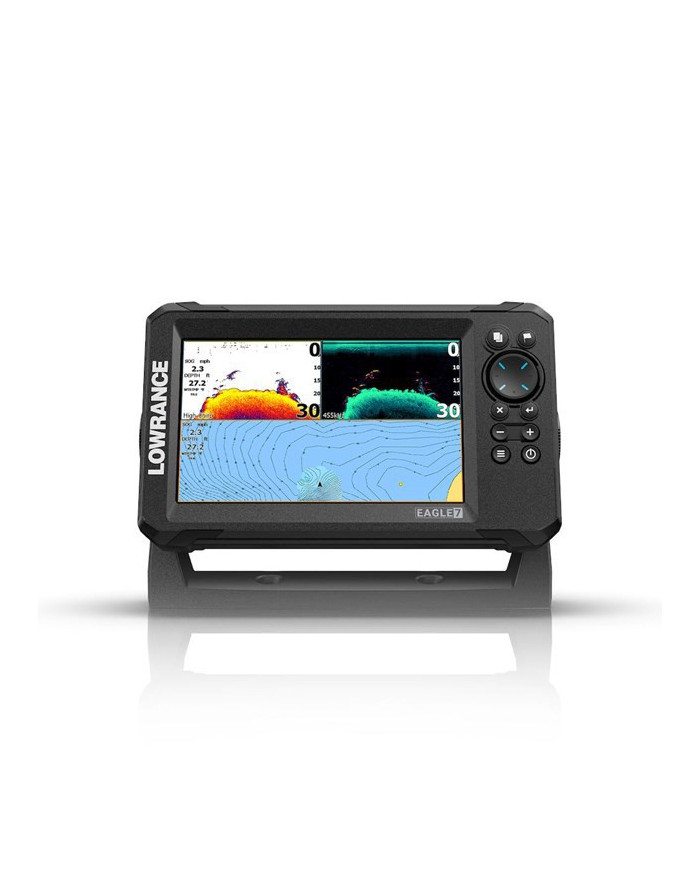

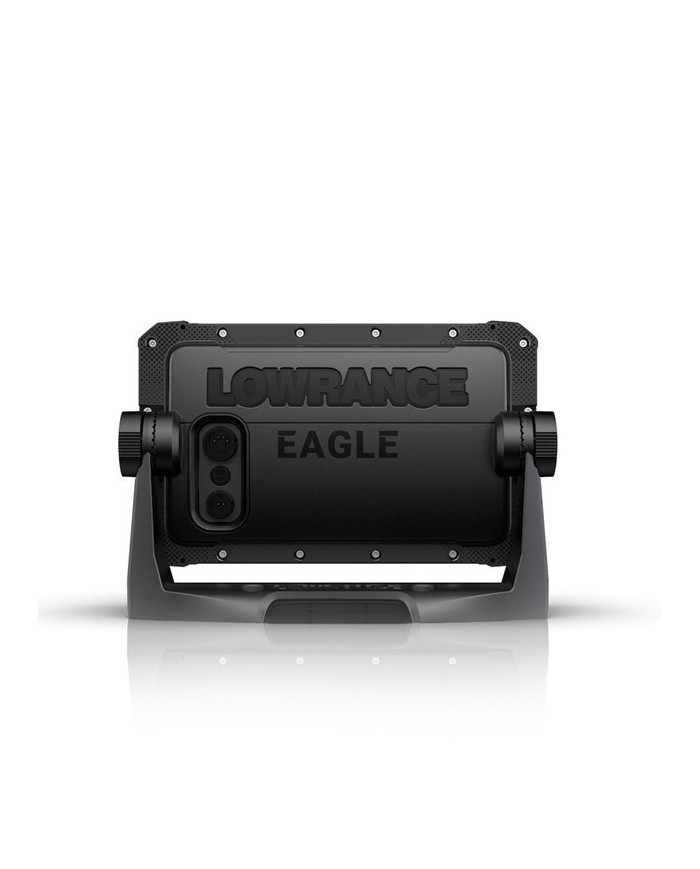

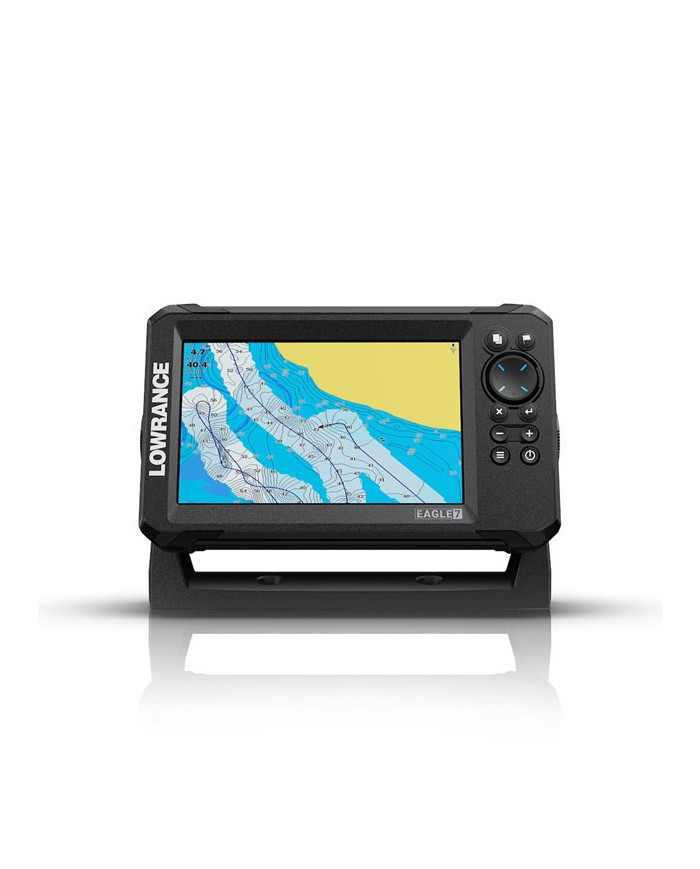

Lowrance Eagle 7 with 50/200 HDI Transducer Chartplotter Fishfinder

000-16311-001

New

Lowrance Eagle 7 with 50/200 HDI Transducer Chartplotter Fishfinder

C-MAP DISCOVER Ready

Eagle® was born to make fishing as simple and enjoyable as possible.

Easy to use and quick to install, featuring the HDI 50/200 600 WATT Transducer with FishReveal technology.

The IPS screen provides higher resolution and visibility from all angles.

With worldwide basemap chart.

More details

Can Collect Pre Paid at Durban Trade Counter or Select Courier Delivery Option to Towns & Cities in RSA

R11,815.00

-15%

R13,900.00

More info

Lowrance Eagle 7 with 50/200 HDI Transducer Chartplotter Fishfinder

C-MAP DISCOVER Ready

3 YEAR LOWRANCE SA WARRANTY

Eagle® was born to make fishing as simple and enjoyable as possible.

Easy to use and quick to install, featuring the HDI 50/200 600 WATT Transducer with FishReveal technology and autotuning for a quick and optimal set up.

The IPS screen provides higher resolution and visibility from all angles.

With worldwide basemap chart.

Specifications

Display
Backlight ColorPure white LED
Display Resolution800 x 480
Display Size7 inches
Screen Brightness1000 NITS
Viewing Angles80° top/bottom, 80° left/right
Connectivity
SD Card Storage1 slot (microSD® 32 GB maximum)
Cartography
Charts supportedC-MAP® DISCOVER™.
Electrical
Power Consumption max550 mA @ 12 V DC with backlight on full
Power Consumption min250 mA @ 12 V DC with backlight off
Power Consumption typical550 mA @ 12 V DC with backlight on full
Recommended Fuse Rating3A
Supply Voltage12v DC (10.8-17VDC)
Environment
Humidity60°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
WaterproofratingIPX7 with card door closed
GPS
CorrectionSBAS
Time to First Fix45s
MFD
Cartography includedC-MAP® Discover OnBoard™ charts for the US and Canada
Waypoints, Routes, Tracks3000 Waypoints 100 Routes 100 Trails
Physical
Compass Safe12" (300mm)
Dimensions W x H x D225.9 mm (8.89") x 139.8 mm (5.5") x 88.5 (3.48)
Mounting TypeGimbal bracket or dash mount
Weight0.67 kg (1.48 lb)
Other
InterfaceKeypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
Warranty Period1 Year + 4 additional years of upgrade options totaling 5 years

In The Box

  • Eagle 7 Display
  • Lowrance HDI 50 / 200 & 455 / 800 khz 600 Watt Skimmer Transducer with Mounting Hardware
  • Power Cable, with fuse and connectors
  • Eagle 7 Gimbal Bracket with Knobs

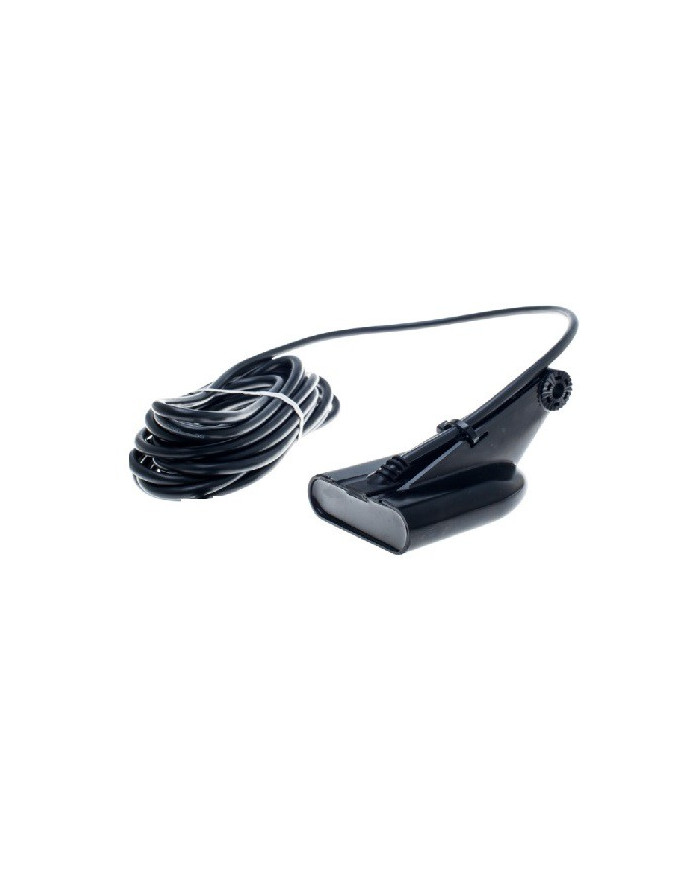

Lowrance HDI 50-200_455-800 khz Skimmer Transducer

Hook Reveal Connector

Power 600 Watt

Deep Water (</= 750 m / 2 500 ft)

Cone Angle:

200 khz: 20 Degree

50 khz: 45 Degree

With Temperature

With "Down - Imaging" 455-800 Khz

With Hook Reveal Connector

With "Down - Scan" 455-800 Khz and "Hybrid Dual Imaging" for Elite HDI, Elite HDI CHIRP and HDS Series Multi Function Display Units

Features:

Transom Mount

Skimmer type transducer.

20 ft cable.

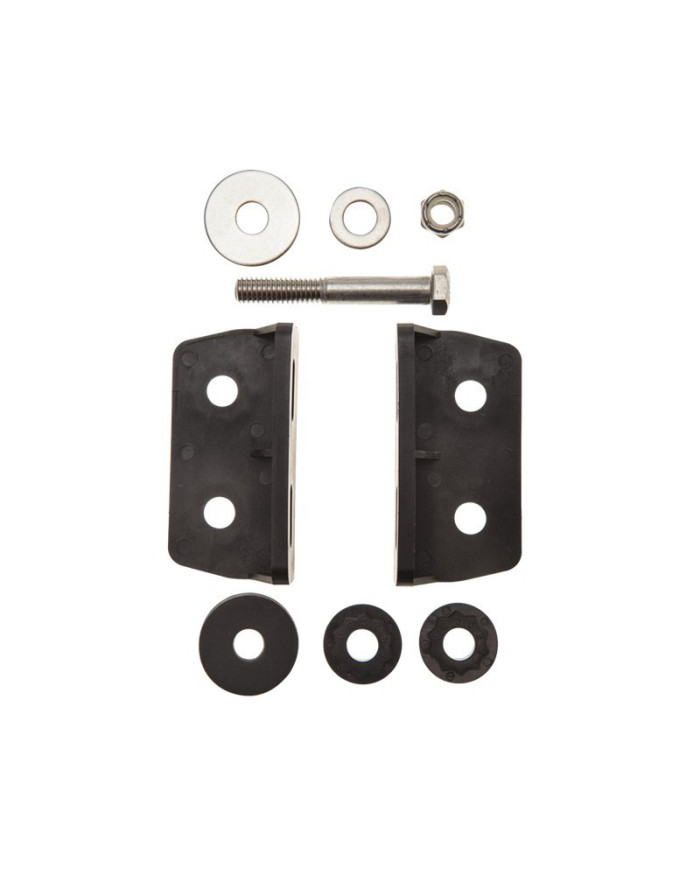

Stainless Steel Mounting Bracket and Fasteners

(No Trolling Mount Bracket Available)

Weight: 0,8 kg (1.6 lb)

Accessories
