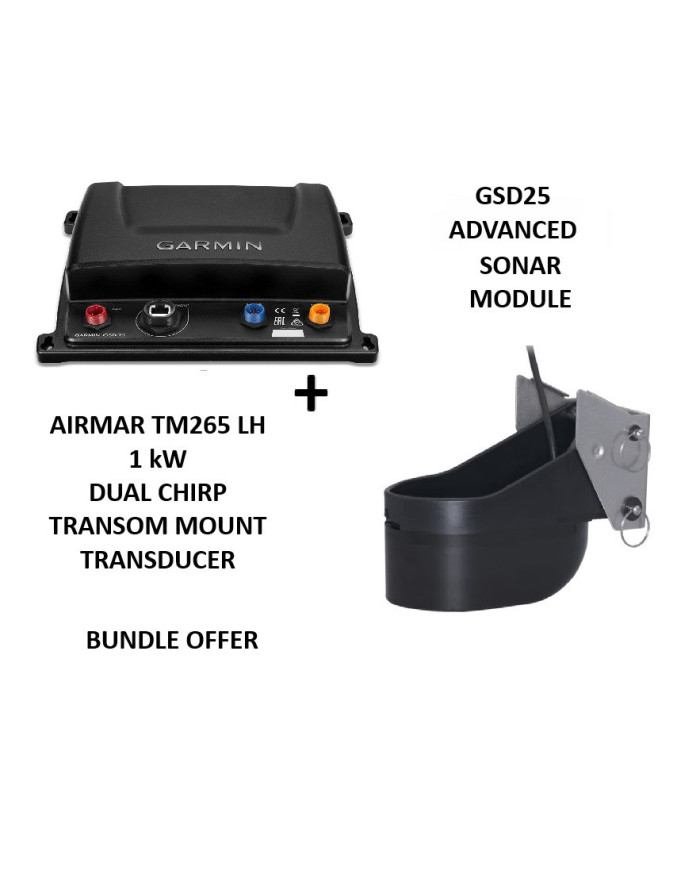

Airmar TM265LH Transom Mount Dual Chirp Transducer & Garmin GSD™ 25 Advanced Sonar Module Bundle

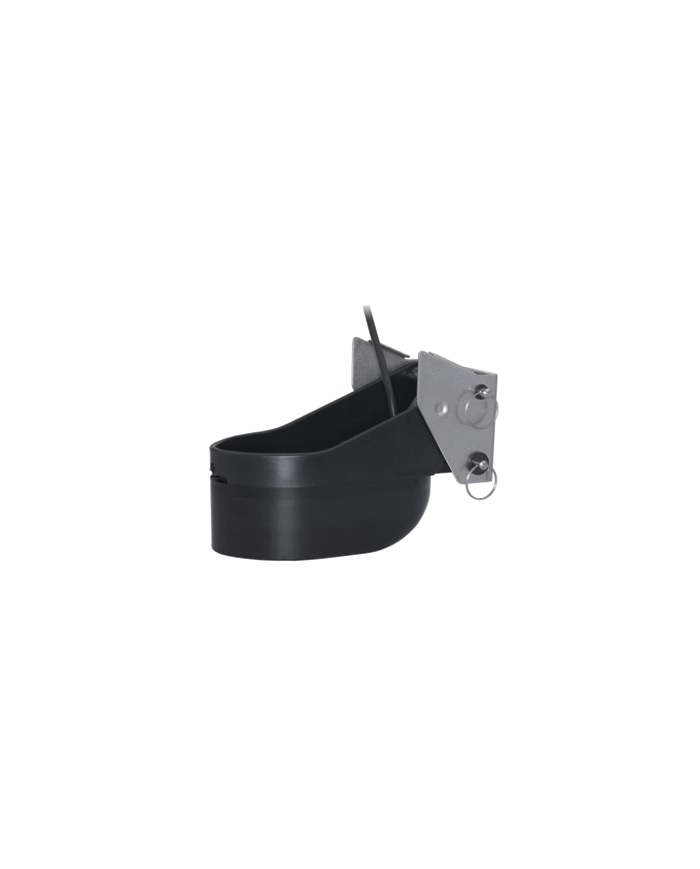

Airmar TM-265 LH

1 kW DUAL CHIRP

Transom Mount Transducer

LOW AND HIGH CHIRP

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The TM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths.

This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s TM265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance.

The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

FEATURES

Depth and fast-response water-temperature sensing

1 kW of power for great deep-water performance

Low frequency: 42 to 65 kHz

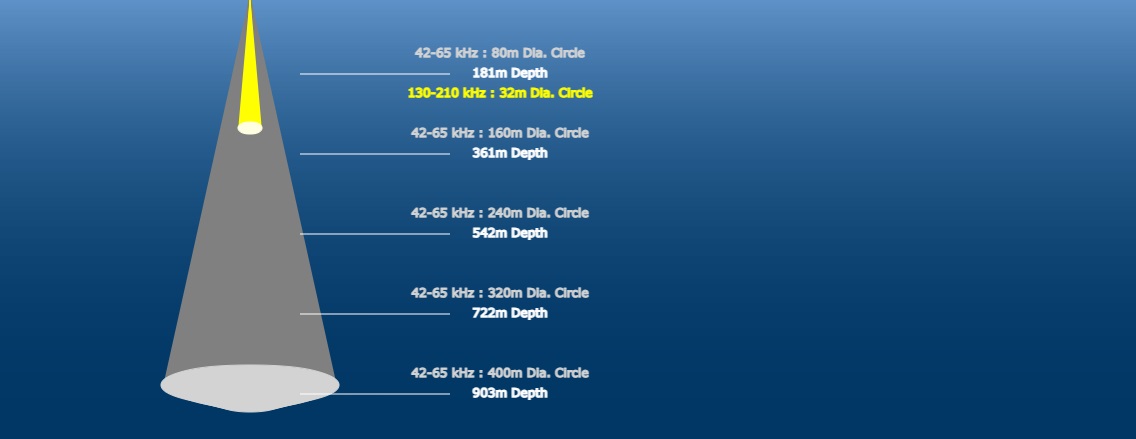

25° to 16° port-starboard beamwidth

Maximum depth of 914 m (3000')

High frequency: 130 to 210 kHz

10° to 6° beamwidth

Maximum depth of 304 m (1000')

103 kHz of total bandwidth from one transducer

Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth

Transom mount, stainless steel bracket for installation on boats of all propulsion types

SEALCAST™, seamless, urethane housing for long life in the water

Also available as cavity/welded-tank (CM265LH), thru-hull (B265LH), in-hull (M265LH), and pocket (PM265LH) mounts

Patented Xducer ID® technology

Garmin 12 Pin Connector

SPECIFICATIONS

Power Rating: 1 kW

Transom Angle: 3° to 21°

Functions: Depth, Temperature

Max Vessel LOA: Up to 10 m (33')

Acoustic Window: Urethane

Common Use: Fishing, Commercial Fishing

High Frequency: 130-210 kHz

High Frequency Beamwidth: 16°-11°

Housing: Urethane/Stainless Bracket

Hull Material: Compatible w/ all hull materials

Low Frequency: 42-65 kHz

Low Frequency Beamwidth: 25°-16°

Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')

Mounting Style: Transom

Retractable housing: No

Single or Dual Frequency: CHIRP-Ready Dual-Band

Tilted Element: No

Connector: Garmin 12 - Pin

Weight: 4 kg (8.9 lb.)

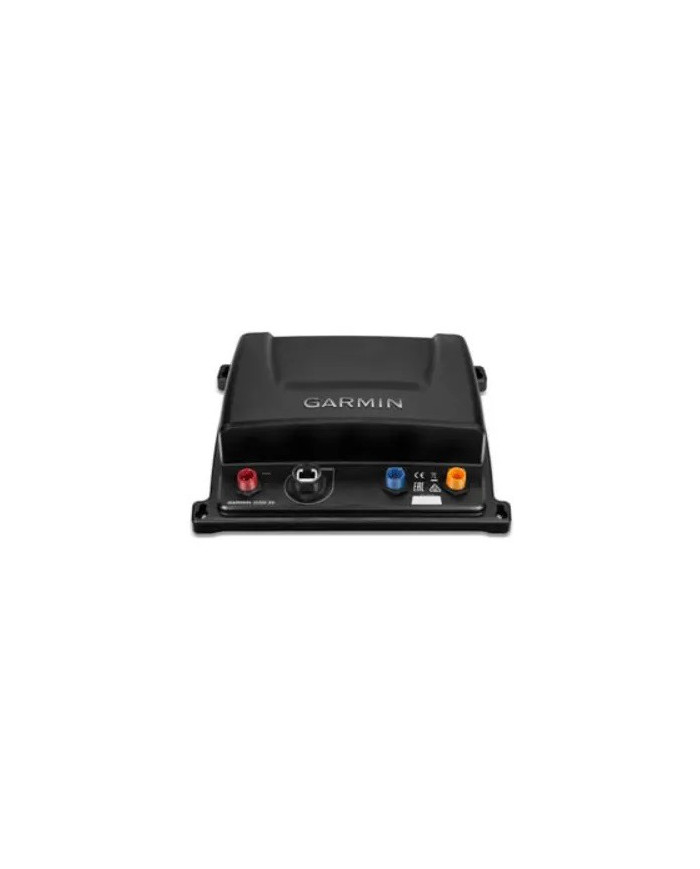

Garmin GSD™ 25 Advanced Sonar Module

• GSD 25
• Right-angle power cable (6 feet)
• Right-angle network cable (6 feet)
• Mounting hardware
• Documentation

Premium CHIRP and Scanning Sonar Module

• Premium remote network sonar solution
• Includes true dual-channel 1 kW CHIRP, plus CHIRP SideVü and ClearVü scanning sonar for the clearest images on the water (transducers sold separately)
• Provides serious sport fishers outstanding fishfinding and bottom tracking capabilities
• Helps distinguish between small and closely spaced fish at key fishing depths
• Depth capability to 5,000 feet

The GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1 kW CHIRP, plus Garmin CHIRP ClearVü™ and Garmin CHIRP SideVü™ sonar scanning for the clearest scanning images on the water. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.

True Dual-Channel 1 kW CHIRP

CHIRP is the most sophisticated sonar technology available for use by the fishing and boating public. CHIRP is an acronym for Compressed High-Intensity Radiated Pulse. What it means to you is much better target resolution, clarity and crispness than any other sonar system. Having Garmin true dual 1 kW CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low/medium, low/high, medium/high to further optimize your sonar performance. Transducer sold separately.

Clearest Scanning Sonar Images on the Water

Adding CHIRP TECHNOLOGY to CLEARVU & SIDEVU SCANNING SONAR further enhances the resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat.

Built-in to our new GPSMAPxsv combos and GSD 25 Premium Sonar Module, it uses 1 transducer for traditional CHIRP HD-ID sonar and CHIRP ClearVü and SideVü scanning sonar. Transducer sold separately.
