Airmar M265LH In Hull Mount Dual Chirp Transducer & Garmin GSD 28 Professional Sonar Module Bundle
R134,698.00
R102,968.00
Hurry up! Sales Ends In
Days
Hrs
Min
Sec
Tax included

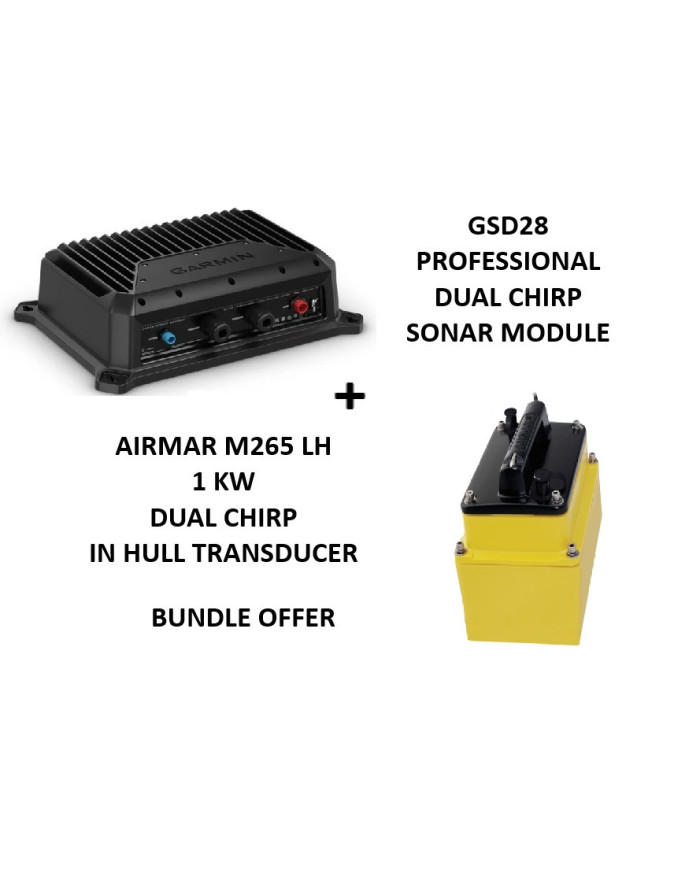

Airmar M265LH Dual CHIRP 1 kW In Hull Mount Transducer
& Garmin GSD 28 Professional Sonar Module
Bundle
- Airmar M265LH Dual CHIRP In Hull Transducer Kit
- GSD 28 Module
- Right-angle power cable (6 feet)
- Right-angle network cable (6 feet)
- Mounting hardware
- Documentation
Airmar M265LH Dual CHIRP 1 kW In Hull Mount Transducer
& Garmin GSD 28 Professional Sonar Module
Bundle
- Airmar M265LH Dual CHIRP In Hull Transducer Kit
- GSD 28 Module
- Right-angle power cable (6 feet)
- Right-angle network cable (6 feet)
- Mounting hardware
- Documentation

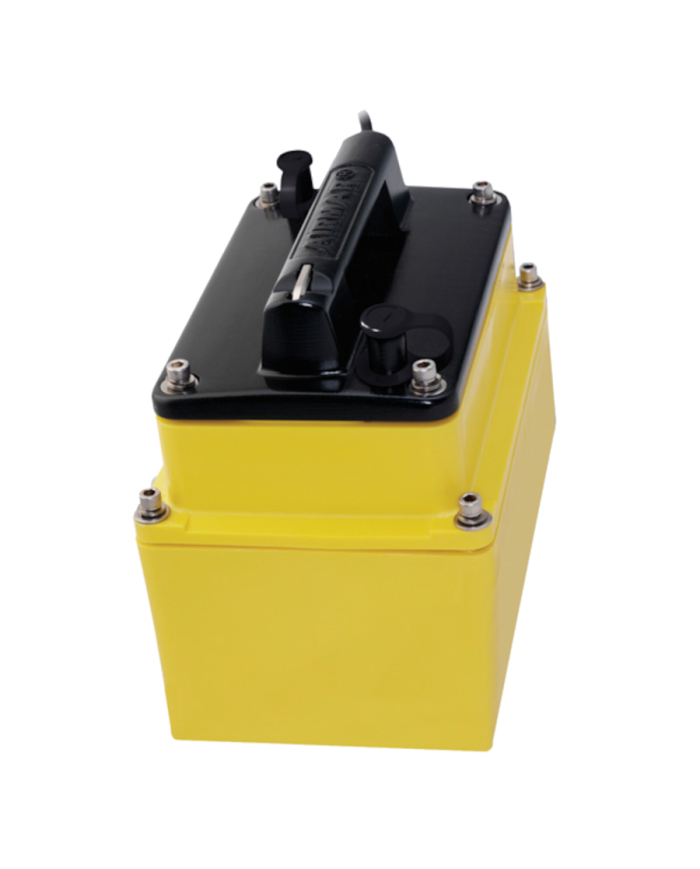

Airmar M-265 LH
1 kW DUAL CHIRP
In Hull Mount Transducer
LOW AND HIGH CHIRP
We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz.
The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.
Airmar’s M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, bandwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.
The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
FEATURES
Depth only
1 kW of power for great deep-water performance
Low frequency: 42 to 65 kHz
25° to 16° beamwidth
Maximum depth of 914 m (3000')
High frequency: 130 to 210 kHz
10° to 6° beamwidth
Maximum depth of 304 m (1000')
103 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
Plastic transducer housing and mounting tank
Also available as transom (TM265LH), thru-hull (B265LH), pocket (PM265LH), and cavity/welded-tank (CM265LH) mounts
Patented Xducer ID® technology
SPECIFICATIONS
Power Rating: 1 kW
Max Deadrise: Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull
Max Vessel LOA: Up to 11 m (36')
Acoustic Window: Urethane
Common Use: Fishing, Commercial Fishing
Functions: Depth
High Frequency: 130-210 kHz
High Frequency Beamwidth: 10°-6°
Housing: Plastic
Hull Material: Solid fiberglass only
Low Frequency: 42-65 kHz
Low Frequency Beamwidth: 25°-16°
Max Deadrise Angle: 30°
Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')
Mounting Style: In-Hull
Retractable housing: No
Single or Dual Frequency: CHIRP-Ready Dual-Band
Tilted Element: No
Weight: 5.2 kg (11.5 lb.)

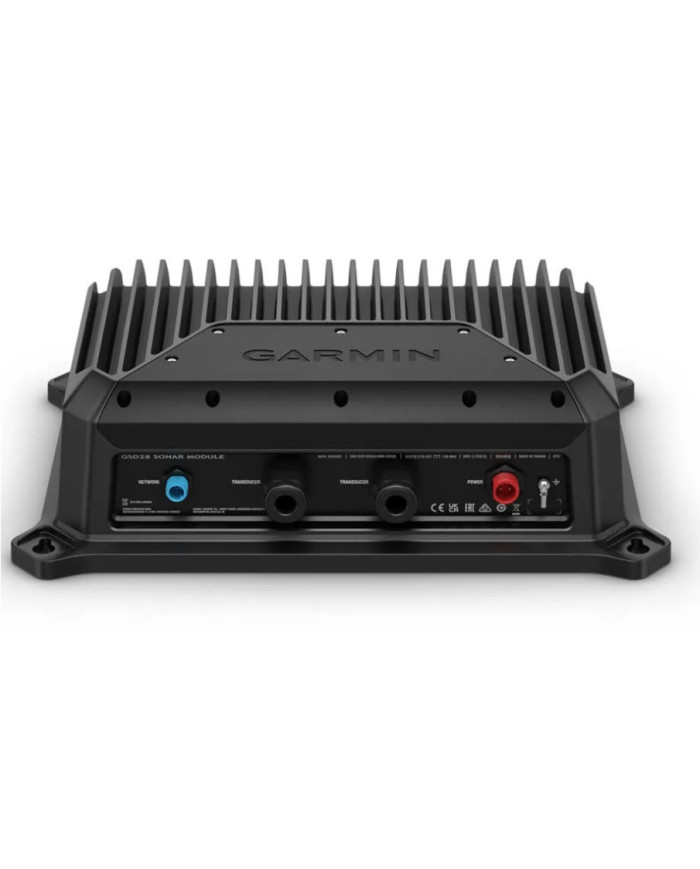

Garmin GSD28 Professional Sonar Module
THE DEPTHS. REVEALED.
See what’s down there. Catch what’s down there. Take your sport fishing to extreme depths with a high-powered sonar module with the features you need to improve your chances for success.
- GSD 28
- Power cable
- Garmin BlueNet™ marine network cable (1,8 m/6 ft) with legacy network adapter
- Field installable adapter kit for the Garmin BlueNet network
- Mounting hardware
- Documentation
