Airmar TM265LH Dual CHIRP 1 kW In Hull Mount Transducer

& Garmin GSD 28 Professional Sonar Module

Bundle

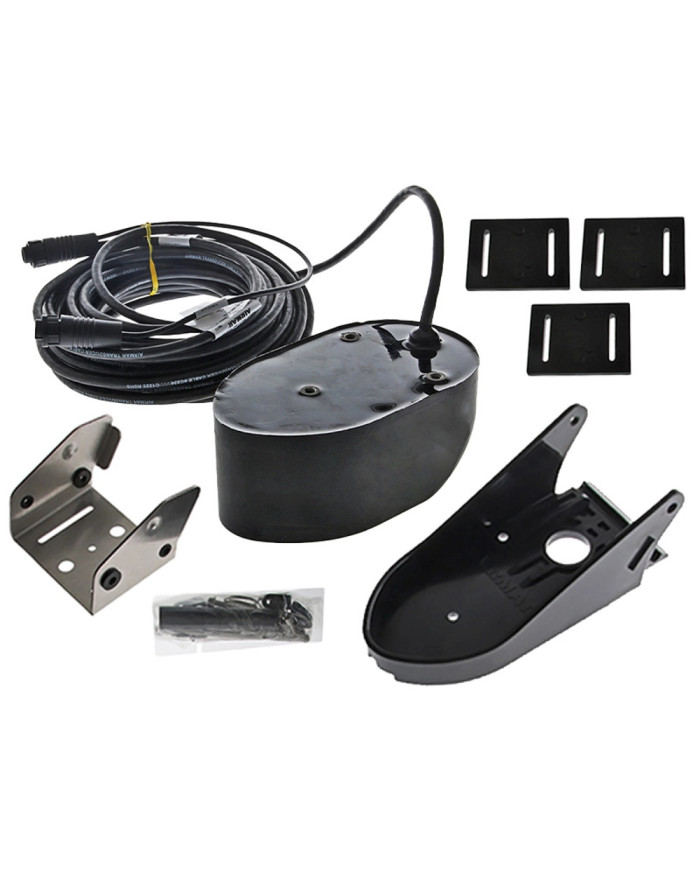

• Airmar TM265LH Dual CHIRP Transom Mount Transducer Kit

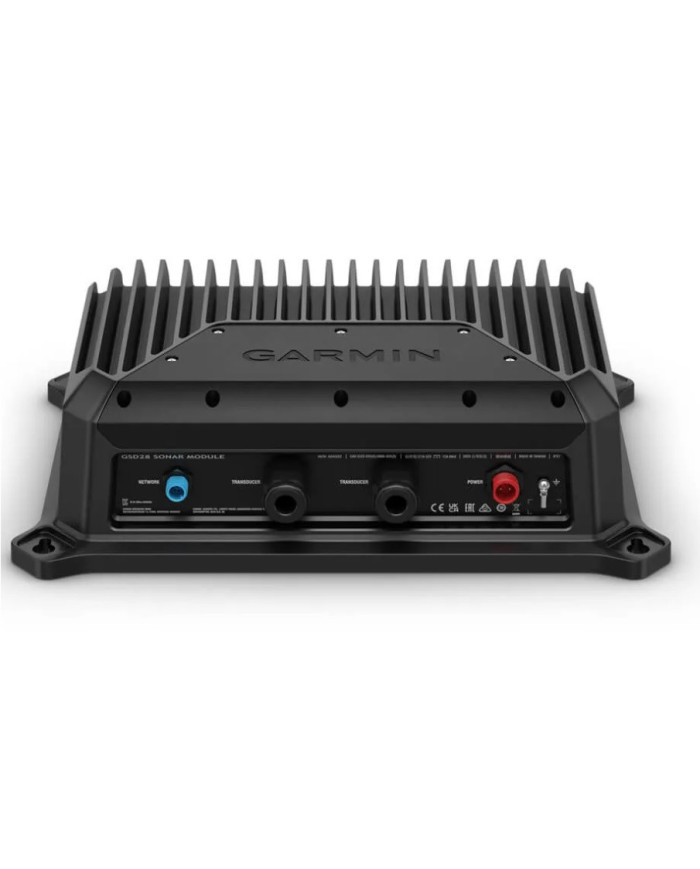

• GSD 28 Module
• Right-angle power cable (6 feet)
• Right-angle network cable (6 feet)
• Mounting hardware
• Documentation

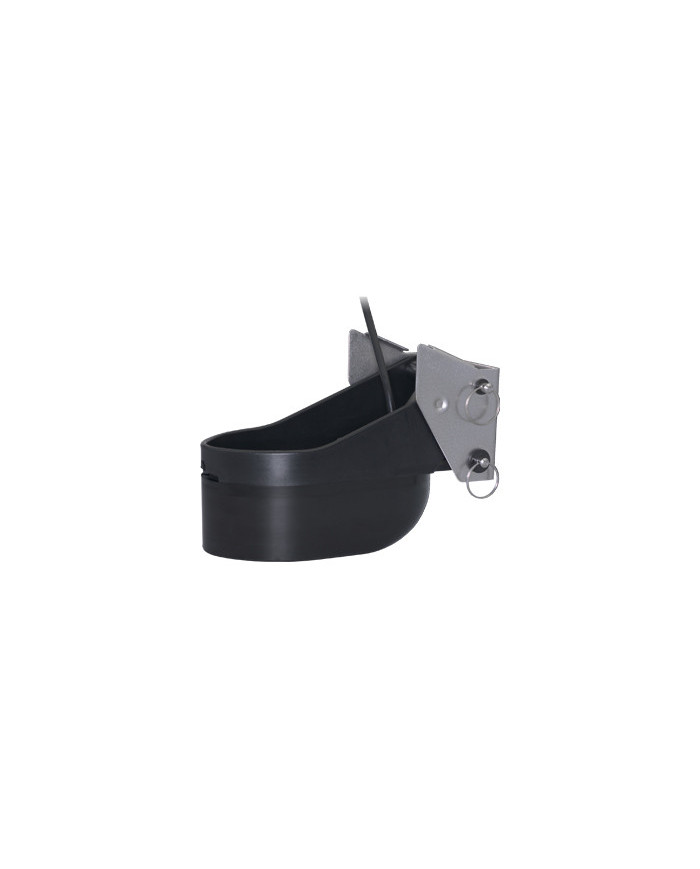

Airmar TM-265 LH

1 kW DUAL CHIRP

Transom Mount Transducer

LOW AND HIGH CHIRP

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The TM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s TM265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance.

The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

FEATURES

Depth and fast-response water-temperature sensing

1 kW of power for great deep-water performance

Low frequency: 42 to 65 kHz

25° to 16° port-starboard beamwidth

Maximum depth of 914 m (3000')

High frequency: 130 to 210 kHz

10° to 6° beamwidth

Maximum depth of 304 m (1000')

103 kHz of total bandwidth from one transducer

Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth

Transom mount, stainless steel bracket for installation on boats of all propulsion types

SEALCAST™, seamless, urethane housing for long life in the water

Also available as cavity/welded-tank (CM265LH), thru-hull (B265LH), in-hull (M265LH), and pocket (PM265LH) mounts

Patented Xducer ID® technology

SPECIFICATIONS

Power Rating: 1 kW

Transom Angle: 3° to 21°

Functions: Depth, Temperature

Max Vessel LOA: Up to 10 m (33')

Acoustic Window: Urethane

Common Use: Fishing, Commercial Fishing

High Frequency: 130-210 kHz

High Frequency Beamwidth: 16°-11°

Housing: Urethane/Stainless Bracket

Hull Material: Compatible w/ all hull materials

Low Frequency: 42-65 kHz

Low Frequency Beamwidth: 25°-16°

Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')

Mounting Style: Transom

Retractable housing: No

Single or Dual Frequency: CHIRP-Ready Dual-Band

Tilted Element: No

Weight: 4 kg (8.9 lb.)
