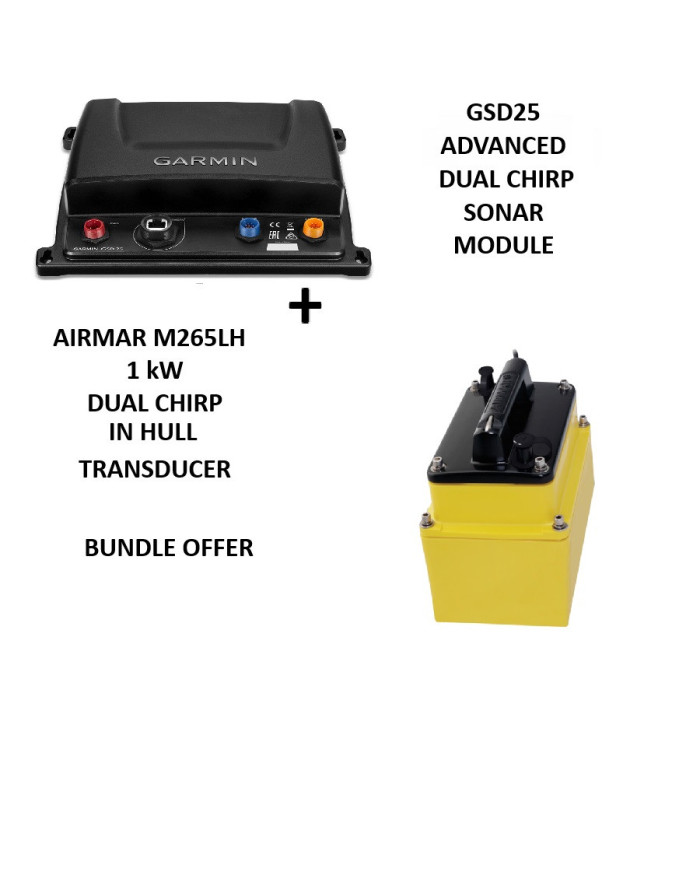

Airmar TM265LH Transom Mount Dual Chirp Transducer & Garmin GSD™ 25 Advanced Sonar Module Bundle

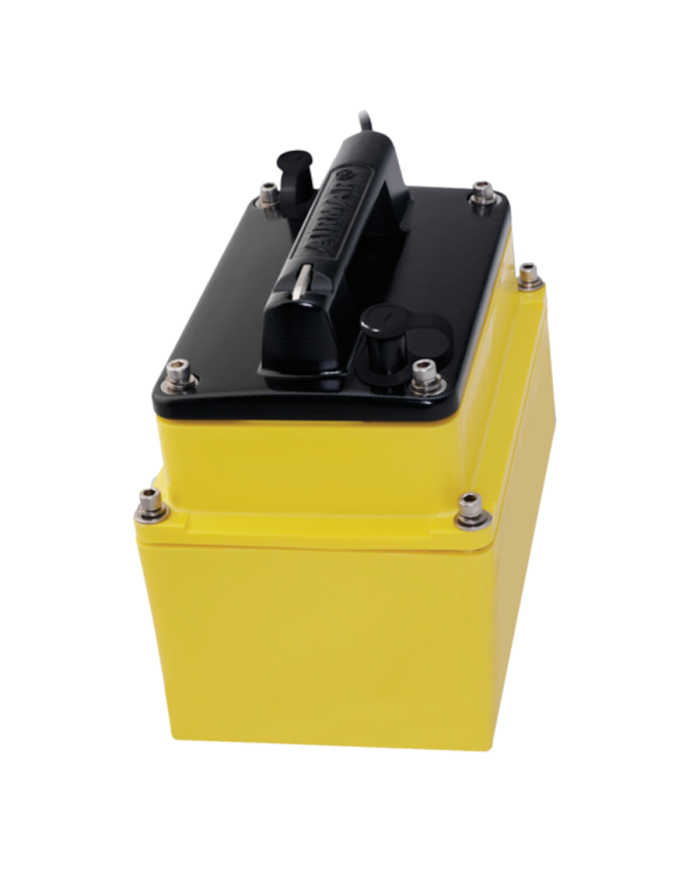

Airmar M-265 LH

1 kW DUAL CHIRP

In Hull Mount Transducer

LOW AND HIGH CHIRP

The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, bandwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.

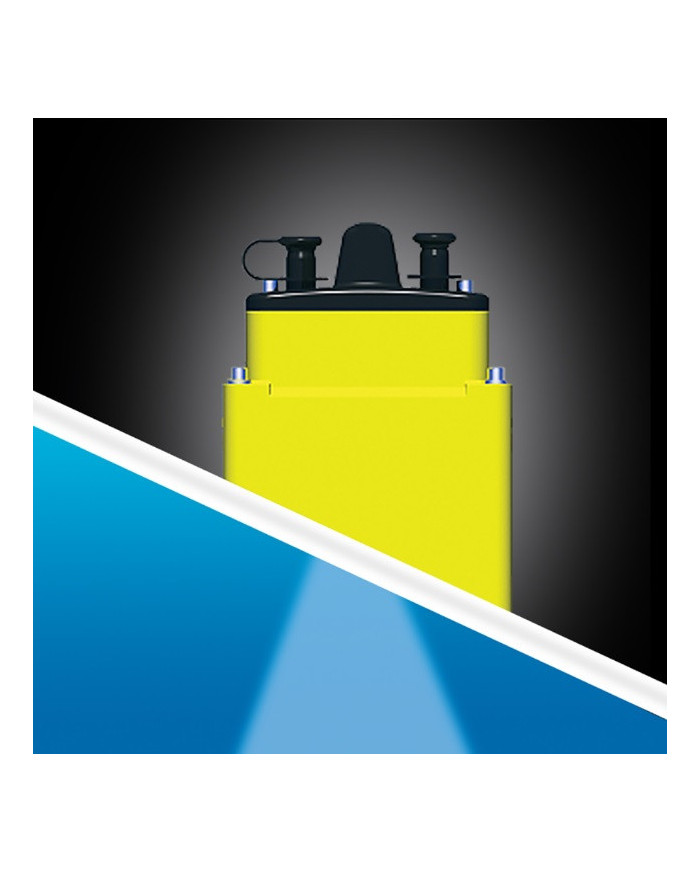

The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.

FEATURES

Depth only

1 kW of power for great deep-water performance

Low frequency: 42 to 65 kHz

25° to 16° beamwidth

Maximum depth of 914 m (3000')

High frequency: 130 to 210 kHz

10° to 6° beamwidth

Maximum depth of 304 m (1000')

103 kHz of total bandwidth from one transducer

Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth

Plastic transducer housing and mounting tank

Also available as transom (TM265LH), thru-hull (B265LH), pocket (PM265LH), and cavity/welded-tank (CM265LH) mounts

Patented Xducer ID® technology

SPECIFICATIONS

Power Rating: 1 kW

Max Deadrise: Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull

Max Vessel LOA: Up to 11 m (36')

Acoustic Window: Urethane

Common Use: Fishing, Commercial Fishing

Functions: Depth

High Frequency: 130-210 kHz

High Frequency Beamwidth: 10°-6°

Housing: Plastic

Hull Material: Solid fiberglass only

Low Frequency: 42-65 kHz

Low Frequency Beamwidth: 25°-16°

Max Deadrise Angle: 30°

Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')

Mounting Style: In-Hull

Retractable housing: No

Single or Dual Frequency: CHIRP-Ready Dual-Band

Tilted Element: No

Weight: 5.2 kg (11.5 lb.)

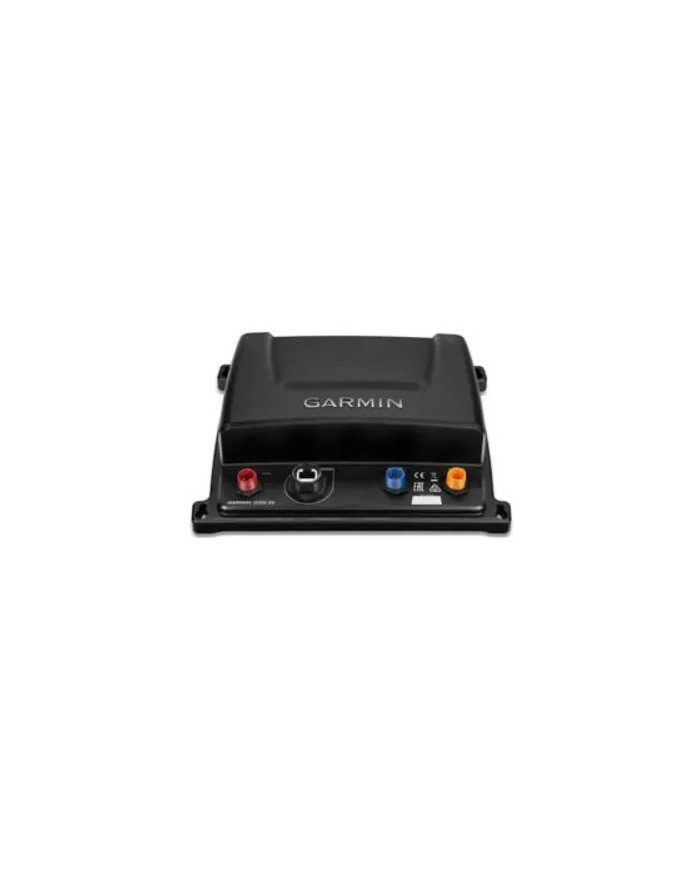

Garmin GSD™ 25 Advanced Sonar Module

• GSD 25
• Right-angle power cable (6 feet)
• Right-angle network cable (6 feet)
• Mounting hardware
• Documentation

Premium CHIRP and Scanning Sonar Module

• Premium remote network sonar solution
• Includes true dual-channel 1 kW CHIRP, plus CHIRP SideVü and ClearVü scanning sonar for the clearest images on the water (transducers sold separately)
• Provides serious sport fishers outstanding fishfinding and bottom tracking capabilities
• Helps distinguish between small and closely spaced fish at key fishing depths
• Depth capability to 5,000 feet

The GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1 kW CHIRP, plus Garmin CHIRP ClearVü™ and Garmin CHIRP SideVü™ sonar scanning for the clearest scanning images on the water. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.

True Dual-Channel 1 kW CHIRP

CHIRP is the most sophisticated sonar technology available for use by the fishing and boating public. CHIRP is an acronym for Compressed High-Intensity Radiated Pulse. What it means to you is much better target resolution, clarity and crispness than any other sonar system. Having Garmin true dual 1 kW CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low/medium, low/high, medium/high to further optimize your sonar performance. Transducer sold separately.

Clearest Scanning Sonar Images on the Water

Adding CHIRP TECHNOLOGY to CLEARVU & SIDEVU SCANNING SONAR further enhances the resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat.

Built-in to our new GPSMAPxsv combos and GSD 25 Premium Sonar Module, it uses 1 transducer for traditional CHIRP HD-ID sonar and CHIRP ClearVü and SideVü scanning sonar. Transducer sold separately.
