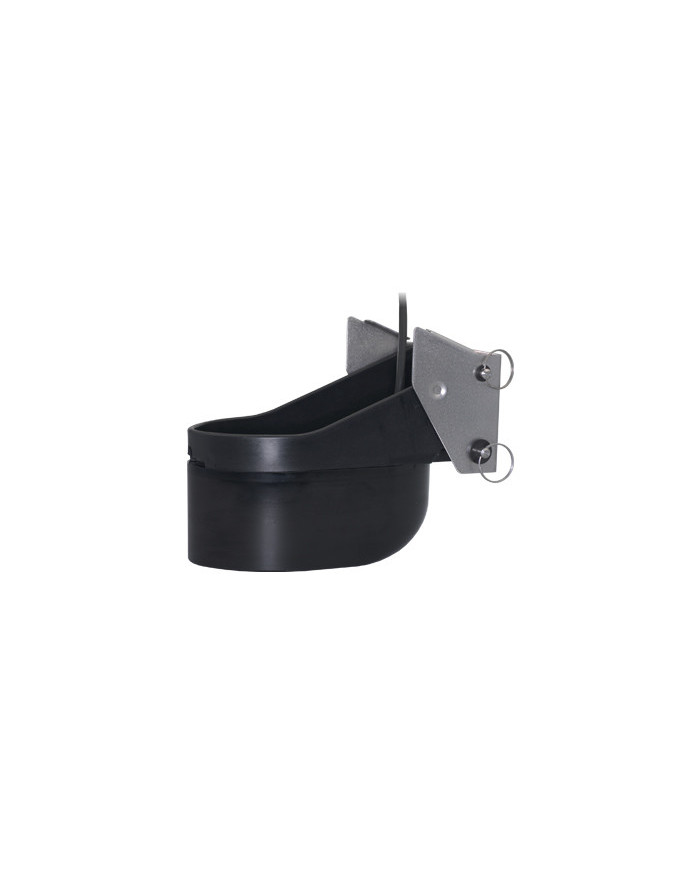

Garmin AIRMAR TM265LH 12-pin Dual CHIRP 1kW Transom Mount Transducer

Our plastic transom mount performs well in deep water and provides exceptional bottom and water column detail.

The best performing 1 kW transom mount, this transducer has a maximum depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and mounts on a 3 to 21 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

TM265LH Chirp-ready Transom Mount

1 kW

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz.

The TM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths.

This powerhouse transducer delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

The TM265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance.

The high-frequency ceramic operates between 130 and 210 kHz with a narrow (10° to 6°) beamwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.

FOR MAXIMUM PERFORMANCE, WE RECCOMEND USING A "GPSMAP" CHARTPLOTTER AND A GSD ADVANCED SONAR MODULE

Features
