Garmin LiveScope PLUS System LVS34 Transducer with GLS 10 Module ON CLOSE OUT SALE
R48,499.00
R34,658.00
Tax included

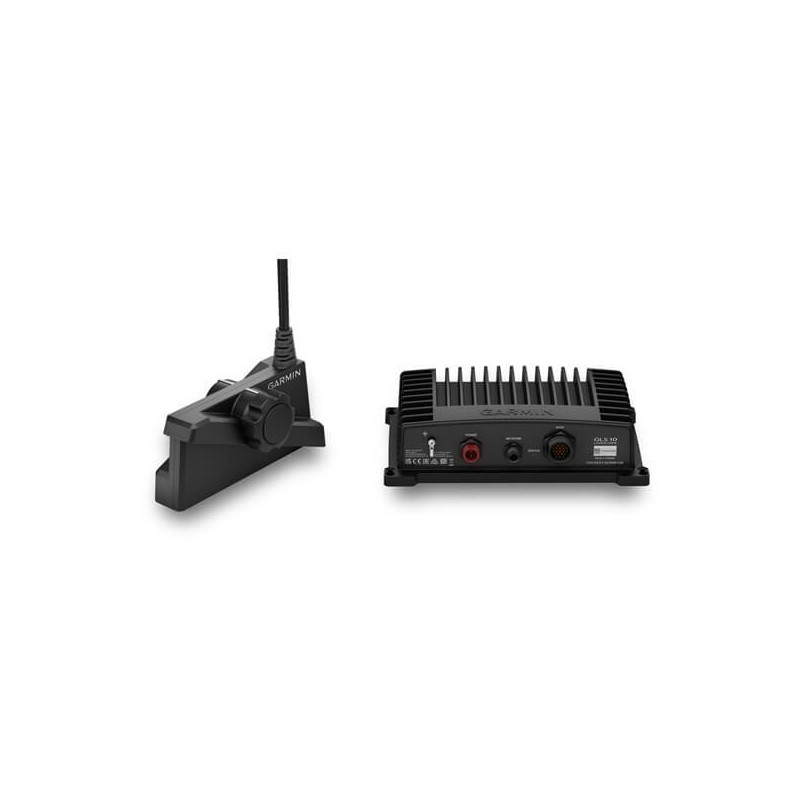

Garmin LiveScope™ Plus System, With GLS 10™ and LVS34 Transducer
With GLS 10™ Module and LVS34 Transducer
CLOSE OUT SALE
WHILE STOCKS LAST!
Garmin LiveScope™ Plus System, With GLS 10™ and LVS34 Transducer
With GLS 10™ Module and LVS34 Transducer
CLOSE OUT SALE
WHILE STOCKS LAST!
PART NUMBER 010-02706-00

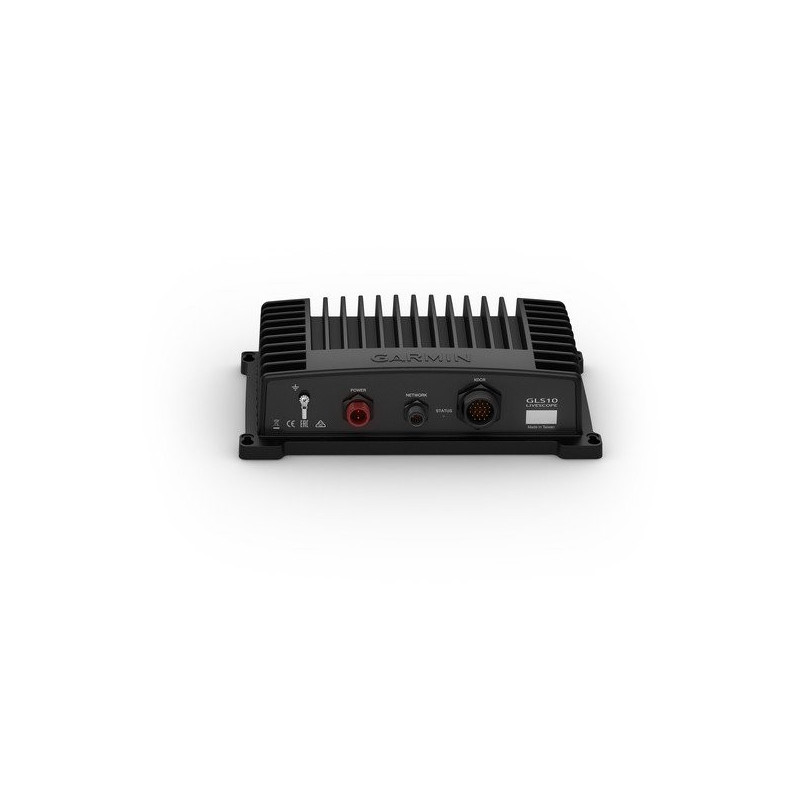

- LiveScope GLS 10 sonar black box

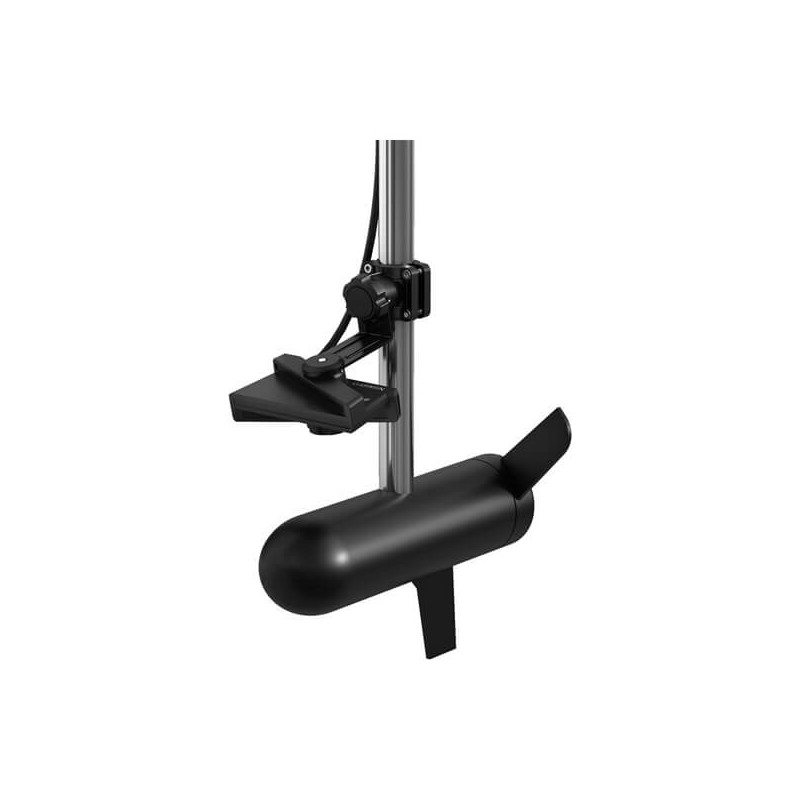

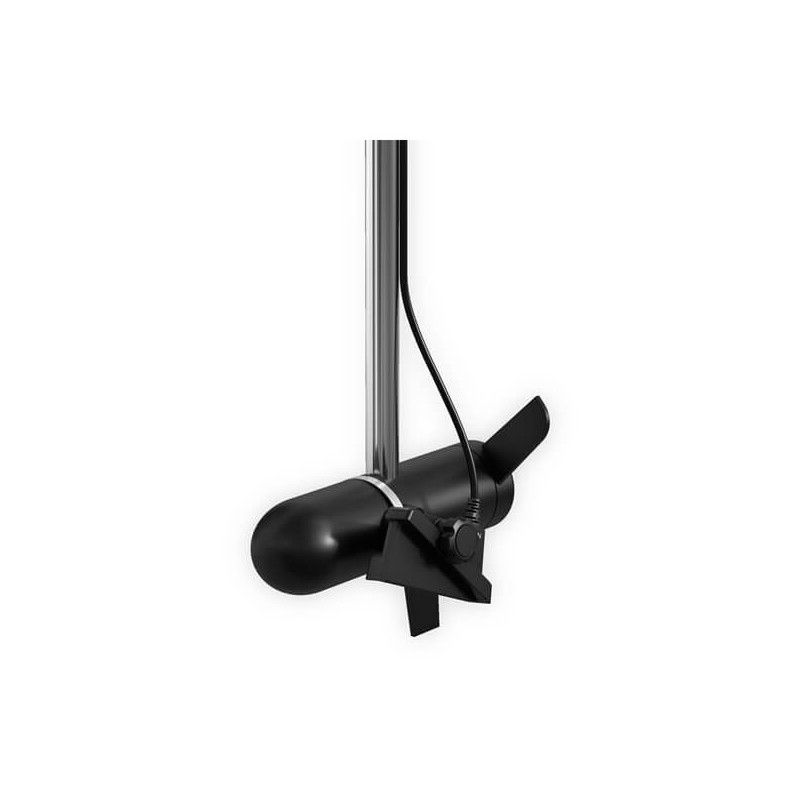

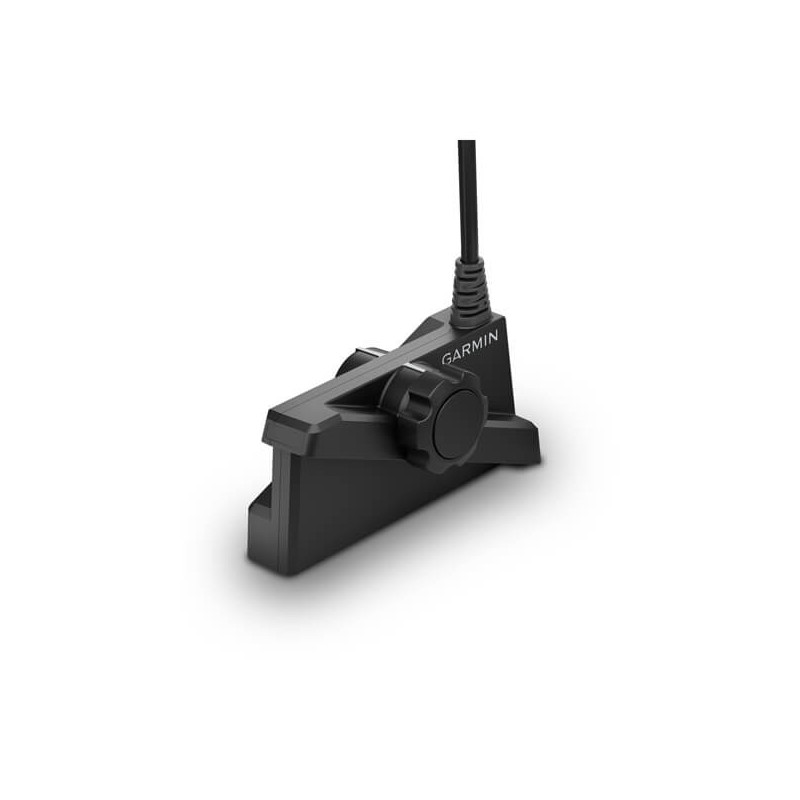

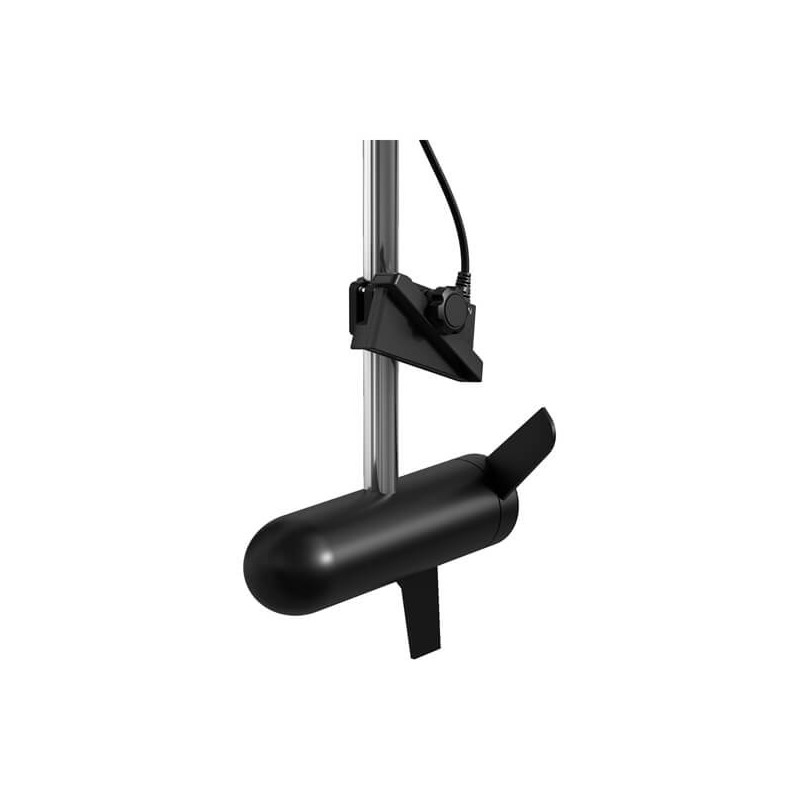

- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 metre Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
The Best Just Got Better!
General |
|
| DIMENSION |
GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
|---|---|
| WEIGHT |
GLS 10 sonar black box: 4.3 lbs (2.0 kg); LVS34 transducer: 2.25 lbs (1.02 kg) |
| WATER RATING | IPX7 |
| TEMPERATURE RANGE |
GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C |
Sonar features & specifications |
|
| FREQUENCY | 530 - 1,100 kHz |
|---|---|
| MAXDEPTH | Down and Forward: 200’ (61.0 m) |
Connections |
|
| CONNECTIONS GARMIN MARINE NETWORK PORTS |
1 (small connector) |
|---|---|
Electrical Features |
|
| POWER INPUT | 10-32 V |
|---|---|
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
| COMPASS SAFE DISTANCE | 4" (0.1 m) |
- Minimum depth: 3' (0.91 m)
- Sonar type: Live
- Beamwidth: 20° x 135°
- Transducer cable length: 20 ft
- Transducer number of pins: 21
