Garmin LiveScope XR System With LVS62 Transducer with GLS 10 Module

Model 010-02719-00

Condition New

Garmin LiveScope™ XR System

With GLS 10™ and LVS62 Transducer

You didn’t think it could get better, but it did with the extended range of the LiveScope™ XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.

The new XR transducer offers live scanning sonar up to 500’ in freshwater and up to 350’ in saltwater.

More details

Allow Three Working Days to Collect Pre Paid or COD at World of Fishing, Or Ships Nationwide per Pre Paid Courier

Send to a friend

Send to a friend

Garmin LiveScope XR System With LVS62 Transducer with GLS 10 Module

Garmin LiveScope™ XR System

With GLS 10™ and LVS62 Transducer

You didn’t think it could get better, but it did with the extended range of the LiveScope™ XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.

The new XR transducer offers live scanning sonar up to 500’ in freshwater and up to 350’ in saltwater.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Share on Facebook!
Print

More info

Garmin LiveScope™ XR System

With GLS 10™ and LVS62 Transducer

THE BEST OF THE BEST JUST HIT THE OPEN WATER

You didn’t think it could get better, but it did with the extended range of the LiveScope™ XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing. The new XR transducer offers live scanning sonar up to 500’ in freshwater and up to 350’ in saltwater.

You didn’t think it could get better, but it did with the extended range of the LiveScope™ XR System. It’s the latest in LiveScope technology, now for coastal

and open-water fishing. The new XR transducer offers live scanning sonar up to 500’ in freshwater and up to 350’ in saltwater.

Adjust the transducer to fit where you fish; use LiveScope™ Forward mode to see around your boat, LiveScope™ Down mode to see directly below your boat

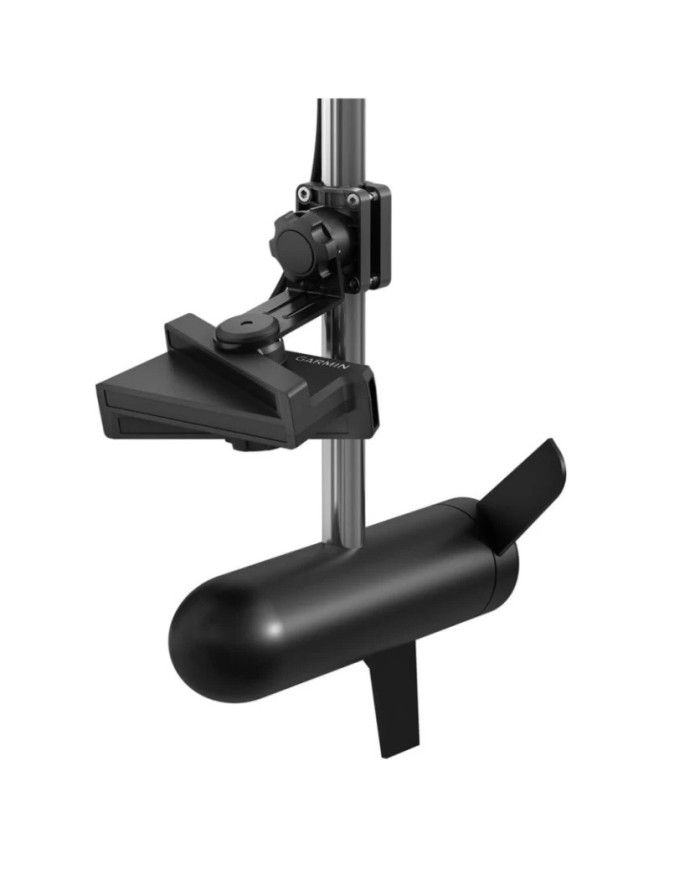

and Perspective mode for an overhead sonar view that’s perfect for scouting open water or shorelines. The views automatically update on your compatible Garmin

chartplotter¹screen. Get sharp images at both short and long range simultaneously with reduced noise and fewer sonar artifacts. Attitude heading reference

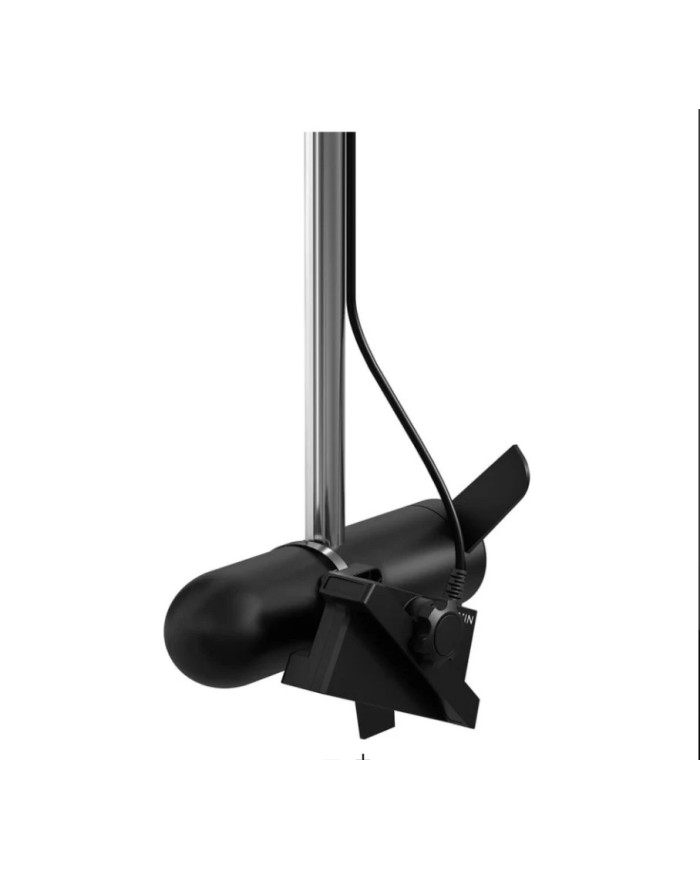

system stabilization keeps your sonar view steady, even in rough conditions. LiveScope XR includes a trolling motor shaft and barrel mounts plus Perspective Mode Mount.

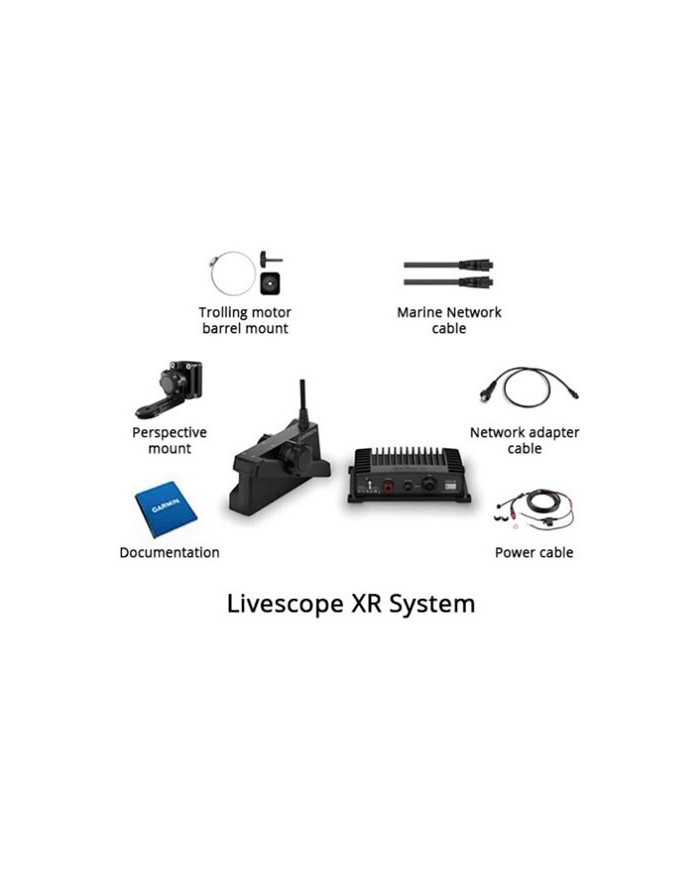

In the Box

LiveScope GLS 10 sonar black box
LiveScope XR LVS62 transducer
Perspective mount (LiveScope XR LVS62 transducer only)
Trolling Motor Barrel Mount
Shaft mount
Power cable
2 meter Garmin Marine Network cable (small connector)
Network adapter cable
Documentation

Specificatiomns

Physical & Performance

Dimension	GLS 10 sonar black box: 9.7″ x 5.9″ x 2.6″ (24.5 x 14.9 x 6.5 cm); LVS62 transducer: 8.20″ x 3.98″ x 2.76″ (20.8 x 10.1 x 7.0 cm)
Waterproof	IPX7
Weight	GLS 10 sonar black box: 4.3 lbs (2.0 kg) LVS62 transducer with cable: 3.92 lbs (1.78 kg) LVS62 transducer without cable: 2.66 lbs (1.21 kg)

Features

Transducer cable length	20 ft
Transmit power	500 W
Sonar Type	Live
Power usage	21 W typical, 58 W max
Perspective Mode Mount Included	Yes
Transducer number of pins	21
Temperature range	LVS62 Transducer: Operating: 0 C to 40 C
Transducer beamwidth	20° x 135°
Fuse	7.5 A
Garmin Marine Network Ports	1 (small connector)
Power Input	10-32 V
Target Separation @100'	22″
Maximum depth	Freshwater: Down and Forward: 500’ (152.0 m) Saltwater: Down and Forward: 350’ (106.0 m)
Frequency	282 - 522 kHz
Compass safe distance	7″ (0.18 m)
