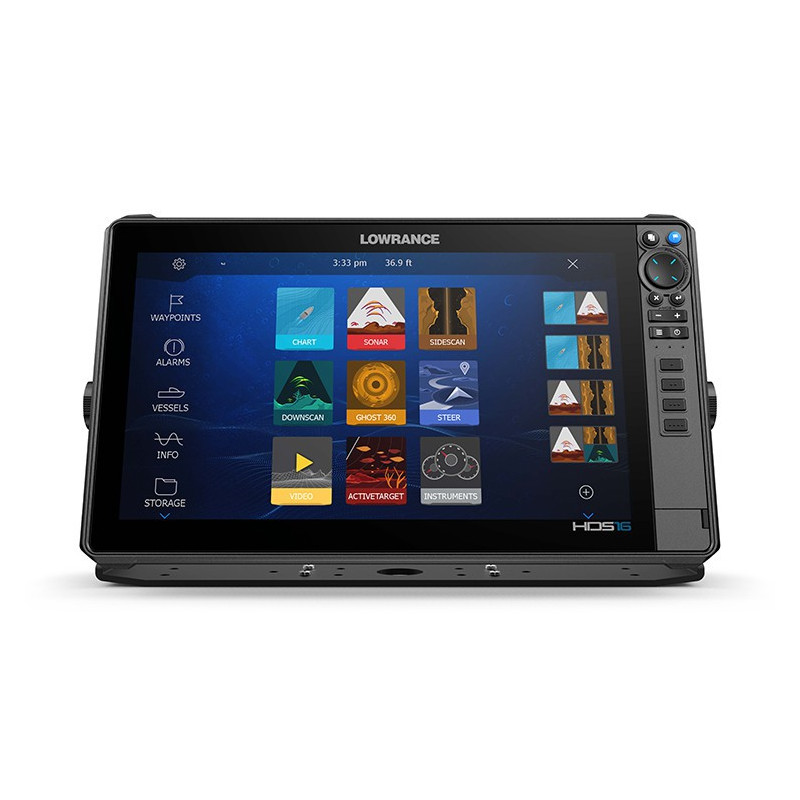

Lowrance HDS PRO 16 Fishfinder Chartplotter Combo (No Transducer)
See more and catch more with HDS® PRO, the ultimate fishfinding tool. With built-in support for the new,
ultra high-definition Active Imaging™ HD and the new, highest-resolution live sonar ActiveTarget® 2 you’ll
see more clearly and find more fish than ever before.
CASHBACK REBATE PROMOTION VALUE R 14 400 EFFECTIVE PRICE AFTER REBATE: R 80 702.25 OFFER VALID FOR PURCHASES FROM 09 SEPTEMBER TO 30 NOVEMBER 2024! CLICK HERE TO VIEW CASH BACK PROMOTION INSTRUCTIONS
CLICK HERE TO DOWNLOAD CASH BACK REBATE CLAIM FORM
Lowrance HDS-16 PRO, No Transducer. 16 inch Full SolarMAX HD IPS display, Dual 1kW sonar with CHIRP, ActiveImaging™ HD ready. Networkable
to Lowrance performance sonars (ActiveTarget™ and ActiveTarget™2), Radars, Trolling Motors, and Autopilots along with waypoint, chart,
and sonar sharing. Worlwide basemap (chart card required).
VIDEO
VIDEO
Lowrance HDS-16 PRO, No Transducer. 16″ SolarMAX HD IPS display, Dual 1kW sonar with CHIRP, ActiveImaging™ HD ready. Networkable
to Lowrance performance sonars (ActiveTarget™ and ActiveTarget™2), Radars, Trolling Motors, and Autopilots along with waypoint, chart,
and sonar sharing. Worlwide basemap (chart card required).
Transducer not included.
SEE MORE. CATCH MORE.
Experience the next level of fishfinding with new HDS® PRO displays, featuring the ultimate clarity of enhanced Lowrance sonar,
the latest C-MAP® charts and easy bow-to-stern control.
VIDEO
Key Features
SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
New! High-resolution ActiveTarget® 2 Live Sonar ready
FishReveal™ with new SideScan view, as well as Downscan*
Available in 9, 10, 12 and 16-inch display size
Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap
Real-time mapping available with C-MAP® Genesis Live.
Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
Large programmable keys for 10, 12 and 16-inch sizes
Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.
*SidescanFishReveal requires S3100 module and a compatible transducer
ACTIVE IMAGING™ HD
Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™.
ULTIMATE CLARITY
Multiple live sonar views
Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget® 2 Live Sonar displays at the same time.
Included in the box Lowrance Power/0183 Cable HDS-16 LIVE/PRO Bracket and Knobs
HDS-16 LIVE/PRO Suncover
Display
Backlight Color
Pure White LED
Display Resolution
1920x 1080
Screen Brightness
>1200 Nits
Viewing Angles
80° top/bottom, 80° left/right
Electrical
Power Consumption max
4.1A @ 13VDC with Full Backlight, Sonar on
Power Consumption min
3.0A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical
3.0A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating
5A
Supply Voltage
12 v DC (10.8-17 V DC)
Physical
Dimensions
W x H x D 16.95in (430.5mm) x 10.20in (259.2mm) x 3.46in (87.8mm)
Weight
7.94lb (3.60kg)
Compass Safe
1.6 ft (50 cm)
Mounting Type
Panel mount or bracket mount
Environment
Humidity
60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range
5°F to 131°F (-15°C to 55°C )
Shock Vibration
100,000 cycles of 20 G
Storage Temperature Range
4°F to 140°F (-20°C to 60°C )
Waterproof rating
IPX7 with card door closed
Interface
Touchscreen
Full Multi-touch touchscreen
Keypad
8-way directional keypad
User programable keys
4
Buttons
Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light
Connectivity
Bluetooth® 5.2 with support for Bluetooth® classic
Ethernet Ports
2 x 100 Mbit, 6 max MFD’s on a network
Connectivity Wi Fi
Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000
1x Micro-C
SD Card Storage
2 micro SD cards up to 32GB FAT32, Larger if formatted NTFS
NMEA 0183
via Power cable
Video
Output
None
Composite video
1 xRCA – single channel via an optional adaptor cable
HDMI
1 port for external input (HDMI® 1.4 sink and HDCP)
GPS
Correction
DGPS, WAAS
GPS Receiver Channels
16
Position Accuracy
20m RMS
Time to First Fix
30s
Update rate
10 Hz
MFD
Sonar Compatibility
Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
Radar
All HALO Radars
Weather
SiriusXM via WM-4 (USA only)
AIS
AIS Chart and Radar overlay. Target vessel details.
Autopilot
NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital Switching
CZone, Naviop, DDS
GPS
10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage
8.0 GB Internal
Multimedia
SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power
1kW
Waypoints, Routes, Tracks
3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5
Support for third part HTML apps
Autopilot Maneuvers Turn Patterns
Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes
Course, Heading, Waypoint, Power Steer
Other
NMEA2000 PGNs Receive only
65240
ISO Commanded Address
127245
Rudder
127251
Rate of Turn
127257|Attitude
127488
Engine Parameters, Rapid Update
127489
Engine Parameters, Dynamic
127493
Transmission Parameters, Dynamic
127505
Fluid Level, 127508| Battery Status
129033
Time and Date
129038
AIS Class A Position Report
129039
AIS Class B Position Report
129040
AIS Class B Extended Position Report
129794
AIS Class A Static and Voyage-Related Data
129801
AIS Address Safety Related Message
129802
AIS Safety Related Broadcast Message
129808
DSC Call Information
130313
Humidity
130314
Actual Pressure
130576
Small Craft Status
65285
Temperature with Instance
65325
Reprogramming Status
65480
Parameter Reply
130817
Product Information
130820
Reprogramming Status
130832
Fuel Used – High Resolution
130834
Engine and Tank Configuration
130838
Fluid Level Warning
130842
AIS and VHF Message Transport
130843
Sonar Status – Frequency and DSP Voltage
Transmit and Receive:
59392
ISO Acknowledgement
59904
ISO Request
60160
ISO Transport Protocol, Data Transfer
60416
ISO Transport Protocol, Connection Management
60928
ISO Address Claim
126208
NMEA Group Function
126464
Receive/Transmit PGN’s group function
126992
System Time
126996
Product Information
127237
Heading/Track Control
127250
Vessel Heading
127258
Magnetic Variation
128259
Speed
128267
Water Depth
128275
Distance Log
129025
Position, Rapid Update
120296
COG and SOG, Rapid Update
129029
GNSS Position Data
129283
Cross Track Error
129284
Navigation Data
129539
GNSS DOPs
129540
GNSS Sats In View
130074
Route and WP Service – WP List – WP Name and Position
130310
Environmental Parameters
130311
Environmental Parameters
130312
Temperature
130577
Direction Data
61184
Parameter Command
65292
Clear Fluid Level Warnings
65293
LGC-2000 Configuration
65323
Data User Group Request
130831
EP-20 Suzuki Engine and EP-50 Storage Device Configuration
130835
Set Engine and Tank Configuration
130839
EP-45 Pressure Configuration
130840
Data User Group Configuration
130845
Parameter Handle
130850
Event Command
130851
Event ReplyTransmit only
65287
Temperature Sensor Configuration
65289
Trim Tab Configuration
65290
Paddle Wheel Speed Configuration
130818
Reprogramming Data
130819
Request Reprogram
130828
Set Serial Number
130836
Fluid Level Configuration
130837
Fuel Flow Turbine Configuration
NMEA 0183 Sentences supported
GPS Receive
GGA GLL GSA GSV VTG ZDA Transmit GGA GLL GSA GSV VTG ZDA GLCTX / RX
Navigation Receive
RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX
Sonar Receive
DBT DPT MTW VLW VHM, Transmit DBT DPT MTW VLW VHMTX / RX
Compass Receive
HDG HDT HDM, Transmit HDGTX / RX
Wind Receive
MWV MWD, Transmit MWV MWDTX / RX
AIS / DSCReceive
DSC DSE VDM
Languages
Language on products will vary depending on where you purchase the unit. Basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portuguese (Brazil)/Português (BR), Portuguese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
Approvals
Approvals Compliance
FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
