Lowrance

Lowrance HDS PRO 16 AIHD 3-in-1 HD Transducer On Cash Back Rebate Offer

R114,175.00 R97,048.75
Hurry up! Sales Ends In
Days Hrs Min Sec
Tax included

HDS PRO 16 AIHD 3-in-1 HD Transducer Fishfinder Chartplotter Combo

16″ SolarMAX HD IPS display, Dual 1kW sonar with CHIRP, ActiveImaging™ HD ready. Networkable to Lowrance performance sonars (ActiveTarget™ and ActiveTarget™2), Radars, Trolling Motors, and Autopilots along with waypoint, chart, and sonar sharing. Worlwide basemap.

Includes AIHD 3-in-1 Transducer

R 5 400.00 CASH BACK REBATE SPECIAL OFFER

Can Collect Pre Paid Durban Trade Counter or Ships per Pre Paid Courier to Your Door (Towns and Cities in RSA)
Add to Compare Add to Wishlist
SKU: 000-16006-001
Brand: Lowrance
Tags: Lowrance Chartplotter HDS Active Target Lowrance HDS PRO fisgfinder mega imaging AI 3-in-1 HD
Description

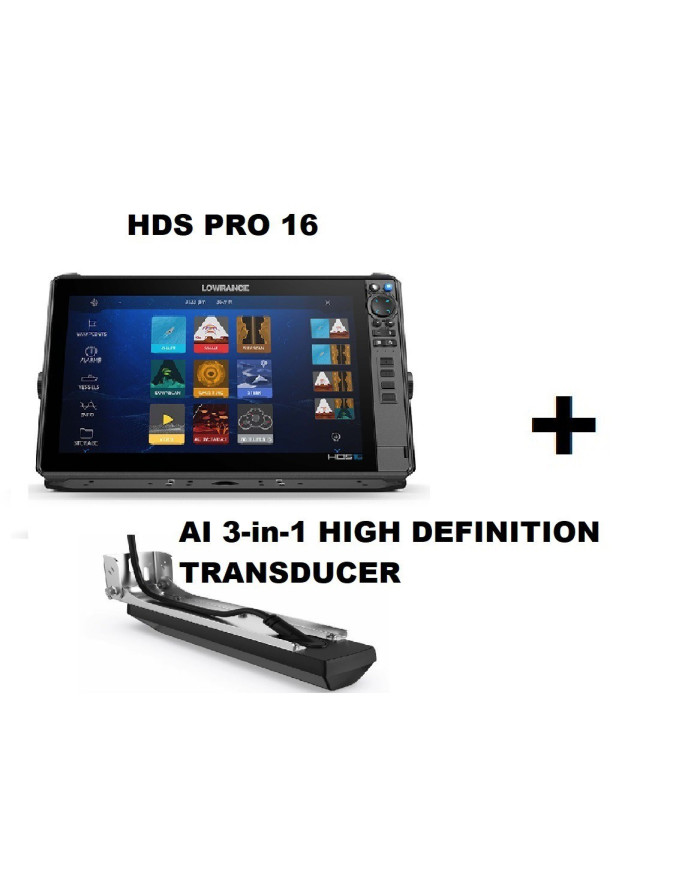

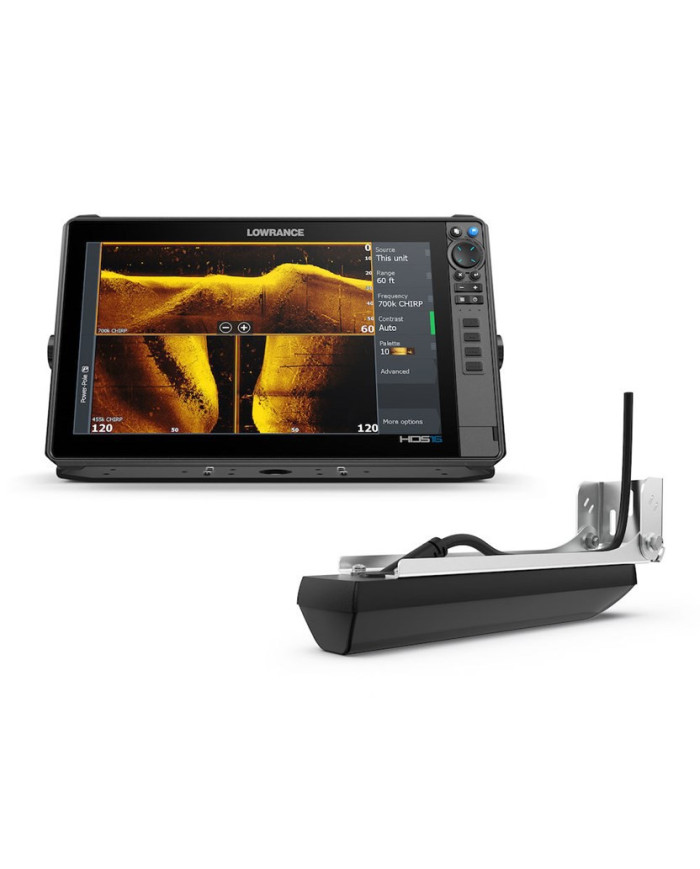

HDS PRO 16 AIHD 3-in-1 HD Transducer Fishfinder Chartplotter Combo

16 inch SolarMAX HD IPS display, Dual 1kW sonar with CHIRP, ActiveImaging™ HD ready. Networkable to Lowrance performance sonars

(ActiveTarget™ and ActiveTarget™2), Radars, Trolling Motors, and Autopilots along with waypoint, chart, and sonar sharing. Worlwide

basemap (chart card required).

Includes AIHD 3-in-1 Transducer

(Fish Reveal in DownScan Imaging View Only)

CASHBACK REBATE PROMOTION VALUE R 5 400.00

EFFECTIVE PRICE AFTER REBATE:  R 91 648.75

Included in Box

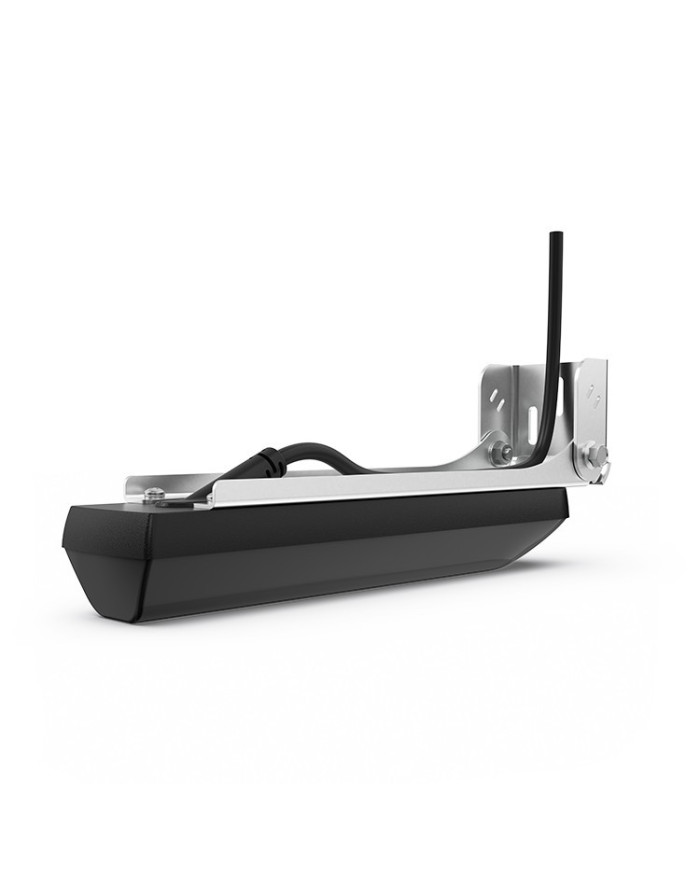

  1. AIHD 3-in-1 Transducer
  2. PC-30 Power & Data Xable with Fuse
  3. HDS-16 LIVE/PRO Bracket and Knobs
  4. HDS-16 LIVE/PRO Suncover


Display

Backlight Color Pure White LED
Display Resolution 1920x 1080
Screen Brightness >1200 Nits
Viewing Angles 80° top/bottom, 80° left/right



Electrical

Power Consumption max 4.1A @ 13VDC with Full Backlight, Sonar on
Power Consumption min 3.0A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical 3.0A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating 5A
Supply Voltage 12 v DC (10.8-17 V DC)



Physical

Dimensions W x H x D 16.95in (430.5mm) x 10.20in (259.2mm) x 3.46in (87.8mm)
Weight 7.94lb (3.60kg)
Compass Safe 1.6 ft (50 cm)
Mounting Type Panel mount or bracket mount



Environment

Humidity 60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Shock Vibration 100,000 cycles of 20 G
Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
Waterproof rating IPX7 with card door closed



Interface

Touchscreen Full Multi-touch touchscreen
Keypad 8-way directional keypad
User programable keys 4
Buttons Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light



Connectivity

Bluetooth® 5.2 with support for Bluetooth® classic

Ethernet Ports 2 x 100 Mbit, 6 max MFD’s on a network
Connectivity Wi Fi Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000 1x Micro-C
SD Card Storage 2 micro SD cards up to 32GB FAT32, Larger if formatted NTFS
NMEA 0183 via Power cable



Video

Output None
Composite video 1 xRCA – single channel via an optional adaptor cable
HDMI 1 port for external input (HDMI® 1.4 sink and HDCP)



GPS

Correction DGPS, WAAS
GPS Receiver Channels 16
Position Accuracy 20m RMS
Time to First Fix 30s
Update rate 10 Hz



MFD

Sonar Compatibility Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
Radar All HALO Radars
Weather SiriusXM via WM-4 (USA only)
AIS AIS Chart and Radar overlay. Target vessel details.
Autopilot NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital Switching CZone, Naviop, DDS
GPS 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage 8.0 GB Internal
Multimedia SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power 1kW
Waypoints, Routes, Tracks 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5 Support for third part HTML apps
Autopilot Maneuvers Turn Patterns Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes Course, Heading, Waypoint, Power Steer



Other

NMEA2000 PGNs Receive only
65240 ISO Commanded Address
127245 Rudder
127251 Rate of Turn
127257|Attitude
127488 Engine Parameters, Rapid Update
127489 Engine Parameters, Dynamic
127493 Transmission Parameters, Dynamic
127505 Fluid Level, 127508| Battery Status
129033 Time and Date
129038 AIS Class A Position Report
129039 AIS Class B Position Report
129040 AIS Class B Extended Position Report
129794 AIS Class A Static and Voyage-Related Data
129801 AIS Address Safety Related Message
129802 AIS Safety Related Broadcast Message
129808 DSC Call Information
130313 Humidity
130314 Actual Pressure
130576 Small Craft Status
65285 Temperature with Instance
65325 Reprogramming Status
65480 Parameter Reply
130817 Product Information
130820 Reprogramming Status
130832 Fuel Used – High Resolution
130834 Engine and Tank Configuration
130838 Fluid Level Warning
130842 AIS and VHF Message Transport
130843 Sonar Status – Frequency and DSP Voltage



Transmit and Receive:

59392 ISO Acknowledgement
59904 ISO Request
60160 ISO Transport Protocol, Data Transfer
60416 ISO Transport Protocol, Connection Management
60928 ISO Address Claim
126208 NMEA Group Function
126464 Receive/Transmit PGN’s group function
126992 System Time
126996 Product Information
127237 Heading/Track Control
127250 Vessel Heading
127258 Magnetic Variation
128259 Speed
128267 Water Depth
128275 Distance Log
129025 Position, Rapid Update
120296 COG and SOG, Rapid Update
129029 GNSS Position Data
129283 Cross Track Error
129284 Navigation Data
129539 GNSS DOPs
129540 GNSS Sats In View
130074 Route and WP Service – WP List – WP Name and Position
130310 Environmental Parameters
130311 Environmental Parameters
130312 Temperature
130577 Direction Data
61184 Parameter Command
65292 Clear Fluid Level Warnings
65293 LGC-2000 Configuration
65323 Data User Group Request
130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration
130835 Set Engine and Tank Configuration
130839 EP-45 Pressure Configuration
130840 Data User Group Configuration
130845 Parameter Handle
130850 Event Command
130851 Event ReplyTransmit only
65287 Temperature Sensor Configuration
65289 Trim Tab Configuration
65290 Paddle Wheel Speed Configuration
130818 Reprogramming Data
130819 Request Reprogram
130828 Set Serial Number
130836 Fluid Level Configuration
130837 Fuel Flow Turbine Configuration



NMEA 0183 Sentences supported

GPS Receive GGA GLL GSA GSV VTG ZDA Transmit GGA GLL GSA GSV VTG ZDA GLCTX / RX
Navigation Receive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX
Sonar Receive DBT DPT MTW VLW VHM, Transmit DBT DPT MTW VLW VHMTX / RX
Compass Receive HDG HDT HDM, Transmit HDGTX / RX
Wind Receive MWV MWD, Transmit MWV MWDTX / RX
AIS / DSCReceive DSC DSE VDM
Languages Language on products will vary depending on where you purchase the unit. Basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portuguese (Brazil)/Português (BR), Portuguese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano



Approvals

Approvals Compliance FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Product Details
Lowrance
000-16006-001
