Victron Blue Smart Battery Charger - IP65 - 12V 10A - IEC 7/16 Plug

Blue Smart Technology

Intelligent Battery Charger for WET/Flooded, GEL, AGM, MF, VRLA and Lithium Ion type lead-acid rechargeable batteries.

7 Step "Smart" Battery Charger

180 to 265 V AC Input

12 Volt DC Output

10 Amp @ 12 V (14,4 - 14,7 V)

IP 65 WaterProof

Free Bluetooth Monitoring & Control App

COMES WITH EURO STYLE AC PLUG*

• Water, dust and chemical resistant
• Seven step smart charge algorithm
• Recovery of fully discharged ‘dead’ batteries
• Automatic power supply function
• Severe cold performance: down to -30°C
• Several other battery life enhancing features
• Low power mode to charge smaller batteries
• Li-ion battery mode
• Setup and configure, readout of voltage and current by Bluetooth Smart
• 5Year Limited Warranty (T's & C's Apply)

INFORMATION

Ultra-High Efficiency “Green” Battery Charger

With up to 95% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt,  some five to ten times better than the industry standard.

Durable, Safe and Silent

• Low thermal stress on the electronic components.
• Protection against ingress of dust, water and chemicals.
• Protection against overheating: the output current will reduce as temperature increases up to 60°C, but the charger will not fail.
• The chargers are totally silent: no cooling fan or any other moving parts

Reconditioning

A lead-acid battery that that has been insufficiently charged or has been left discharged during days or weeks will deteriorate due to sulfation. If caught in time, sulfation can sometimes be partially reversed by charging the battery with low current up to a higher voltage.

Recovery function for fully discharged batteries

Most reverse polarity protected chargers will not recognize, and therefore not recharge a battery which has been discharged to zero or nearly zero Volts. The Blue Smart Charger however will attempt to recharge a fully discharged battery with low current and resume normal charging once sufficient voltage has developed across the battery terminals.

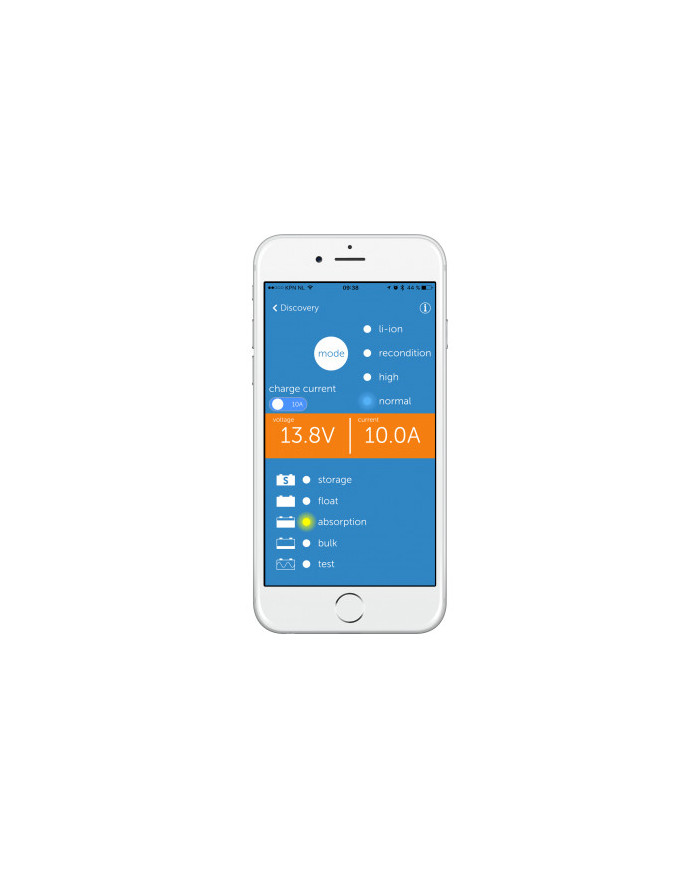

The VictronConnect app

Setup, readout and configure your Blue Smart IP65 Charger via your smartphone.

You can display the status of your charger and battery and even control the functions of your charger using the VictronConnect app. On your screen the readout of voltage and current is default available.

Storage Mode: Less corrosion of the positive plates

Even the lower float charge voltage that follows the absorption period will cause grid corrosion. It is therefore essential to reduce the charge voltage even further when the battery remains connected to the charger during more than 48 hours.

Temperature Compensated Charging

The optimal charge voltage of a lead-acid battery varies inversely with temperature.

The Blue Smart IP65 Charger measures ambient temperature during the test phase and compensates for temperature during the charge process. The temperature is measured again when the charger is in low current mode during float or storage.

Special settings for a cold or hot environment are therefore not needed.

Li-ion Battery Mode

The Blue Smart Charger uses a specific charging algorithm for Li-ion (LiFePO₄) batteries, with automatic Li-ion under voltage protection reset.

The battery is charged, smartly... to perfect condition

The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.

Recovery of deeply-discharged 'dead' batteries

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

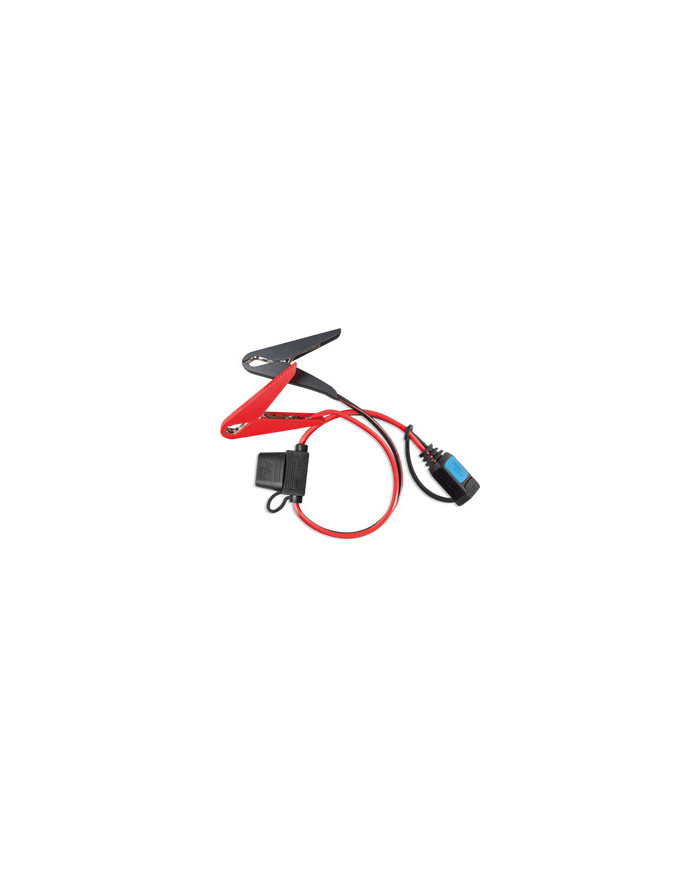

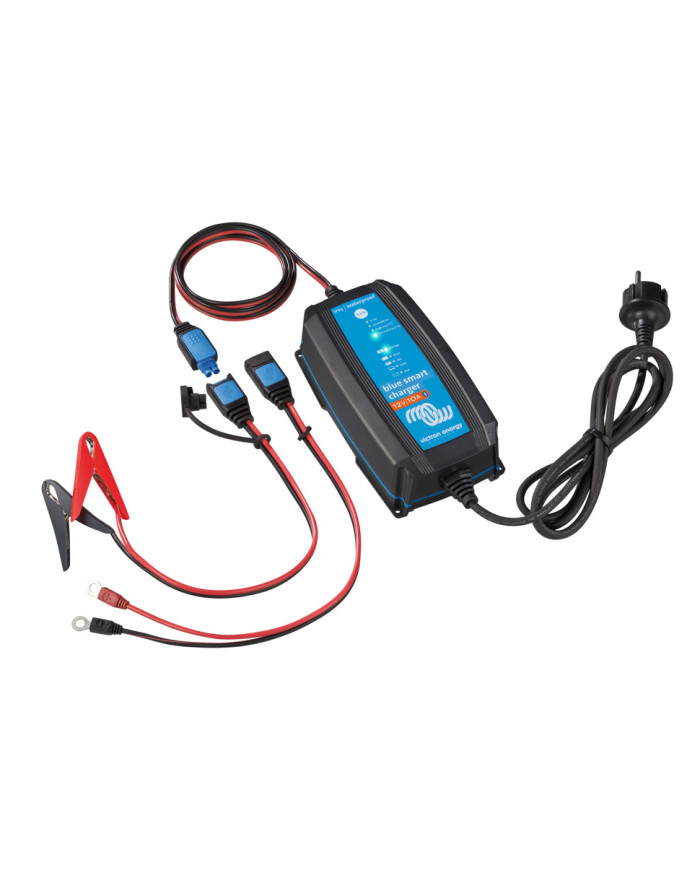

Connect the battery with ease

The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently connected.

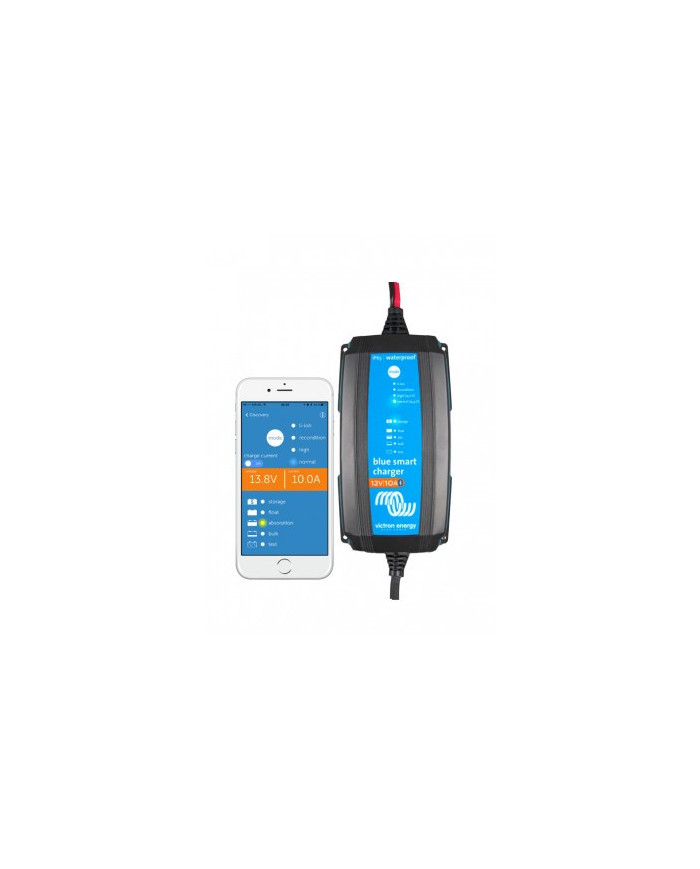

Check the status of your battery remotely

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.

VictronConnect

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.

Specification Sheet: CLICK TO VIEW SPECIFICATION SHEET

Click to View Brochure: CLICK TO SEE VICTRON BROCHURE
