CSB HR1234WF2
9 A-H Valve Regulated Sealed Lead Acid Battery

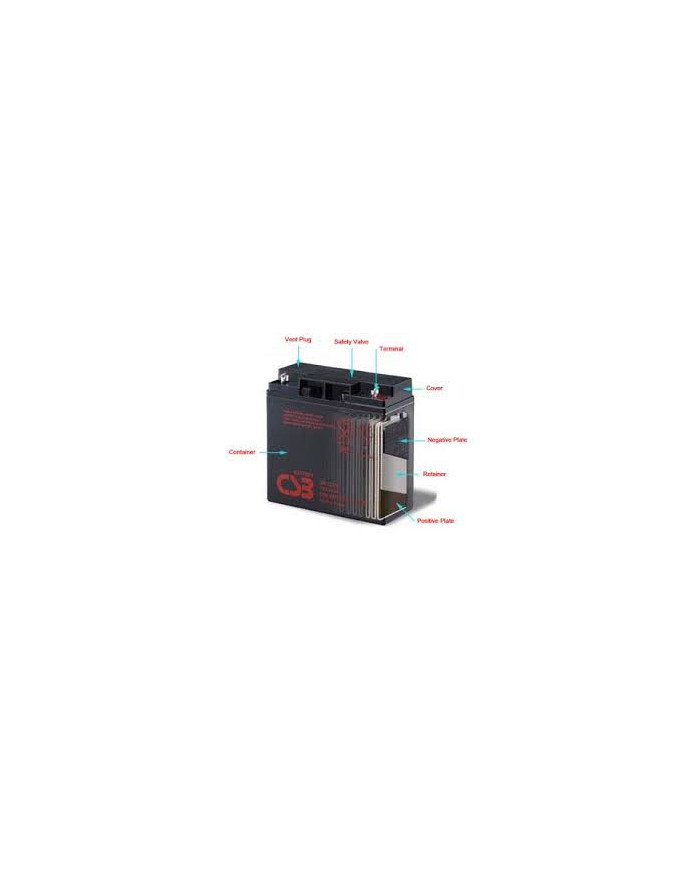

Featuring Absorbed Glass Mat (AGM) Plate Separation
Perfect for Powering FishFinders on Pontoons and Kayaks
Specification
| Capacity |
34W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F) |
| Weight |
Approx. 2.50kg. (5.51lbs.) |
| Maximum Discharge current |
100/130A (5sec.) |
| Internal Resistance Approx. |
Approx. 19mΩ |
| Operating Temperature Range |
Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F) |
| Nominal Operating Temperature Range |
25°C ± 3°C (77°F ± 5°F) |
| Float charging voltage |
13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit |
3.4A |
| Equalization and Cycle Service |
14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge |
It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal |
F2-Faston Tab250 |
| Container Material |
ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
Constant Current Discharge Characteristics Unit:Amperes (25°C,77°F)
| F.V/Time |
2MIN |
4MIN |
6MIN |
8MIN |
10MIN |
15MIN |
20MIN |
30MIN |
60MIN |
90MIN |
| 1.60V |
73.80 |
49.20 |
36.80 |
29.70 |
25.40 |
18.50 |
14.60 |
10.50 |
5.99 |
4.25 |
| 1.67V |
65.80 |
44.80 |
34.40 |
28.20 |
24.20 |
17.80 |
14.10 |
10.30 |
5.86 |
4.15 |
| 1.70V |
62.20 |
42.90 |
33.30 |
27.50 |
23.60 |
17.40 |
13.80 |
10.10 |
5.80 |
4.11 |
| 1.75V |
56.30 |
39.80 |
31.60 |
26.20 |
22.70 |
16.80 |
13.50 |
9.90 |
5.69 |
4.05 |
| 1.80V |
50.30 |
36.40 |
29.70 |
24.90 |
21.70 |
16.20 |
13.10 |
9.66 |
5.60 |
3.99 |
| 1.85V |
43.30 |
32.90 |
27.60 |
23.50 |
20.70 |
15.60 |
12.70 |
9.39 |
5.50 |
3.92
|
Constant Power Discharge Characteristics Unit:Watts (25°C,77°F)
| F.V/Time |
2MIN |
4MIN |
6MIN |
8MIN |
10MIN |
15MIN |
20MIN |
30MIN |
60MIN |
90MIN |
| 1.60V |
706.00 |
506.00 |
395.00 |
328.00 |
286.00 |
211.00 |
169.00 |
124.00 |
71.70 |
50.80 |
| 1.67V |
645.00 |
470.00 |
376.00 |
315.00 |
276.00 |
205.00 |
165.00 |
121.00 |
70.50 |
50.10 |
| 1.70V |
618.00 |
454.00 |
366.00 |
308.00 |
270.00 |
202.00 |
163.00 |
120.00 |
70.00 |
49.60 |
| 1.75V |
571.00 |
426.00 |
350.00 |
296.00 |
260.00 |
196.00 |
160.00 |
118.00 |
69.00 |
49.00 |
| 1.80V |
524.00 |
400.00 |
333.00 |
285.00 |
250.00 |
191.00 |
156.00 |
116.00 |
68.10 |
48.30 |
| 1.85V |
478.00 |
376.00 |
316.00 |
273.00 |
241.00 |
186.00 |
152.00 |
114.00 |
67.00 |
47.70
|
