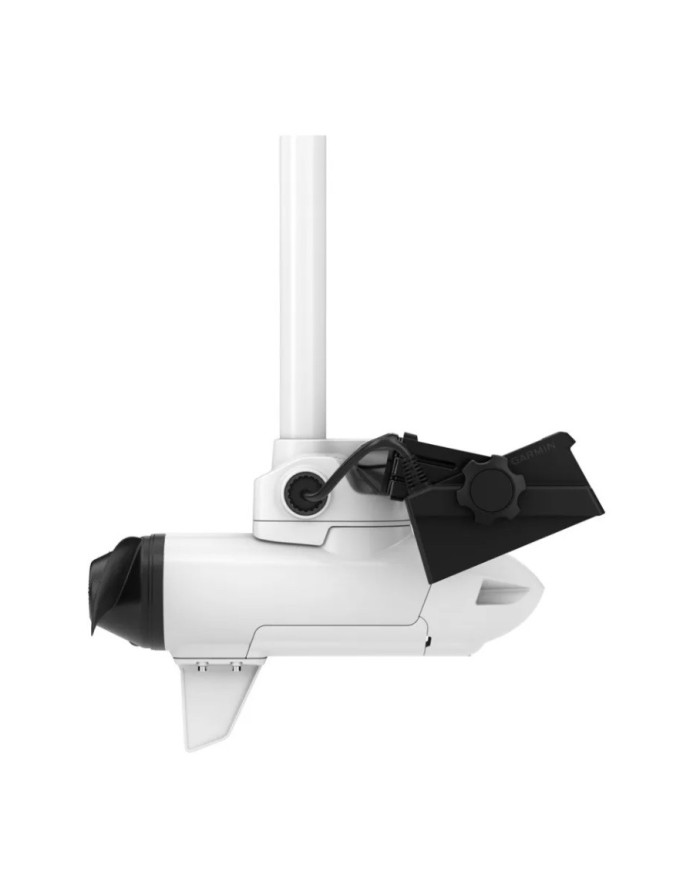

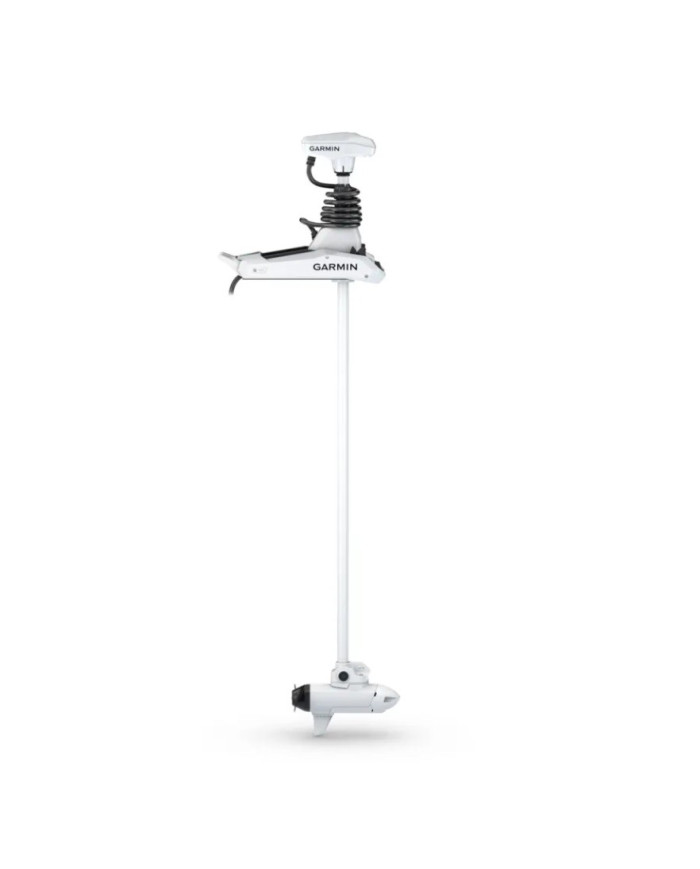

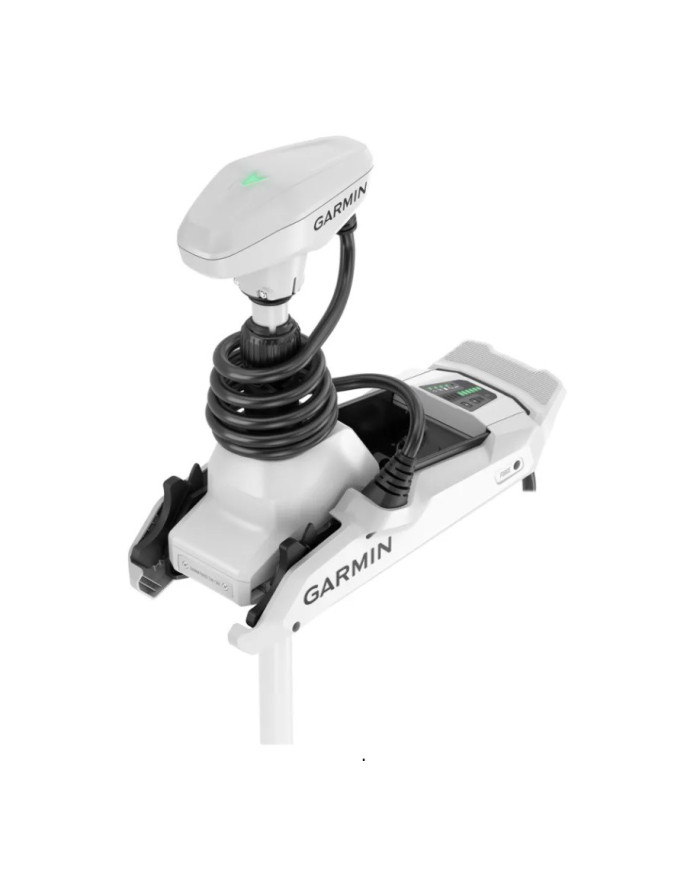

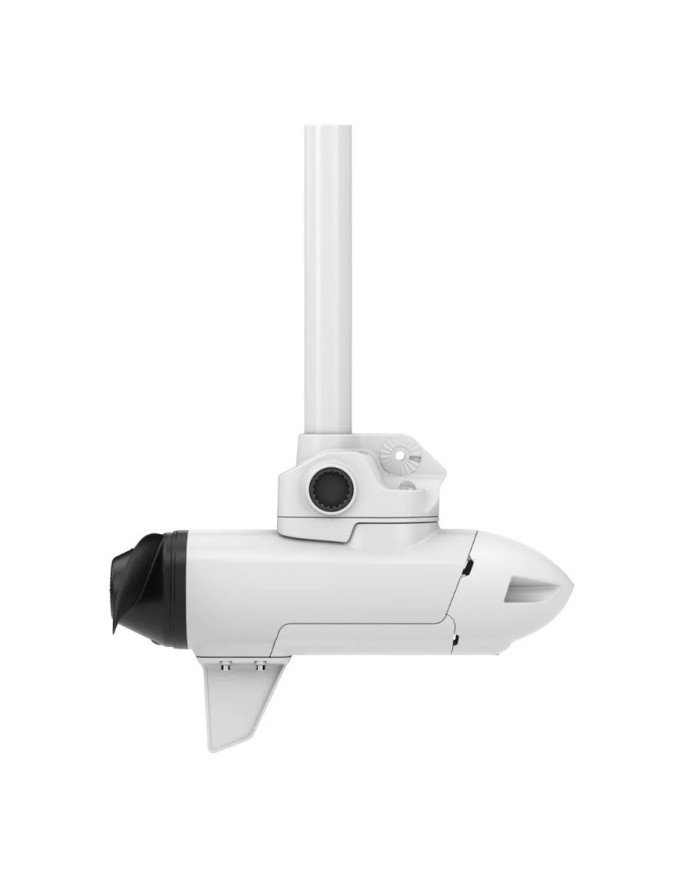

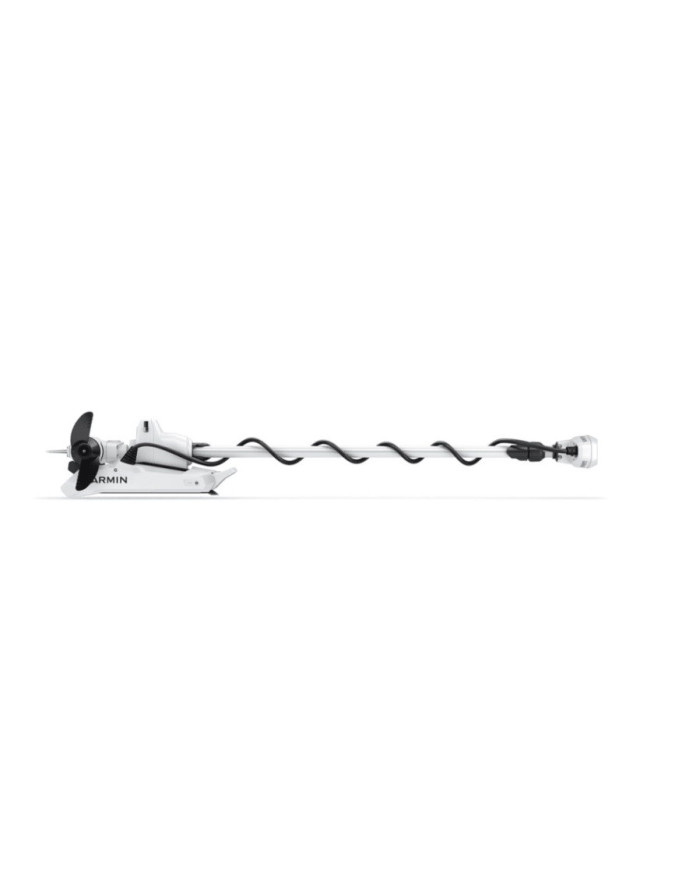

Garmin Force Kraken Trolling Motor White 63 inch Salt Water
Garmin Force Kraken Trolling Motor
White 63 inch Shaft
Salt Water Trolling Motor
Harness the power of the Force Kraken trolling motor, the most powerful trolling motor on the market.
Focus on fishing with our most precise anchor lock technology and wireless chartplotter integration
- Force® Kraken Trolling motor
- Remote
- High efficiency propeller
- Mounting hardware
Garmin Force Kraken Trolling Motor
White 63 inch Shaft
24 v / 36 Vdc Brushless Salt Water Trolling Motor
There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market(in compliance with ISO standard 13342). It’s designed for deep V hulls where bow space is limited. Once you’ve found the spot, stay put with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck, and the 63”, 75” and 90” shaft lengths accommodate boats with high freeboards. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. Plus, it’s saltwater-rated for advanced corrosion protection.
- Force® Kraken 63 inch Shaft White Trolling motor
- Remote
- High efficiency propeller
- Assembly and mounting hardware
- Documentation
Fact Sheet
- Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342)
- Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold
- Wireless integration with your Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow while you fish
- Easy installation where bow space is limited, thanks to the pivot-style mount
- 63”, 75” and 90” shaft lengths accommodate many different boat sizes and deck configurations
- Sturdy composite shaft is built to endure harsh marine environments
- LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft
- Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design
- Clear sonar returns with extremely low levels of unwanted noise
- Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery
- Don’t spook the fish; motor is extremely quiet above and below the water
- Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down
- Built with advanced corrosion protection
TECHNICAL SPECIFICATIONS
General |
|
COLOUR | White |
---|---|
FOR USE IN | Freshwater, brackish water and saltwater |
MOUNT STYLE | Pivot-style mount |
MAX THRUST | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc |
VOLTAGE | 24 V or 36 V |
ELECTRIC STEERING | Yes |
BUILT-IN HEADING SENSOR | Yes |
BUILT-IN GPS | Yes (dual frequency GPS) |
WARRANTY | 3-year, limited lifetime on shaft |
WATER RATING | IPX7 |
MOUNTING LOCATION | Bow |
WIRELESS REMOTE | Yes (included) |
FOOT PEDAL COMPATIBLE | Yes (Not Included) |
BATTERY INDICATOR | Yes |
VARIABLE SPEED CONTROL | Yes (20 steps) |
LIGHTED DIRECTION INDICATOR | Yes |
QUATIX REMOTE CONTROL SUPPORTED | Yes |
AutoPilot features |
|
ROUTE FOLLOWING | Yes |
---|---|
ANCHOR LOCK | Yes |
ANCHOR LOCK JOG | Yes |
HEADING HOLD | Yes |
CRUISE CONTROL | Yes |
GESTURE FEATURES | Yes (manual+, heading hold+, jog+) |
Foot Pedal Features (Optional Extra - Not Included ) |
|
DIMENSIONS | 12″ L x 9″ W x 4 1/2″ H |
---|---|
WIRELESS COMMUNICATION | Yes |
POWER INSTALLATION | 12V/24V/36V wired or battery powered (2 AA) |
AA BATTERY LIFE | 1 full season |
WATER RATING | IPX7 |
ADJUSTABLE PEDAL RESISTANCE | Yes |
Remote features |
|
DISPLAY SIZE | 1.2″ (30.4 mm) diameter |
---|---|
DISPLAY RESOLUTION | 240 x 240 pixels |
DISPLAY TYPE | Colour, sunlight-visible, transflective memory-in-pixel (MIP) |
CHARTPLOTTER USER-PROGRAMMABLE KEYS | Yes |
AUTOPILOT FEATURE CONTROL | Yes |
WATER RATING | IPX7 |
BATTERY LIFE | Typical use with backlight at low, 43.2 weeks |
FLOATS: Yes |
