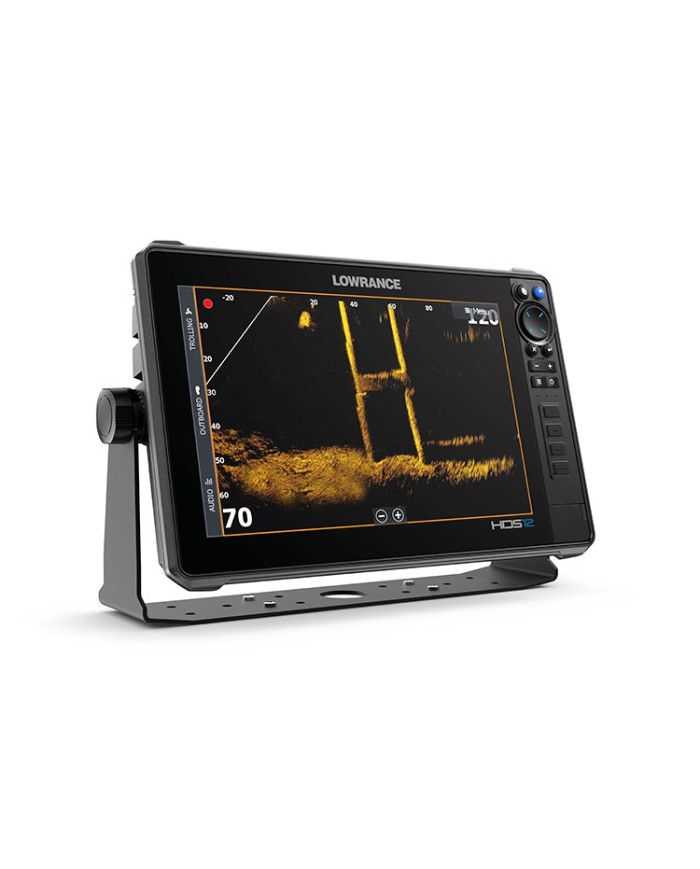

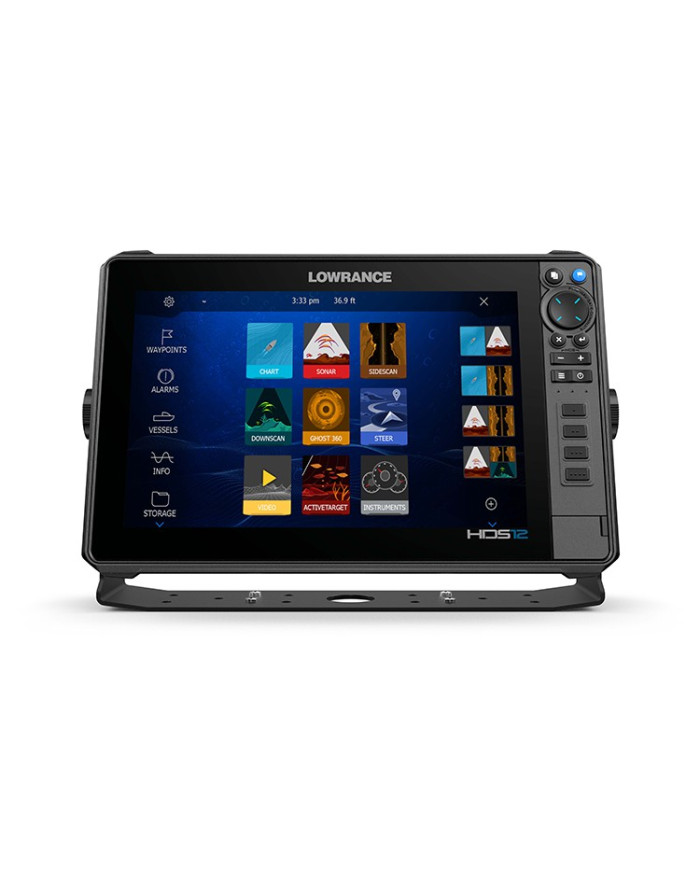

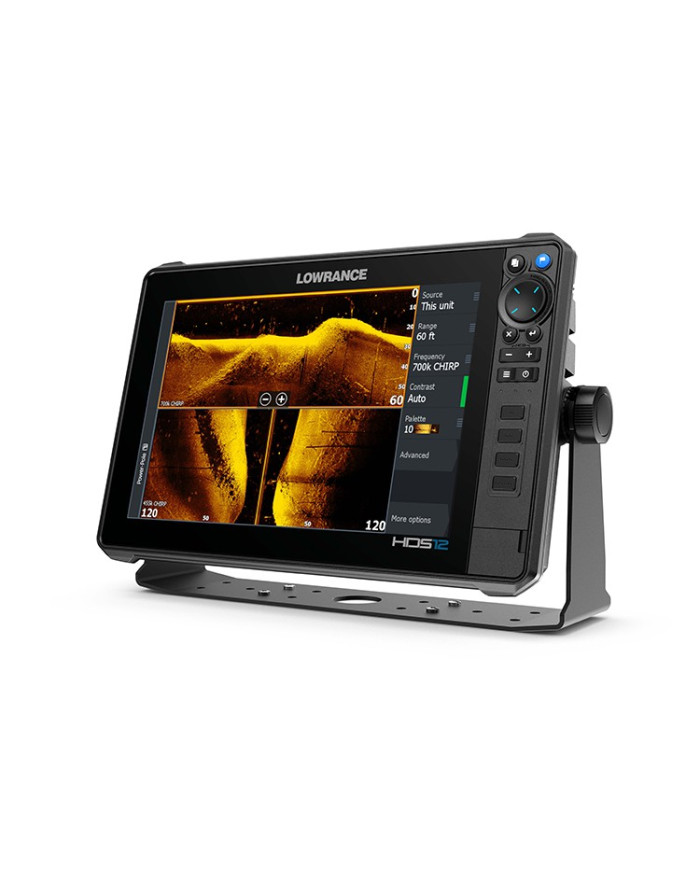

Display
| Backlight Color |
Pure White LED |
| Display Resolution |
1280 x 800 |
| Screen Brightness |
>1200 Nits |
| Viewing Angles |
80° top/bottom, 80° left/right |
Electrical
| Power Consumption max |
3.6A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption min |
2.3A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption typical |
2.3A @ 13VDC with Full Backlight, Sonar on |
| Recommended Fuse Rating |
5A |
| Supply Voltage |
12 v DC (10.8-17 V DC) |
Physical
| Dimensions |
W x H x D 13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm) |
| Weight |
6.5lb (2.95kg) |
| Compass Safe |
1.6 ft (50 cm) |
| Mounting Type |
Panel mount or bracket mount |
Environment
| Humidity |
60°C, 95% relative humidity (RH) for 18 hours |
| Operating Temperature Range |
5°F to 131°F (-15°C to 55°C ) |
| Shock Vibration |
100,000 cycles of 20 G |
| Storage Temperature Range |
4°F to 140°F (-20°C to 60°C ) |
| Waterproof rating |
IPX7 with card door closed |
Interface
| Touchscreen |
Full Multi-touch touchscreen |
| Keypad |
8-way directional keypad |
| User programable keys |
4 |
| Buttons |
Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light |
Connectivity
Bluetooth® 5.2 with support for Bluetooth® classic
| Ethernet Ports |
2 x 100 Mbit, 6 max MFD’s on a network |
| Connectivity Wi Fi |
Internal 802.11b/g/n and Compatible with WiFi-1 Module |
| NMEA 2000 |
1x Micro-C |
| SD Card Storage |
2 micro SD cards up to 32GB FAT32, Larger if formatted NTFS |
| NMEA 0183 |
via Power cable |
Video
| Output |
None |
| Composite video |
1 xRCA – single channel via an optional adaptor cable |
| HDMI |
1 port for external input (HDMI® 1.4 sink and HDCP) |
GPS
| Correction |
DGPS, WAAS |
| GPS Receiver Channels |
16 |
| Position Accuracy |
20m RMS |
| Time to First Fix |
30s |
| Update rate |
10 Hz |
MFD
| Sonar Compatibility |
Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub |
| Radar |
All HALO Radars |
| Weather |
SiriusXM via WM-4 (USA only) |
| AIS |
AIS Chart and Radar overlay. Target vessel details. |
| Autopilot |
NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway |
| Digital Switching |
CZone, Naviop, DDS |
| GPS |
10 Hz GPS/GLONASS WAAS/EGNOS/MSAS |
| Internal Storage |
8.0 GB Internal |
| Multimedia |
SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products |
| Sonar Output Power |
1kW |
| Waypoints, Routes, Tracks |
3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail |
| HTML5 |
Support for third part HTML apps |
| Autopilot Maneuvers Turn Patterns |
Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S |
| Steering Modes |
Course, Heading, Waypoint, Power Steer |
Other
| NMEA2000 PGNs Receive only |
|
| 65240 |
ISO Commanded Address |
| 127245 |
Rudder |
| 127251 |
Rate of Turn |
|
127257|Attitude |
| 127488 |
Engine Parameters, Rapid Update |
| 127489 |
Engine Parameters, Dynamic |
| 127493 |
Transmission Parameters, Dynamic |
| 127505 |
Fluid Level, 127508| Battery Status |
| 129033 |
Time and Date |
| 129038 |
AIS Class A Position Report |
| 129039 |
AIS Class B Position Report |
| 129040 |
AIS Class B Extended Position Report |
| 129794 |
AIS Class A Static and Voyage-Related Data |
| 129801 |
AIS Address Safety Related Message |
| 129802 |
AIS Safety Related Broadcast Message |
| 129808 |
DSC Call Information |
| 130313 |
Humidity |
| 130314 |
Actual Pressure |
| 130576 |
Small Craft Status |
| 65285 |
Temperature with Instance |
| 65325 |
Reprogramming Status |
| 65480 |
Parameter Reply |
| 130817 |
Product Information |
| 130820 |
Reprogramming Status |
| 130832 |
Fuel Used – High Resolution |
| 130834 |
Engine and Tank Configuration |
| 130838 |
Fluid Level Warning |
| 130842 |
AIS and VHF Message Transport |
| 130843 |
Sonar Status – Frequency and DSP Voltage |
Transmit and Receive:
| 59392 |
ISO Acknowledgement |
| 59904 |
ISO Request |
| 60160 |
ISO Transport Protocol, Data Transfer |
| 60416 |
ISO Transport Protocol, Connection Management |
| 60928 |
ISO Address Claim |
| 126208 |
NMEA Group Function |
| 126464 |
Receive/Transmit PGN’s group function |
| 126992 |
System Time |
| 126996 |
Product Information |
| 127237 |
Heading/Track Control |
| 127250 |
Vessel Heading |
| 127258 |
Magnetic Variation |
| 128259 |
Speed |
| 128267 |
Water Depth |
| 128275 |
Distance Log |
| 129025 |
Position, Rapid Update |
| 120296 |
COG and SOG, Rapid Update |
| 129029 |
GNSS Position Data |
| 129283 |
Cross Track Error |
| 129284 |
Navigation Data |
| 129539 |
GNSS DOPs |
| 129540 |
GNSS Sats In View |
| 130074 |
Route and WP Service – WP List – WP Name and Position |
| 130310 |
Environmental Parameters |
| 130311 |
Environmental Parameters |
| 130312 |
Temperature |
| 130577 |
Direction Data |
| 61184 |
Parameter Command |
| 65292 |
Clear Fluid Level Warnings |
| 65293 |
LGC-2000 Configuration |
| 65323 |
Data User Group Request |
| 130831 |
EP-20 Suzuki Engine and EP-50 Storage Device Configuration |
| 130835 |
Set Engine and Tank Configuration |
| 130839 |
EP-45 Pressure Configuration |
| 130840 |
Data User Group Configuration |
| 130845 |
Parameter Handle |
| 130850 |
Event Command |
| 130851 |
Event ReplyTransmit only |
| 65287 |
Temperature Sensor Configuration |
| 65289 |
Trim Tab Configuration |
| 65290 |
Paddle Wheel Speed Configuration |
| 130818 |
Reprogramming Data |
| 130819 |
Request Reprogram |
| 130828 |
Set Serial Number |
| 130836 |
Fluid Level Configuration |
| 130837 |
Fuel Flow Turbine Configuration |
NMEA 0183 Sentences supported
| GPS Receive |
GGA GLL GSA GSV VTG ZDA Transmit GGA GLL GSA GSV VTG ZDA GLCTX / RX |
| Navigation Receive |
RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX |
| Sonar Receive |
DBT DPT MTW VLW VHM, Transmit DBT DPT MTW VLW VHMTX / RX |
| Compass Receive |
HDG HDT HDM, Transmit HDGTX / RX |
| Wind Receive |
MWV MWD, Transmit MWV MWDTX / RX |
| AIS / DSCReceive |
DSC DSE VDM |
| Languages |
Language on products will vary depending on where you purchase the unit. Basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portuguese (Brazil)/Português (BR), Portuguese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano |
Approvals
| Approvals Compliance |
FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM |

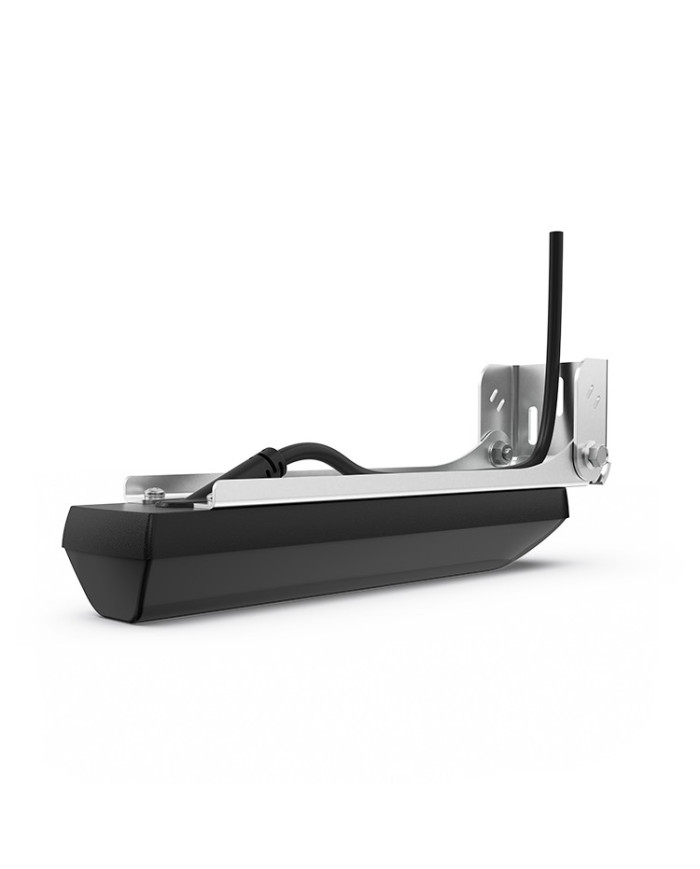

ActiveImaging HD™ 3-in-1 Transducer
SKU: 000-16062-001
Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images
of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan and DownScan Imaging™, plus a
FishReveal™ DownScan view that makes fish easier to identify below the boat
Key Features
High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
Lowrance® CHIRP with superb clarity and target separation
FishReveal™ DownScan view makes fish identification easy
Supports Medium and High CHIRP (83/200kHz) en 455/700/1000/1200 KHz frequencies
Smart transducer design boosts signal clarity
Compatible directly with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon and Elite FS
Specifications
Environment: Humidity60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Shock Vibration: 100,000 cycles of 20 G
Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )
Waterproofrating: P67
Mounting Type: Transducer Bracket Mount
Weight Transducer: 2.67 lbs (1.21 kg)
Other
Interface: Direct Connect to HDS Pro (Requires S3100 Module for Down Scan Fish Reveal)
Via S3100 Module and Ethernet to: *HDS Live *Elite FS *
Warranty Period: 2 Years when bought in Bundle
