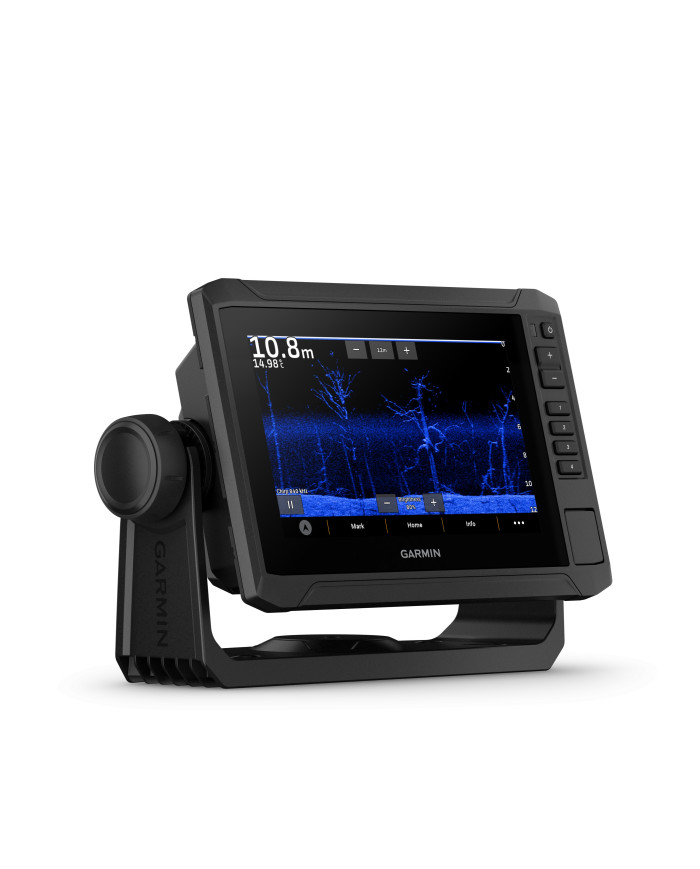

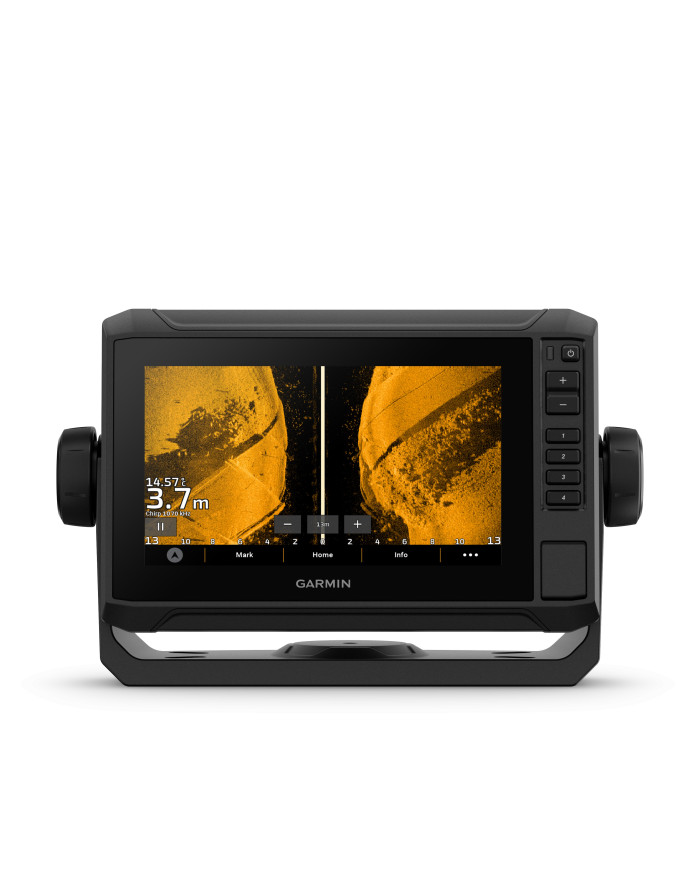

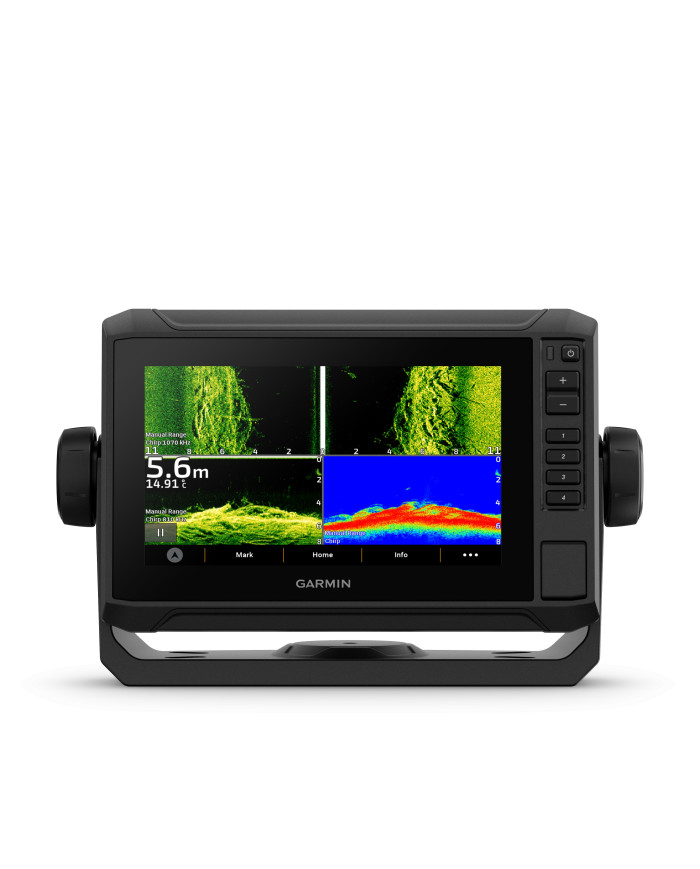

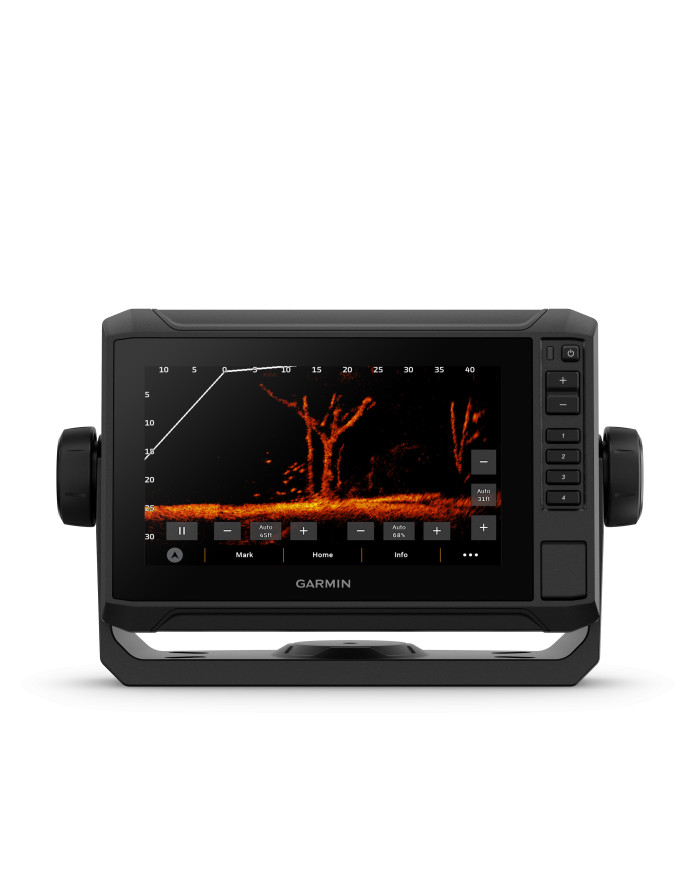

Garmin ECHOMAP UHD2 72sv Touch Chartplotter / Fishfinder No Transducer

010-02683-00

New

Garmin ECHOMAP UHD2 72sv 7 inch Touch Chartplotter / Fishfinder No Transducer

ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist.

  • ECHOMAP UHD2 72sv 7 inch
  • 12-pin sounder to 8-pin transducer cable
  • Power cable
  • Tilt/swivel mount with quick release cradle
  • Protective cover
  • Hardware
  • Documentation

More details

In Stock at Local Warehouse. Allow 3 Days for us to Recieve

R21,779.10

-10%

R24,199.00

More info

Garmin ECHOMAP UHD2 72sv 7 inch Touch Chartplotter / Fishfinder No Transducer

ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

  • ECHOMAP UHD2 72sv 7 inch
  • 12-pin sounder to 8-pin transducer cable
  • Power cable
  • Tilt/swivel mount with quick release cradle
  • Protective cover
  • Hardware
  • Documentation

MULTI-BAND GPS

Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS.

Specifications

Physical & Performance

Display Size 6.1″ x 3.4″, 7″ (15.5 x 8.7 cm, 17.8 cm)
Power Input 9 to 18 Vdc
Display Resolution 800 x 480 pixels
GPS Yes
Dimension 8.6″ x 5.6″ x 3.2″ (21.8 x 14.2 x 8.1 cm)
Receiver 10 Hz
Waterproof IPX7
Weight 2.2 lbs (1 kg)
Mounting Options Bail or flush
Display Type WVGA, TN

Maps & Navigation

Garmin Navionics+™ (Coastal) No
Garmin Navionics Vision+™ Yes
Accepts Data Cards 1 microSD™ card; 32 GB maximum size
Garmin Navionics+ Inland & Coastal Yes (see Additional)
Garmin Navionics+ (Inland) No
Navigation Routes 100
Garmin Navionics+™ Yes

Features

Waypoints 5,000
Sailing features Yes
NMEA 0183 Compatible No
Has built-in receiver Yes
USB ports No
TOPO Yes
SideVü Built-in 260/455/800/1000/1200 kHz
DSC Yes
Touchscreen Yes
LakeVü g3 Ultra No
NMEA 2000® compatible Yes
ActiveCaptain Mobile Planning Compatible yes
Typical current draw at 12 Vdc 1.52 A
NMEA 2000® ports yes
Tide tables No
GLONASS Yes
Track points 50,000
Panoptix™ sonar Yes
Garmin Marine Network Ports 1
LakeVü g3 No
Supports WAAS Yes
GSD Black Box Sonar Support No
Maximum current draw at 12 Vdc 3.2 A
Garmin SmartMode compatible (customisable monitor presets) No
Built-in Auto Guidance No
Maximum power usage at 10 Vdc 18.3 W
BlueChart g3 No
Standard Mapping Yes
LakeVu (inland) No
Built-in Auto Guidance+ Yes (downloadable via ActiveCaptain app)
Displays sonar Yes
ANT+ (Connectivity) Yes
GCV Black Box Sonar Support No
BNC external GPS antenna port No
Spoken audio alerts No
BlueChart g3 Vision No
Garmin Wi-Fi network (local connection) Yes
Input Touchscreen with Keyed Assist
BeiDou Yes
Garmin Quickdraw Contours Yes
Bluetooth® calling Yes
AIS Yes
Supports multi-band, multi-constellation GPS Yes
Raster chart support No
OneHelm support No
ClearVü Built-in 260/455/800/1000/1200 kHz
Tracks 50 saved tracks
Wireless remote compatible No
Supports Fusion-Link™ compatible radios Yes
Galileo Yes
LiveScope Yes
Power output 500 W
12-pin transducer ports 1
BlueChart (coastal) No
Traditional sonar (dual frequency/beam) Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
GRID™ (Garmin Remote Input Device) compatible No
