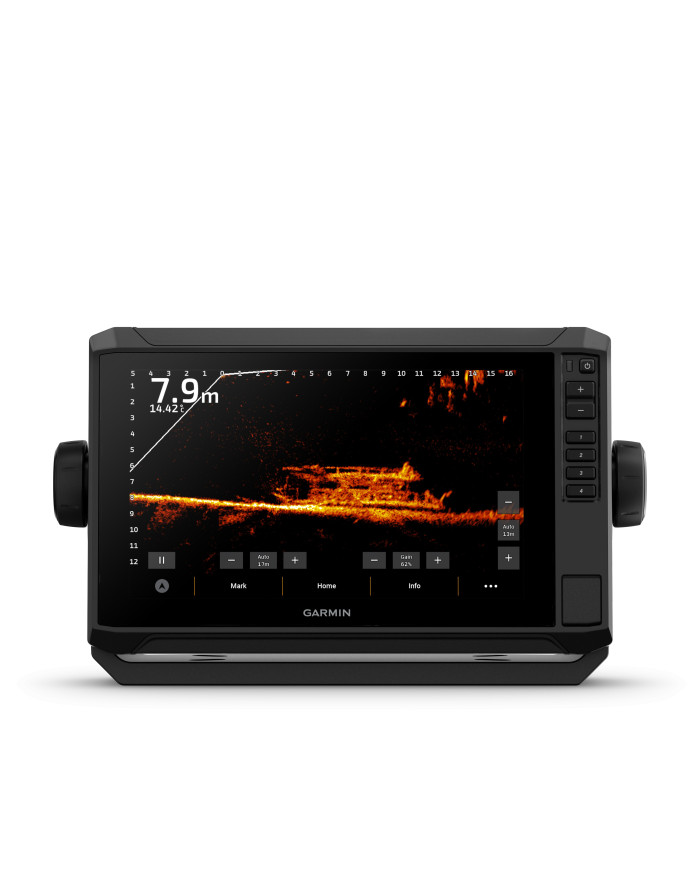

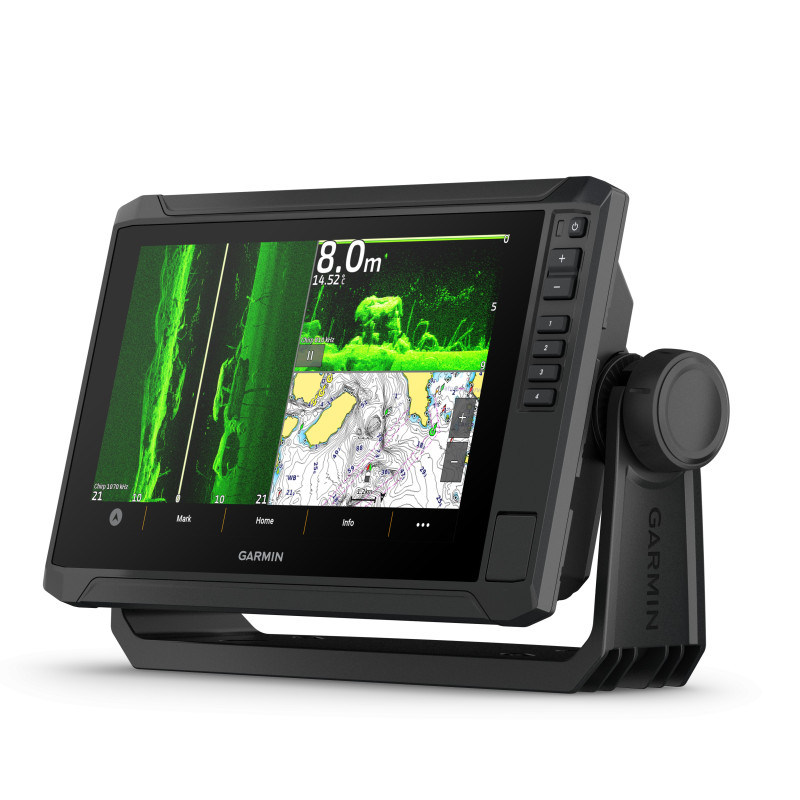

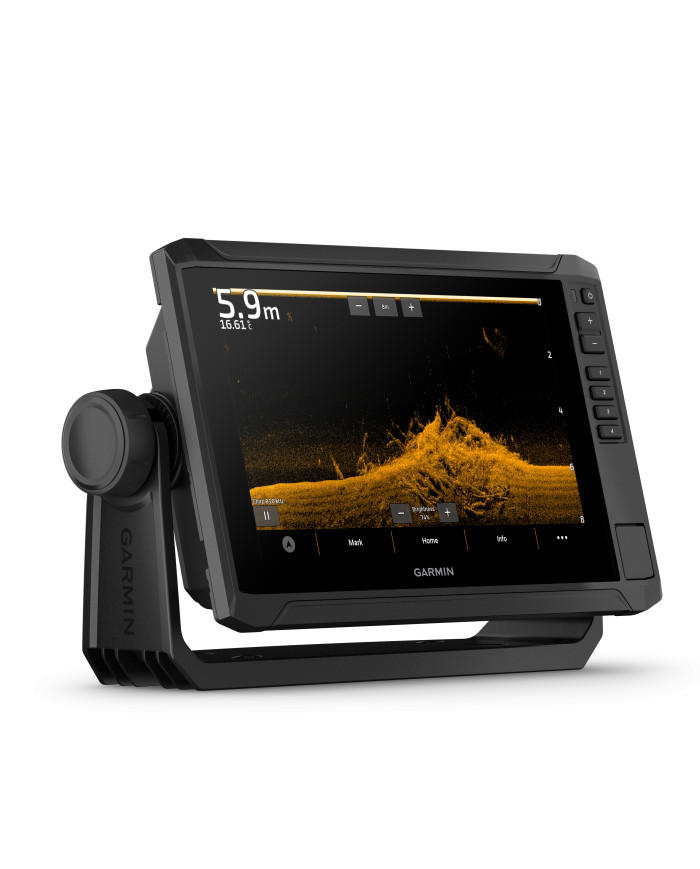

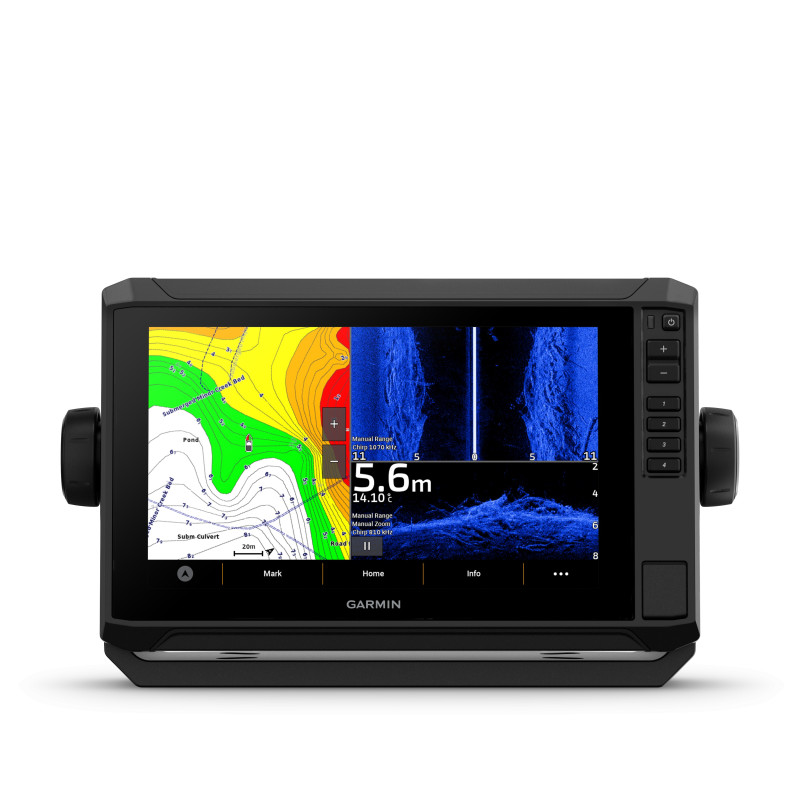

Garmin ECHOMAP UHD2 92sv Touch Chartplotter / Fishfinder GT56UHD-TM Transducer

010-02687-01

New

Garmin ECHOMAP UHD2 92sv 9 inch Touch Chartplotter / Fishfinder GT56UHD-TM Transducer

ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist.

  • ECHOMAP UHD2 92sv 9 inch
  • GT56-TM transducer
  • Power cable
  • Tilt/swivel mount with quick release cradle
  • Protective cover
  • Hardware
  • Documentation

More details

In Stock at Local Warehouse. Allow 3 Days for us to Recieve

R31,679.10

-10%

R35,199.00

More info

Garmin ECHOMAP UHD2 92sv 9inch Touch Chartplotter / Fishfinder GT56UHD-TM Transducer

ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

  • ECHOMAP UHD2 92sv 9 inch
  • GT56-TM transducer
  • Power cable
  • Tilt/swivel mount with quick release cradle
  • Protective cover
  • Hardware
  • Documentation



Specifications

Physical & Performance

Display Size 7.8 in x 4.5 in, 9 in (19.8 x 11.5 cm, 22.9 cm)
Power Input 9 to 18 Vdc
Display Resolution 1024 x 600 pixels
GPS Yes
Dimension 10.4 in x 6.5 in x 3.2 in (26.4 x 16.6 x 8 cm)
Receiver 10 Hz
Waterproof IPX7
Weight 2.9 lbs (1.3 kg)
Mounting Options Bail or flush
Display Type WSVGA, TN

Maps & Navigation

Garmin Navionics+™ (Coastal) No
Garmin Navionics Vision+™ Yes
Accepts Data Cards 1 microSD™ card; 32 GB maximum size
Garmin Navionics+ Inland & Coastal Yes (see Additional)
Garmin Navionics+ (Inland) No
Navigation Routes 100
Garmin Navionics+™ Yes

Features

Waypoints 5,000
Sailing features Yes
NMEA 0183 Compatible No
Has built-in receiver Yes
USB ports No
TOPO Yes
SideVü Built-in 260/455/800/1000/1200 kHz
DSC Yes
Touchscreen Yes
LakeVü g3 Ultra No
NMEA 2000® compatible Yes
ActiveCaptain Mobile Planning Compatible yes
Typical current draw at 12 Vdc 1.72 A
NMEA 2000® ports yes
Tide tables No
GLONASS Yes
Track points 50,000
Panoptix™ sonar Yes
Garmin Marine Network Ports 1
LakeVü g3 No
Supports WAAS Yes
GSD Black Box Sonar Support No
Maximum current draw at 12 Vdc 3.5 A
Garmin SmartMode compatible (customisable monitor presets) No
Built-in Auto Guidance No
Maximum power usage at 10 Vdc 20.7 W
BlueChart g3 No
Standard Mapping Yes
LakeVu (inland) No
Built-in Auto Guidance+ Yes (downloadable via ActiveCaptain app)
Displays sonar Yes
ANT+ (Connectivity) Yes
GCV Black Box Sonar Support No
BNC external GPS antenna port No
Spoken audio alerts No
BlueChart g3 Vision No
Garmin Wi-Fi network (local connection) Yes
Input Touchscreen with Keyed Assist
BeiDou Yes
Garmin Quickdraw Contours Yes
Bluetooth® calling Yes
AIS Yes
Supports multi-band, multi-constellation GPS Yes
Raster chart support No
OneHelm support No
ClearVü Built-in 260/455/800/1000/1200 kHz
Tracks 50 saved tracks
Wireless remote compatible No
Supports Fusion-Link™ compatible radios Yes
Galileo Yes
LiveScope Yes
Power output 500 W
12-pin transducer ports 1
BlueChart (coastal) No
Traditional sonar (dual frequency/beam) Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
GRID™ (Garmin Remote Input Device) compatible No

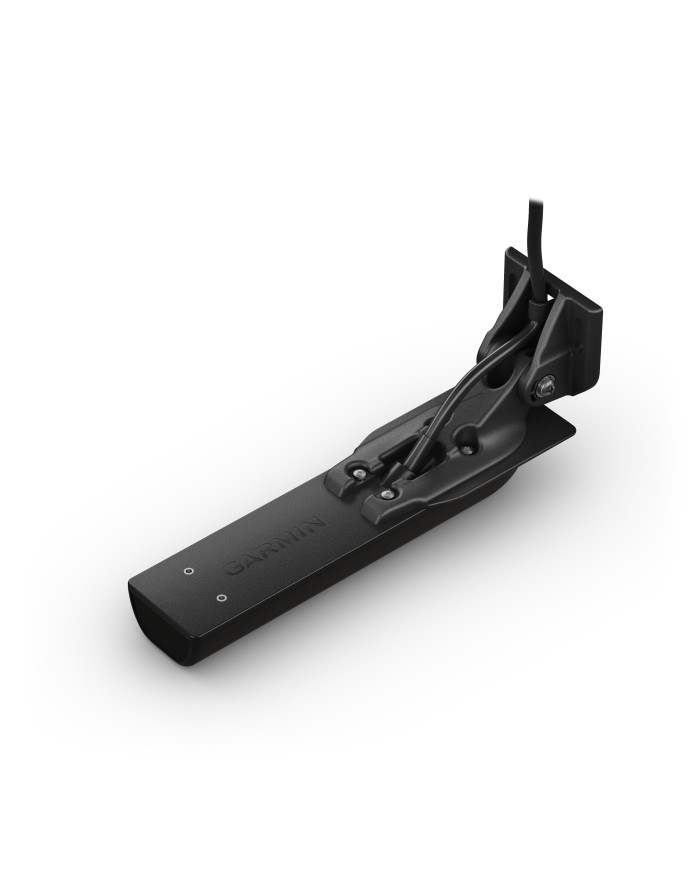

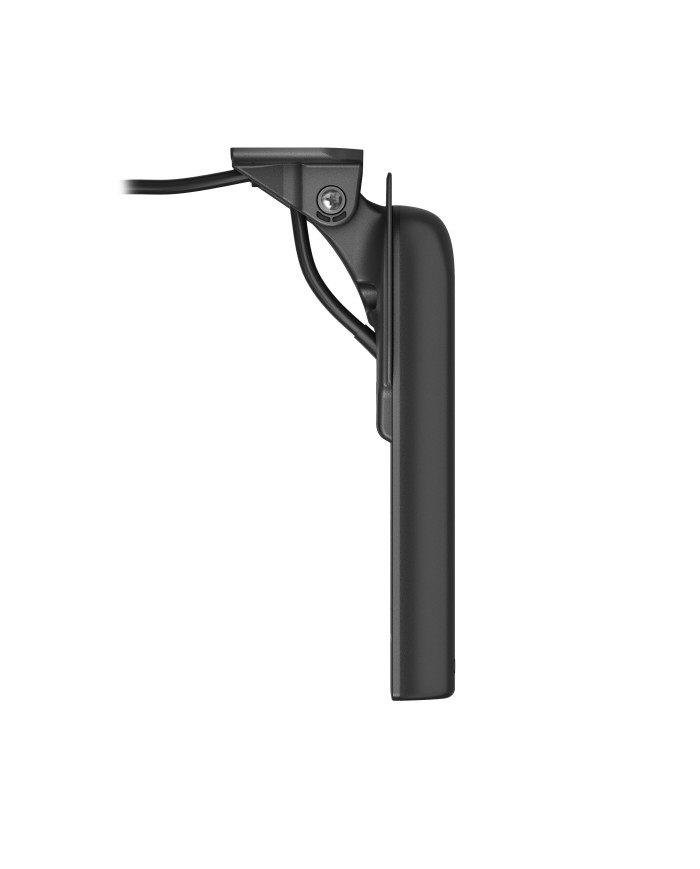

GT56UHD-TM Transducer

LESS TIME FINDING. MORE TIME FISHING.

This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.

See everything below and around your boat with Ultra High-Definition scanning sonar.
High wide CHIRP traditional sonar delivers target separation like no other.
Multiple sonar frequencies have you covered — no matter what depth you’re fishing.
See targets and structure in bright, vivid colour.
Mount this transducer your way — transom, trolling motor or thru-hull.

See what’s happening below the water.

ULTRA HIGH-DEFINITION CLEARVÜ SCANNING SONAR

Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.

ULTRA HIGH-DEFINITION SIDEVÜ SCANNING SONAR

See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.

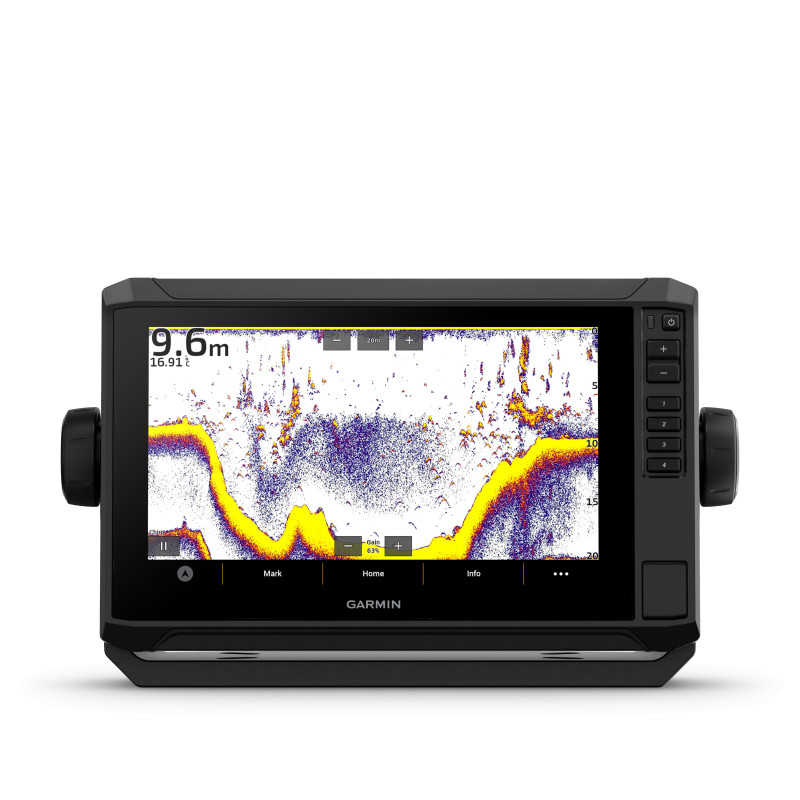

HIGH WIDE CHIRP TRADITIONAL SONAR

Experience remarkably clear target separation and definition up to 244 m (800 feet) below your boat.

MULTIPLE SCANNING SONAR FREQUENCIES

Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.

VIVID COLOUR PALETTES

High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

MOUNTING OPTIONS

Everyone’s setup is different. That’s why we’ve included transom, trolling motor and thru-hull mounting hardware.

Features

Transducer cable length 7.62 m
Transducer power Traditional 350 W; ClearVü/SideVü 500 W
Transducer frequency Traditional High wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
Transducer maximum depth Traditional: 244 m freshwater; ClearVü: 122 m; SideVü: 152 m
Transducer number of pins 12
Transducer beamwidth Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
Misc

Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm
Transducer depth/speed/temperature Depth and temperature
Transducer supported deadrise/transom angles 0°-70° degree transom
