Garmin ECHOMAP Ultra2 102sv 10 inch Chartplotter Without Transducer
R49,499.00
R43,367.00
Tax included
Garmin ECHOMAP Ultra2 10 inch Chartplotter 102sv without Transducer
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING
ECHOMAP Ultra2 102sv
Charging/data cable
Bail Mount With Quick Release Cradle
Protective sun cover
Hardware
Documentation
Garmin ECHOMAP Ultra2 10 inch Chartplotter 102sv without Transducer
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING
1LiveScope™ System sonar transducer sold separately
2Via one-to-one unit wireless connection only
3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters
4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter
SPECIFICATIONS
| General | |
|---|---|
| DIMENSION | 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″) |
| WEIGHT | 1.8 kg (4 lbs) |
| WATERPROOF | IPX7 |
| TOUCHSCREEN | Yes |
| DISPLAY TYPE | WXGA, IPS |
| DISPLAY SIZE | 21.7 x 13.6 cm; 21.7 cm diagonal (8.5″ x 5.4″; 10″ diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| MOUNTING OPTIONS | Bail or flush |
| INPUT | Touchscreen with Keyed Assist |
| Maps & Memory | |
|---|---|
| ACCEPTS DATA CARDS | 2 microSD Cards |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| Sensors | |
|---|---|
| GPS | Yes |
| GLONASS | Yes |
| GALILEO | Yes |
| BEIDOU | Yes |
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 10 Hz |
| NMEA 2000® COMPATIBLE | Yes |
| SUPPORTS WAAS | Yes |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | Yes |
| Optional Map Support | |
|---|---|
| BLUECHART G3 | Yes |
| BLUECHART G3 VISION | Yes |
| GARMIN NAVIONICS+™ | Yes |
| GARMIN NAVIONICS VISION+™ | Yes |
| TOPO 100K | Yes |
| STANDARD MAPPING | Yes |
| GARMIN QUICKDRAW CONTOURS | Yes |
| Chartplotter Features | |
|---|---|
| AIS | Yes |
| DSC | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| Electrical Features | |
|---|---|
| POWER INPUT | 9 to 18 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 2.3 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 5 A |
| MAXIMUM POWER USAGE AT 10 VDC | 34 W |
| Sonar Features & Specifications | |
|---|---|
| DISPLAYS SONAR | Yes |
| POWER OUTPUT | 600 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | Built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | Built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | Yes |
| LIVESCOPE | Yes |

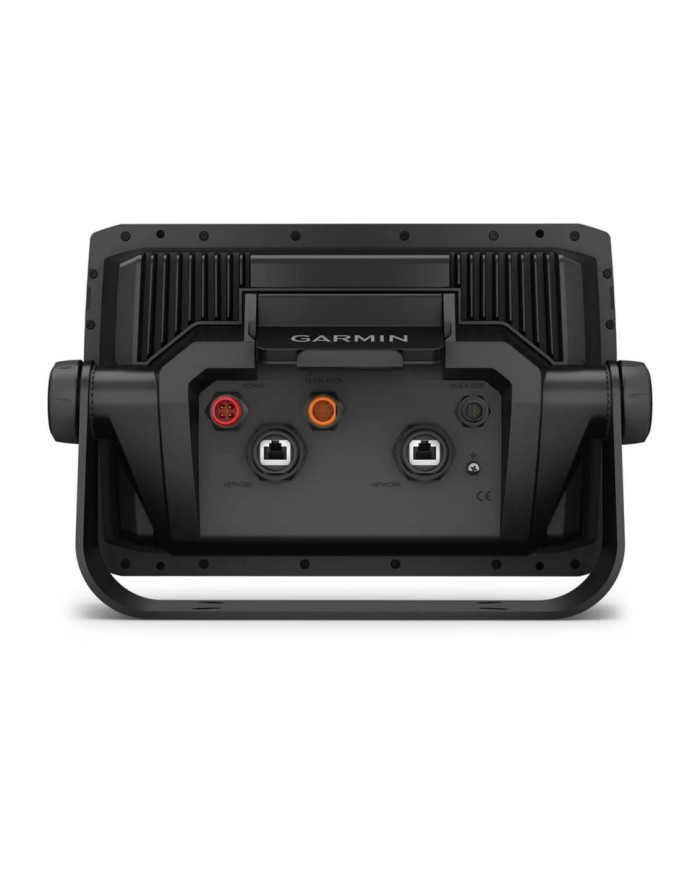

| Connections | |
|---|---|
| NMEA 2000® PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 2 (large connector) |
| 12-PIN TRANSDUCER PORTS | 12-pin scanning sonar |
| ANT+ (CONNECTIVITY) | Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
In the Box
- ECHOMAP Ultra2 102sv
- Charging/data cable
- Bail Mount With Quick Release Cradle
- Protective sun cover
- Hardware
- Documentation
