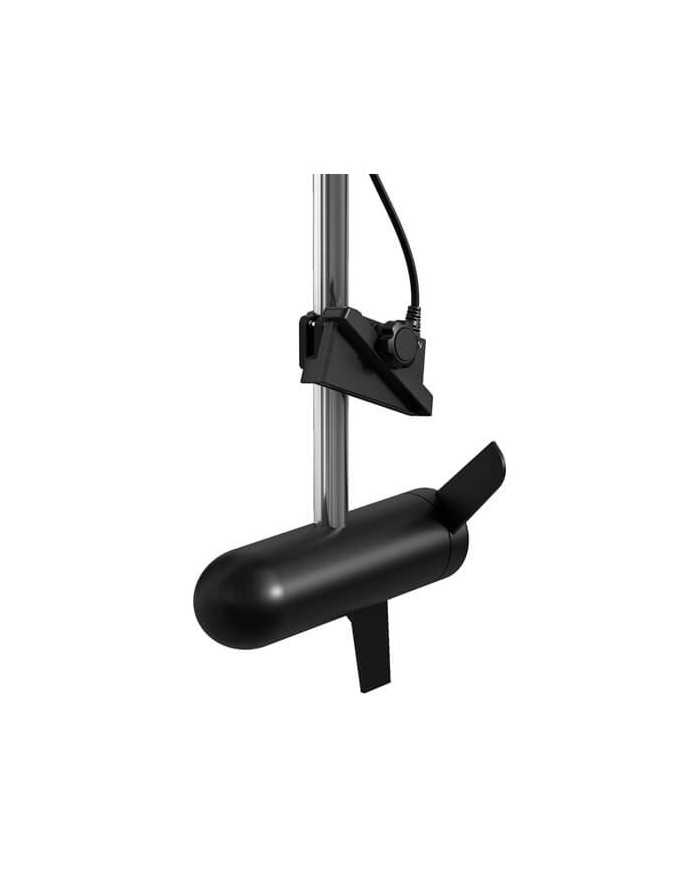

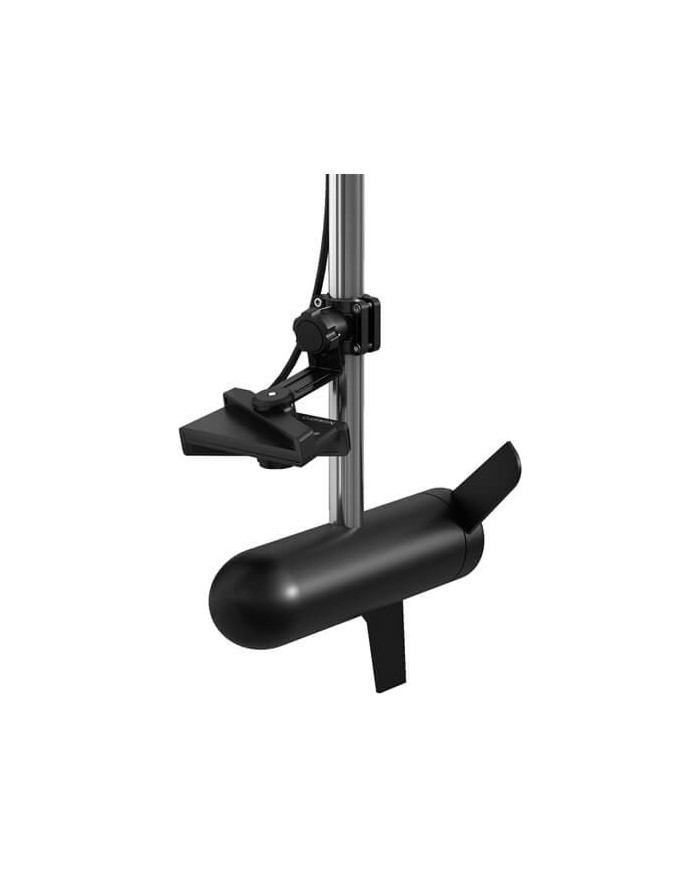

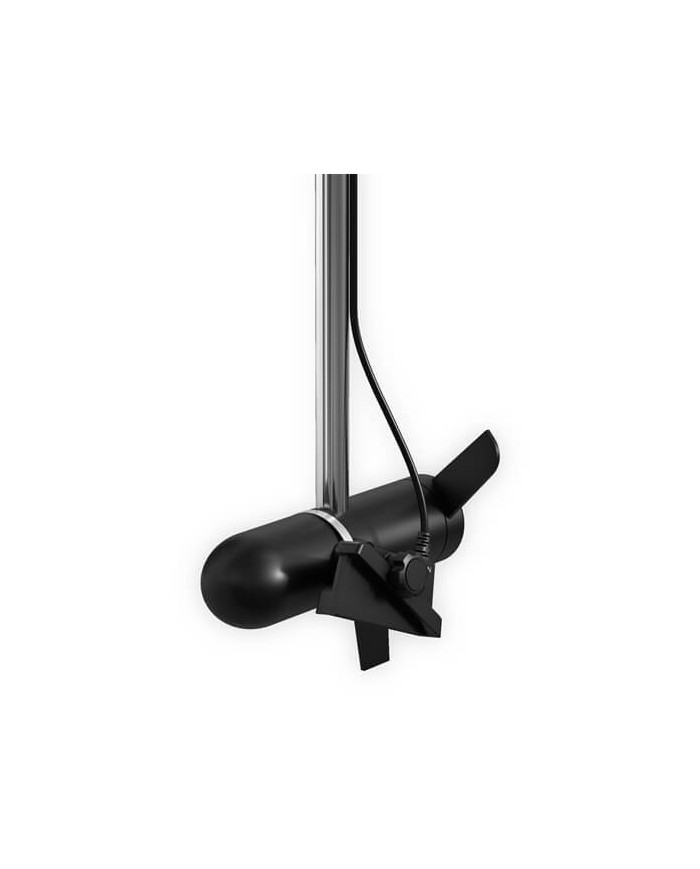

Garmin Panoptix LiveScope PLUS (LSV 34) Transducer Only)
010-02706-10
New
Garmin LiveScope™ Plus, LVS34 Transducer only
LVS34 Transducer only
PART NUMBER 010-02706-10
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Documentation
USE YOUR EXISTING LIVESCOPE MODULE
PLACE YOUR ORDER NOW!
DELIVERY END MARCH / APRIL 2022
ARRIVES END MARCH / APRIL 2022 PLACE YOR PRE PAYED ORDER NOW!
More info
Garmin LiveScope™ Plus, LVS34 Transducer only
LVS34 Transducer only (Use Your Existing Module)
PART NUMBER 010-02706-10
THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
See images clearly with improved screen clarity, transducer sensitivity and target separation.
Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid colour palettes.
Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
Image definition like you’ve never seen.
REAL-TIME IMAGES
Real-time sonar ensures that your live images are as accurate as possible.
CLEAR VISION
See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
IMAGE STABILISATION
A built-in stabilisation system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOUR PALETTES
Choose from seven vivid colour options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.
Select a LiveScope mode to fit your environment.
FORWARD MODE
Scout ahead of your boat to see what’s happening in real time.
DOWN MODE
Explore live views of the activity directly beneath your boat.
PERSPECTIVE MODE
See under the water with a view from your perspective above the water.
Powerful. Efficient. Quiet. Force® trolling motor.
See a defined picture on the sunlight-readable ECHOMAP™ Ultra 122sv combo.
General |
|
| DIMENSION | 6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm) |
|---|---|
| WEIGHT |
2.25 lbs (1.02 kg) |
| WATER RATING | IPX7 |
| TEMPERATURE RANGE | Operating: 0 C to 40 C
|
Sonar features & specifications |
|
| FREQUENCY | 530 - 1,100 kHz |
|---|---|
| MAXDEPTH | Down and Forward: 200’ (61.0 m) |
Connections |
|
| CONNECTIONS GARMIN MARINE NETWORK PORTS |
1 (small connector) |
|---|---|
Electrical Features |
|
| POWER INPUT | 10-32 V |
|---|---|
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
| COMPASS SAFE DISTANCE | 4" (0.1 m) |
- Minimum depth: 3' (0.91 m)
- Sonar type: Live
- Beamwidth: 20° x 135°
- Transducer cable length: 20 ft
- Transducer number of pins: 21
COMPATABLE MFD'S
