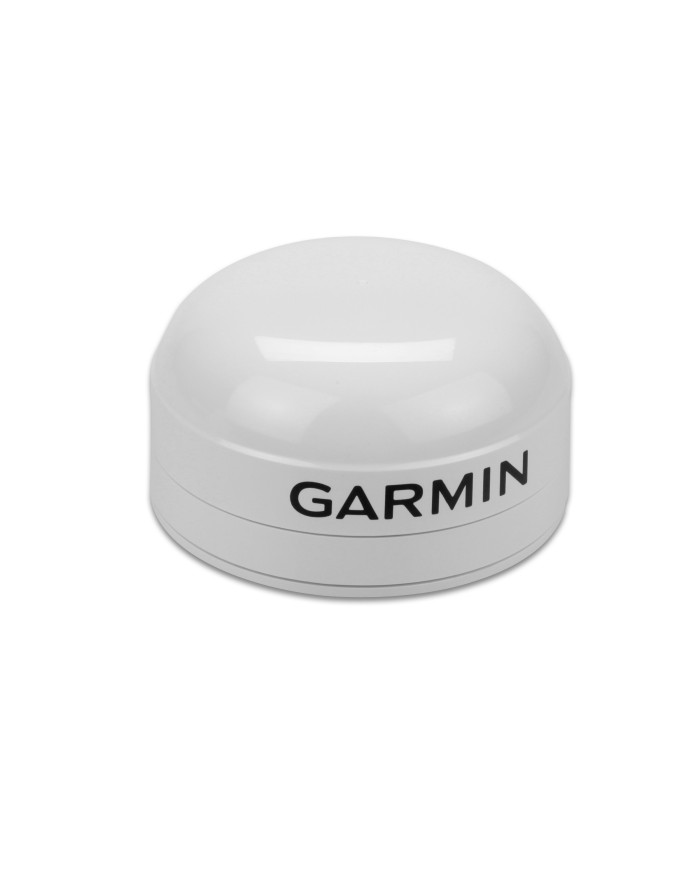

Garmin GPS 24xd NMEA2000
010-02316-10
New
Garmin GPS 24xd NMEA2000

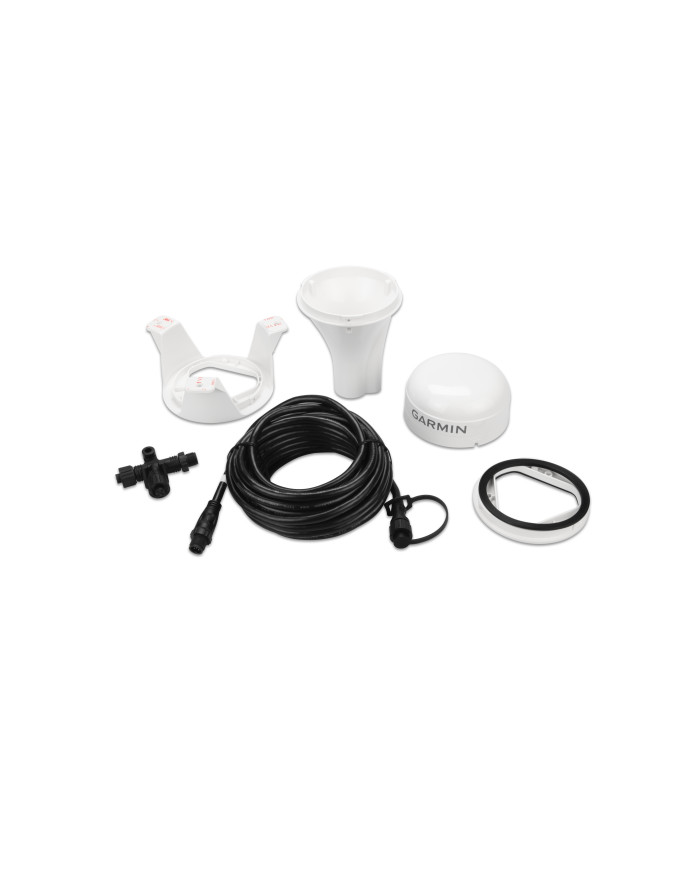

- GPS 24xd NMEA 2000®
- Pole mount
- Surface mount
- Under-deck mount
- NMEA 2000 backbone/drop cable (6 metres)
- NMEA 2000 T-connector
- Documentation
In Stock at Local Warehouse. Allow 3 Days for us to Recieve
More info
Garmin GPS 24xd HVS
- GPS 24xd NMEA 2000®
- Pole mount
- Surface mount
- Under-deck mount
- NMEA 2000 backbone/drop cable (6 metres)
- NMEA 2000 T-connector
- Documentation
EXPLORE COASTAL WATERS
The GPS 24xd HVS position receiver and antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds.
Navigate in more locations with expanded GNSS support.
Get high-sensitivity tracking with fast GPS update rate.
Accurately pinpoint your heading — regardless of speed.
It’s water-resistant (IPX7) to withstand the elements.
Install it easily with multiple mounting options.
The antenna is compatible with NMEA 0183 devices.
More accurate data — for more confident navigation.
MULTI-BAND GNSS
Multi-band GNSS provides precise location accuracy1 to within 1 metre to compatible marine multifunction displays, instrument displays and autopilots.
MAGNETIC HEADING
The magnetic heading sensor provides accuracy to within 3 degrees, stabilising charts, radar overlay and MARPA even at slow speeds.
HIGH-SENSITIVITY GPS
Fast 10 Hz position update rates provide high-sensitivity position, velocity and time data.
EXPANDED GNSS SUPPORT
GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo2, GLONASS and BeiDou2) to more accurately track in challenging conditions than GPS alone.
MULTI-SBAS COMPATIBLE
Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals.
MOUNTING OPTIONS

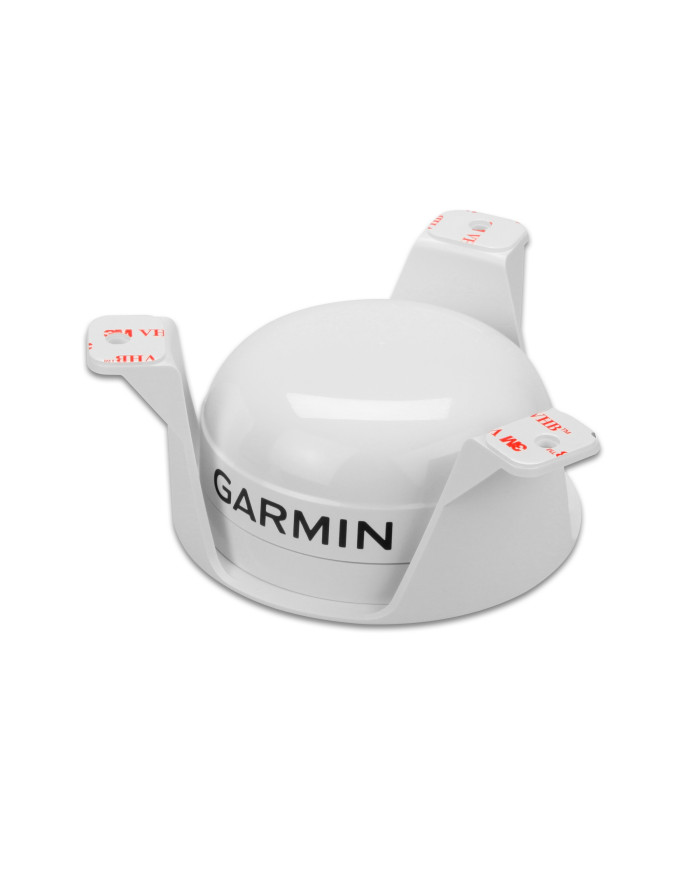

Installation is easy with under-deck, pole and surface-mount options.
Features
-
Dimensions (D x H): 91.6 mm x 49.5 mm
-
Weight: 201 g
-
Cable length: 6 m
-
Temperature range: -30° to 80° C
-
Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
-
Compass-safe distance: 150 mm
-
Power source input: 8-33 Vdc, unregulated
-
Input current: 150 mA at 12 Vdc
-
Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 metre, 88%
