Garmin Card Reader
- Garmin Card Reader
- Mounting hardware
- Power cable
- Network cable (6 ft)
- Documentation

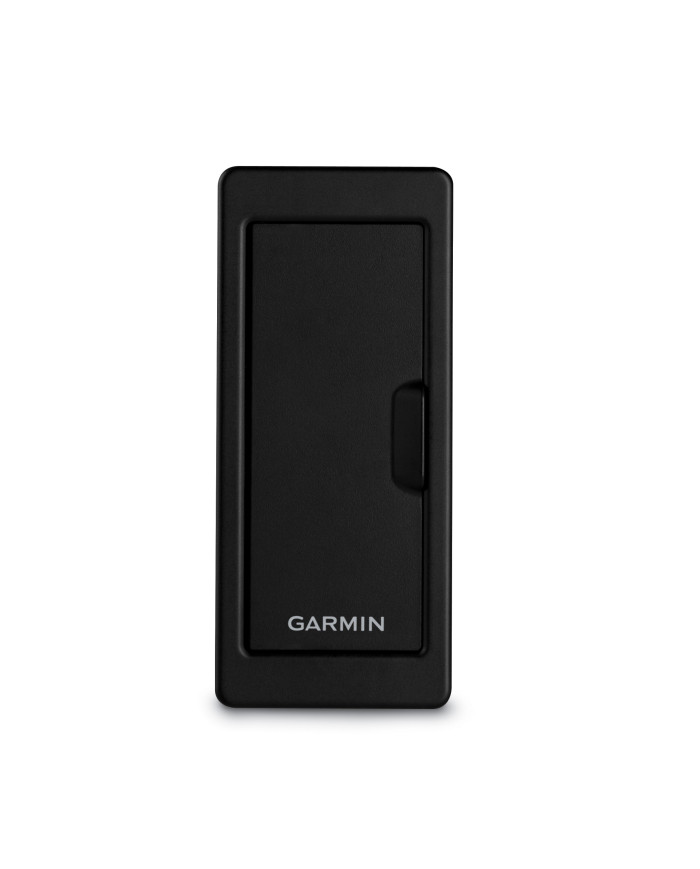

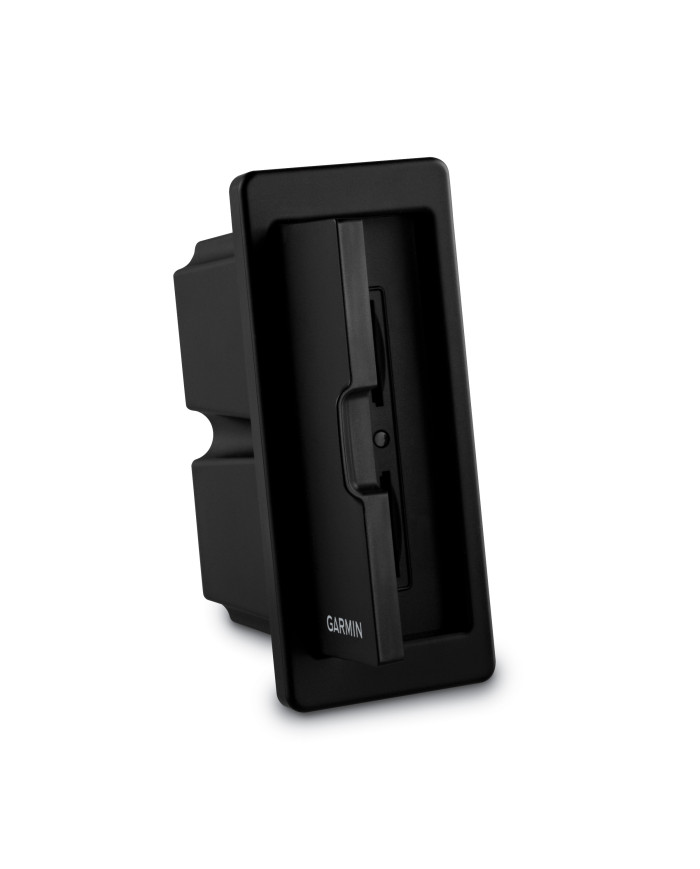

Provide convenient remote mounting and a single access point for 2 SD™ card slots for mapping with our Garmin Card Reader. A water resistant, magnetic door allows the card reader to be mounted horizontally or vertically — and you can add multiple card readers for additional access points.
Features
Misc |
- Dimensions (W×H×D): 2 1/8" x 4 7/8" x 3 3/16" (54.3 x 124.1 x 81.2 mm)
- Weight: 6.3 oz. (178.6 g)
- Temperature range: From 5° to 158°F (from -15° to 70°C)
- Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
- Input power: 10-35 Vdc
- Fuse: 7.5 A, 42 V fast-acting
- Maximum power usage at 10 Vdc: 2.4 W
- Typical current draw at 12 Vdc: 80 mA
- Maximum current draw at 12 Vdc: 240 mA
- Compass-safe distance: 36" (915 mm)
|
ACCESSORIES
Garmin Marine Network Cables (Large Connectors), 6 ft (1.83 m)
COMPATIBLE DEVICES
GPSMAP® 8410
GPSMAP® 8410xsv
GPSMAP® 8412
GPSMAP® 8412xsv
GPSMAP® 8416
GPSMAP® 8416xsv
GPSMAP® 8417 MFD
GPSMAP® 8422 MFD
GPSMAP® 8424 MFD
GPSMAP® 8610
GPSMAP® 8610xsv
GPSMAP® 8612
GPSMAP® 8612xsv
GPSMAP® 8616
GPSMAP® 8616xsv
GPSMAP® 8617
GPSMAP® 8622
GPSMAP® 8624
GPSMAP® 8700 Black Box
