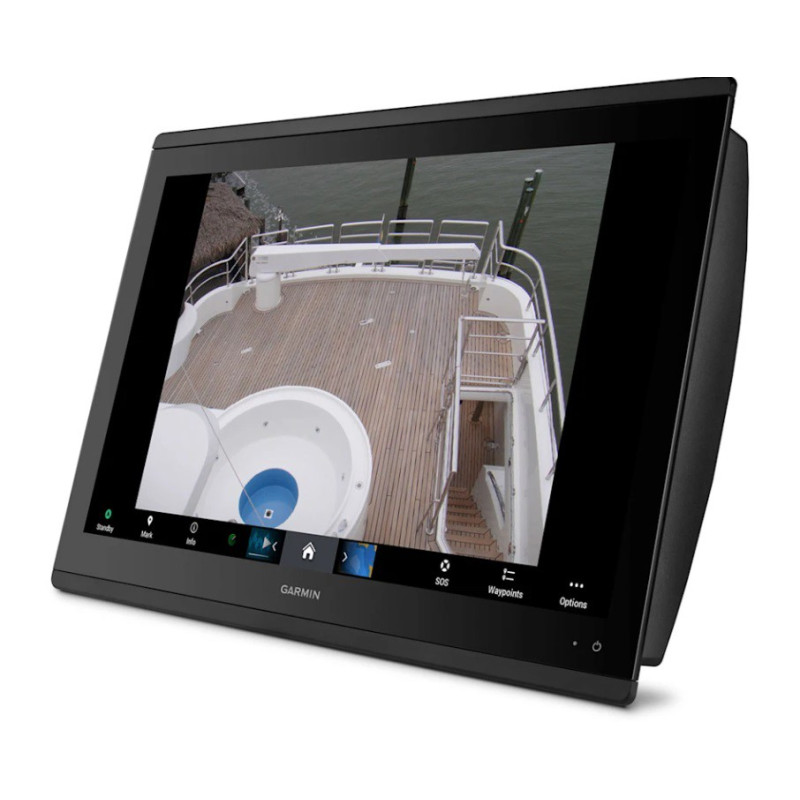

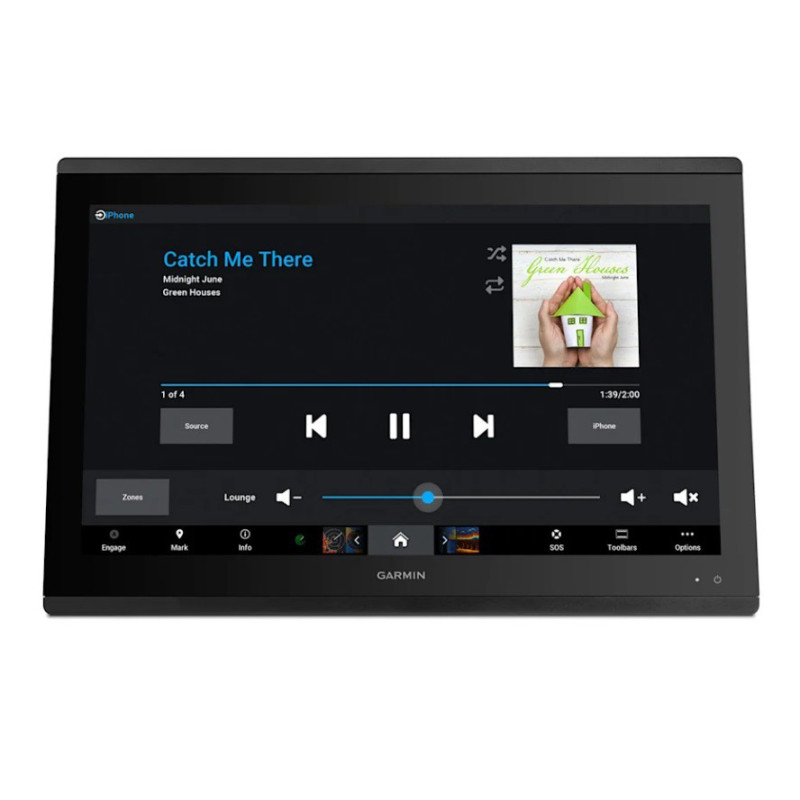

Garmin GPSMAP 8422 MFD With GPS 19x NMEA 2000 Antenna

010-01511-00

New

Garmin GPSMAP 8422 MFD With Worldwide Basemap

22 inch Full HD IPS Touch Screen

  • GPSMAP 8422 w Trim piece snap covers
  • GPS 19x NMEA 2000 GPS Antenna
  • Protective cover
  • Flush mount gasket and hardware
  • Power cable
  • NMEA 2000 2 m & 6 m backbone/drop cables
  • NMEA 2000 power cable
  • NMEA 2000 T-connector & terminator kit
  • Manual case with documentation

More details

Normally In Stock National Warehouse - Please Confirm Before Placing Order - Usually Two Days from Order Required before Shipping

R233,663.00

-R50,136.00

R283,799.00

More info

Garmin GPSMAP 8422 MFD With Worldwide Basemap

22 inch Full HD IPS STouch Screen

  • GPSMAP 8422
  • Trim piece snap covers

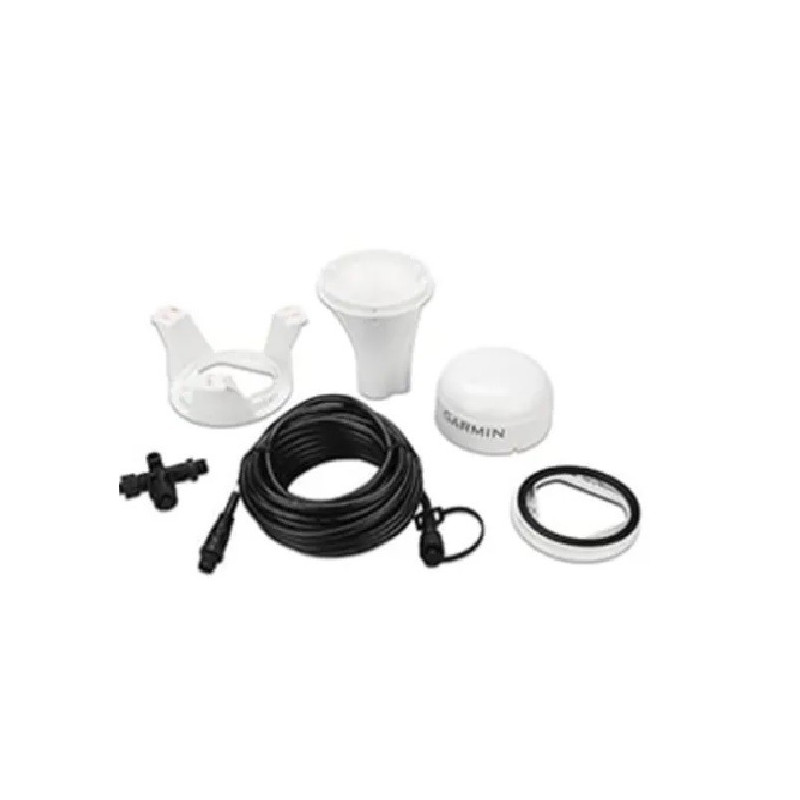

  • GPS 19x NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
  • Protective cover
  • Flush mount gasket and hardware
  • Power cable
  • NMEA 2000 2 m backbone/drop cable
  • NMEA 2000 6 m backbone cable
  • NMEA 2000 power cable
  • NMEA 2000 T-connector & terminator kit
  • Manual case with documentation

General
Dimension 52.8 cm x 35.1 cm x 7.1 cm
Weight 7.09 kg
Water rating

IPX7
Touchscreen Yes
Display Type Touchscreen IPS display (anti-glare finish)
Display Size 47.8 x 27.0 cm; 21.5" (54.6 cm) diagonal
Display Resolution 1920 x 1080 pixels
Mounting Options Flush or Flat
Maps & memory
Accepts Data Cards

2 SD Cards (with Garmin SD card reader accesory)
Waypoints

5,000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100 (250 waypoints each)
Sensors
Receiver

10 Hz high-sensitivity
NMEA 2000® compatible Yes
NMEA 0183 Compatible Yes

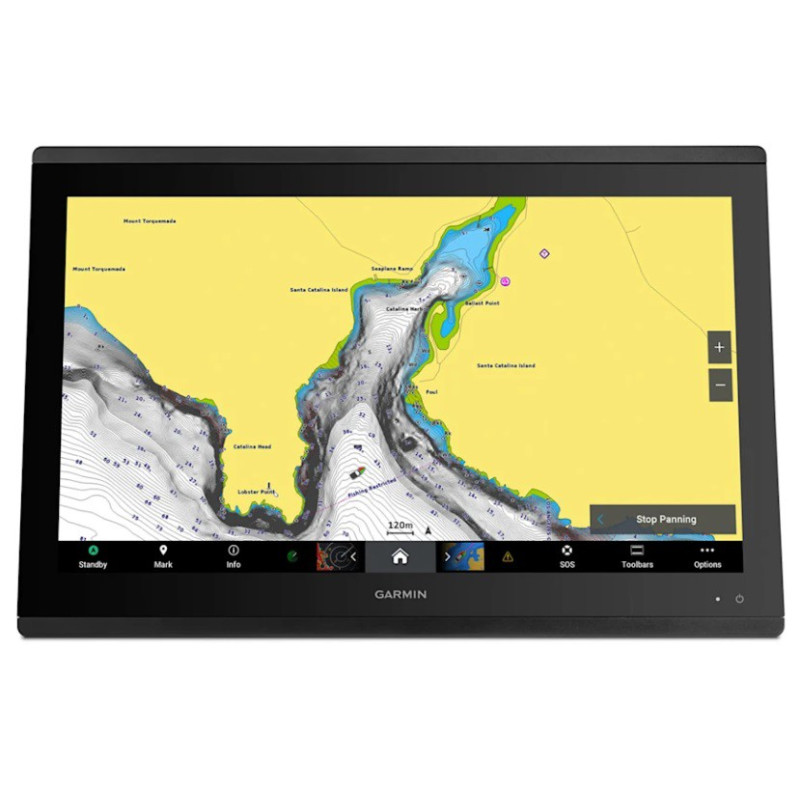

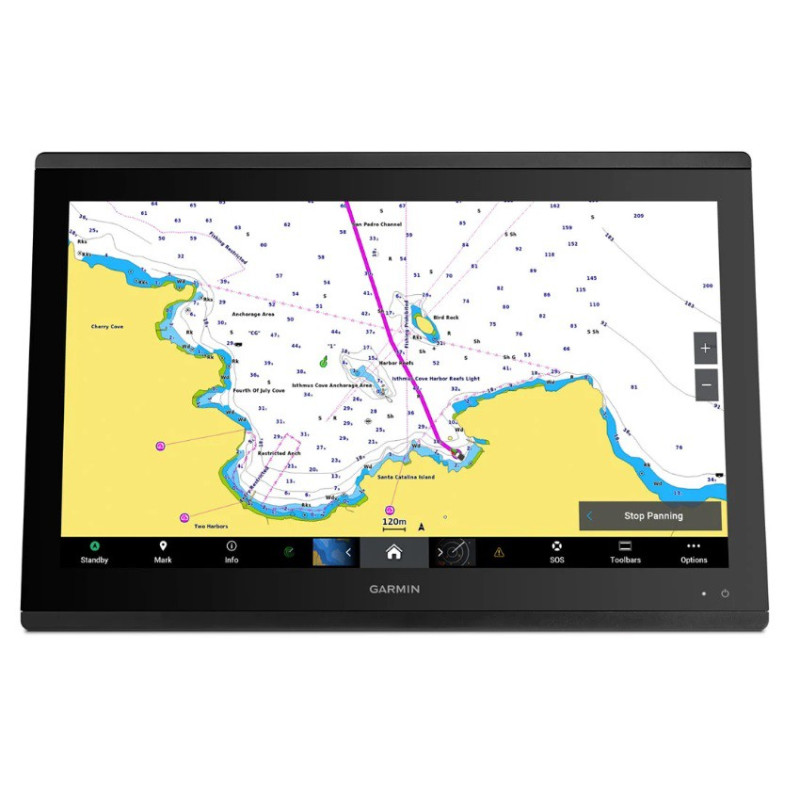

Built-in maps
Tide tables Yes
Optional map support
BlueChart g3 Yes
BlueChart g3 Vision Yes
LakeVü g3 Yes
LakeVü g3 Ultra Yes
Garmin Navionics+™ Yes
Garmin Navionics Vision+™ Yes
TOPO 100K Yes
Standard Mapping Yes
Garmin Quickdraw Contours Yes
Raster chart support Yes
Chartplotter features
Garmin SmartMode compatible (customisable monitor presets) Yes
AIS Yes
DSC Yes
Supports Fusion-Link™ compatible radios Yes
GSD Black Box Sonar Support Yes
GCV Black Box Sonar Support Yes

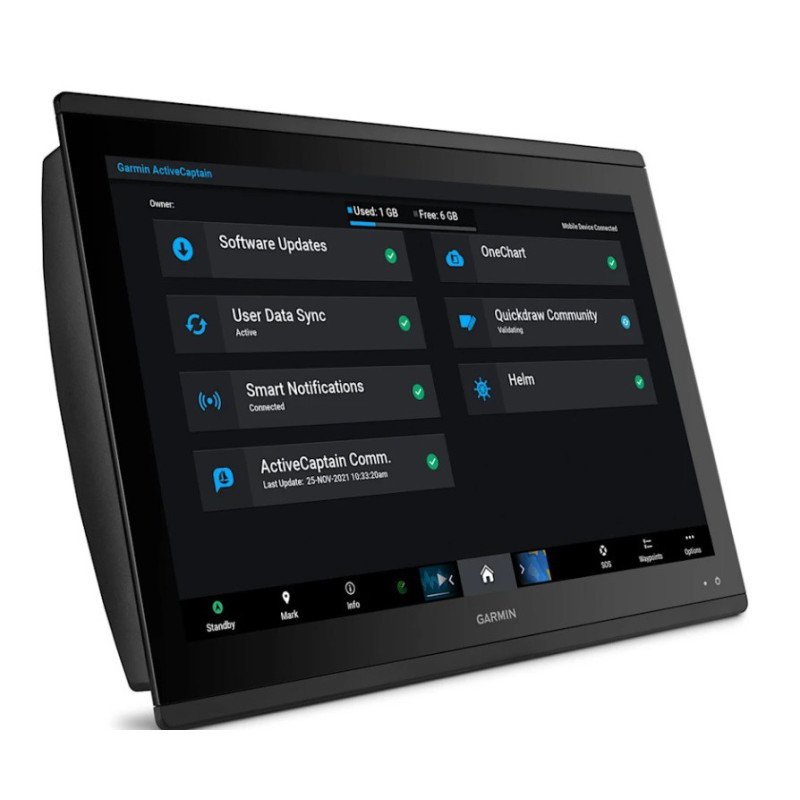

ActiveCaptain Mobile Planning Compatible

Yes
GRID (Garmin Remote Input Device) compatible Yes
Wireless Remote Compatible Yes
Sailing features Yes
Spoken audio alerts Yes
OneHelm support Yes
Electrical features
Power Input 10-35 Vdc
Typical current draw at 12 Vdc 3.9 A
Maximum current draw at 12 Vdc 4.9 A
Maximum power usage at 10 Vdc 59W
Sonar features & specifications

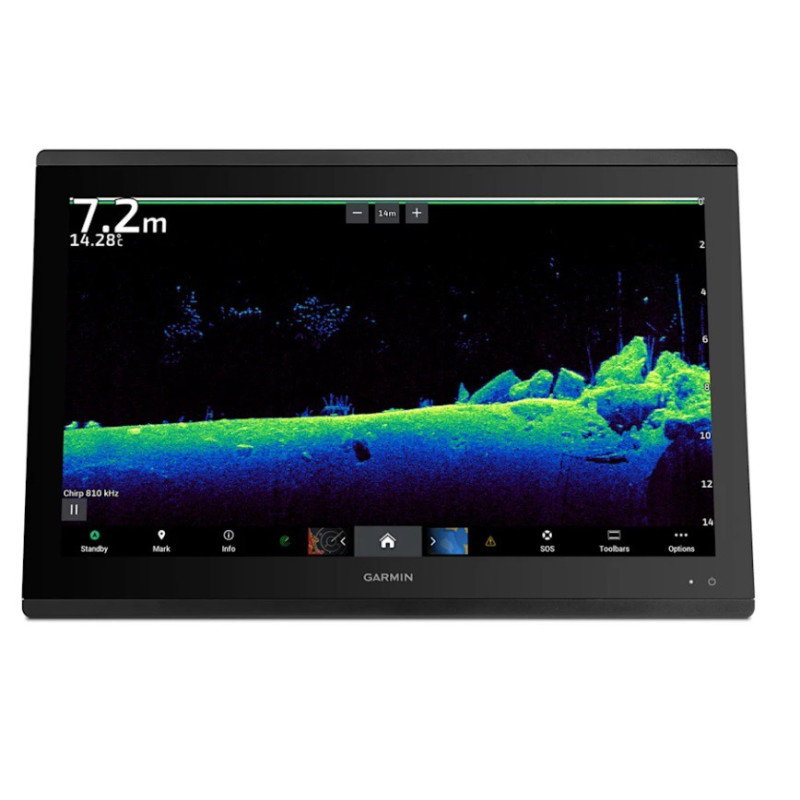

Displays sonar Yes
Traditional sonar (dual frequency/beam) Yes (with external black box, sold separately)
ClearVü Yes (with GCV™ black box, sold separately)

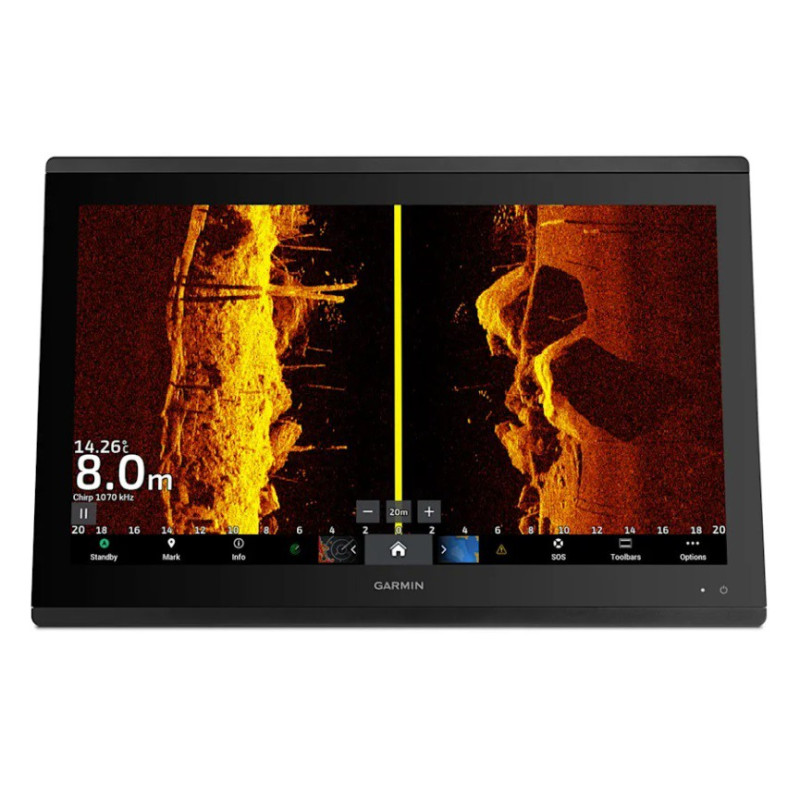

SideVü Yes (with GCV™ black box, sold separately)
Panoptix™ sonar Yes
LiveScope Yes

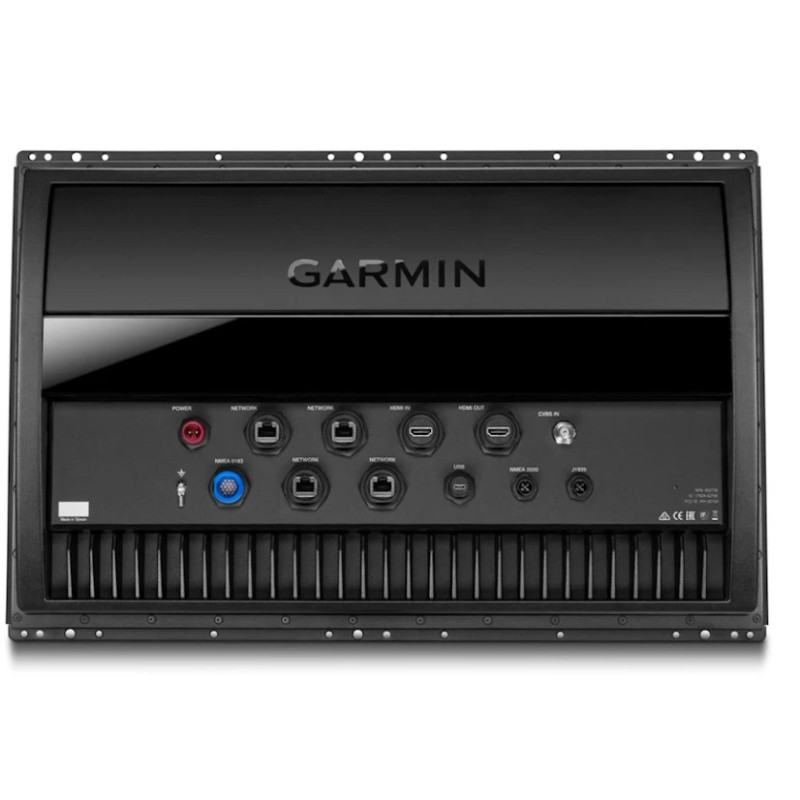

Connections
NMEA 2000® ports 1
NMEA 0183 Input (Rx) Ports

4
NMEA 0183 output (Tx) ports 2
Video input ports

1 - BNC composite

1 - HDMI (HDCP compliant)
Video output ports

1 HDMI
J1939 ports 1
Garmin Marine Network Ports

4
USB ports Yes
Bluetooth® calling Yes
ANT+ (Connectivity) Yes
Garmin Wi-Fi network (local connection) Yes
