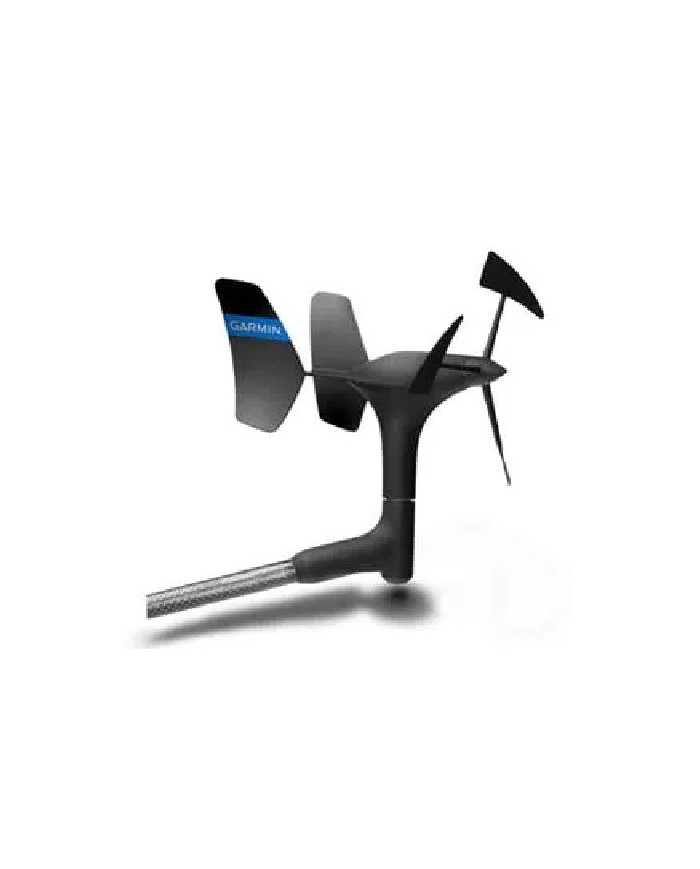

Garmin gWind Wired Transducer

Garmin gWind Wired Transducer

Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air

Twin-fin design gives a more stable True Wind Angle (TWA)

Optic reading technique for superior performance at low wind speeds with excellent linearity

GND™ 10 black box bridges NMEA 2000® data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa

Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB

The gWind transducer features twin-fin technology with 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

The included GND 10 black box bridge enables the Nexus Network and compatible Garmin chartplotters to share critical NMEA 2000 data. The GND 10 enables Garmin chartplotter owners to use Nexus sail equipment and vice versa. Available in 2 bundles (sold separately).

SPECIFICATIONS

Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm)

Weight: 260 g

Cable Length: 25 m

Waterproof: Yes (IPX6¹)

Temp Range: From 5°F to 158°F (-15°C to 70°C)

Storage Temperature: From -4°F to 176°F (-20°C to 80°C)

Voltage Range: 9-16V

Power Usage: 0.33W

Typical Current Draw at 12 VDC: 28 mA

Compass Safe Distance: N/A

Accuracy Angle: Better than ±1.5°

Speed: Better than ±3%

Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)

NMEA 2000® Load Equivalency Number (LEN): N/A

Wireless Connectivity: No

GND 10

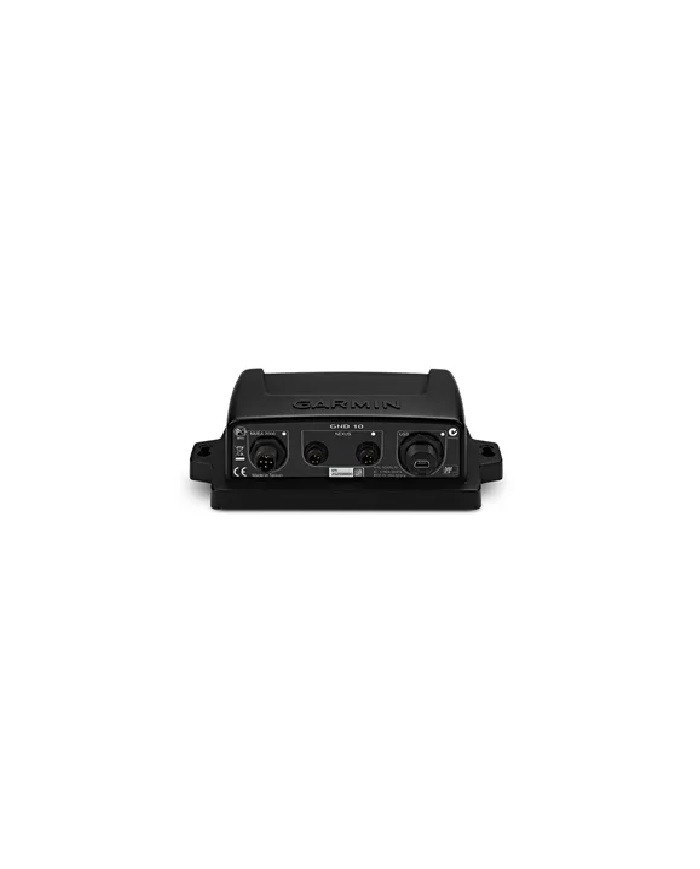

Garmin GND 10 Black Box Bridge

The GND 10 black box bridge seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus Network and NMEA 2000 to provide compatibility between Nexus and Garmin products, including gWind™, gWind™ Wireless and gWind™ Race transducers.

Converts data between the Nexus network and NMEA 2000®

Provides compatibility between Nexus and Garmin products

Simple plug-and-play installation between Nexus, NMEA 2000 and USB

No user setup or system configuration required

Allows PC applications, such as NexusRace™, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks

Simple plug-and-play installation between Nexus and NMEA 2000, with USB connectivity, eliminates the need for user setup and system configuration.

GND 10 allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks. It also enables GND 10 software updates over NMEA 2000. Existing NexusRace PC application can be used to update software, configure and calibrate Nexus devices over USB using the FDX protocol.

IN THE BOX

GND™ 10 Black Box Bridge

USB Mini-B cable

NMEA 2000® drop cable (2 m)

NMEA 2000 T-connector

Nexus network cable (5 m; straight connector)

Mounting hardware

Documentation
