Garmin Reactor 40 Hydraulic Autopilot with GHC 20 Instrument

Garmin Reactor 40 Hydraulic Autopilot

With GHC 20 Instrument

A low-cost option for dual-cylinder applications with total cylinder volumes from 10 to 24 cubic inches (from 160 to 390 cc)

The 2.0L pump is a Low Pressure, High Volume pump and will not work in a High Pressure system.

RECCOMENDED FOR CRUISING BUT NOT FOR FISHING AND OR TRAWLING MANOUVERS

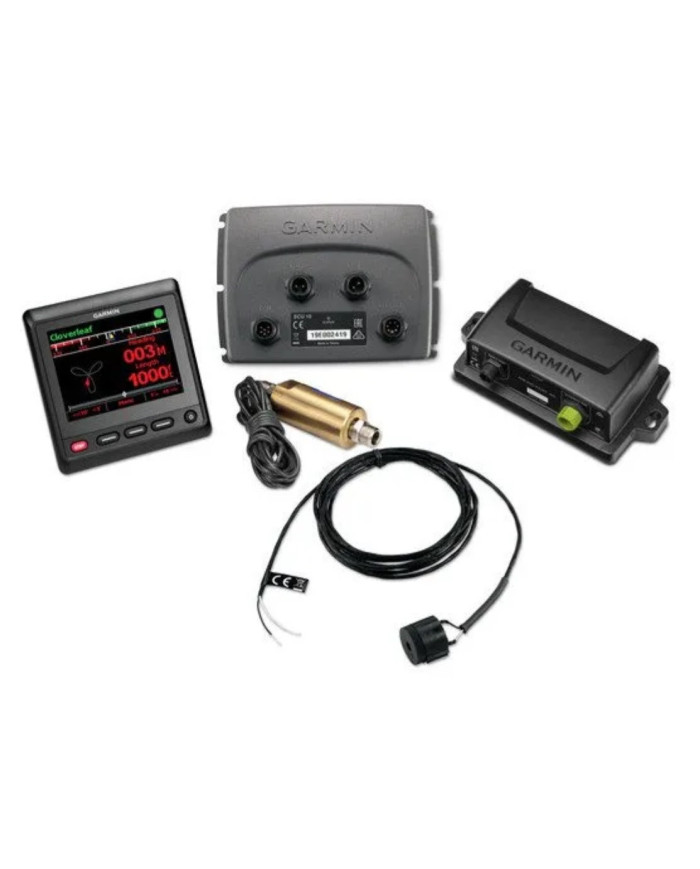

IN THE BOX

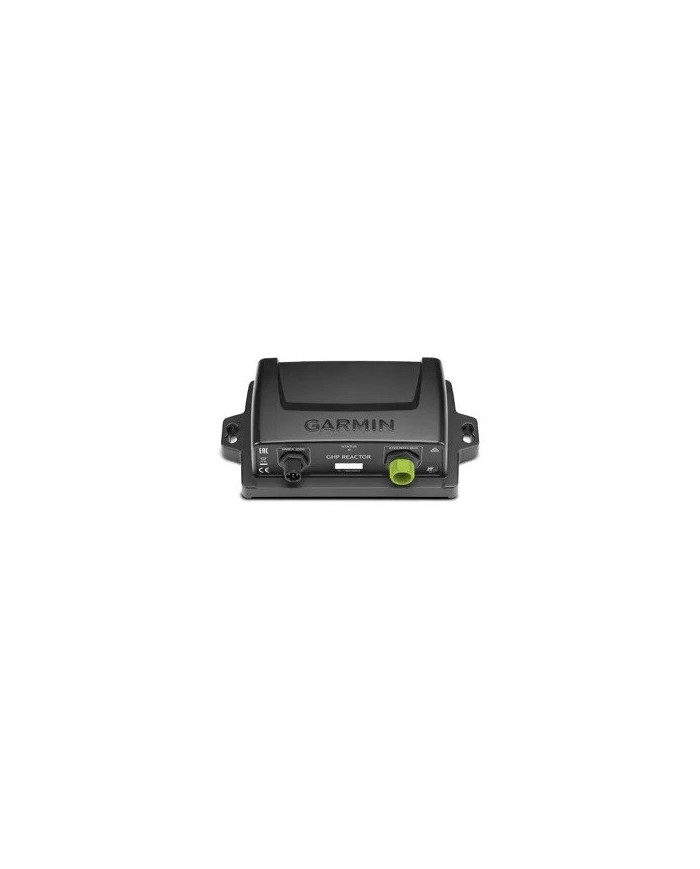

Reactor 40 CCU (Course Computer Unit)

GHC™ 20 helm control display

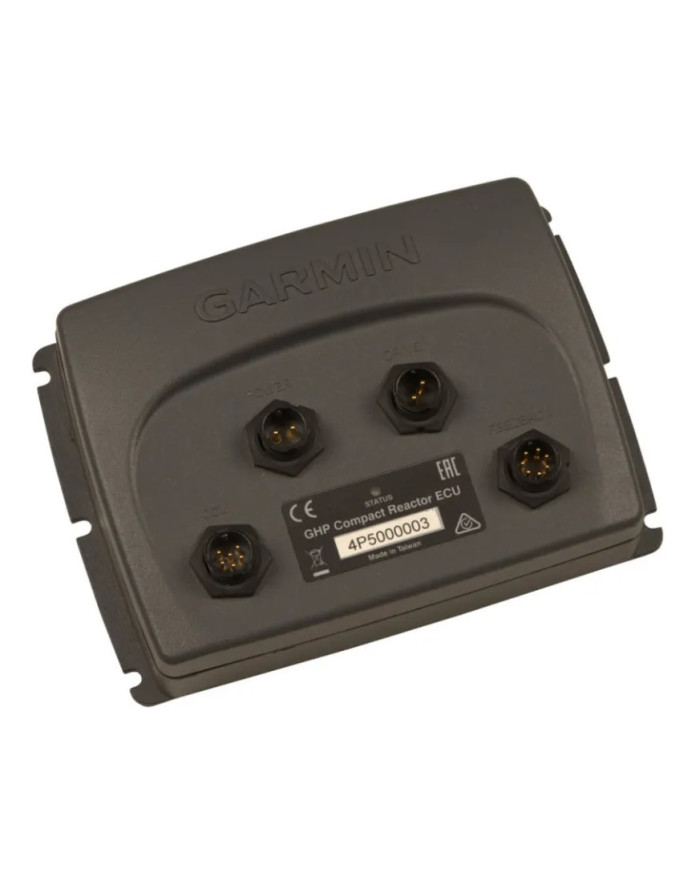

ECU (Electronic Control Unit)

ECU power cable

Interconnect cable

Shadow Drive

Buzzer

NMEA 2000® drop cables (2 meters)

NMEA 2000 power cable

NMEA 2000 T-connectors

Male and female terminators

Documentation

NOTES:

1) A low-cost option for dual-cylinder applications with total cylinder volumes from 10 to 24 cubic inches (from 160 to 390 cc)

2) The 2.0L pump is a Low Pressure, High Volume pump and will not work in a High Pressure system.

SPECIFICATIONS

Reactor 40

Unit dimensions, WxHxD: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)

Pump dimensions, LxWxH: 6.6 " x 3.9 " x 3.3 " (16.8 x 10.0 x 8.5 cm)

NMEA output: NMEA 2000

Supply voltage: 10V to 20V

Operating temperature: -15° C to 70 C° (5° F to 158° F)

GHC 20 Instrument

General

Unit dimensions, WxHxD: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)

Display resolution, WxH: 320 x 240 pixels

Display type: QVGA color LCD display

NMEA output: NMEA 0183, NMEA 2000®

Supply voltage: Powered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC

Operating temperature: -15° C to 70 C° (5° F to 158° F)

Max power consumption: 3W

Viewing angle: 170°

Brightness: 1200 cd/m2 (NIT)

Water rating: IPX7

NMEA 2000 LEN (Load Equivalency Number): 7 (350 mA at 9VDC)
