Garmin APK 10 Autopilot Keypad Vertical
R9,499.00
R8,578.00
Tax included

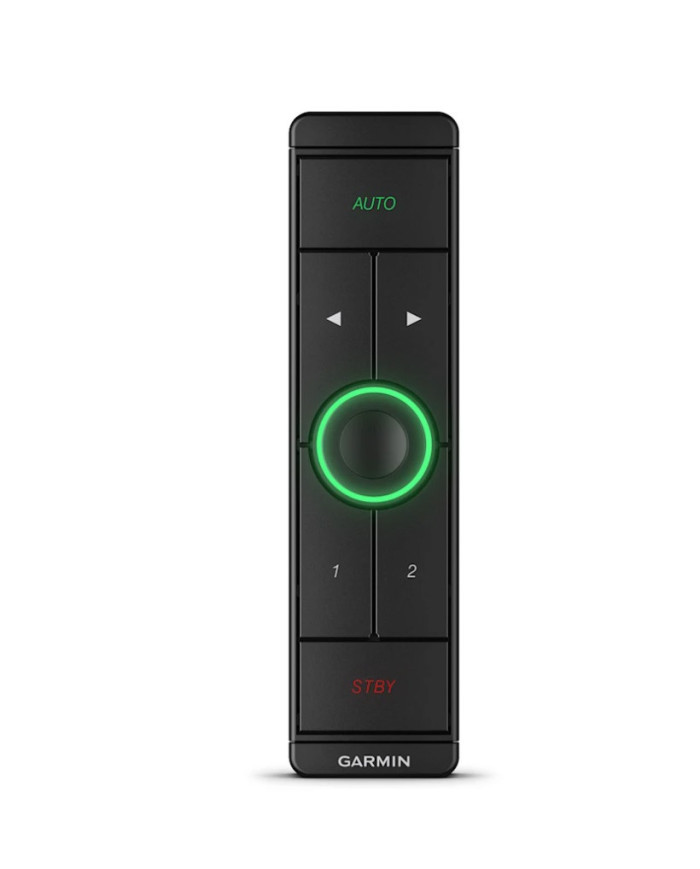

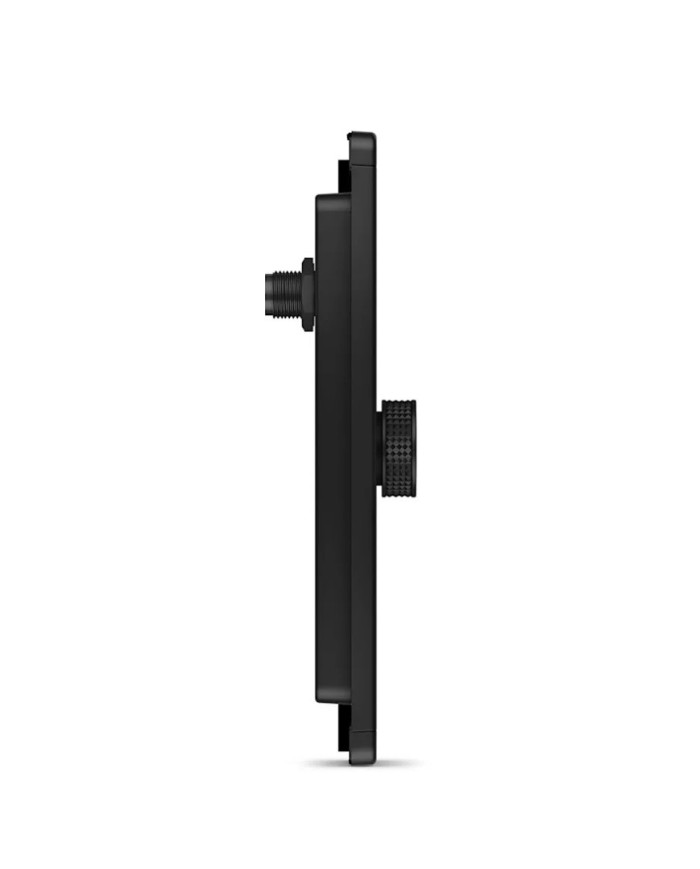

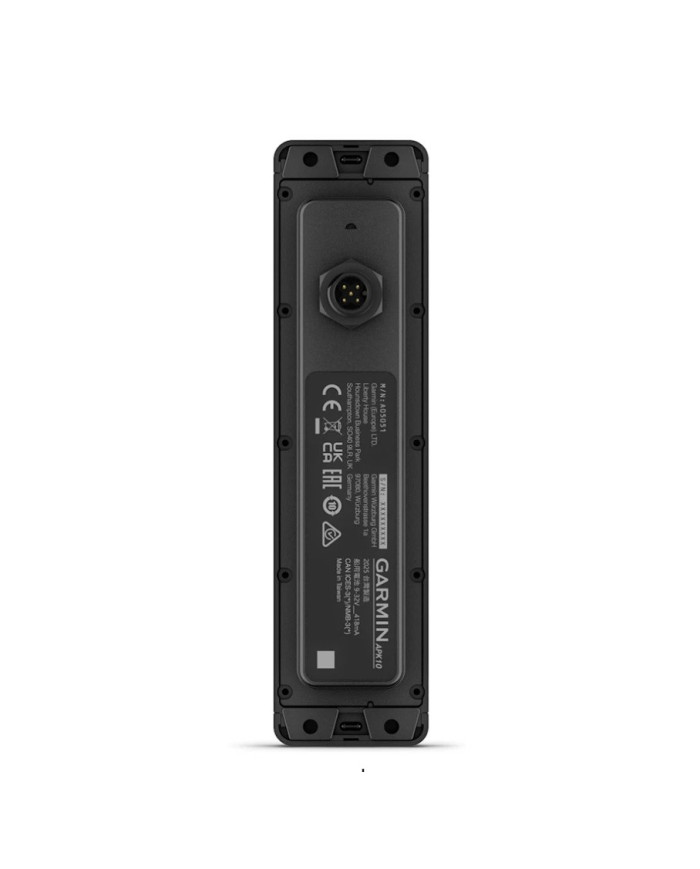

Garmin APK 10 Autopilot Keypad Vertical
GAIN PRECISE CONTROL OF YOUR AUTOPILOT
Get easy-to-use control of your Reactor™ 40 autopilot, and put simple, intuitive knob and button activation, heading changes and more at your fingertips.
Garmin APK 10 Autopilot Keypad Vertical
General |
|
| Dimensions (WxHxD) | Horizontal Flush mount: 5.5” x 2.3” x 0.28” (139.7 x 57.4 x 7.0 mm) Surface mount: 5.5” x 2.3” x 0.65” (140.7 x 58.4 x 16.4 mm) Vertical Flush mount: 1.6” x 6.2” x 0.28” (40.1 x 157.0 x 7.0 mm) Surface mount: 1.6” x 6.2” x 0.65” (41.1 x 158.0 x 16.4 mm) |
| Weight | Horizontal: 4.09 oz (116 g) Vertical: 3.5 oz (100 g) |
| Temperature range | From 5° to 158°F (from -15° to 70°C) |
| Material | Fully-gasketed, high-impact plastic |
| Water rating | IPX7 |
| Compass-safe distance | 4.5” (114 mm) |
| Powered input | Powered supplied from the NMEA 2000® network |
IN THE BOX
- APK 10 autopilot keypad (horizontal or vertical, depending on version selected)
- Backbone/drop cable (2 m) and T-connector for the NMEA 2000® Network
- Mounting hardware (flush and surface)
- Documentation
010-03197-01
