Garmin STRIKER Vivid 7sv With GT52HW-TM Transducer
R13,199.00
R10,899.00
Hurry up! Sales Ends In
Days
Hrs
Min
Sec
Tax included
Garmin STRIKER Vivid 7sv With GT52HW-TM Transducer
7” GPS Fishfinder with Industry-leading Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars and Quickdraw Contours Mapping Software
OUT OF STOCK
PRE ORDERS ACCEPTED
ETA OF STOCK 10 DECEMBER 2025
- STRIKER Vivid 7sv
- GT52HW-TM transducer
- Power/data cable
- 12-pin to dual 4-pin transducer adapter cable
- Tilt/swivel mount
- Hardware
- Garmin bumper sticker
- Documentation
Garmin STRIKER Vivid 7sv With GT52HW-TM Transducer
7” GPS Fishfinder with Industry-leading Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars and Quickdraw Contours Mapping Software
OUT OF STOCK
PRE ORDERS ACCEPTED
ETA OF STOCK 10 DECEMBER 2025
- STRIKER Vivid 7sv
- GT52HW-TM transducer
- Power/data cable
- 12-pin to dual 4-pin transducer adapter cable
- Tilt/swivel mount
- Hardware
- Garmin bumper sticker
- Documentation
WI-FI CONNECTIVITY
Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.
General |
|
| PHYSICAL DIMENSIONS | 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm) |
|---|---|
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA colour |
| WEIGHT | 1.7 lbs (0.8 kg) |
| WATER RATING | IPX7 |
| TRANSMIT POWER | 500 W (RMS) |
Sonar features & specifications |
|
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes |
|---|---|
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü SideVü: 260/455/800 kHz |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| WATER TEMPERATURE LOG AND GRAPH | Yes |
Fishfinder features |
|
| SPLIT-SCREEN ZOOM | Yes |
|---|---|
| ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS) | Yes |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) | Yes |
| AUTOGAIN TECHNOLOGY (MINIMISES CLUTTER, MAXIMISES TARGETS) | Yes |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) | Yes |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) | Yes |
| WATER TEMPERATURE SENSOR INCLUDED | Yes |
Additional |
|
| ADDITIONAL |
|
|---|---|

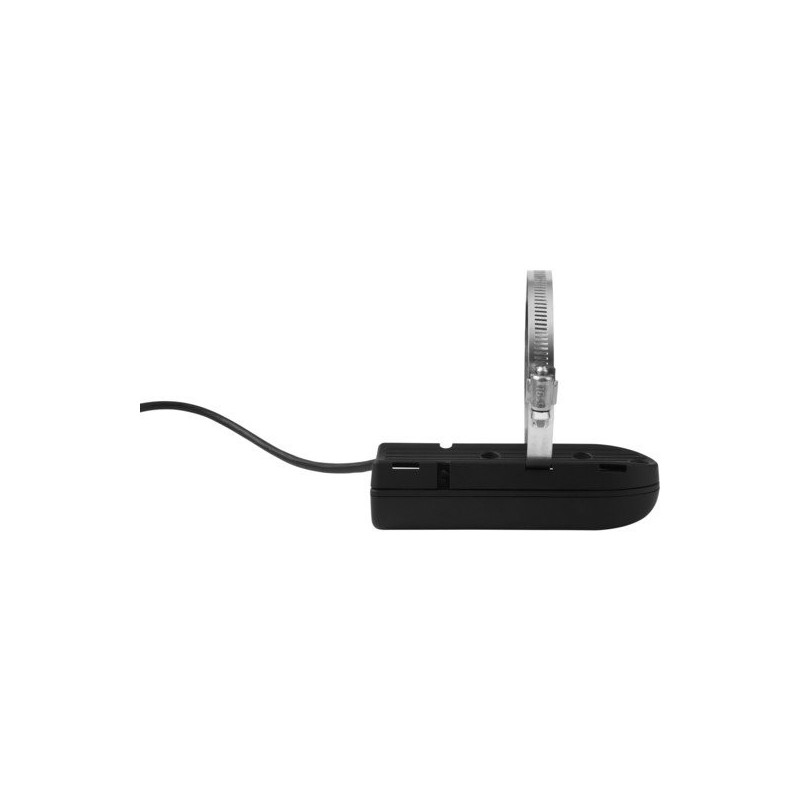

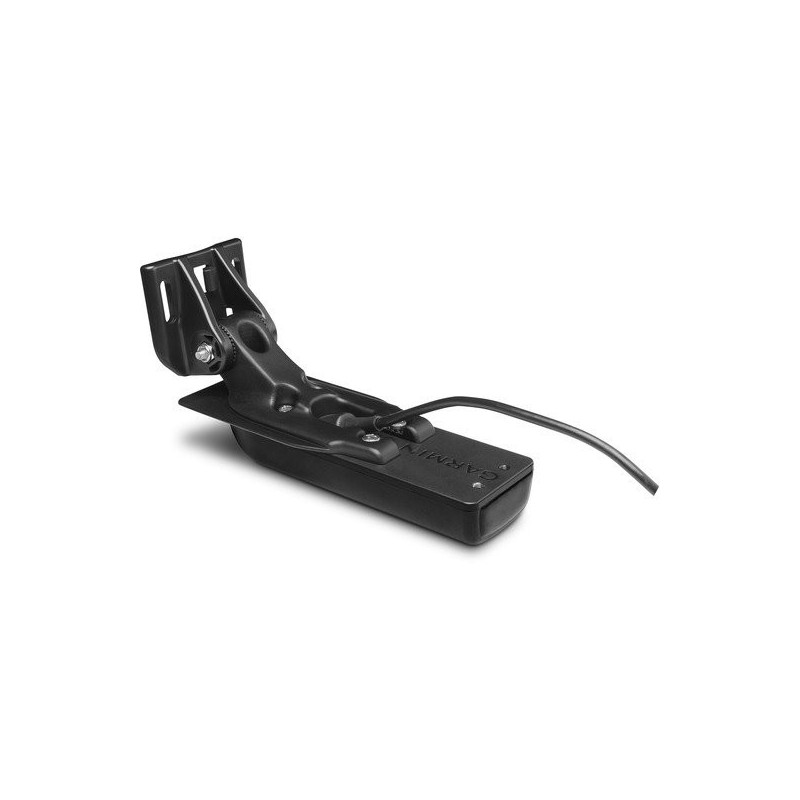

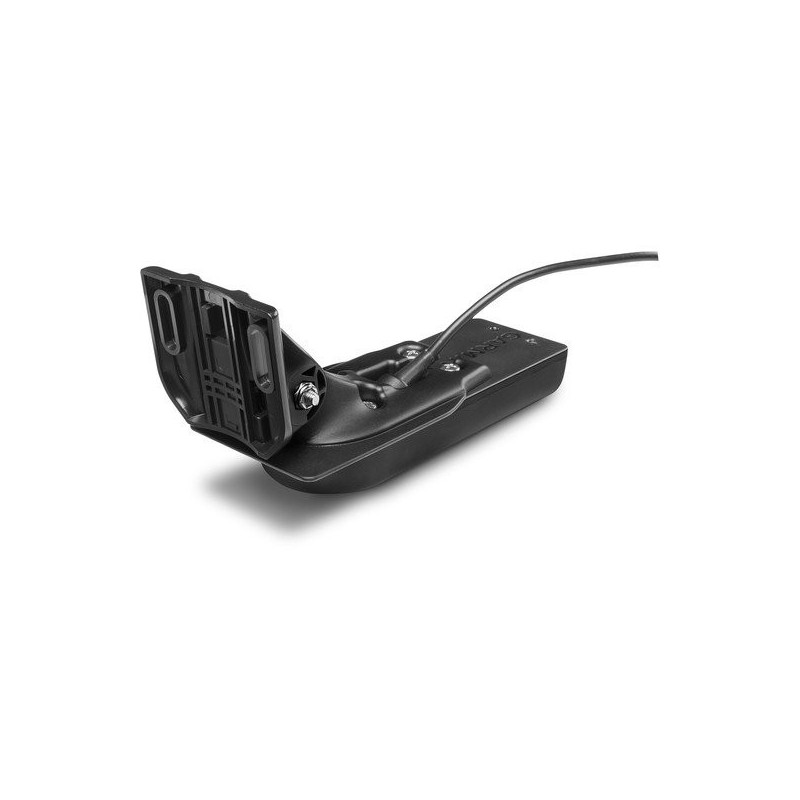

GT52HW-TM Transducer |
|
| CABLE LENGTH | 20 ft. |
|---|---|
| FREQUENCY |
CHIRP High Wide (150-240 kHz) ClearVü/SideVü: 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
| POWER | Traditional 250 W; ClearVü/SideVu 350 W |
| BEAMWIDTH | Traditional: 24°-16° ClearVü/SideVü: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz |
| MAXIMUM DEPTH |
Traditional: 800 ft. ClearVü: 500 ft. SideVü: 500 ft. |
| DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| NUMBER OF PINS | 12-pin |
| SUPPORTED DEADRISE/TRANSOM ANGLES | 0°-70° degree transom |
