010-02868-01
New
600 Watt
Frequency Range:85–165 kHz.
Depth Range: </ = 1200 ft saltwater; 1900 ft freshwater
Beamwidth: 16–24 degrees.
Supports hull deadrise angles from 8° to 15°
Can be collected allow 3 days for stock to arrive ex warehouse or Ships Direct per Courier to Your Door
Warning: Last items in stock!
Availability date: 10/03/2023
Garmin GT15M-THF 12 Degrees Mid Band CHIRP Bronze Shoot Trough Hull Transducer
600 Watt
Frequency Range:85–165 kHz.
Depth Range: </ = 1200 ft saltwater; 1900 ft freshwater
Beamwidth: 16–24 degrees.
Supports hull deadrise angles from 8° to 15°
Recipient :
* Required fields
or Cancel
600 Watt
Frequency Range:85–165 kHz.
Depth Range: </ = 1200 ft saltwater; 1900 ft freshwater
Beamwidth: 8–15 degrees.
Supports hull deadrise angles from 8° to 15°

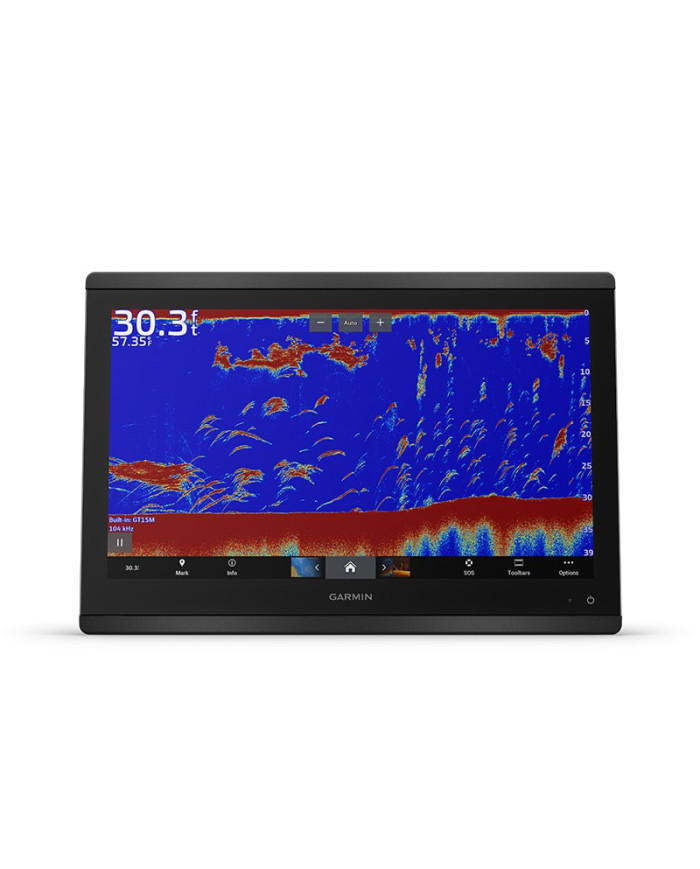

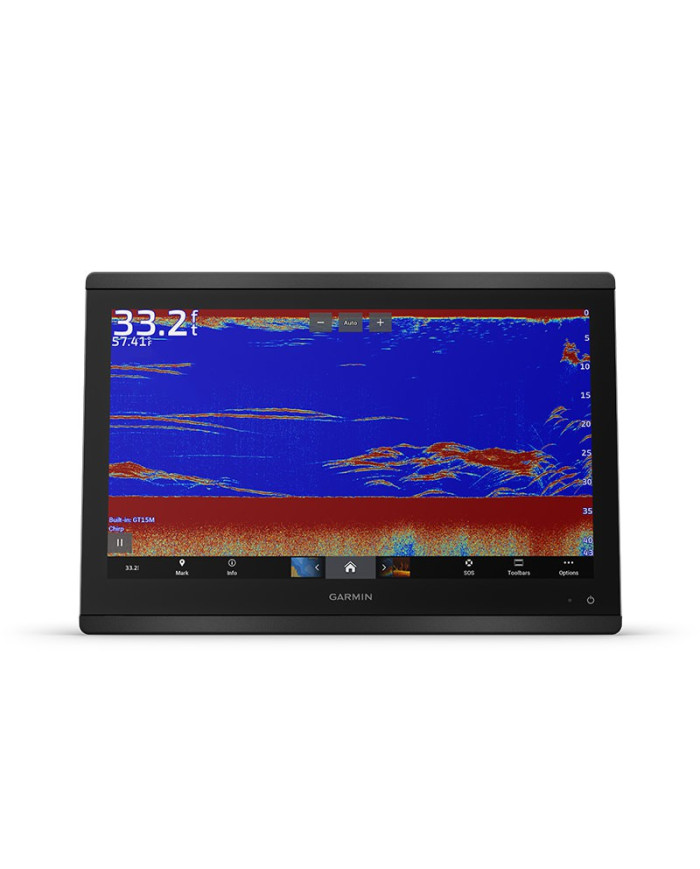

Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 350-watt midband CHIRP transducer clearly defines fish arches, structure and bottom depth returns on your display.
See maximum depth performance to 1,200’ in freshwater.
Access CHIRP sonar frequency range from 85–165 kHz.
Search with beamwidths of 16–24 degrees.
Count on fast-response water temperature sensing.
Thru-hull design offers flush installation with 0-, 12- or 20-degree tilt.
Auto-ID enables simple plug-and-play operatio
This 8-pin, 350-watt bronze thru-hull transducer features high-definition midband CHIRP sonar that clearly defines fish targets and structure down to 800’ in saltwater and 1,200’ in freshwater.
Use the perfect frequency for the waters you’re fishing. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches and accurate depth readings.
Offering excellent sonar sensitivity, low noise, high resolution and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.
A durable bronze housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.
Enjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to automatically configure itself to the transducer being used.
Configurable for a wide variety of boat hull materials, including fiberglass, composite and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block.
General Specification |
|
TRANSDUCER FREQUENCY | medium band CHIRP (85-165 kHz) |
---|---|
TRANSDUCER POWER | 600 W |
TRANSDUCER BEAMWIDTH | 24°-16° |
TRANSDUCER MAXIMUM DEPTH | 1200 ft saltwater; 1900 ft freshwater |
TRANSDUCER CABLE LENGTH | 50 ft |
TRANSDUCER DEPTH/SPEED/TEMPERATURE | depth, temperature |
TRANSDUCER NUMBER OF PINS | 8-pin |
TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES | 0° supports hull deadrise angles from 0° to 7° 12° supports hull deadrise angles from 8° to 15° 20° supports hull deadrise angles from 16° to 24° |
HOUSING MATERIAL | bronze |
Part Number |
Description |
Power (Watts) |
010-02867-00 |
GT12M-THF,Xdcr,8pin,0deg |
350 |
010-02867-01 |
GT12M-THF,Xdcr,8pin,12deg |
350 |
010-02867-02 |
GT12M-THF,Xdcr,8pin,20deg |
350 |
010-02868-00 |
GT15M-THF,Xdcr,8pin,0deg |
600 |
010-02868-01 |
GT15M-THF,Xdcr,8pin,12deg |
600 |
010-02868-02 |
GT15M-THF,Xdcr,8pin,20deg |
600 |
