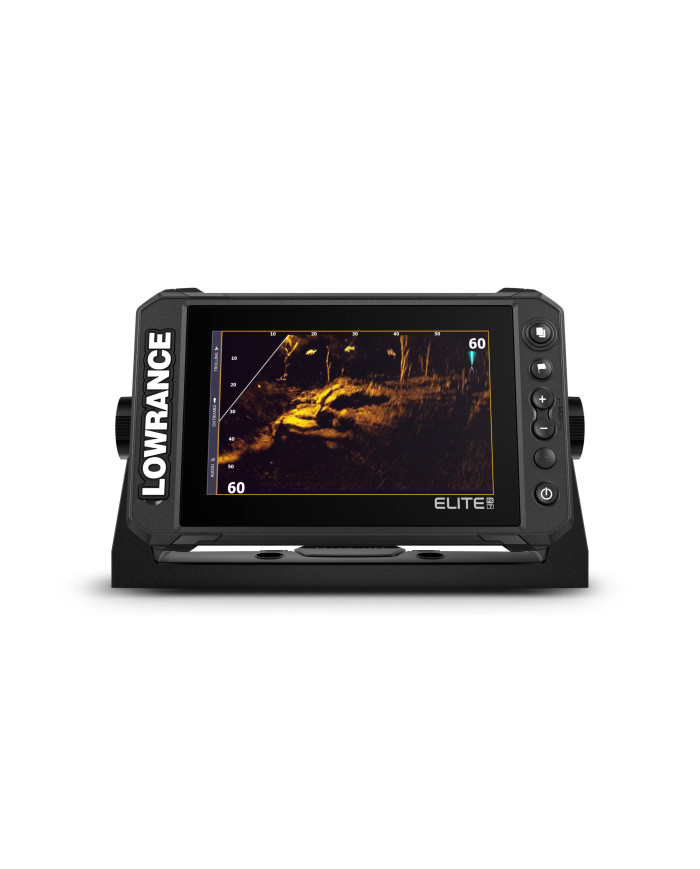

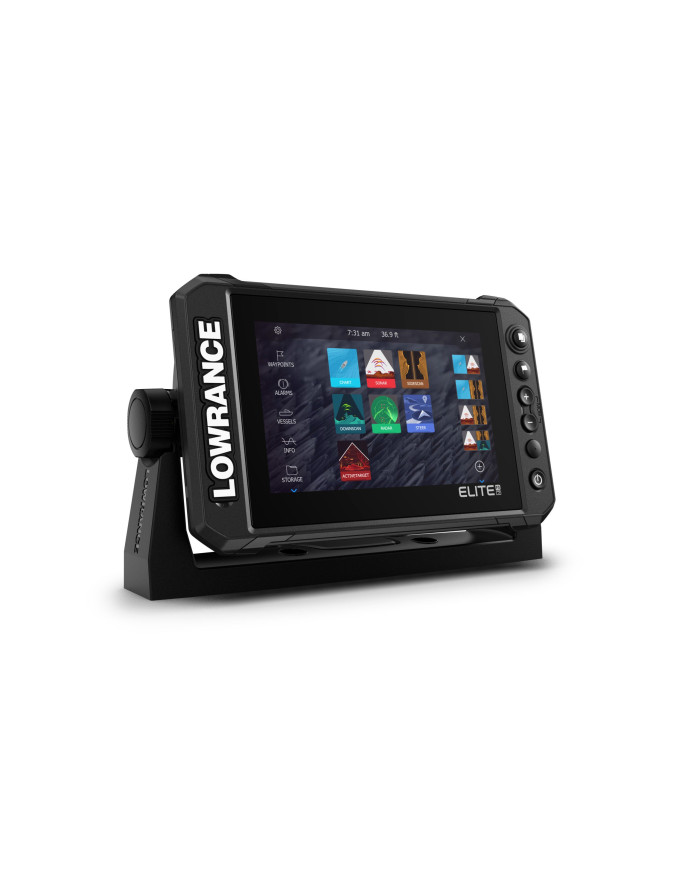

Lowrance Elite FS 7 with Active Imaging 3-in-1 Transducer (ROW Model)

Lowrance Elite FS™ 7 with Active Imaging 3-in-1 Transducer (ROW Model)

Ships Complete with Active Imaging 3-in-1 Transom Mount Skimmer Transducer in Bundle

Specifications

Warranty:

Lowrance South Africa 3 Year Carry In Limited Warranty

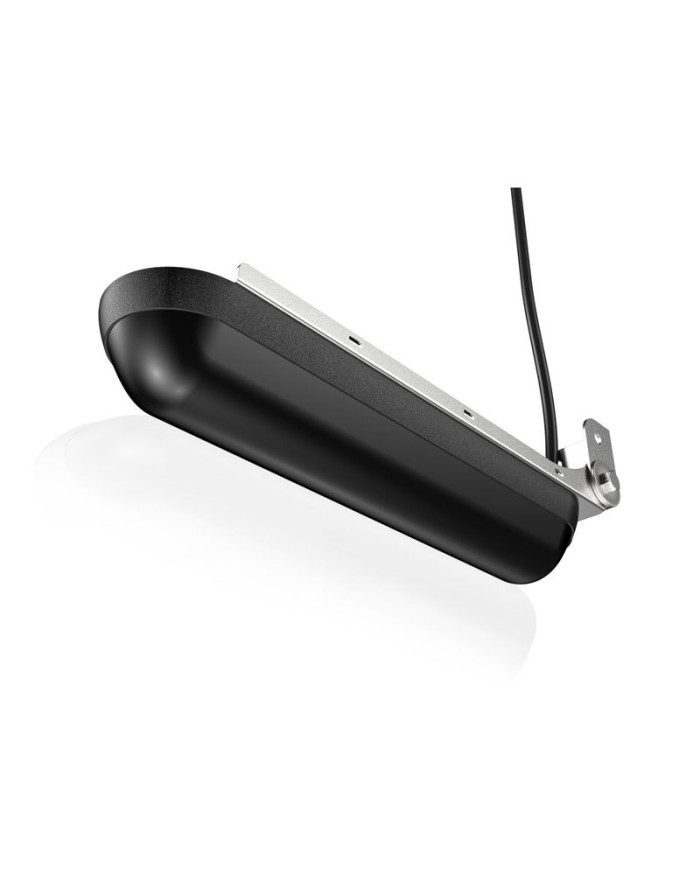

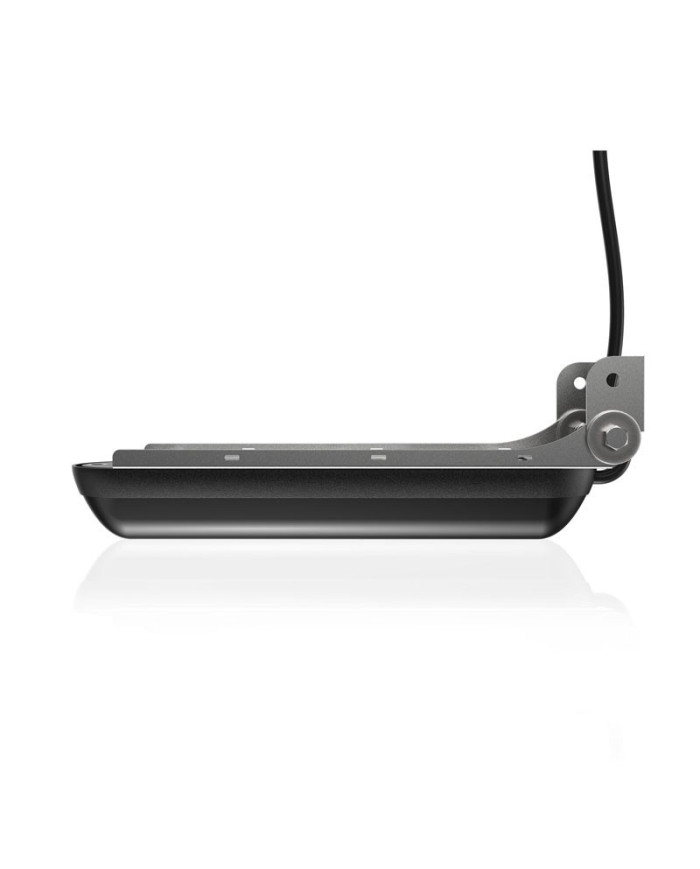

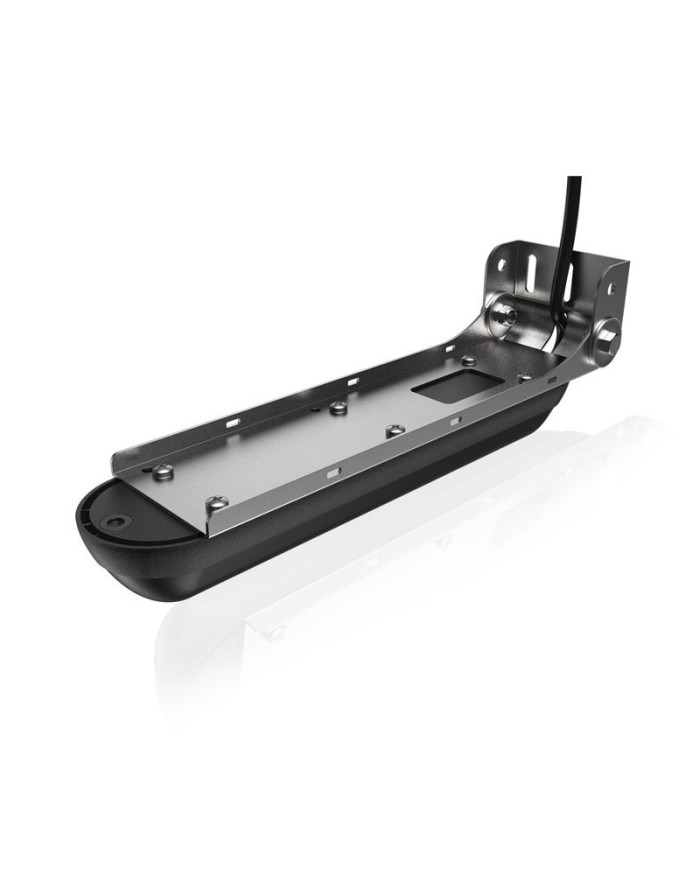

Active Imaging 3-in-1 Transom Mount Transducer

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ 3-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.

Key Features

More refined detail and better range than any other imaging technology

Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan

Easier target identification with FishReveal™ Smart Target View

Active Imaging 3D transducer with Side and Down available

Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies

Compatible with Lowrance Elite Ti2, Elite FS, HDS Carbon, HDS LIVE, HDS PRO, Simrad NSS evo3 and GO series displays

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Attributes

MPN:  000-14489-001

UPC: 9420024172773

Brand: Lowrance

Country of Manufacture: Mexico

Physical Dimensions: 67mmW x 79mmH x 280mmL

Transducer Cable Length: 7m

Frequency (KHz) & Beam Angle (°)

200KHz, 455/800KHz, 83KHz, High CHIRP

Mounting Options: Transom

Plug: 9 Pin Navico

Chirp Sonar: Yes

Down Imaging: Built-in

Useable Depth Down Imaging: 65m+

Sonar Useable Depth (T/D & Frequency Dependant): 70m+

Side Imaging: Built-in

Water Temperature: Yes

Technical specifications Active Imaging 3-in-1 transducer

Environmental Operating temperature -15°C to +55°C (+5°F to +131°F)

Storage temperature -30°C to +70°C (-22°F to +158°F)

Cable length 7.6 m (25 ft) or 1.8 m (6 ft)

Mounting options Transom, flush step, and jackplate mounting

Number of pins 9 pins

Transducer Output Traditional, SideScan imaging, DownScan imaging and temperature Frequency

• Traditional: 200 kHz/High Chirp, 83 kHz/Medium Chirp
