COMPLETE FISHREVEAL™ VIEWS
Get the best of CHIRP sonar and Imaging sonar on one display with FishReveal™.
FISHREVEAL™ SIDESCAN
ACTIVE IMAGING™ HD 3-IN-1
Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.
DownScan HD Imaging
DownScan Imaging™ makes it easier to identify how fish are relating to structure, providing photo-like images of rocks, trees, bottom composition and other underwater structure directly beneath the boat.
SideScan HD Imaging
Perfect for searching large areas for fish-holding structure, allowing you to cover more water in a shorter period of time, and view areas too shallow for your boat – like next to the shore or bank.
CHIRP Sonar
See fish, structure and the bottom with greater clarity with Lowrance CHIRP, which delivers the best views of individual fish targets.
First introduced with DownScan Imaging™, FishReveal is now available on SideScan*, making it quicker and easier to recognize fish targets – along with picture-like images of structure on both sides of your boat.
*FishReveal SideScan view requires an optional S3100 sonar module
DESIGNED FOR CLARITY

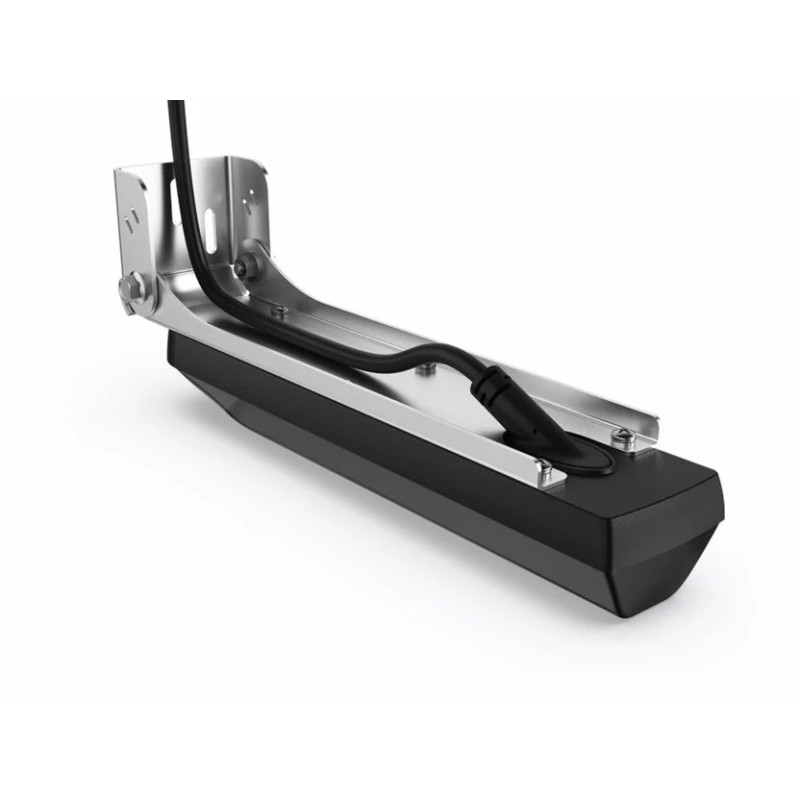

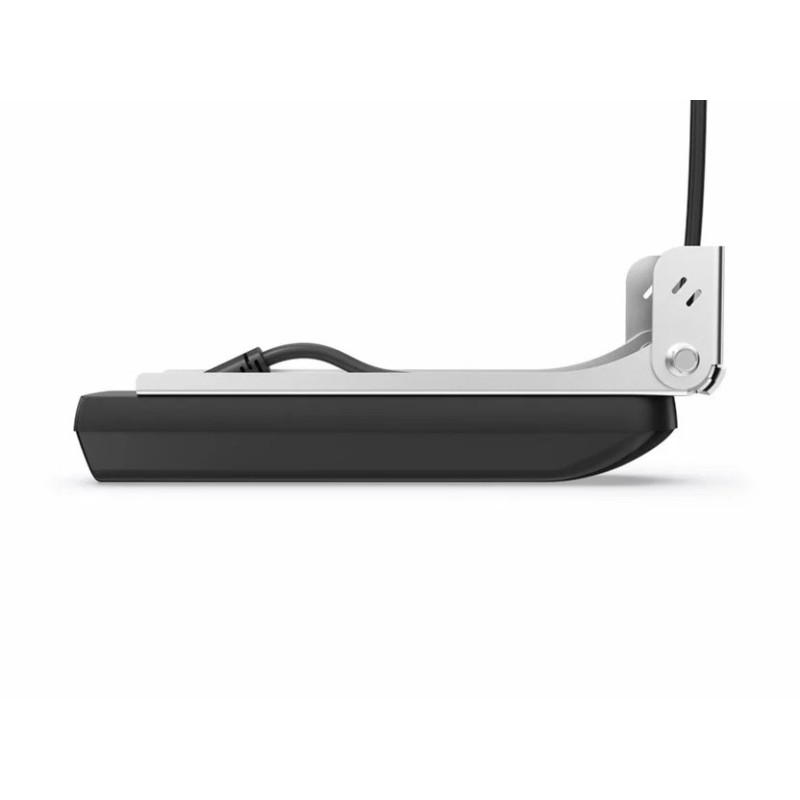

The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.
COMPATIBILITY
HDS® PRO comes with support for Active Imaging HD.
HDS® LIVE, HDS® Carbon, and Elite FS® require an S3100 Sonar Module.
SPECIFICATIONS
Environment: Humidity60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Shock Vibration100,000 cycles of 20 G
Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )
Waterproofrating: IP67
Physical
Mounting TypeTransducer: Bracket Mount
WeightTransducer: 2.67 lbs (1.21 kg)
Other
InterfaceDirect Connect to: HDS Pro & S3100 Then Ethernet to: *HDS Live *Elite FS (* Requires S3100 Module)
Warranty Period: 1 Year
