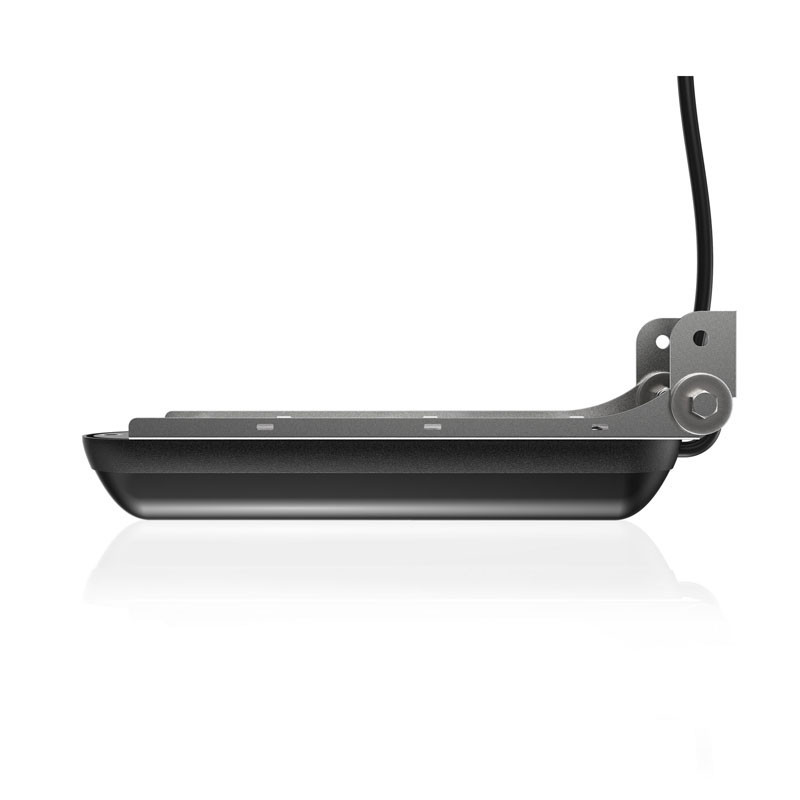

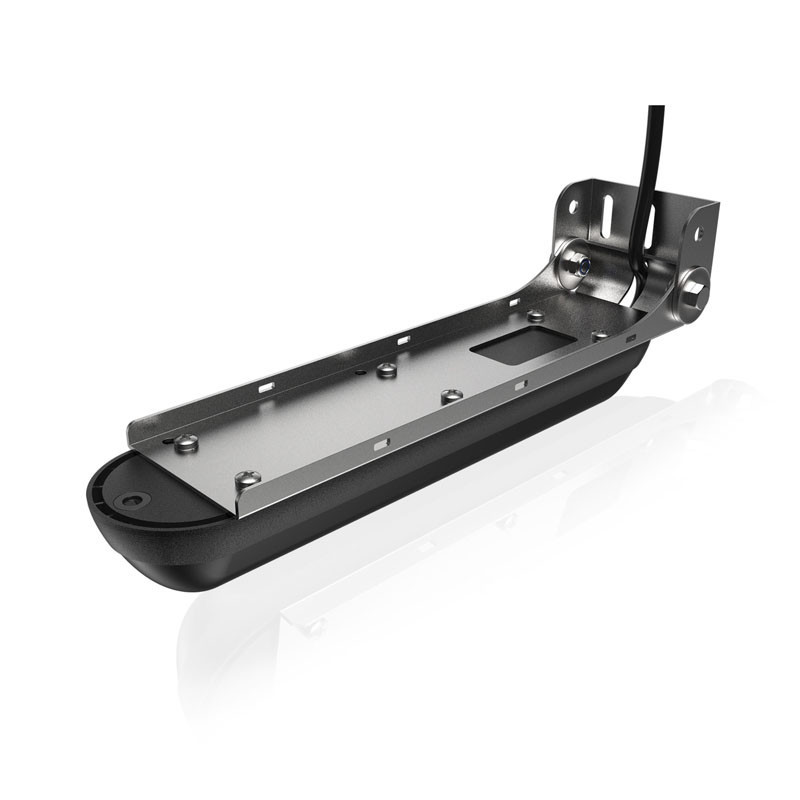

Lowrance Active Imaging 3-in-1 Transducer

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ 3-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.

Key Features

• More refined detail and better range than any other imaging technology
• Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan
• Easier target identification with FishReveal™ Smart Target View
• Active Imaging 3D transducer with Side and Down available
• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
• Compatible with Lowrance Elite Ti2, HDS Carbon, HDS LIVE, Simrad NSS evo3 and GO series displays
• Typical Use / Application would be to Upgrade TotalScan, LSS-2 / HST-WSBL Combinations or StructureScan -3D Transducers on HDS Carbon Units

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Attributes

MPN	000-14489-001
UPC	9420024172773
Brand	Lowrance
Country of Manufacture	Mexico
Physical Dimensions	67mmW x 79mmH x 280mmL
Transducer Cable Length	7m
Frequency (KHz) & Beam Angle (°)	200KHz, 455/800KHz, 83KHz, High CHIRP
Mounting Options	Transom
Plug	9 Pin Navico
Chirp Sonar	Yes
Down Imaging	Built-in
Useable Depth Down Imgaging	65m+
Sonar Useable Depth (T/D & Frequency Dependant)	70m+
Side Imaging	Built-in
Water Temperature	Yes

Technical specifications Active Imaging 3-in-1 transducer

Environmental Operating temperature -15°C to +55°C (+5°F to +131°F)

Storage temperature -30°C to +70°C (-22°F to +158°F)

Cable length 7.6 m (25 ft) or 1.8 m (6 ft)

Mounting options Transom, flush step, and jackplate mounting

Number of pins 9 pins

Transducer Output Traditional, SideScan imaging, DownScan imaging and temperature Frequency

• Traditional: 200 kHz/High Chirp, 83 kHz/Medium Chirp

• SideScan: 455 kHz, 800 kHz

Max depth • Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp

• DownScan: 91 m (300 ft)

• SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft) side range at 800 kHz Operating speed

• Traditional: 48 knots (55 mph) • DownScan and SideScan: 9 knots (10 mph)
