RAM-109VU MB38 Vertical 6 inch Swing Arm Mount for Fishfinders & Plotters
R3,179.00
R3,020.05
Tax included
RAM-109VU MB38 Vertical 6 inch Swing Arm Mount for Fishfinders & Plotters
LEI MB38
For Bulkhead Mounting
The RAM single swing arm consists of a 6" long swing arm with vertical surface mounting base.
RAM-109VU MB38 Vertical 6" Swing Arm Mount for Fishfinders & Plotters
LEI MB38
For Bulkhead Mounting
The RAM single swing arm consists of a 6 inch long swing arm with vertical surface
mounting base.
FEATURES

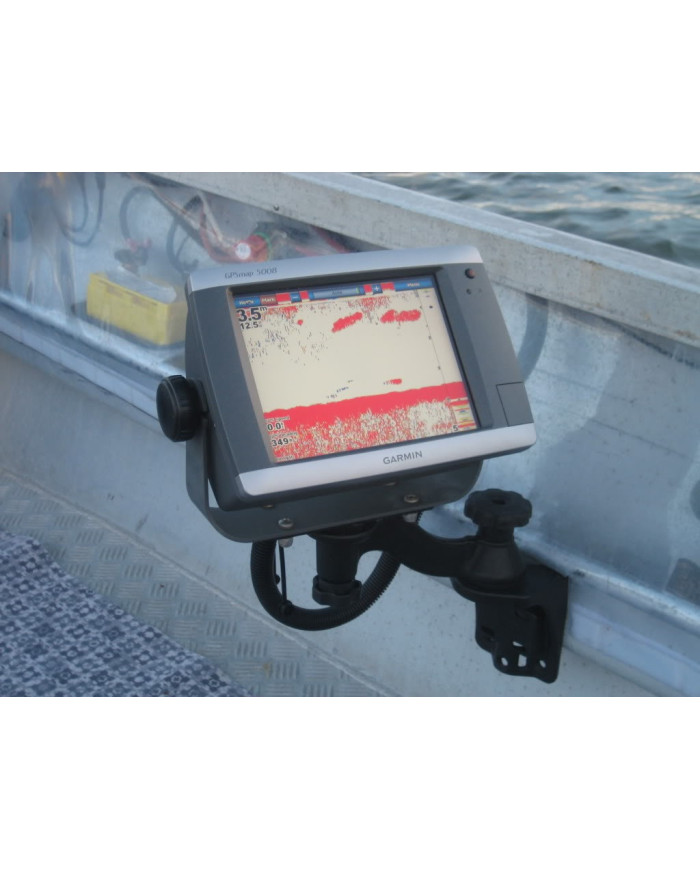

- Universal drill-down fishfinder mounting solution features 6 inch swing arm for ideal device placement on a vertical surface

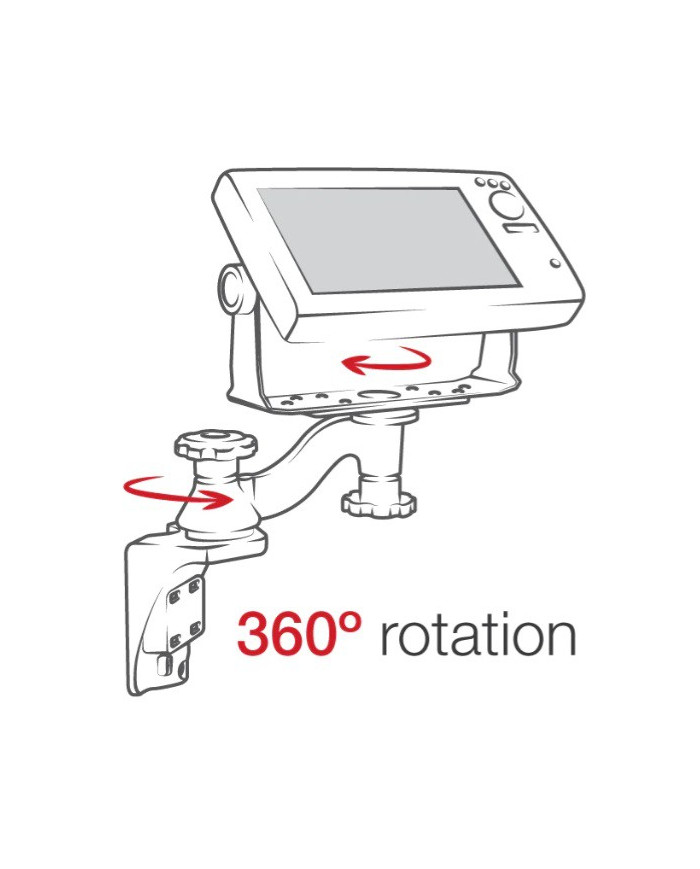

- Two pivot points allow for complete 360-degree rotation
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

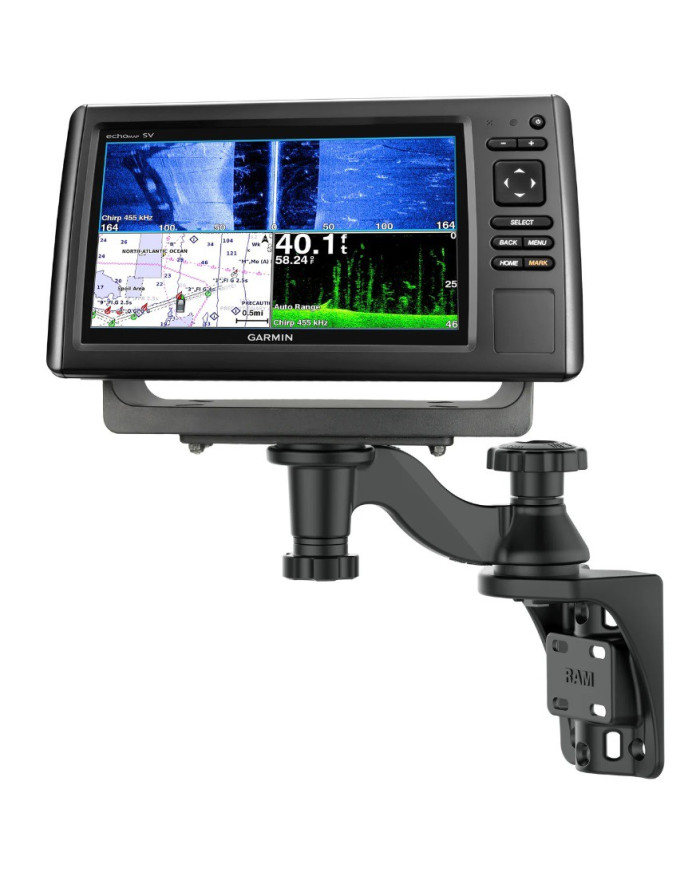

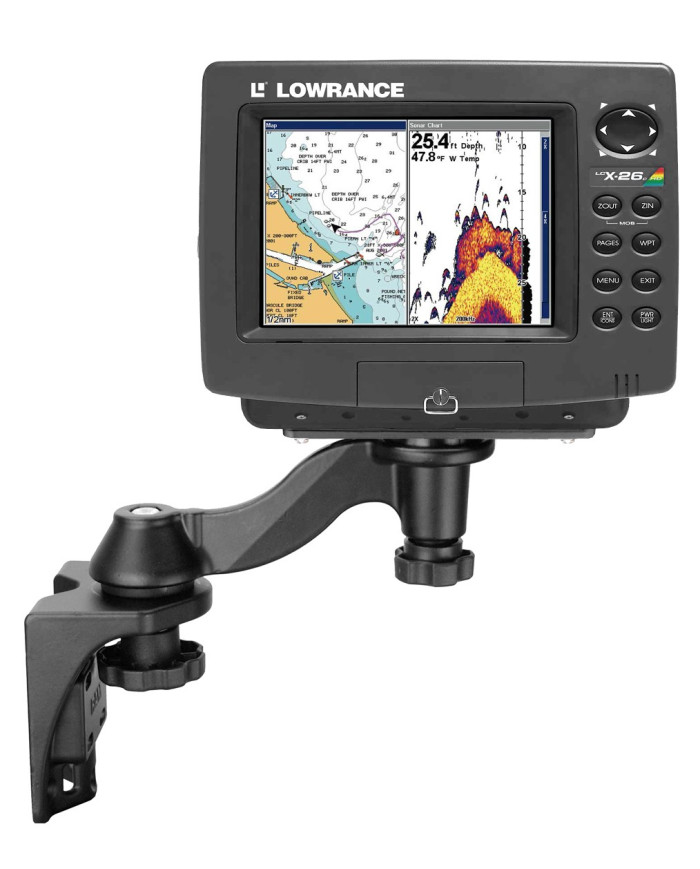

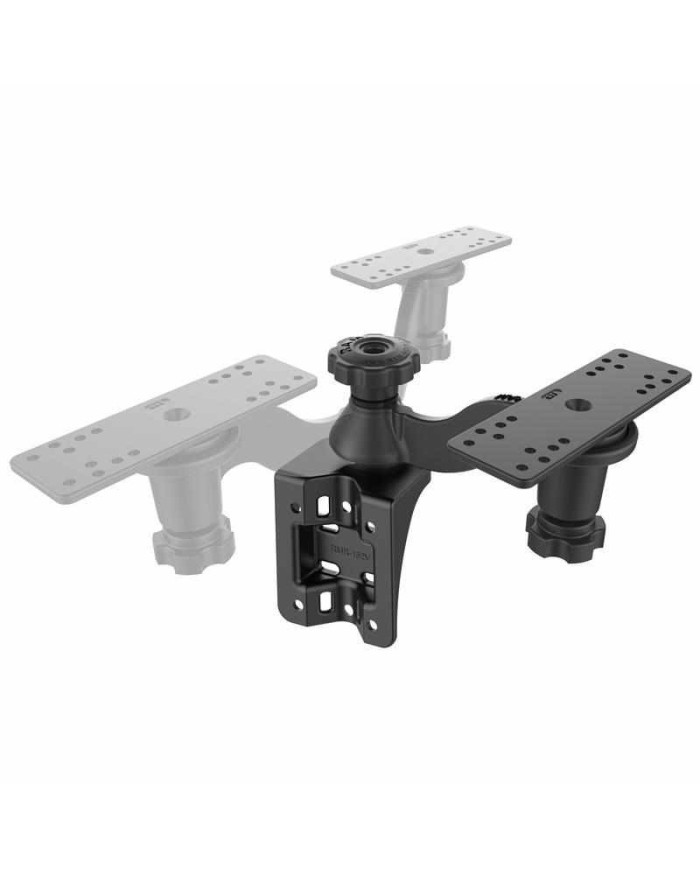

The RAM single swing arm mount consists of a 6 inch long swing arm mounted on a vertical surface mounting base. At the
device mounting end of the mount is a rectangular 6.25 inch x 2 inch plate. There are two (2) pivoting points on the mount.
One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm.
Each pivoting point allows a complete 360 degree rotation.
PRODUCT DIMENSIONS
Overall Height: 8.45 inch
Total Swing Arm Length: 6 inch

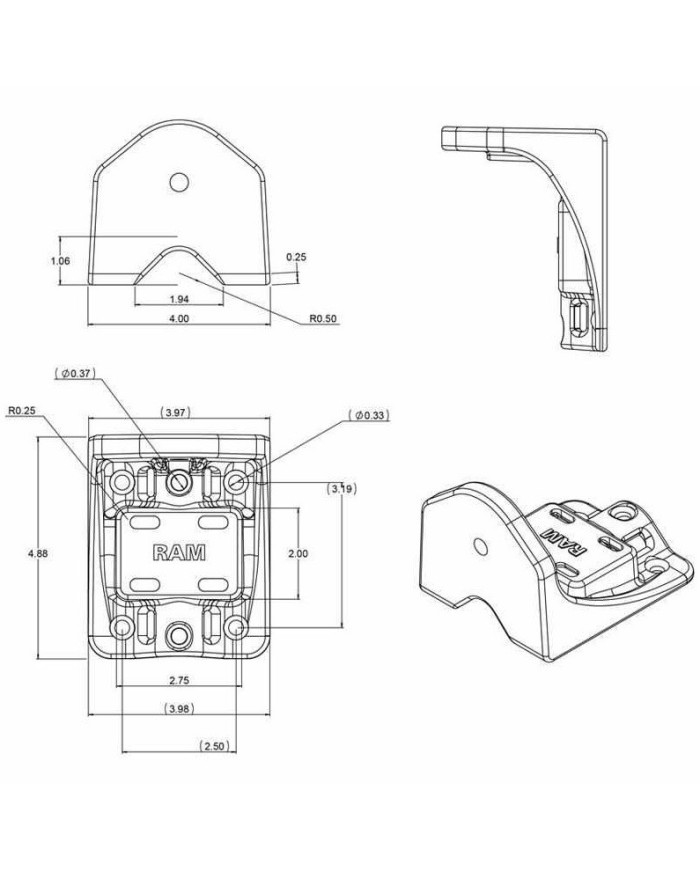

HOLE PATTERN
See Drawing
PLATE SIZE
Top Plate: 6.25 inch x 2 inch
Bottom Plate: 3.97 inch x 4.85 inch
WEIGHT CAPACITY
8 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.6 lb
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications
additional holes may need to be drilled for proper fit with your electronic device.
