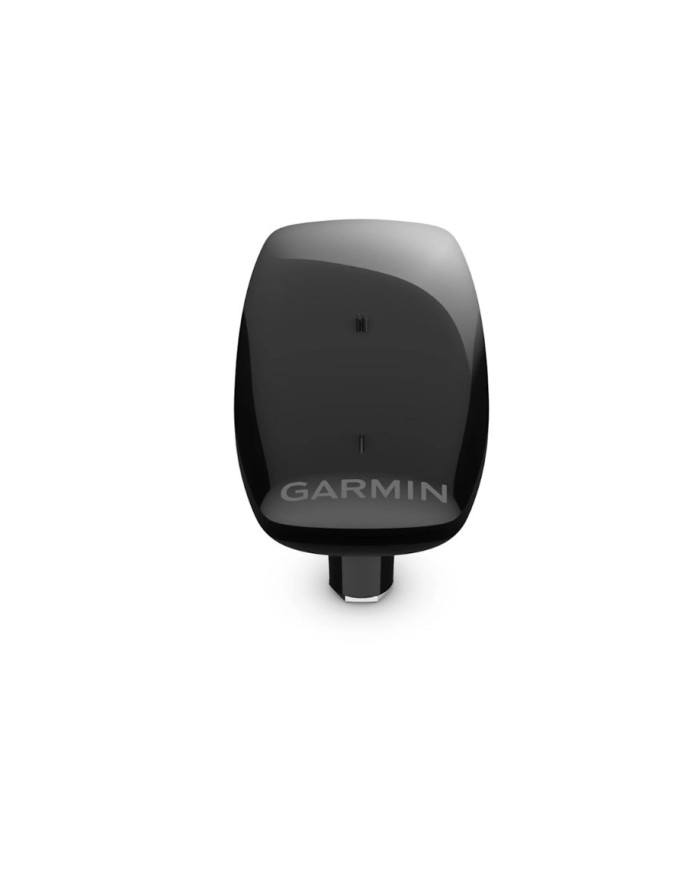

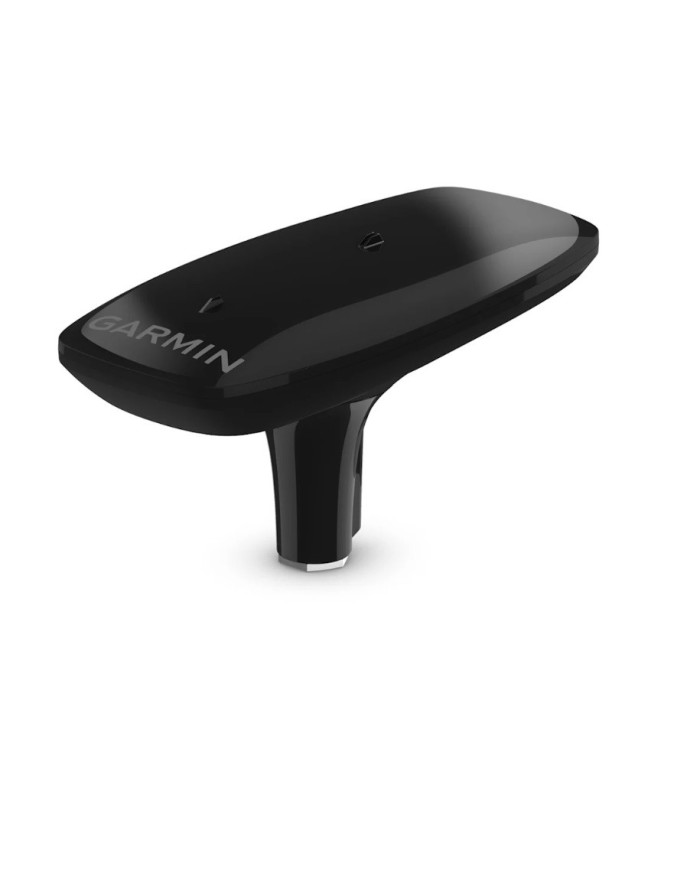

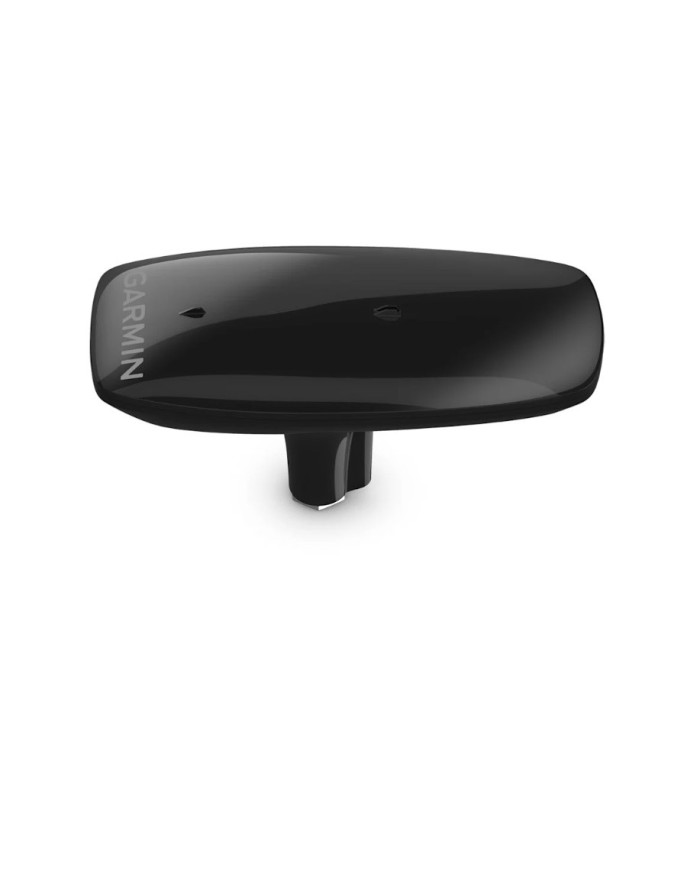

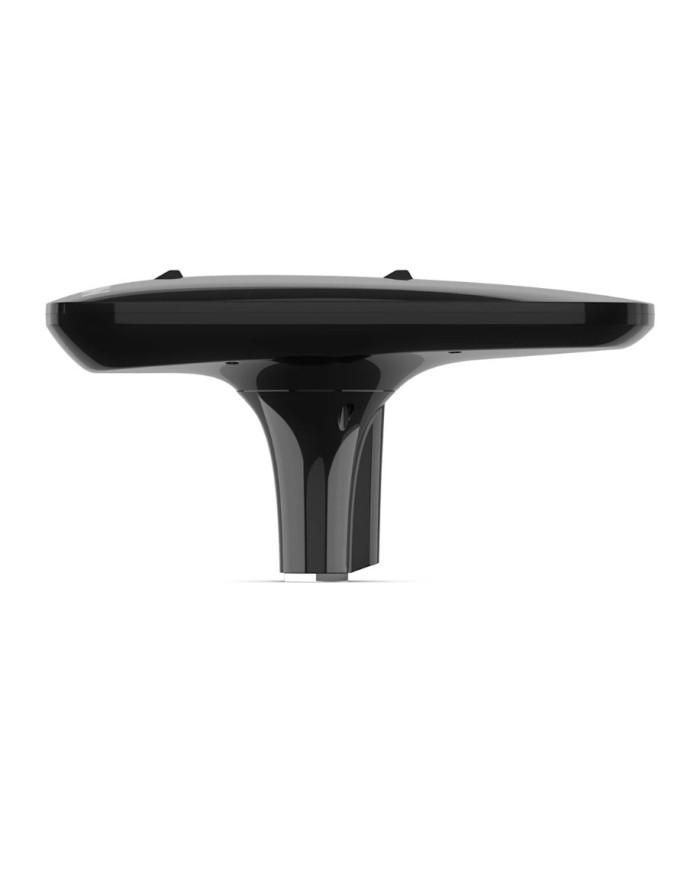

Garmin MSC 10 Marine Satellite Compass Black

Garmin MSC 10 Marine Satellite Compass

Black

Heading Sensor and Multi-band GPS Receiver

SPECIFICATIONS

Dimensions (W x D x H): 6.1” x 13.1” x 3.0” (155.5 x 333.6 x 76.2 mm)

Weight: 28.6 oz (810 g)

Cable length: 19 ft 8 in (6 m)

Temperature range: 5° F to 158° F (-15° C to 70° C), white; 5° F to 140° F (-15° C to 60° C), black

Case material: Glue sealed, high-impact plastic alloy; waterproof to IPX7

Compass-safe distance: 0" (0 mm)

Power source input: 9-32 Vdc, unregulated

Input current: 180 mA at 12 Vdc

NMEA 2000 Load Equivalency Number (LEN): 6 (300 mA max)

Position accuracy, typical marine use: < 1 meter CEP, < 3 meters, 95%

Heading accuracy: 2° RMS

Heave accuracy: 8 cm RMS
