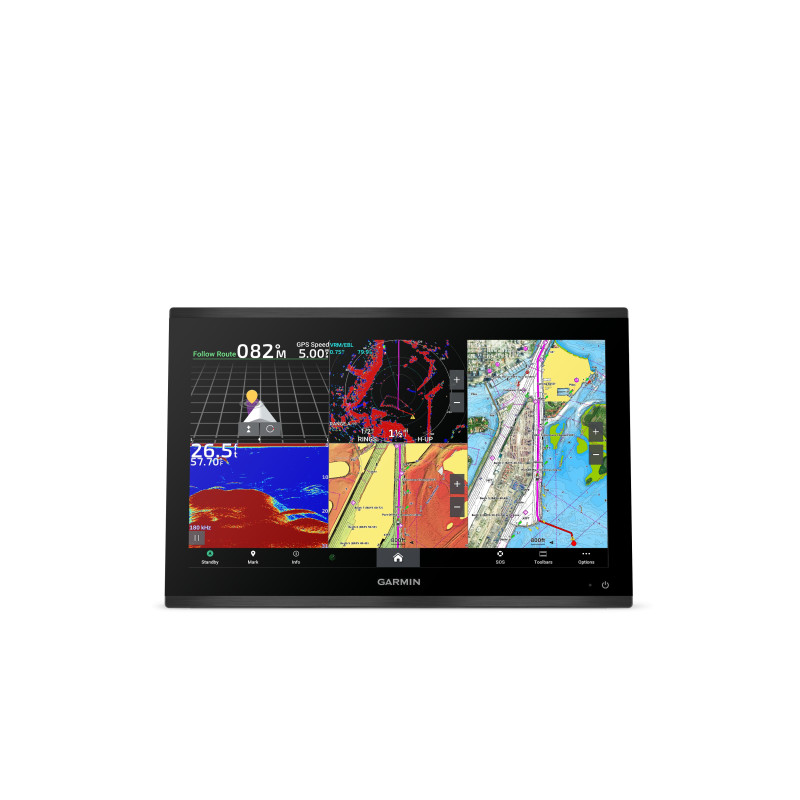

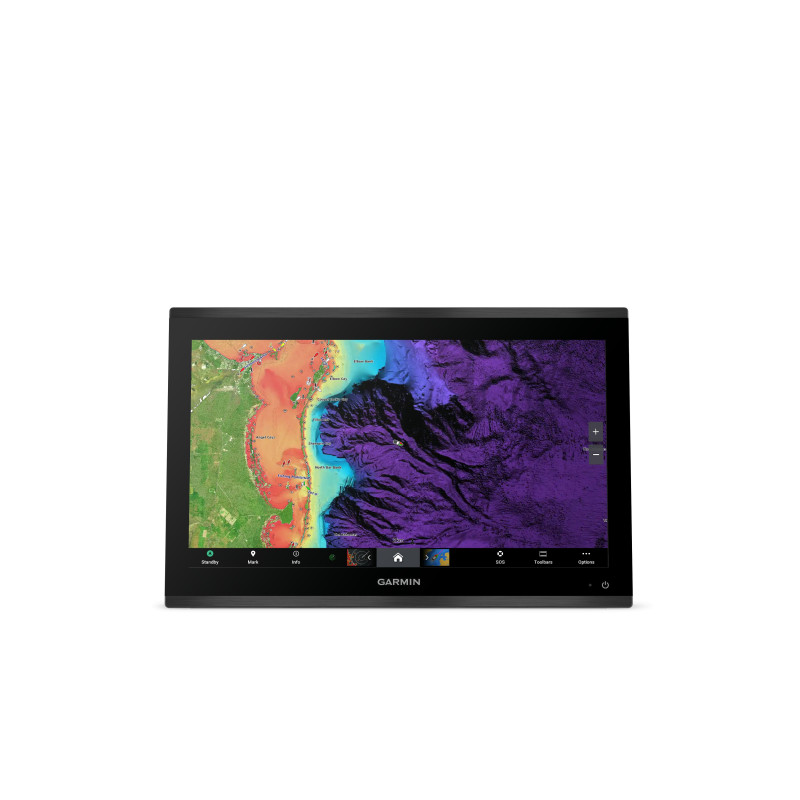

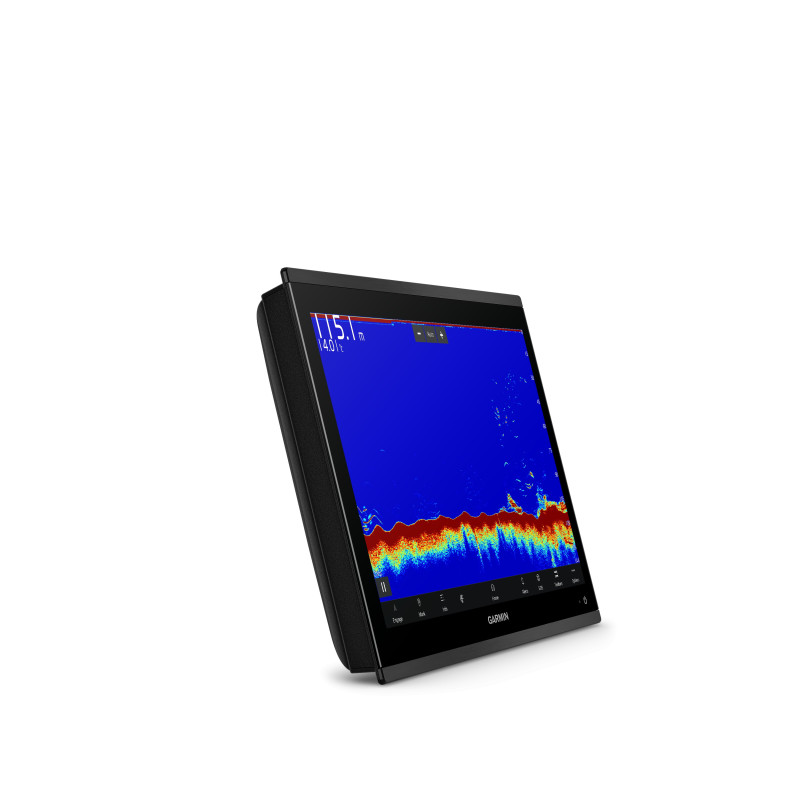

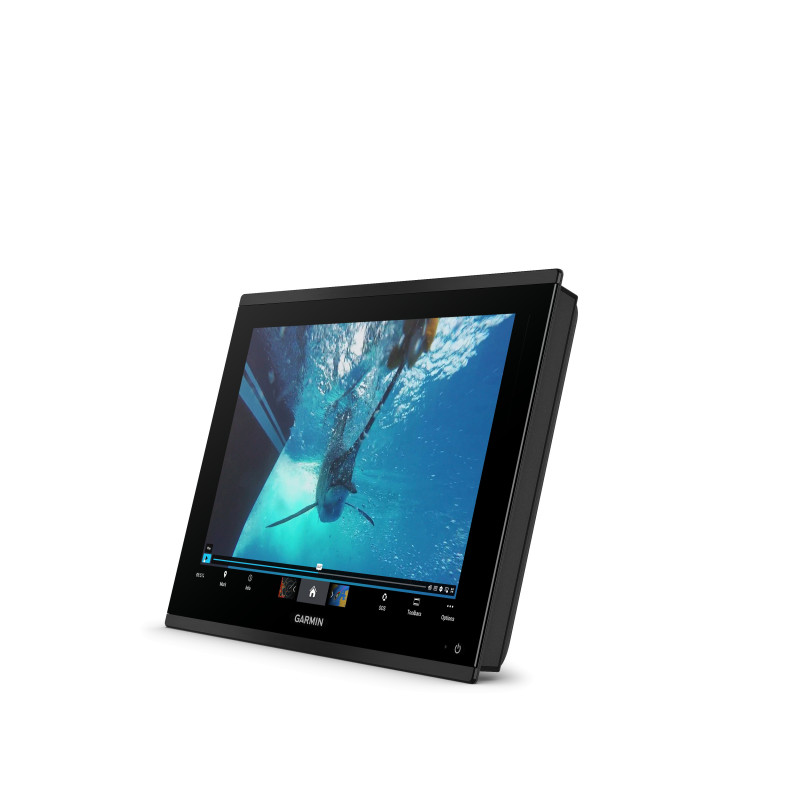

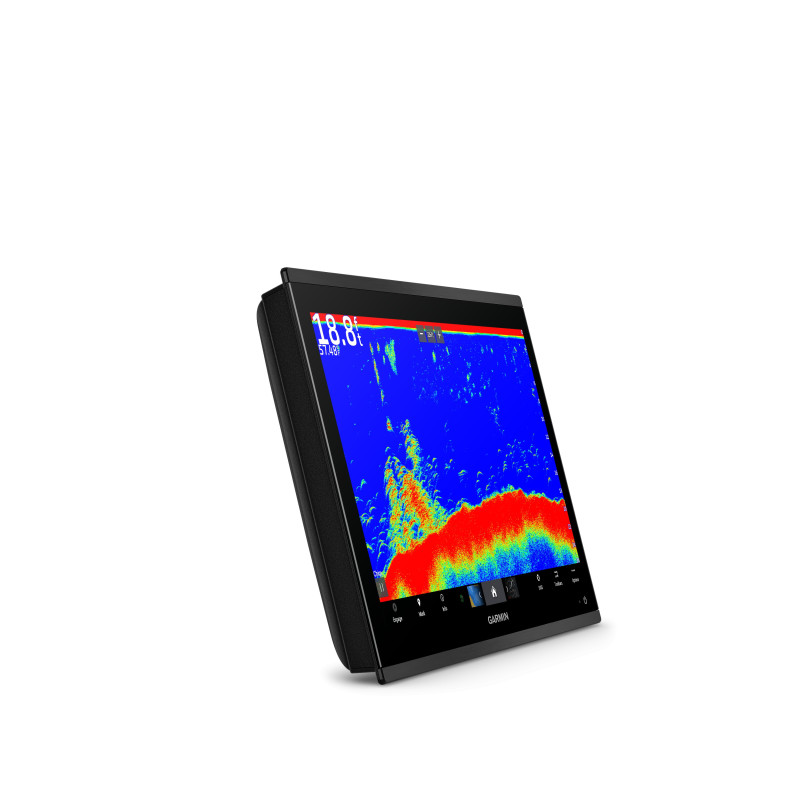

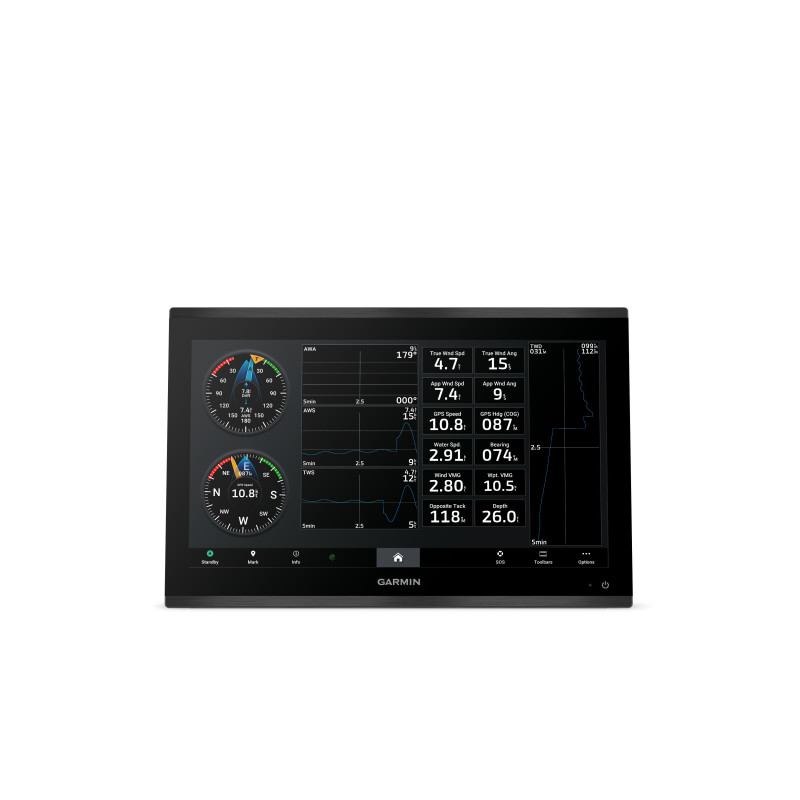

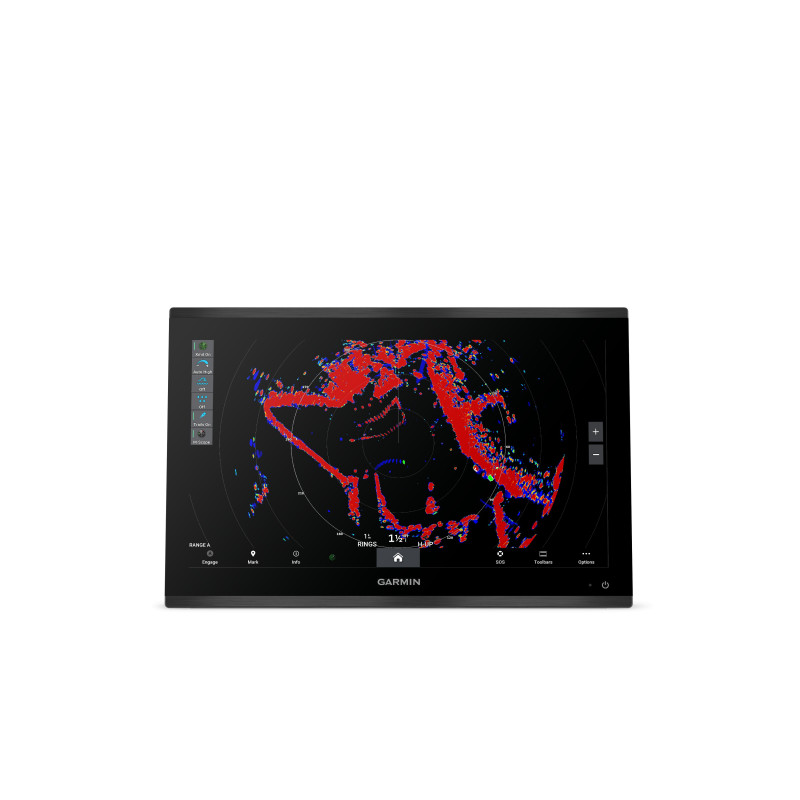

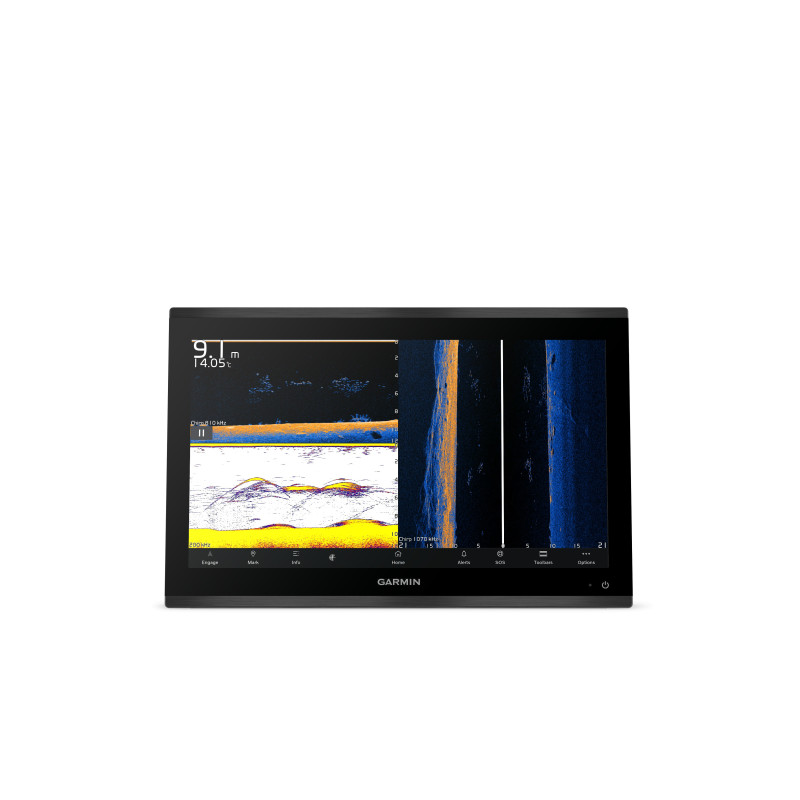

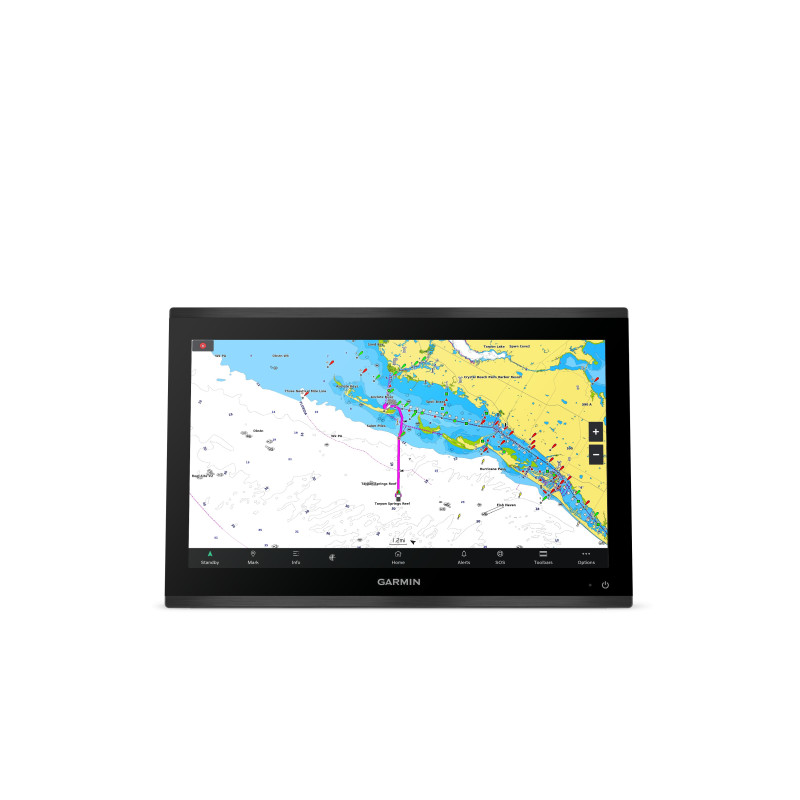

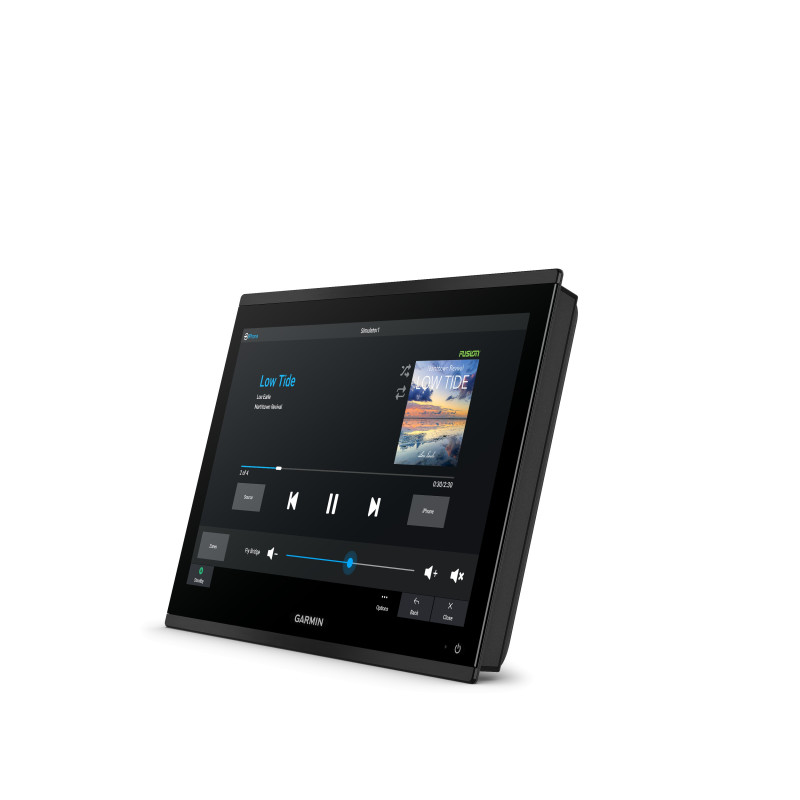

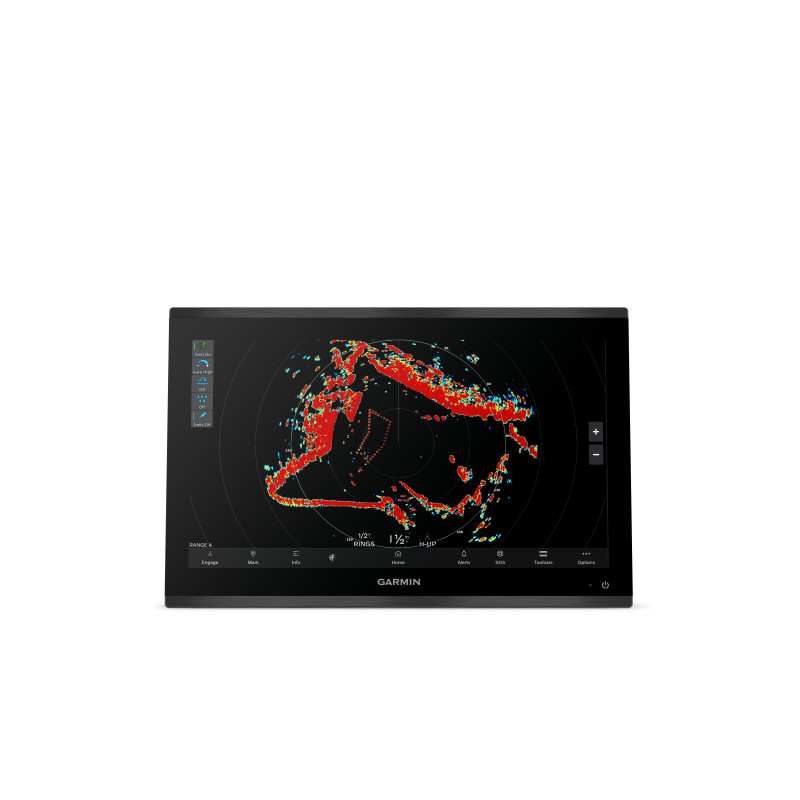

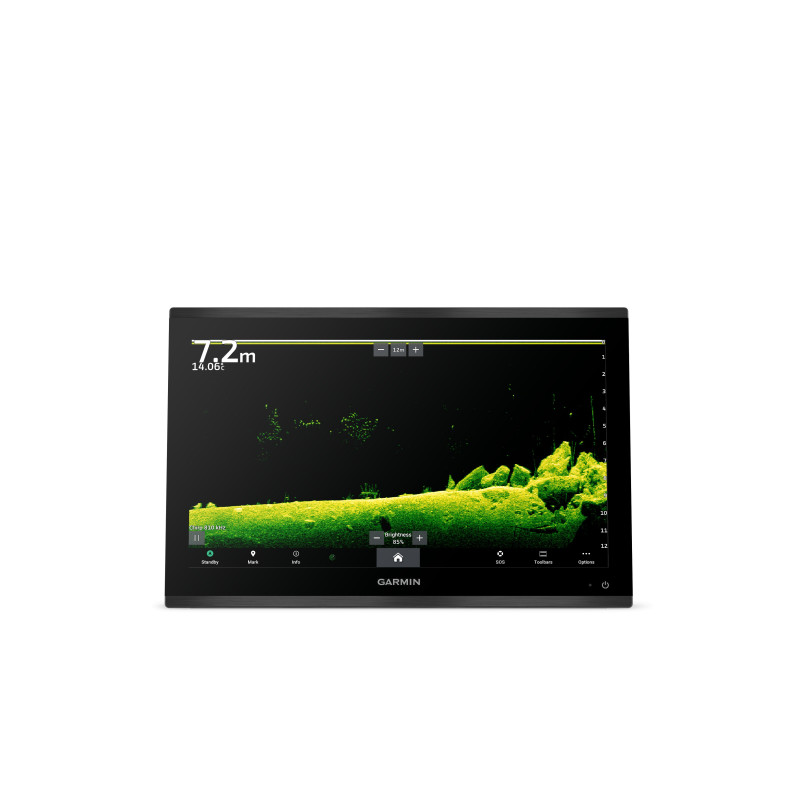

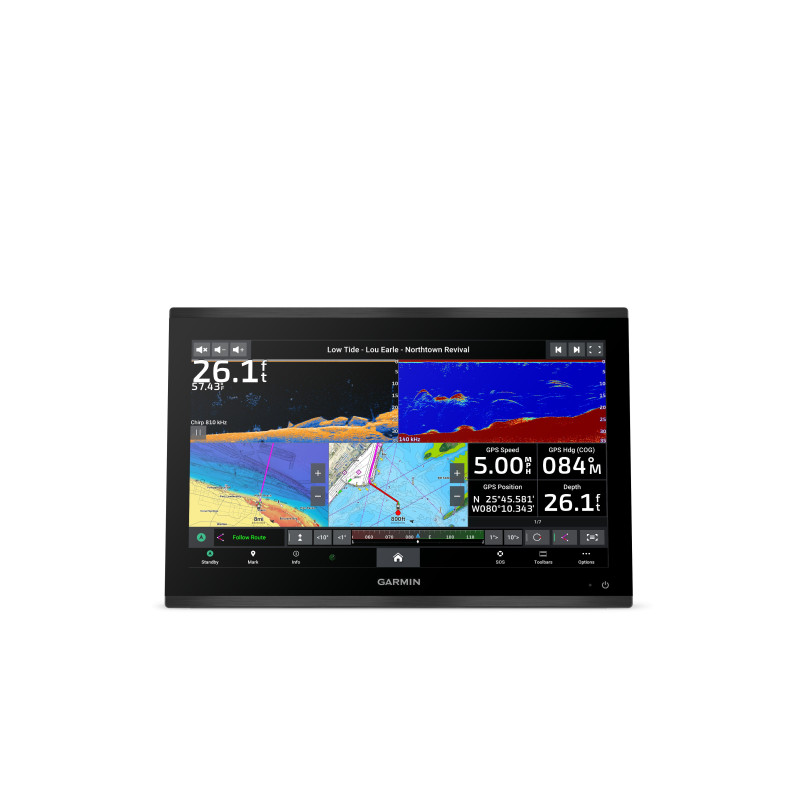

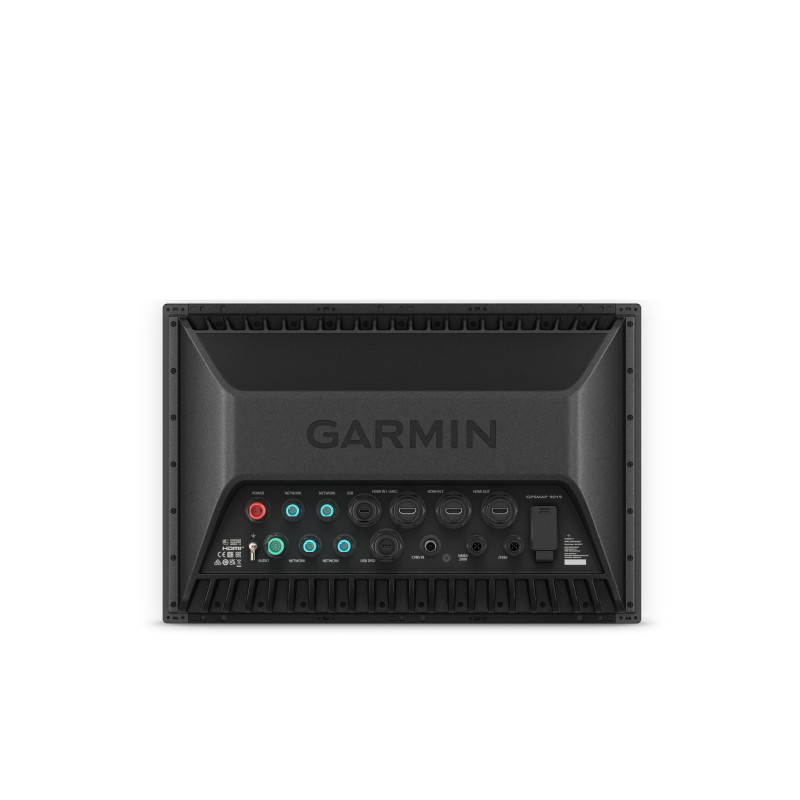

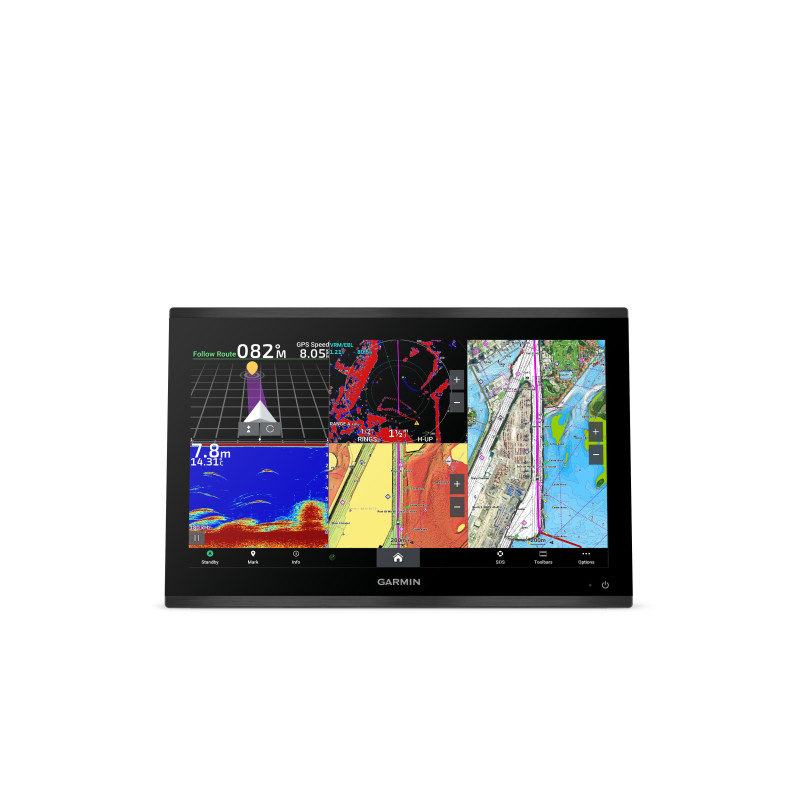

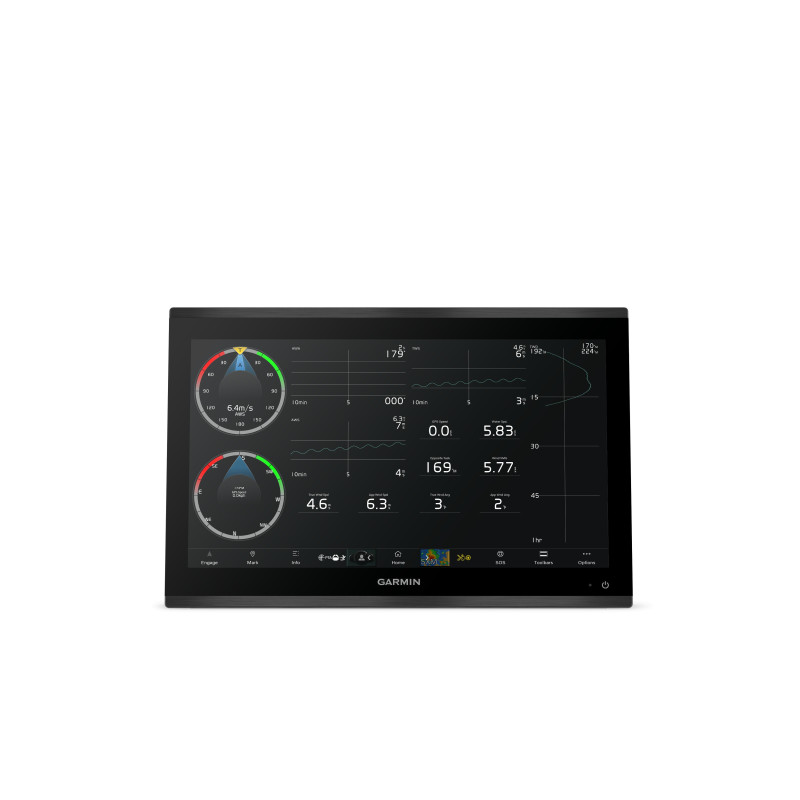

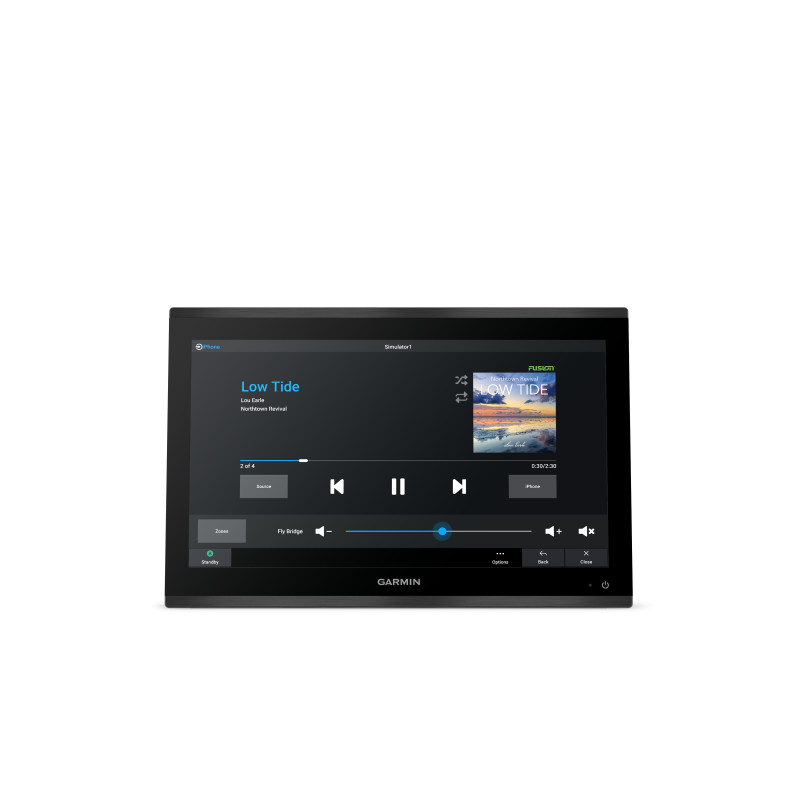

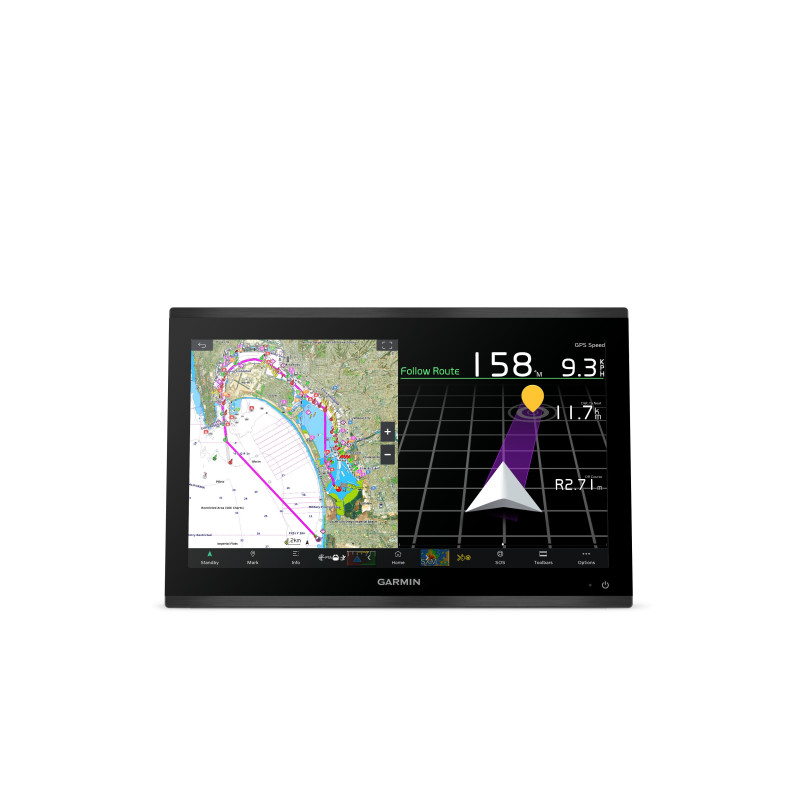

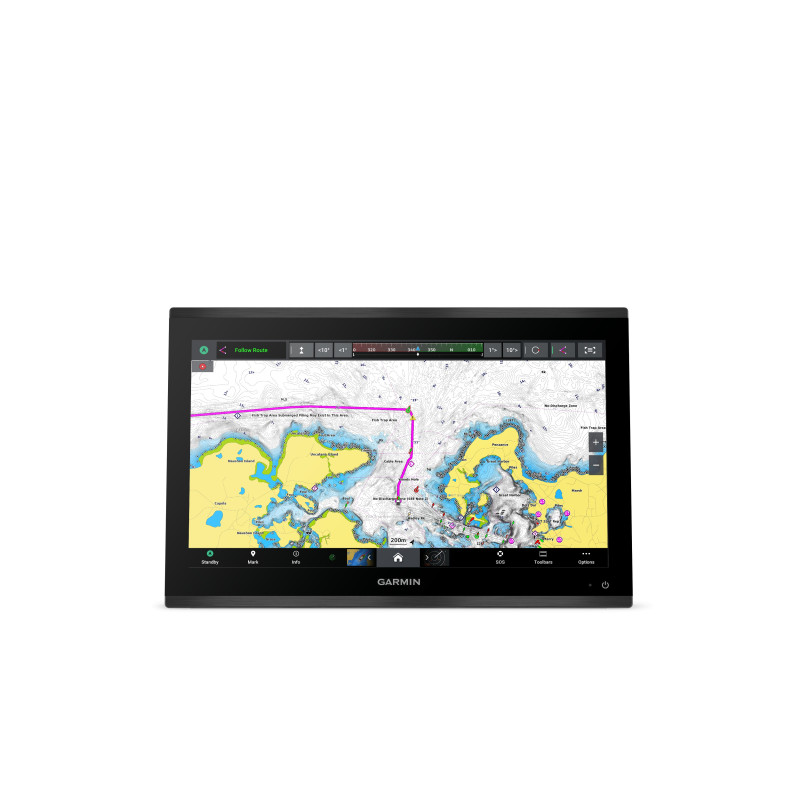

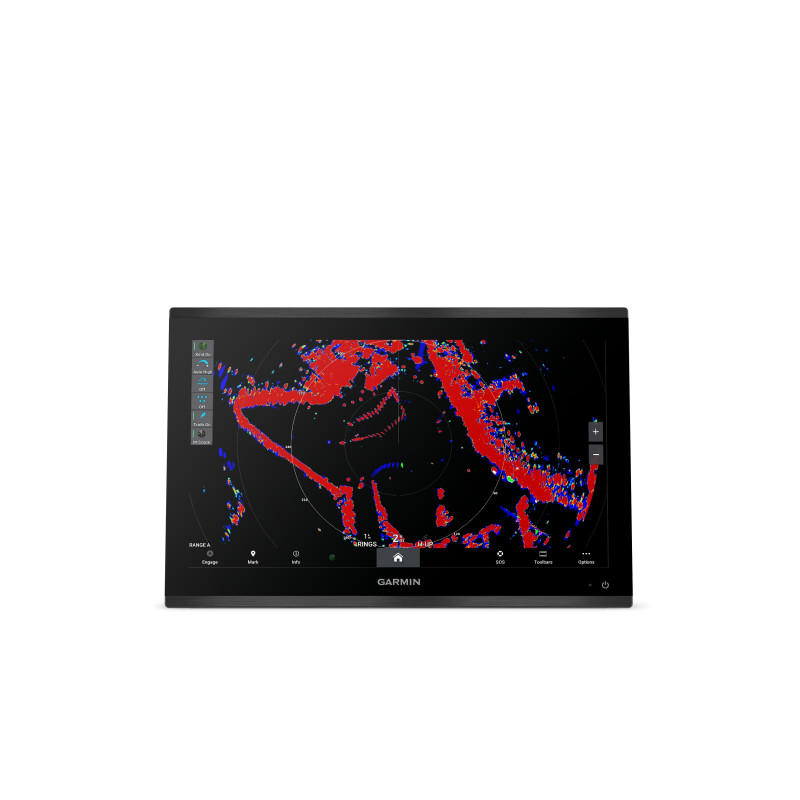

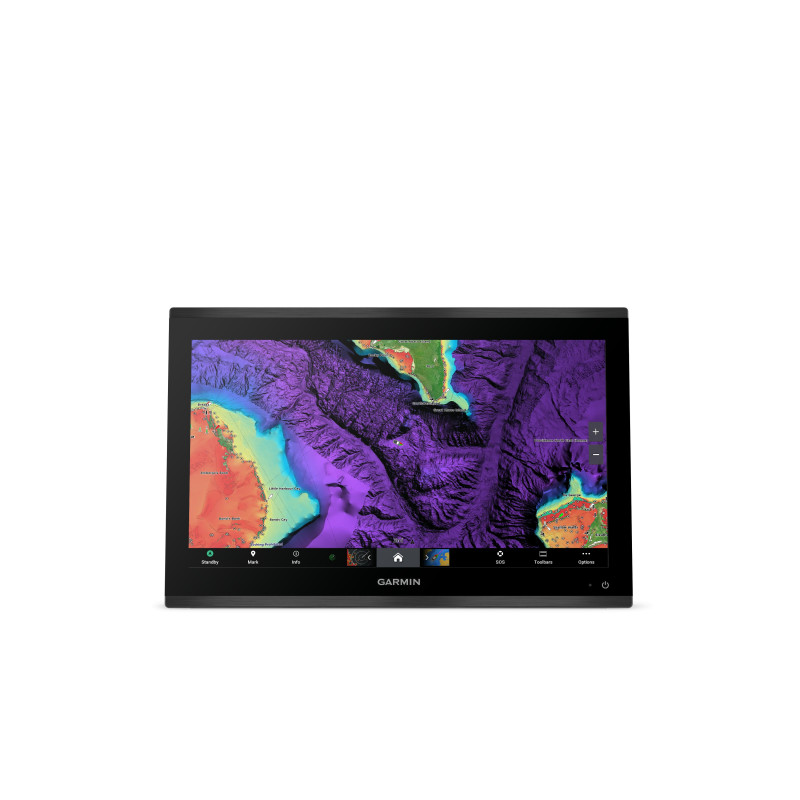

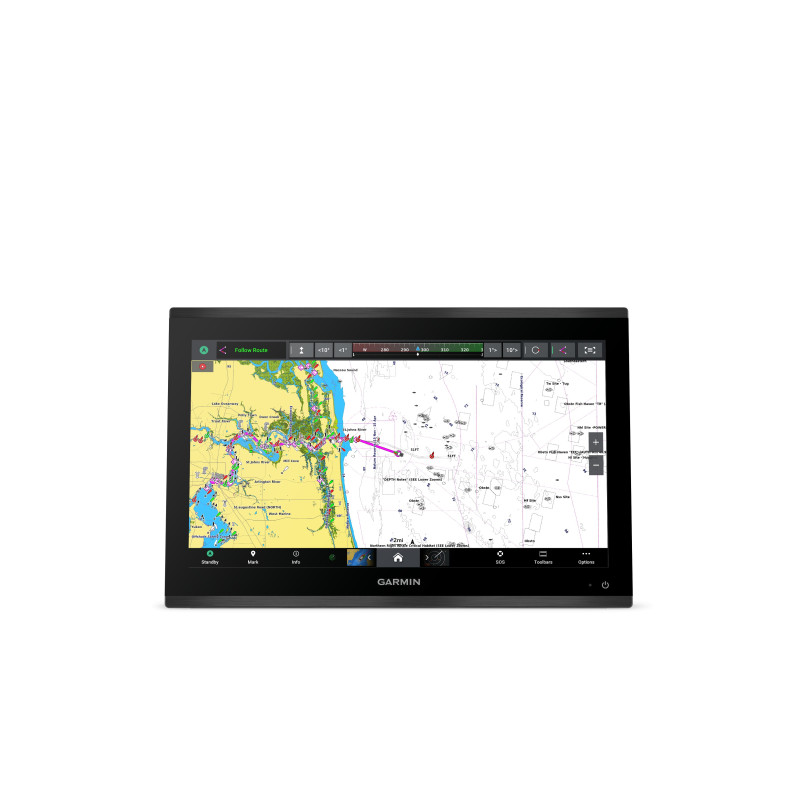

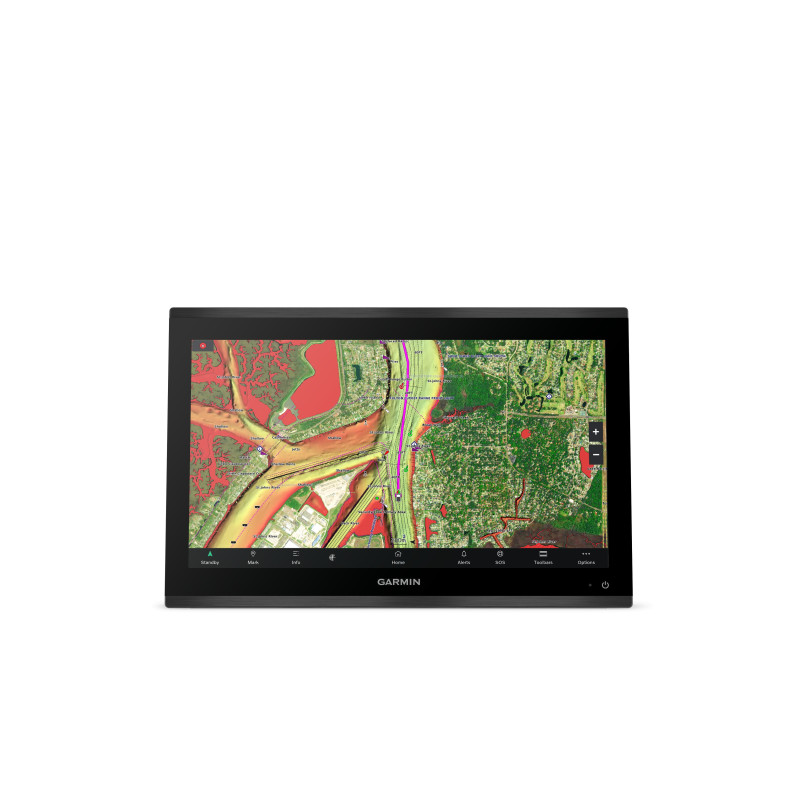

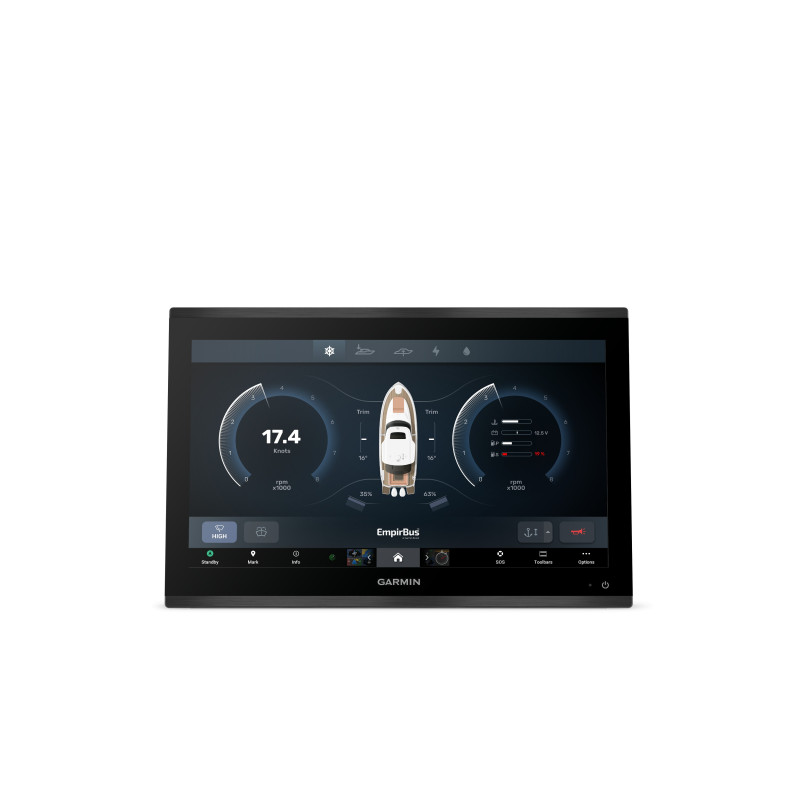

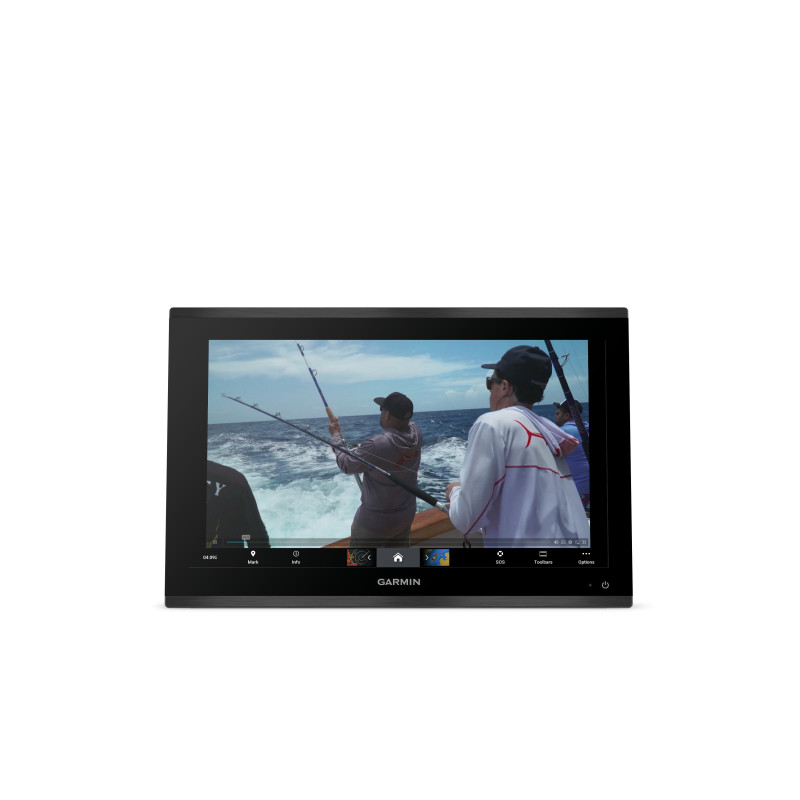

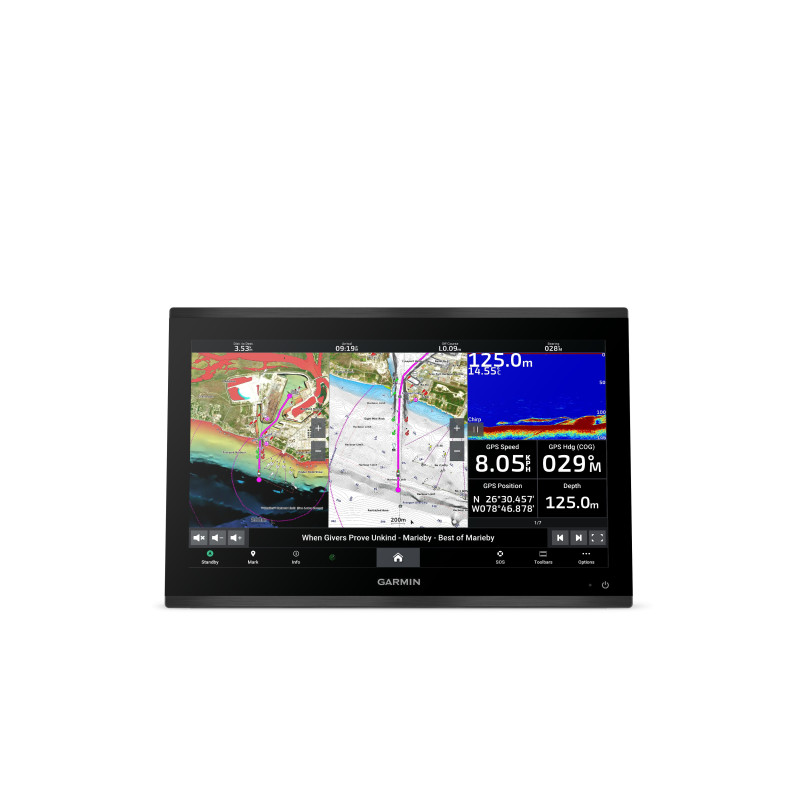

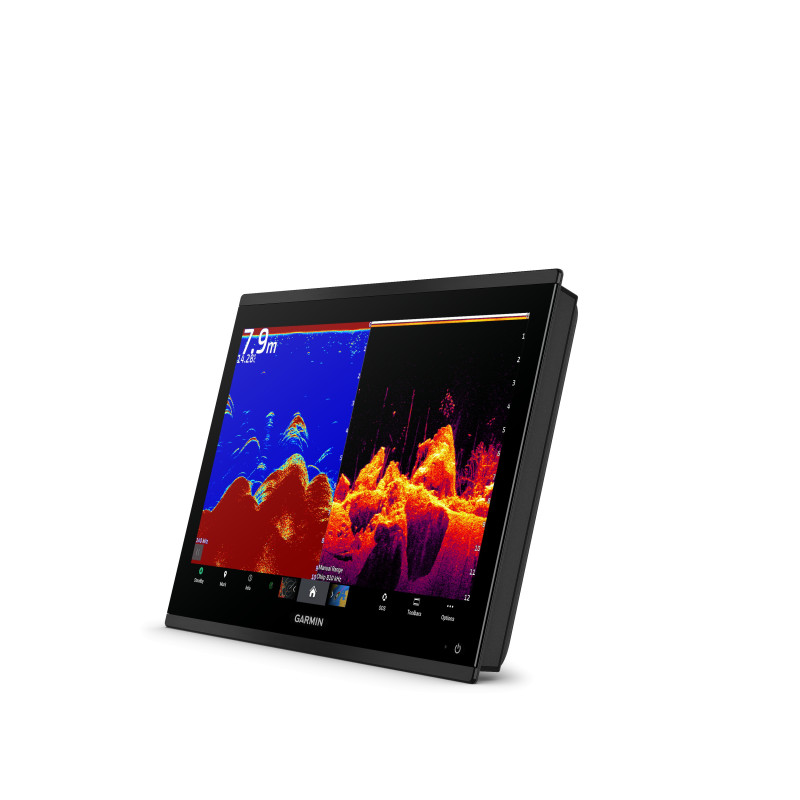

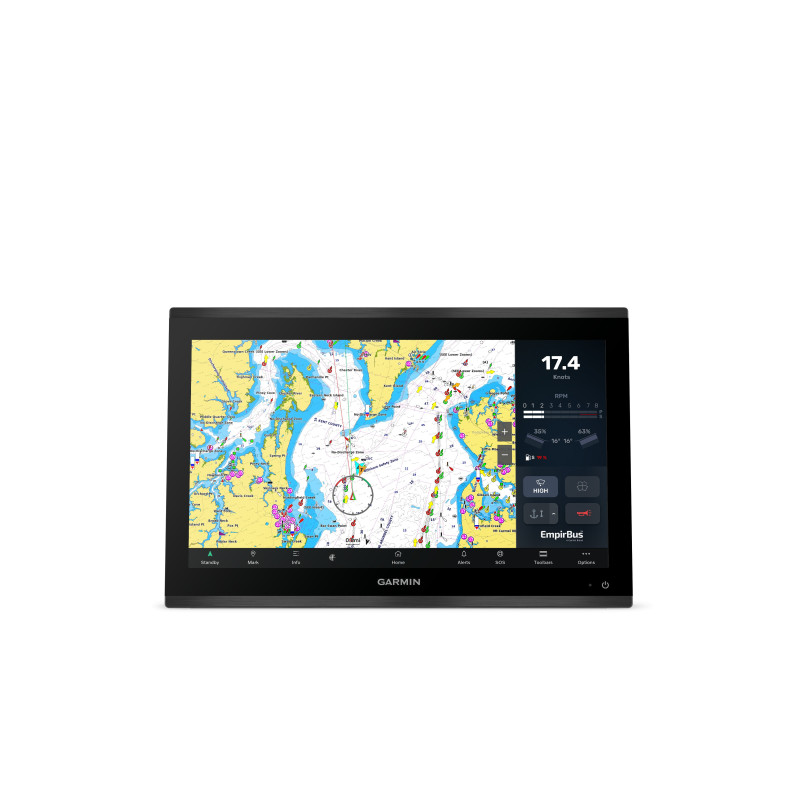

GARMIN GPSMAP® 9024 Premium chartplotter with worldwide basemap
R347,999.00
R330,599.05
Tax included
GARMIN GPSMAP® 9024 Premium chartplotter with worldwide basemap
- GPSMAP® 9024 Chartplotter
- Trim snap cover
- Protective cover
- Flush mount hardware
- Power cable
- GPS 24xd NMEA 2000® (with pole mount, flush mount and under deck mount adapters)
- NMEA 2000 backbone/drop cable (2 metres)
- NMEA 2000 power cable
- NMEA 2000 T-connector and terminator kit
- Documentation
GARMIN GPSMAP® 9024 Premium chartplotter with worldwide basemap
Plot your paradise
In The Box
GPSMAP® 9024 Chartplotter
Trim snap cover
Protective cover
Flush mount hardware
Power cable
GPS 24xd NMEA 2000® (with pole mount, flush mount and under deck mount adapters)
NMEA 2000 backbone/drop cable (2 metres)
NMEA 2000 power cable
NMEA 2000 T-connector and terminator kit
Documentation
Product Specifications
Physical & Performance
| Display Size | 20.7″ x 11.7″ x 23.8″ diagonal, 52.7 cm x 29.6 cm x 60.5 cm diagonal |
| Power Input | 10 to 35 Vdc |
| Display Resolution | 3840 x 2160 pixels |
| Dimension | 22.7″ x 14.8″ x 2.7″ (57.6 cm x 37.6 cm x 6.9 cm) |
| Receiver | 10 Hz |
| Waterproof | IPX7 |
| Weight | 9.34 kg |
| Mounting Options | Flush or flat |
| Display Type | 4K, IPS |
Maps & Navigation
| Garmin Navionics Vision+™ | Yes |
| Accepts Data Cards | 2 microSD Cards |
| Garmin Navionics+ (Inland) | No |
| Navigation Routes | 100 |
| Garmin Navionics+™ | Yes |
Features
| Waypoints | 5000 |
| Sailing features | Yes |
| NMEA 0183 Compatible | Yes |
| Has built-in receiver | No |
| USB ports | yes (2x USB-C) |
| TOPO 100K | No |
| SideVü | Yes (with compatible black box sonar) |
| DSC | Yes |
| Touchscreen | Yes |
| LakeVü g3 Ultra | No |
| NMEA 2000® compatible | Yes |
| ActiveCaptain Mobile Planning Compatible | yes |
| Typical current draw at 12 Vdc | 6.5A |
| NMEA 2000® ports | 1 |
| Tide tables | No |
| Track points | 50000 |
| Panoptix™ sonar | Yes |
| LakeVü g3 | No |
| GSD Black Box Sonar Support | Yes |
| Maximum current draw at 12 Vdc | 6.8A |
| Garmin SmartMode compatible (customisable monitor presets) | Yes |
| Maximum power usage at 10 Vdc | 82W |
| BlueChart g3 | No |
| Standard Mapping | No |
| Garmin BlueNet network ports | 4 |
| LakeVu (inland) | No |
| Displays sonar | Yes |
| ANT+ (Connectivity) | Yes |
| GCV Black Box Sonar Support | Yes |
| BNC external GPS antenna port | No |
| Connections NMEA0183 Input Ports | 4 |
| Spoken audio alerts | Yes |
| BlueChart g3 Vision | No |
| Garmin Wi-Fi network (local connection) | Yes |
| J1939 ports | 1 |
| Audio output | Yes |
| Input | Touchscreen |
| Garmin Quickdraw Contours | Yes |
| Bluetooth® calling | Yes |
| AIS | Yes |
| Video output ports | 1 HDMI |
| Compatible with Garmin SD card reader | Yes |
| Raster chart support | No |
| NMEA 0183 output (Tx) ports | 2 |
| OneHelm support | Yes |
| ClearVü | Yes (with compatible black box sonar) |
| Tracks | 50 saved tracks |
| Wireless Remote Compatible | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| LiveScope | Yes |
| Traditional sonar (dual frequency/beam) | Yes (with compatible black box sonar) |
| GRID (Garmin Remote Input Device) compatible | Yes |
| Video input ports | 1 (BNC composite); 2 HDMI (HDCP compliant) |
1 Sonar black box and transducers sold separately
2 Auto Guidance+ is for planning purposes only and does not replace safe navigation operations
