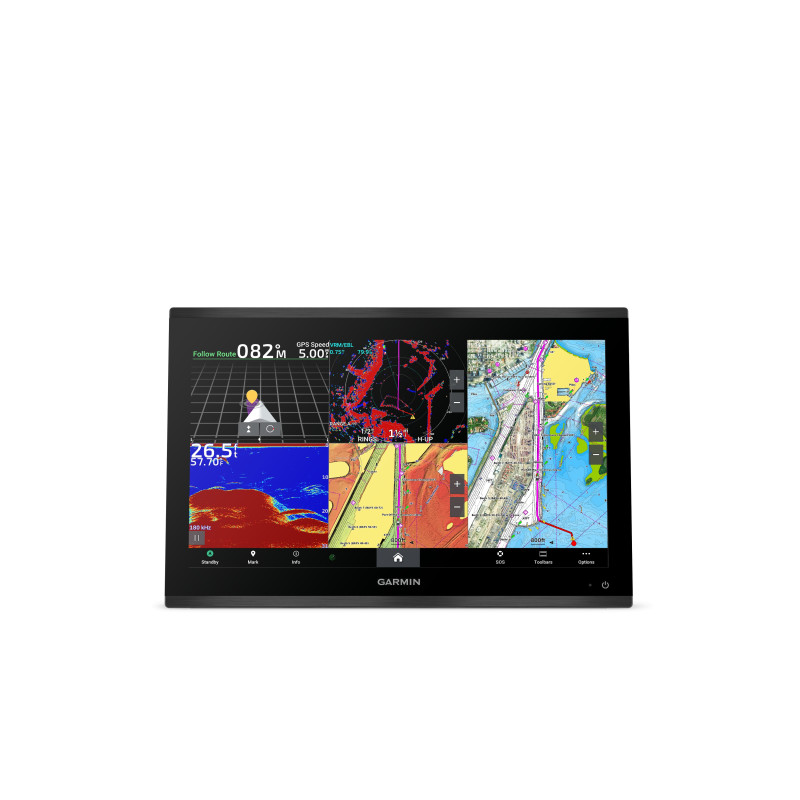

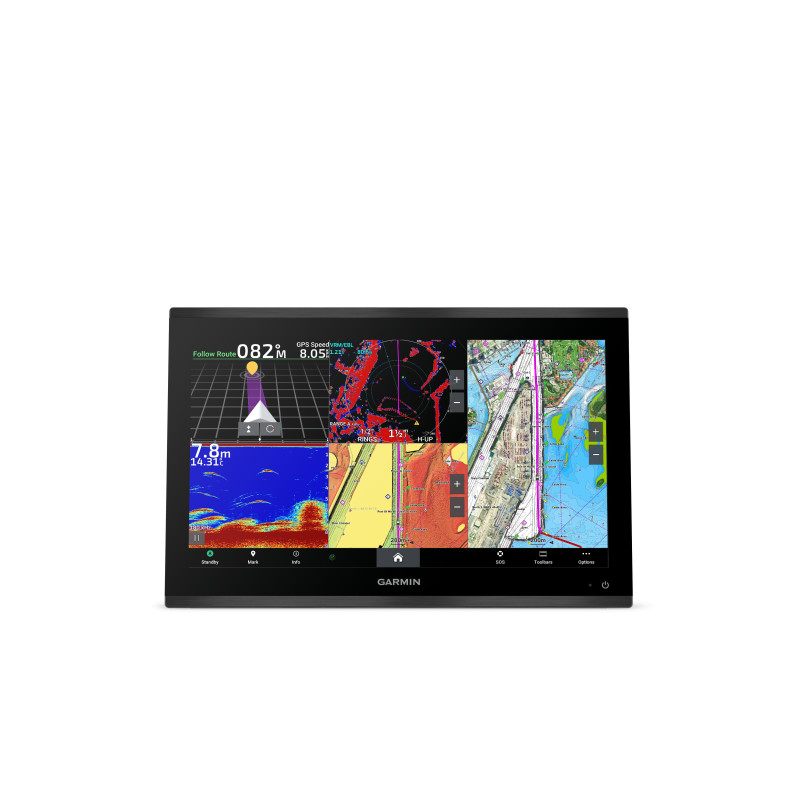

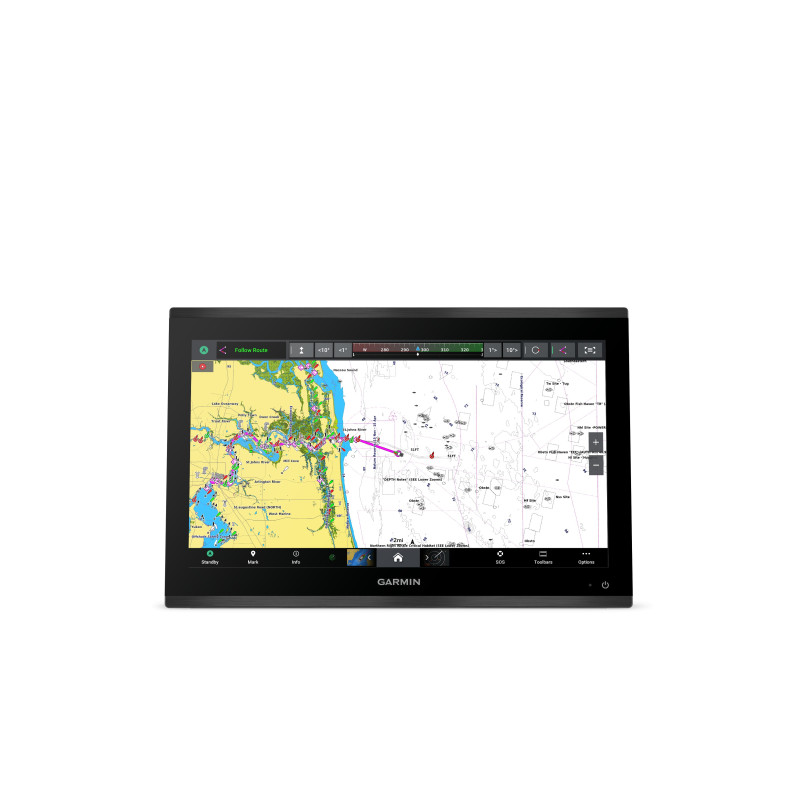

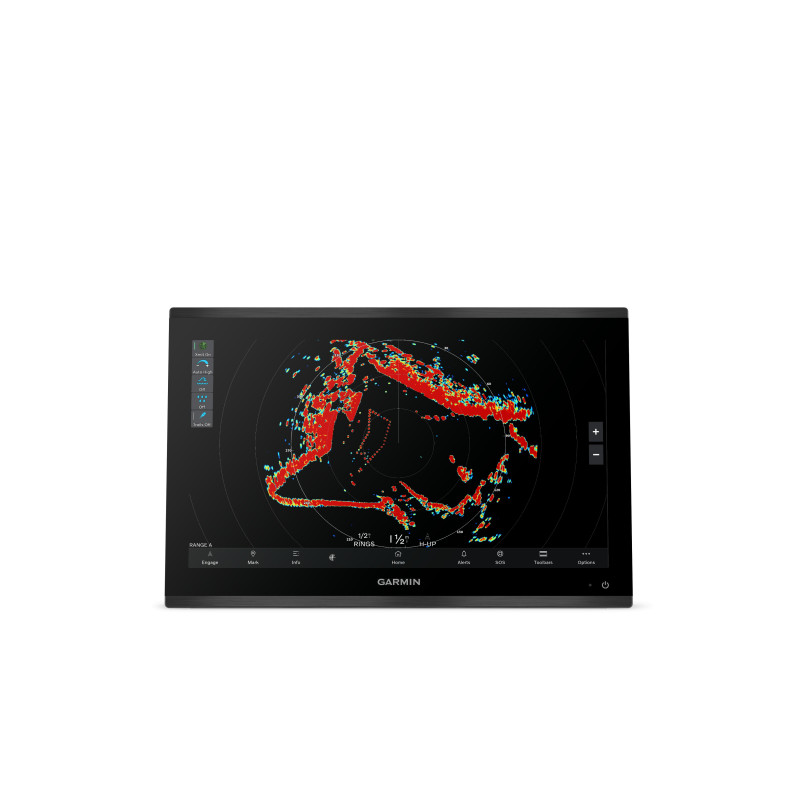

GARMIN GPSMAP® 9022 Premium chartplotter with worldwide basemap
GARMIN GPSMAP® 9022 Premium chartplotter with worldwide basemap
- GPSMAP® 9022 Chartplotter
- Trim snap cover
- Protective cover
- Flush mount hardware
- Power cable
- GPS 24xd NMEA 2000® (with pole mount, flush mount and under deck mount adapters)
- NMEA 2000 backbone/drop cable (2 metres)
- NMEA 2000 power cable
- NMEA 2000 T-connector and terminator kit
- Documentation
GARMIN GPSMAP® 9022 Premium chartplotter with worldwide basemap
Plot your paradise
FROM YOUR PARADISE
SEE YOUR CHARTS, VIEW ENTERTAINMENT AND MORE IN 4K
CLARITY, CONTROL AND LUXURY AT THE HELM
THE SPEED YOU NEED
UP TO SEVEN TIMES FASTER PROCESSING POWER AND GIGABIT SPEEDS ON THE GARMIN BLUENET™ NETWORK
CONNECTION IS KEY
BUILD AN EXTENSIVE, TOP-OF-THE-LINE ECOSYSTEM
YOU’VE NEVER SEEN FISH THIS CLEARLY
WELCOME TO 4K PARADISE
It’s the industry’s first integrated 4K resolution touchscreen chartplotter. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials plus enhanced connectivity and speed.
PREMIUM 4K IPS SUNLIGHT-READABLE TOUCHSCREEN DISPLAY
UP TO 7 TIMES FASTER PROCESSING POWER THAN PREVIOUS GENERATIONS
GIGABIT SPEEDS ON THE GARMIN BLUENET™ NETWORK
VIDEO INTEGRATION CAPABILITIES WITH HDCP DISTRIBUTION
SEE SONAR TARGETS LIKE NEVER BEFORE ON THE 4K DISPLAY
NETWORK WITH MULTIPLE CHARTPLOTTERS, CAMERAS AND SONARS
PREMIUM CHARTPLOTTER
The 4K resolution IPS sunlight-readable touchscreen display is available in the industry’s largest integrated chartplotter size.
Edge-to-edge design provides a seamless and luxurious modern look.
FASTER. MUCH FASTER.
Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+™ routes2 with lightning speed with an optional Garmin Navionics+™ subscription.
GARMIN BLUENET NETWORK

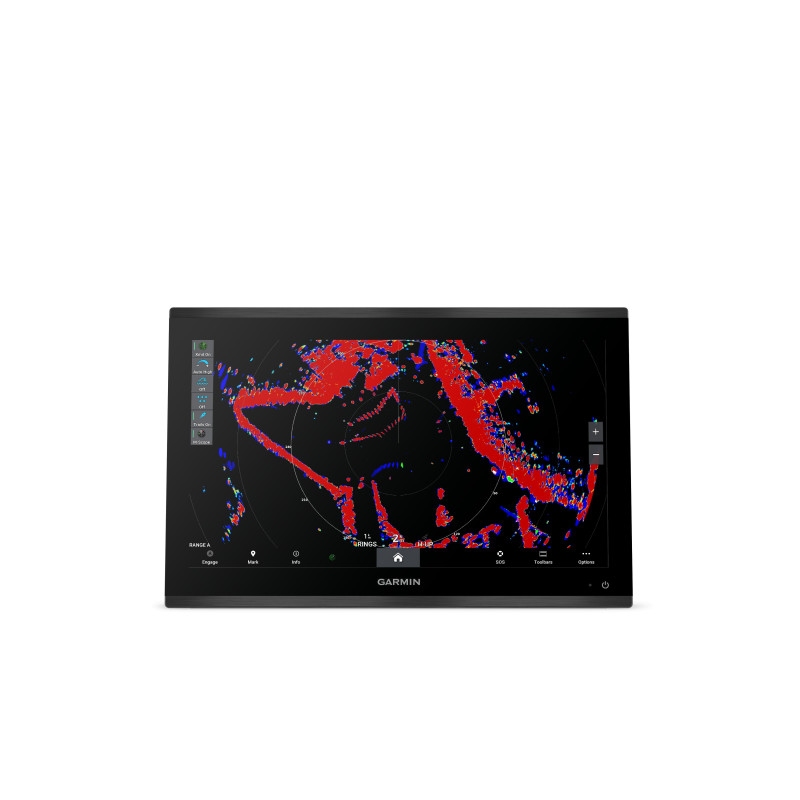

Build extensive networks with multiple chartplotters, cameras, radars and sonars — and enjoy 10 times faster networking speeds with minimal lag.

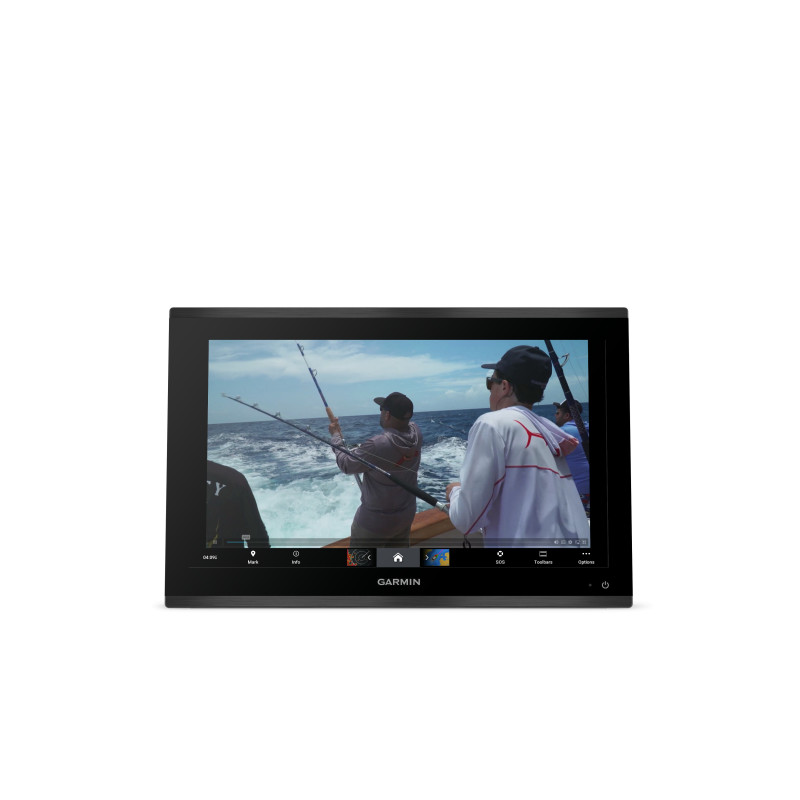

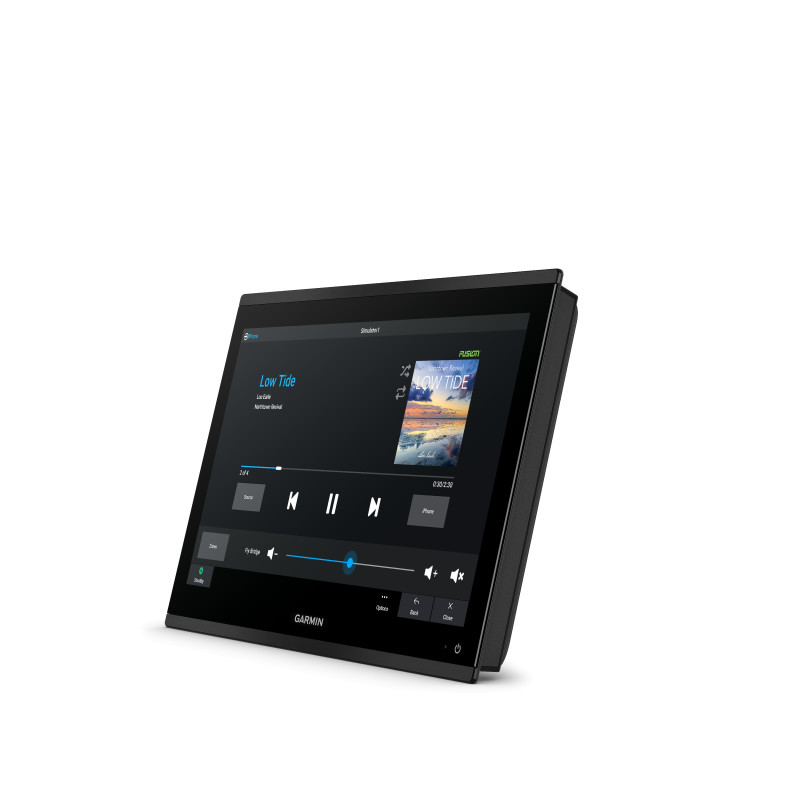

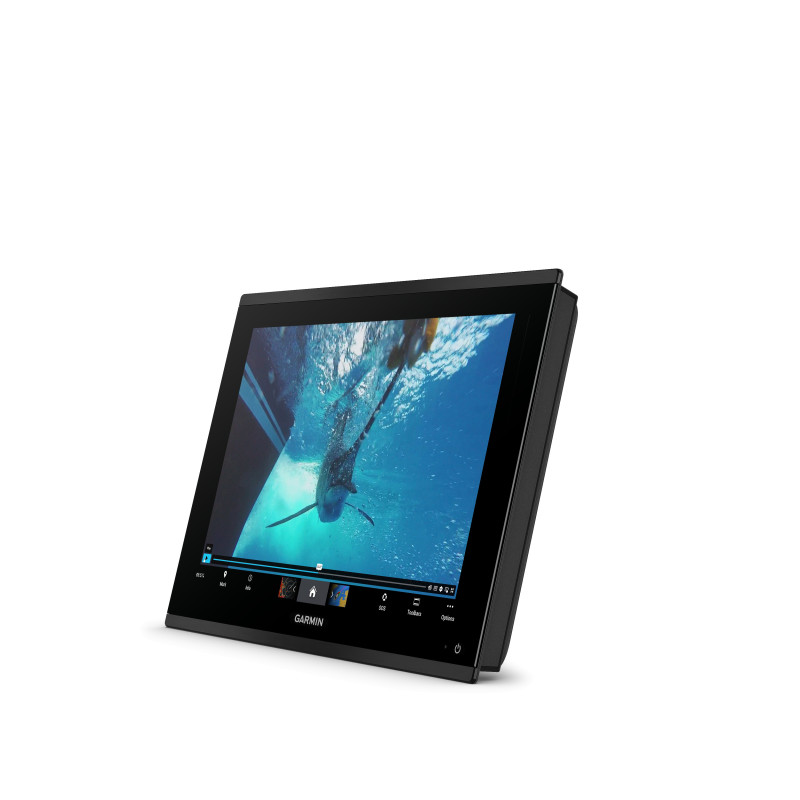

ENTERTAINMENT OPTIONS

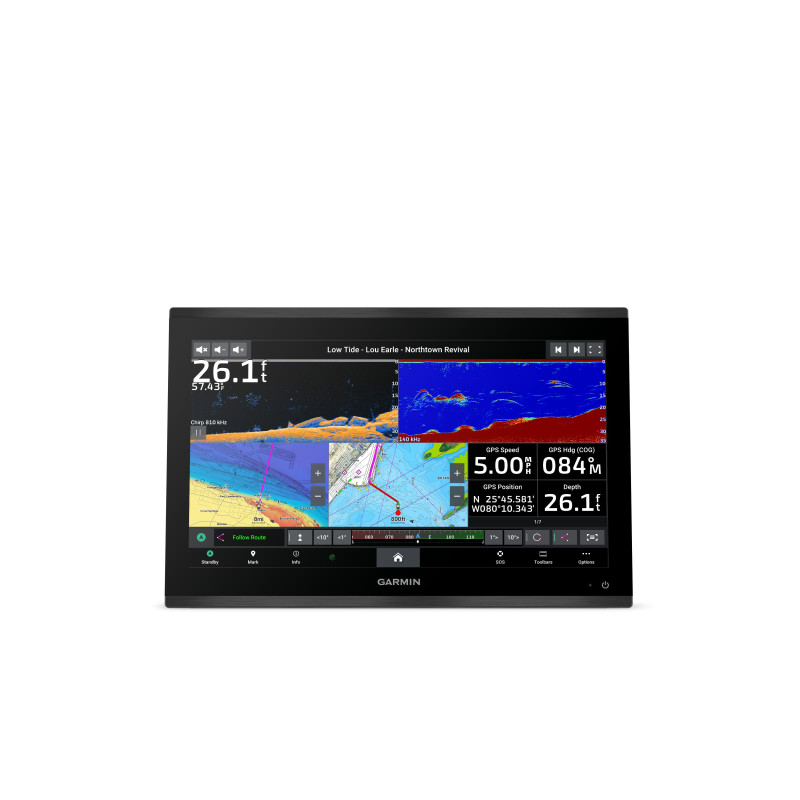

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

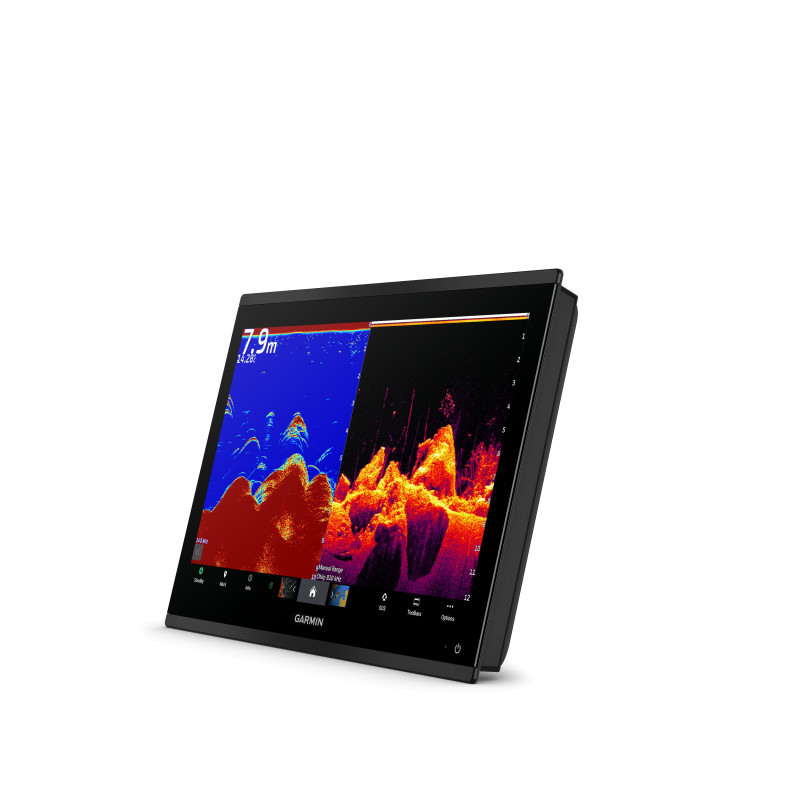

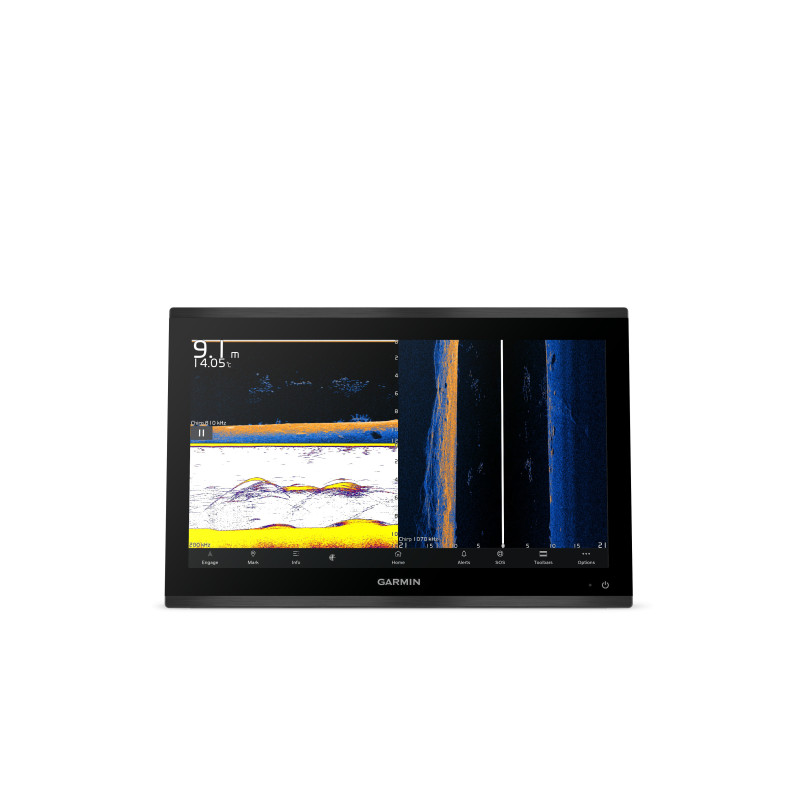

HIGH-DEFINITION SONAR

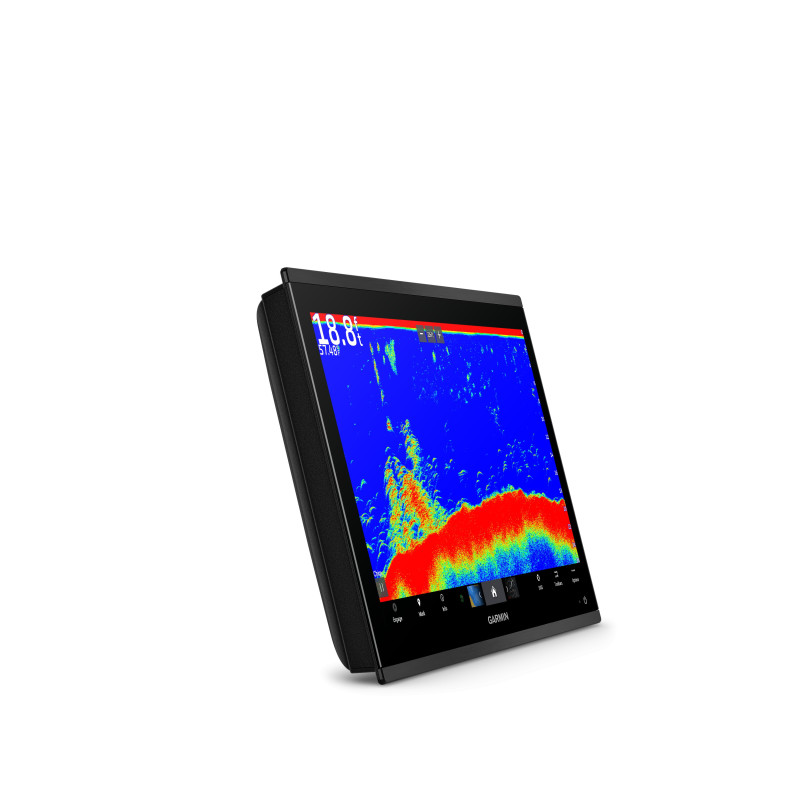

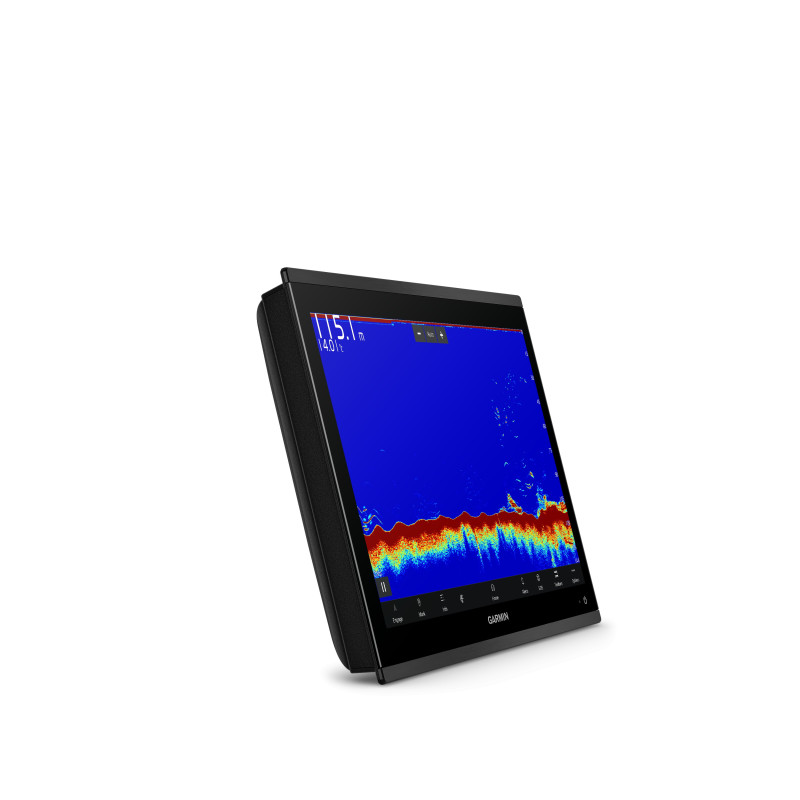

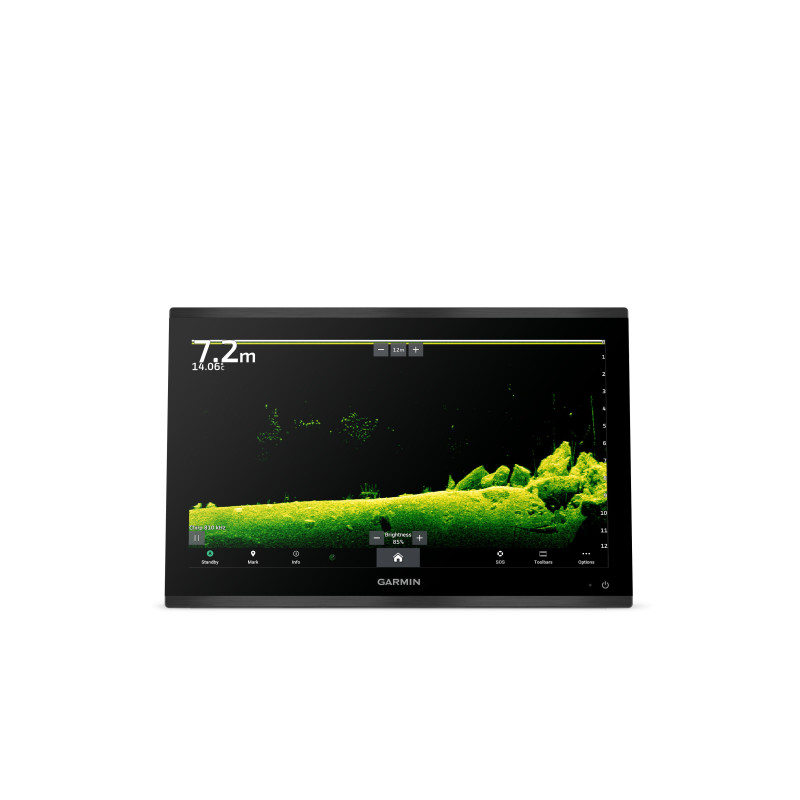

Fish in stunning high definition. Hook up to any of our sonar modules, and view sonar targets on the 4K display (transducers sold separately).

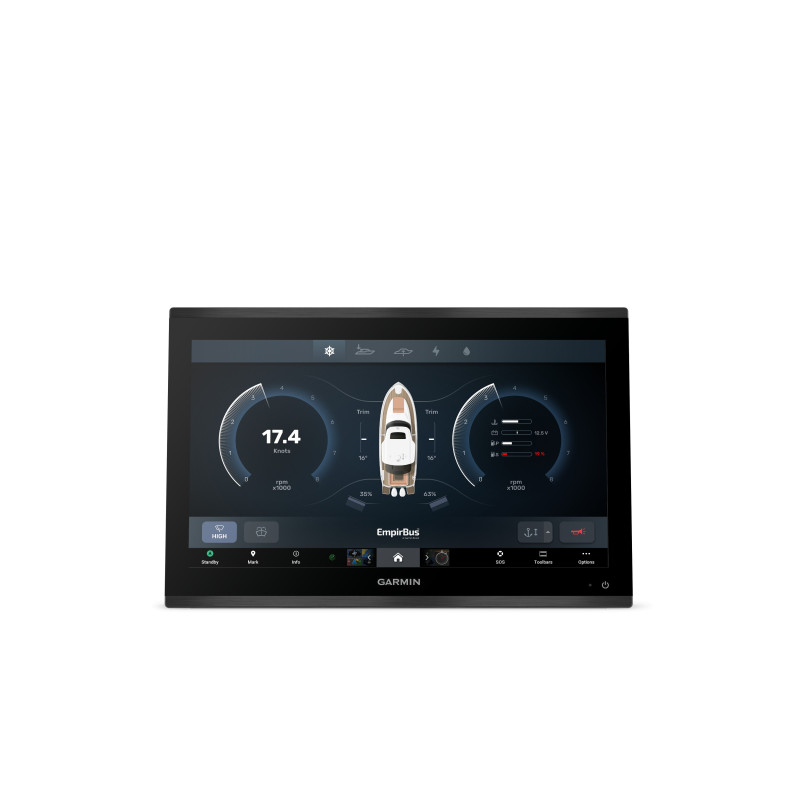

CONNECT YOUR ECOSYSTEM
Take command through digital system integrations to monitor, automate and control your vessel. The chartplotter uses the NMEA 2000® and NMEA 0183 networks to connect to your compatible accessories.
CONNECT
SOFTWARE UPDATES
Get wireless software updates via the ActiveCaptain® app with your compatible smartphone or tablet.

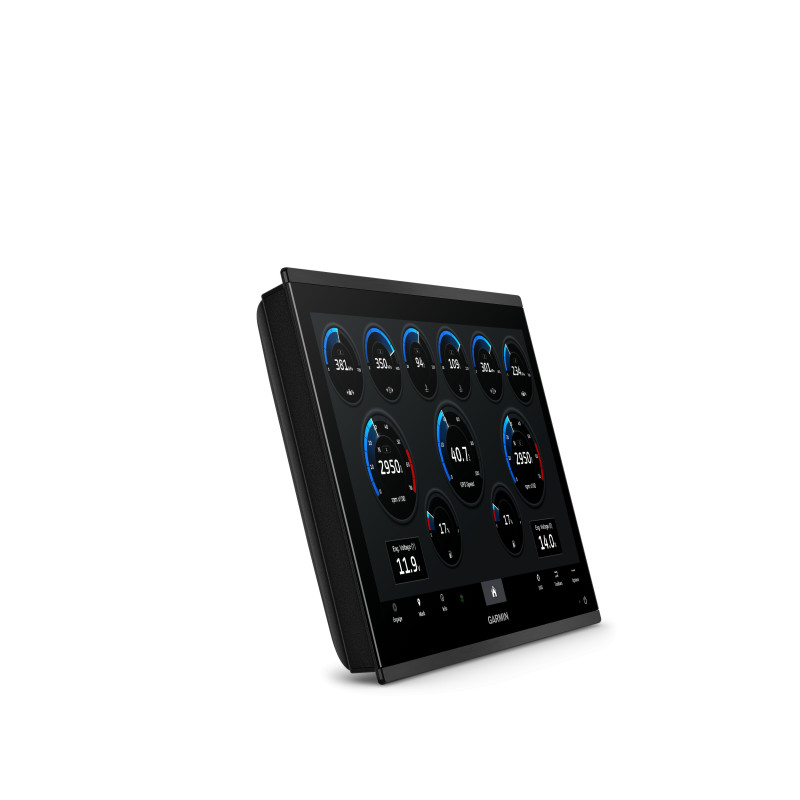

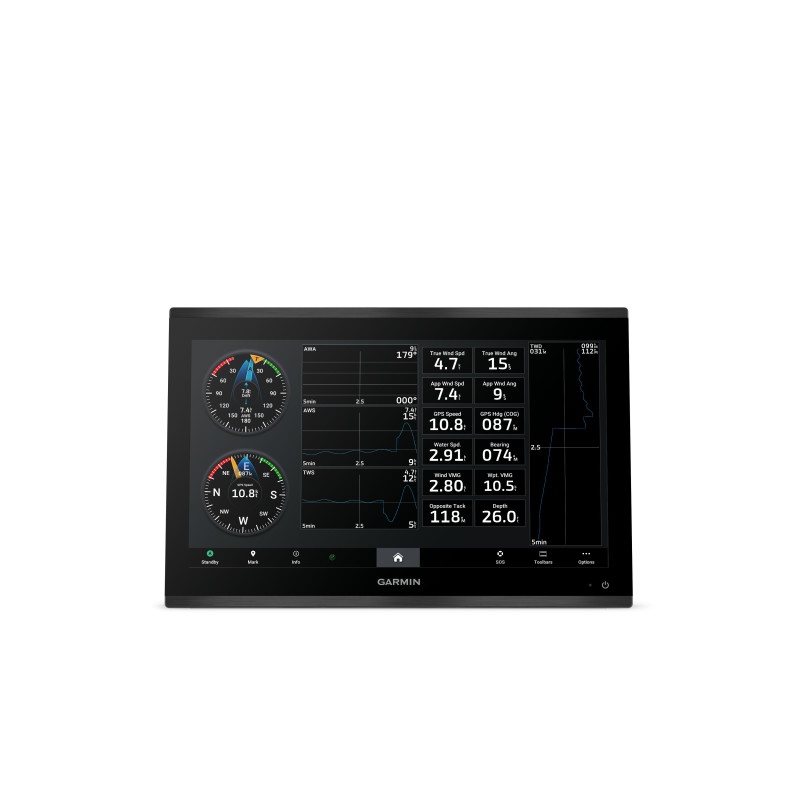

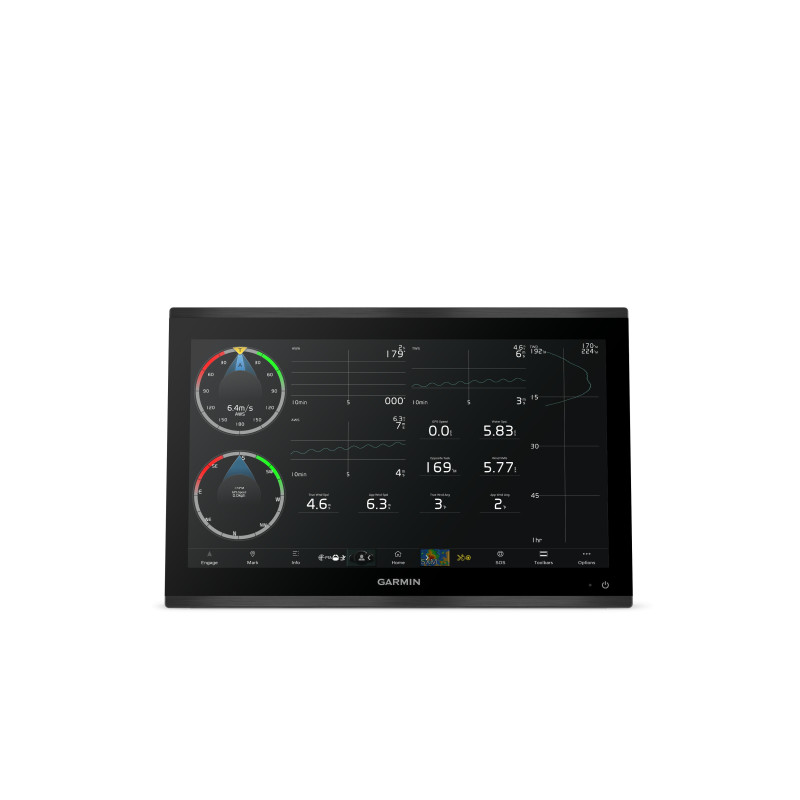

ENGINE MONITORING

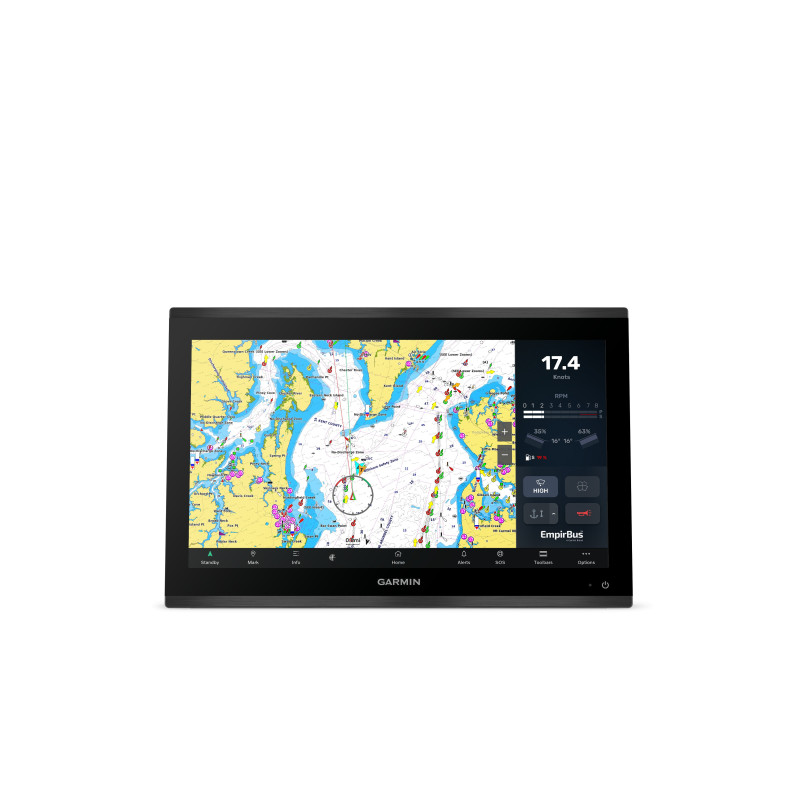

Keep tabs on engine performance with extensive engine integration.
CUSTOM LOOK
Manufacturers can customise the homepage layout and splash screen for a brand tailored experience.

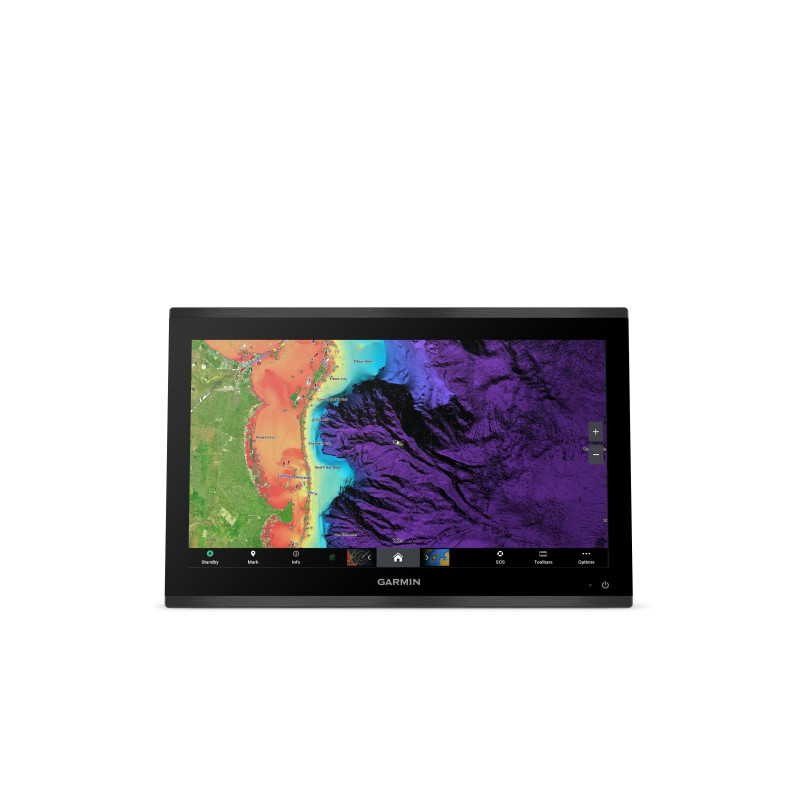

Navigate

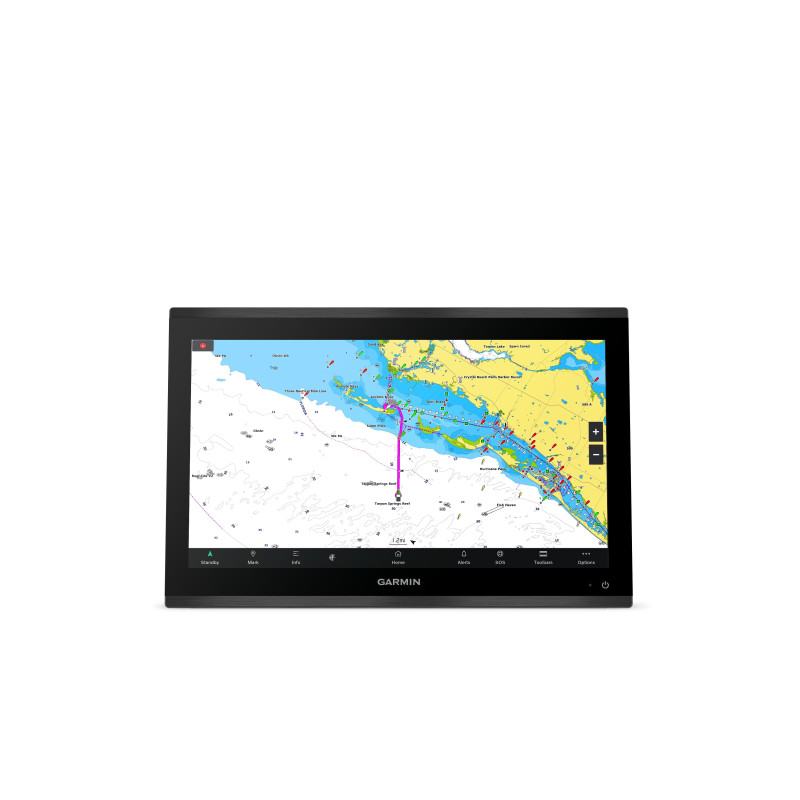

MAPPING

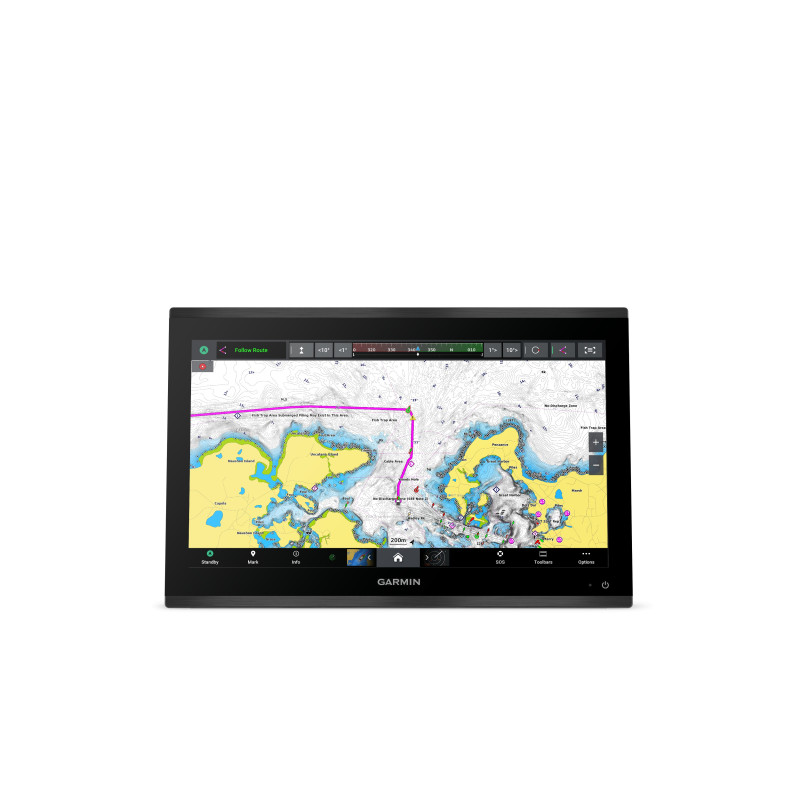

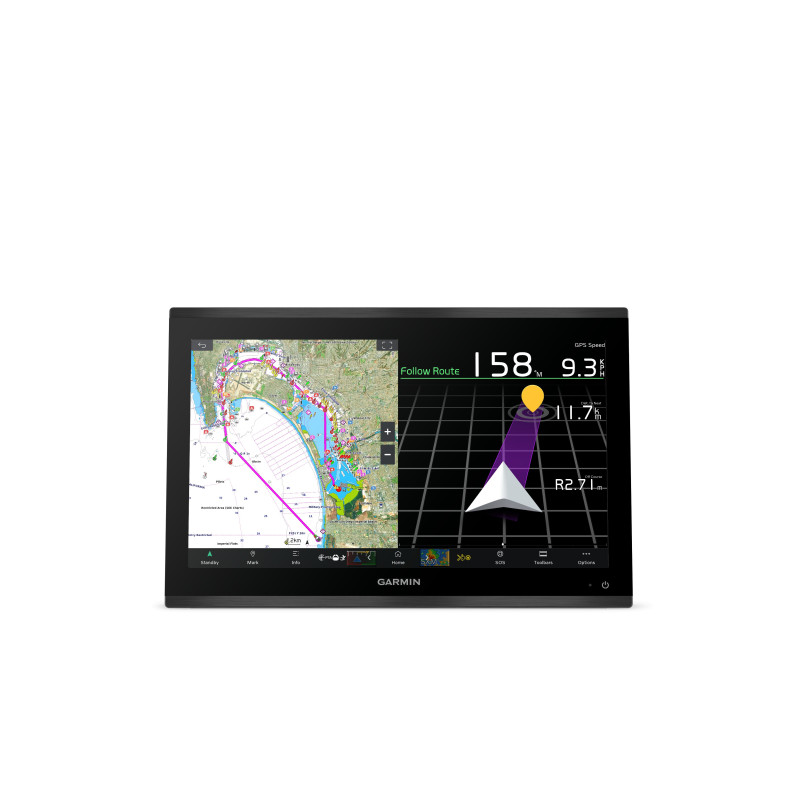

Navigate with optional Garmin Navionics+™ charts that include Auto Guidance+ technology, daily updates and more2 (subscription required).

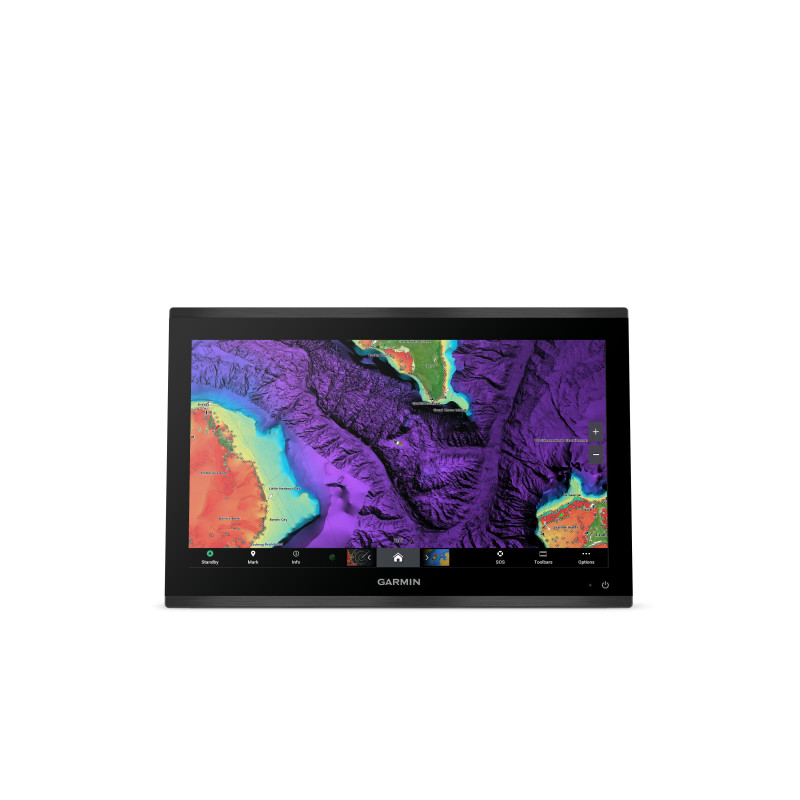

PREMIUM CHARTS

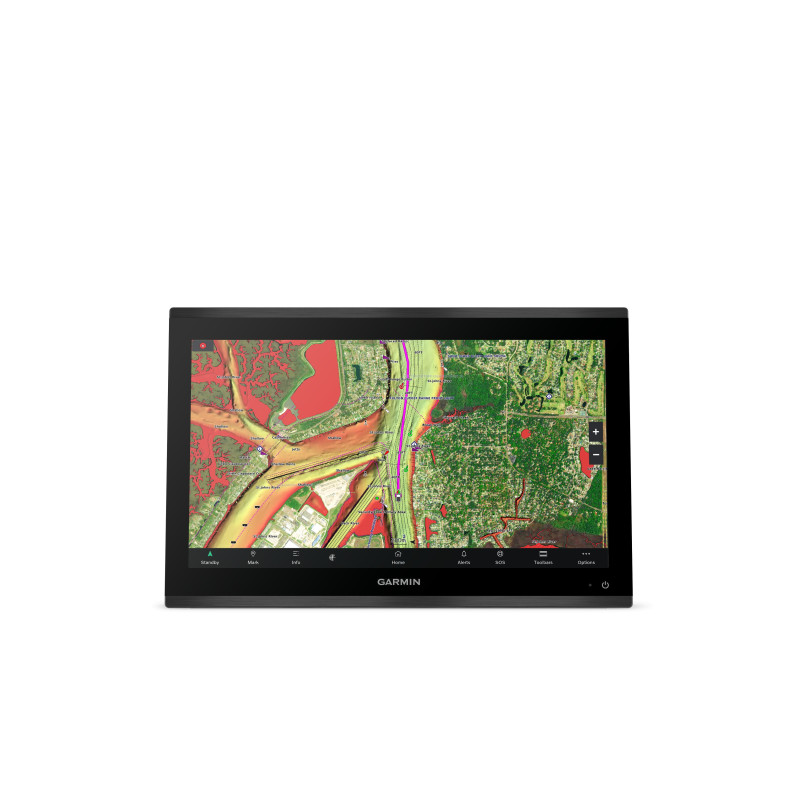

Get support for Garmin Navionics Vision+™ charts with premium relief shading and satellite imagery.
KNOW WHERE YOU ARE
Get your precise location with the included GPS 24xd position receiver and antenna.
AUTOPILOT
Control the autopilot with any compatible chartplotter on the network with autopilot integration.
INTEGRATE
CONNECT CAMERAS
Get extensive camera support and control to see footage directly on the chartplotter.
SURROUND VIEW SYSTEM
Get a bird’s-eye view with support for our Surround View Camera System (accessory purchase required).
CONTROL WITH YOUR WATCH
Connect to your chartplotter with your compatible Garmin smartwatch.
WIRELESS CONNECTIVITY:
Connect compatible devices with integrated BLUETOOTH® and ANT® technologies.
FISH MAPPING
Get comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (accessory purchase and subscription required).
VERBAL COMMANDS
Use spoken commands to control the chartplotter through your compatible headset.
WEATHER-RESISTANT
The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.
Product Specifications
Physical & Performance
Display Size | 18.7″ x 10.5″ x 21.5″ diagonal, 47.5 cm x 26.7 cm x 54.5 cm diagonal |
Power Input | 10 to 35 Vdc |
Display Resolution | 3840 x 2160 pixels |
GPS | Yes |
Dimension | 20.8″ x 13.6″ x 2.7″ (52.9 cm x 34.6 cm x 6.9 cm) |
Receiver | 10 Hz |
Waterproof | IPX7 |
Weight | 7.96 kg |
Mounting Options | Flush or flat |
Display Type | 4K, IPS |
Maps & Navigation
Garmin Navionics+™ (Coastal) | No |
Garmin Navionics Vision+™ | Yes |
Accepts Data Cards | 2 microSD Cards |
Garmin Navionics+ Inland & Coastal | No |
Garmin Navionics+ (Inland) | No |
Navigation Routes | 100 |
Garmin Navionics+™ | Yes |
Features
Waypoints | 5000 |
Sailing features | Yes |
NMEA 0183 Compatible | Yes |
Has built-in receiver | No |
USB ports | yes (2x USB-C) |
TOPO 100K | No |
SideVü | Yes (with compatible black box sonar) |
DSC | Yes |
Touchscreen | Yes |
LakeVü g3 Ultra | No |
NMEA 2000® compatible | Yes |
ActiveCaptain Mobile Planning Compatible | yes |
Typical current draw at 12 Vdc | 5.2A |
NMEA 2000® ports | 1 |
Tide tables | No |
GLONASS | Yes |
Track points | 50000 |
Panoptix™ sonar | Yes |
LakeVü g3 | No |
Supports WAAS | Yes |
GSD Black Box Sonar Support | Yes |
Maximum current draw at 12 Vdc | 5.7A |
Garmin SmartMode compatible (customisable monitor presets) | Yes |
Built-in Auto Guidance | No |
Maximum power usage at 10 Vdc | 68W |
BlueChart g3 | No |
Standard Mapping | No |
Garmin BlueNet network ports | 4 |
LakeVu (inland) | No |
Built-in Auto Guidance+ | No |
Displays sonar | Yes |
ANT+ (Connectivity) | Yes |
GCV Black Box Sonar Support | Yes |
BNC external GPS antenna port | No |
Connections NMEA0183 Input Ports | 4 |
Spoken audio alerts | Yes |
BlueChart g3 Vision | No |
Garmin Wi-Fi network (local connection) | Yes |
J1939 ports | 1 |
Audio output | Yes |
Input | Touchscreen |
BeiDou | Yes |
Garmin Quickdraw Contours | Yes |
Bluetooth® calling | Yes |
AIS | Yes |
Supports multi-band, multi-constellation GPS | Yes |
Video output ports | 1 HDMI |
Compatible with Garmin SD card reader | Yes |
Raster chart support | No |
NMEA 0183 output (Tx) ports | 2 |
OneHelm support | Yes |
ClearVü | Yes (with compatible black box sonar) |
Tracks | 50 saved tracks |
Wireless Remote Compatible | Yes |
Supports Fusion-Link™ compatible radios | Yes |
Galileo | Yes |
LiveScope | Yes |
BlueChart (coastal) | No |
Traditional sonar (dual frequency/beam) | Yes (with compatible black box sonar) |
GRID (Garmin Remote Input Device) compatible | Yes |
Video input ports | 1 (BNC composite); 2 HDMI (HDCP compliant) |
Product Accessories
9-axis Heading Sensor
Cable Grommets
Field Installable Adapter Kit for the Garmin BlueNet™ Network
Garmin BlueNet™ 20 Switch
Garmin BlueNet™ 30 Gateway
Garmin BlueNet™ Network Cable (500 ft)
GFL™ 10
GFS™ 10
GMR Fantom™ 124, Open Array and Pedestal, White
GMR Fantom™ 126, Open Array and Pedestal, White
GMR Fantom™ 24x Radome, White
GMR Fantom™ 24x Radome, Black
GMR Fantom™ 18x Radome, White
GMR Fantom™ 18x Radome, Black
GMR Fantom™ 254, Open Array and Pedestal, White
GMR Fantom™ 256, Open Array and Pedestal, White
GMR Fantom™ 54, Open Array Radar and Pedestal, White
GMR Fantom™ 56, Open Array and Pedestal, White
GMR™ 1236 xHD3 Open Array Radar and Pedestal
GMR™ 1234 xHD3 Open Array Radar and Pedestal
GMR™ 2536 xHD3 Open Array Radar and Pedestal
GMR™ 2534 xHD3 Open Array Radar and Pedestal
GMR™ 436 xHD3 Open Array Radar and Pedestal
GMR™ 434 xHD3 Open Array Radar and Pedestal
GPS 24xd Receiver and Antenna, For the NMEA 2000® Network, White
GRID™ 20, Vertical
GTEMP 10-TH Thru-hull Temp Sensor
MSC™ 10 Marine Satellite Compass, Heading Sensor and Multi-band GPS Receiver, white
MSC™ 10 Marine Satellite Compass Heading Sensor and Multi-band GPS Receiver, black
NMEA 0183 with Audio Cable
NMEA 2000® Backbone/Drop Cable (4 m/13 ft)
NMEA 2000® Backbone/Drop Cable (6 m/19 ft)
NMEA 2000® Backbone/Drop Cable (0.3 m/1 ft)
NMEA 2000® Backbone/Drop Cable (10 m/32 ft)
NMEA 2000® Backbone/Drop Cable, Right Angle (2 m/6 ft)
NMEA 2000® Backbone/Drop Cable (2 m/6 ft)
NMEA 2000® Field-installable Connectors, Male
NMEA 2000® Field-installable Connectors, Female
NMEA 2000® In-line Terminator
NMEA 2000® Multi-port T-connector, 4 Ports
NMEA 2000® Power Cable
NMEA 2000® Power Isolator
NMEA 2000® Starter Kit
NMEA 2000® T-connector, 1 Port
NMEA 2000® Terminators, Female
NMEA 2000® Terminators, Male
Split Connector (11 mm)
SteadyCast Heading Sensor
