Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 Instrument Pack

Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 Instrument Starter Pack

With GHC 50

(CONTACT US FOR CONFIRMATION OF STOCKS AND POSSIBLE PROMOTIONAL PRICING)

Ideal Entry-level Autopilot System

Includes Compact Reactor 40 CCU, ECU, pump, GHC 50 Instrument and other autopilot components needed to add to your compatible chartplotter

Recommended only for single-engine outboard boats less than 30 foot long

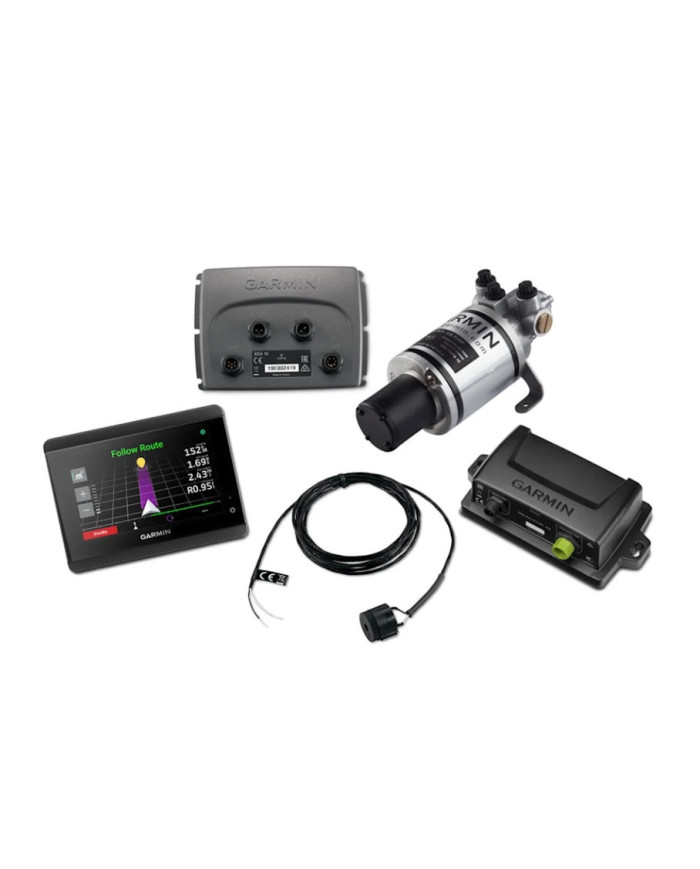

IN THE BOX

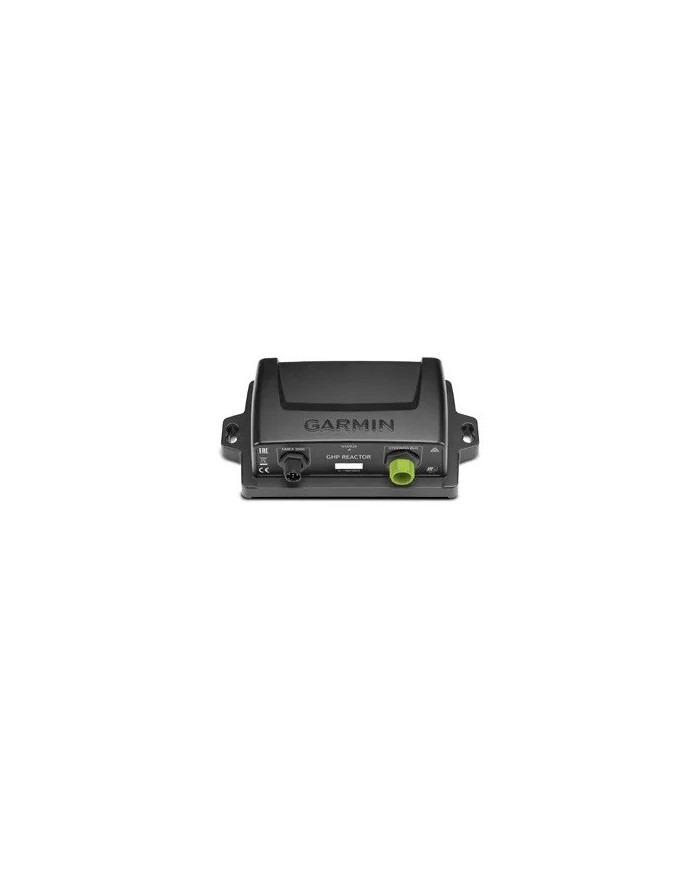

Reactor 40 CCU (Course Computer Unit)

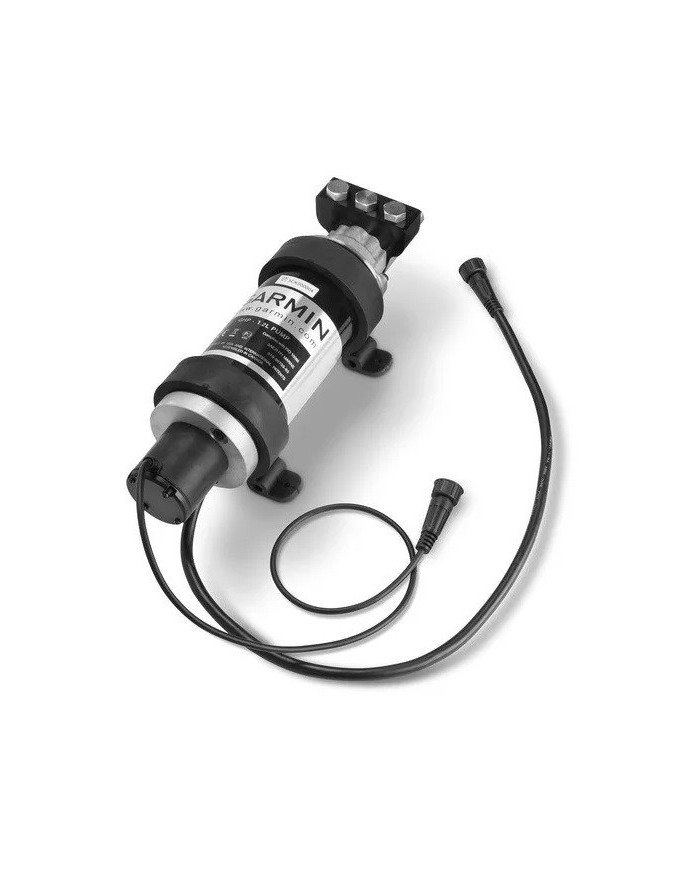

1.0 L Pump

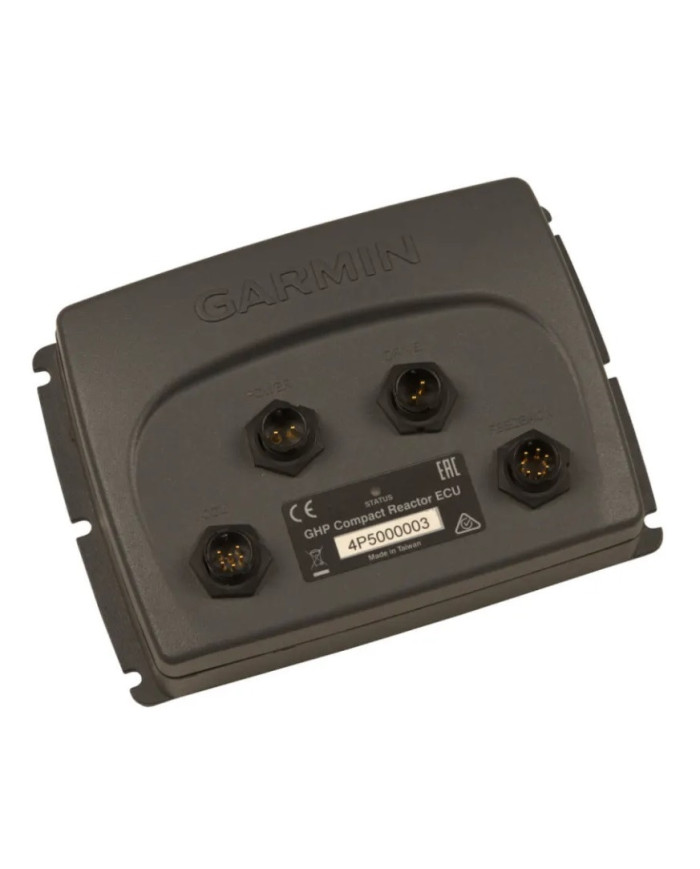

ECU (Electronic Control Unit)

ECU power cable

GHC-50 Instrument

Interconnect cable

Buzzer

NMEA 2000® drop cables (2 meters)

NMEA 2000 power cable

NMEA 2000 T-connectors

Male and female terminators

Documentation

SPECIFICATIONS

Compact Reactor

Unit dimensions, WxHxD: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)

Pump dimensions, LxWxH: 6.6 " x 3.9 " x 3.3 " (16.8 x 10.0 x 8.5 cm)

NMEA output: NMEA 2000

Supply voltage: 10V to 20V

Operating temperature: -15° C to 70 C° (5° F to 158° F)

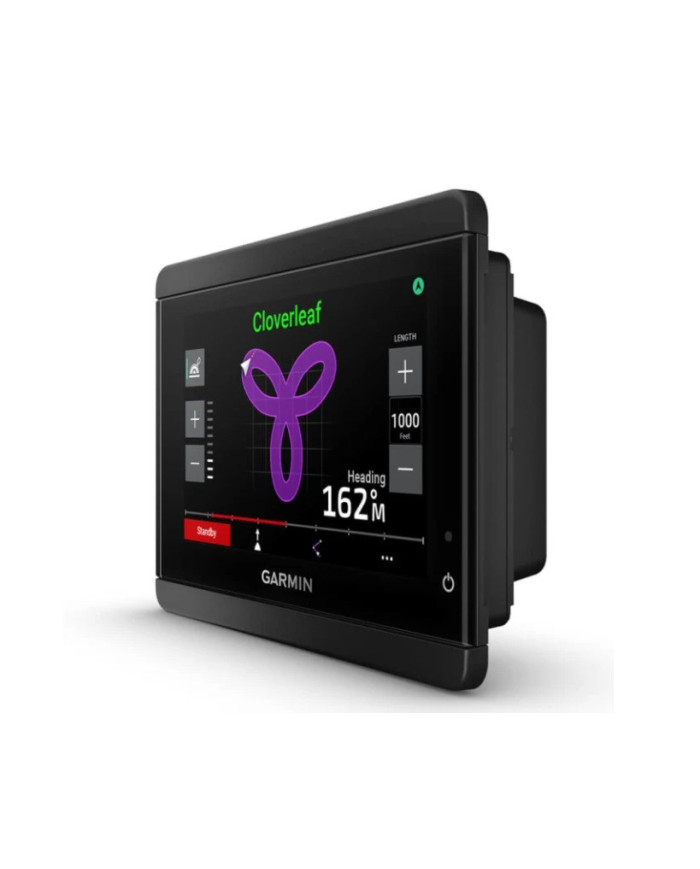

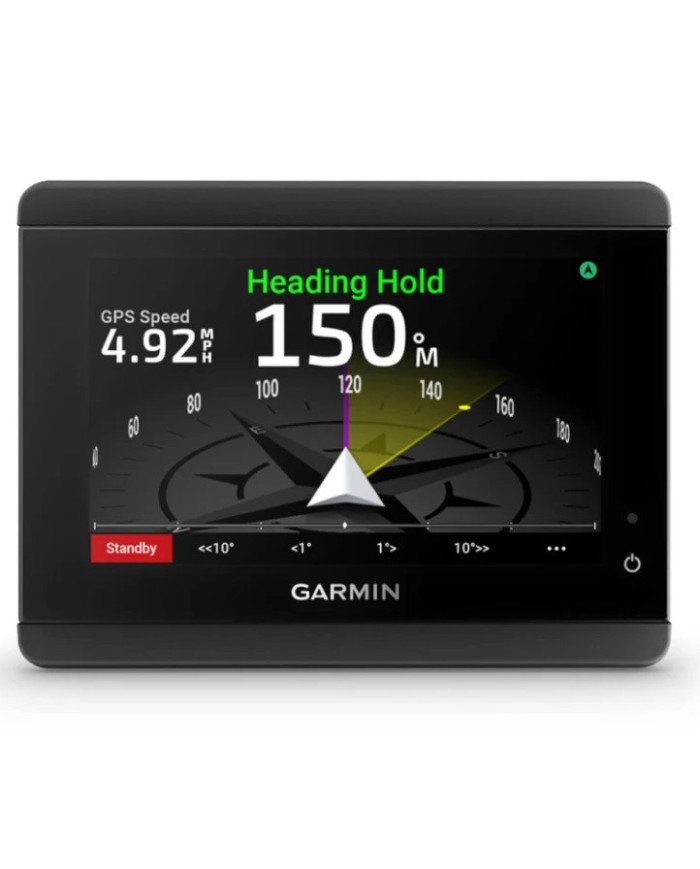

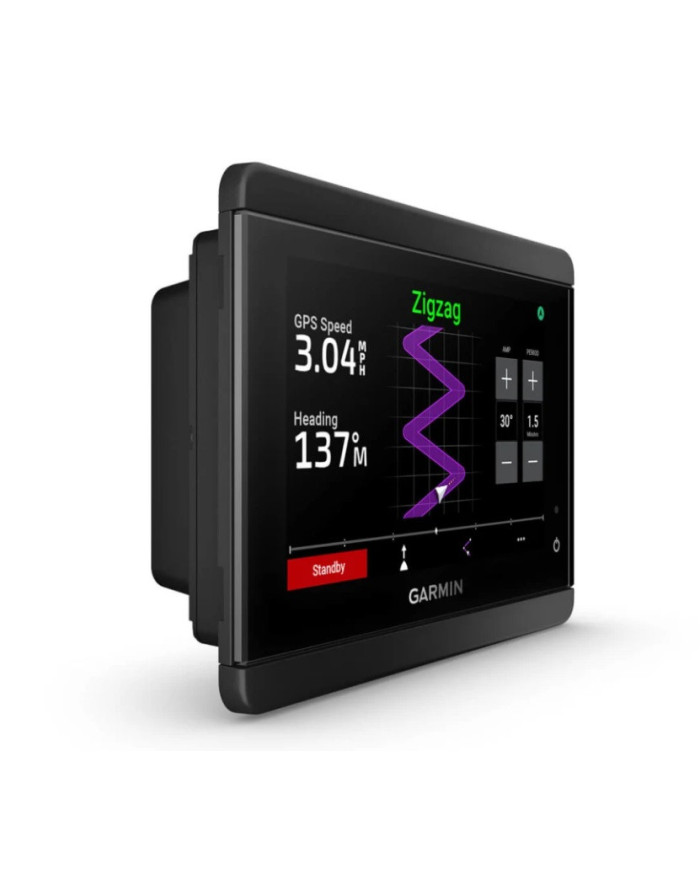

Ghc-50 Instrument

General

Dimensions 5.5” x 4.1” x 2.0” (140 x 105 x 51 mm)

Touchscreen Yes

Display resolution 800 x 480

Display type WVGA

Weight 11.57 oz (328 g)

Water rating IPX7

Mounting options Flat or flush

Connections

NMEA 2000 ports 1

Garmin Marine Network ports 1

ANT+ (Connectivity) Yes

Garmin Wi-Fi Network (local connection) Yes

Electrical Features

Power input 9 to 32 Vdc

Typical current draw at 12 VDC 220 mA

Maximum current draw at 12 VDC 400 mA

Maximum power usage at 10 VDC 4.9 W
