Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 Instrument & Shadow Drive Technology Pack

Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 Instrument & Shadow Drive Technology Pack

Ideal Entry-level Autopilot System

Includes Compact Reactor 40 CCU, ECU, pump, GSD 50 Instrument, Shadow Drive GHP-10 Attachment and other autopilot components needed to add to your compatible chartplotter

The GHP™ 10 marine autopilot system’s patented Shadow Drive technology gives boaters the security of knowing they maintain control even when relying upon the autopilot. Use this Shadow Drive attachment to automatically disengage the autopilot if the helm is turned, allowing the helmsman to maneuver the boat.

Recommended only for single-engine outboard boats less than 30 foot long

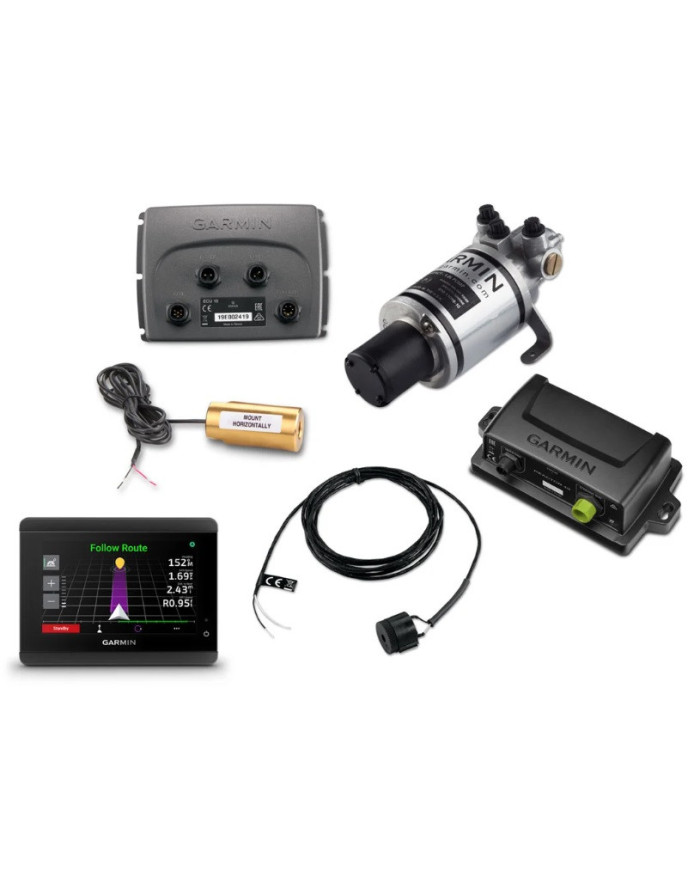

IN THE BOX

GHC 50 helm control display

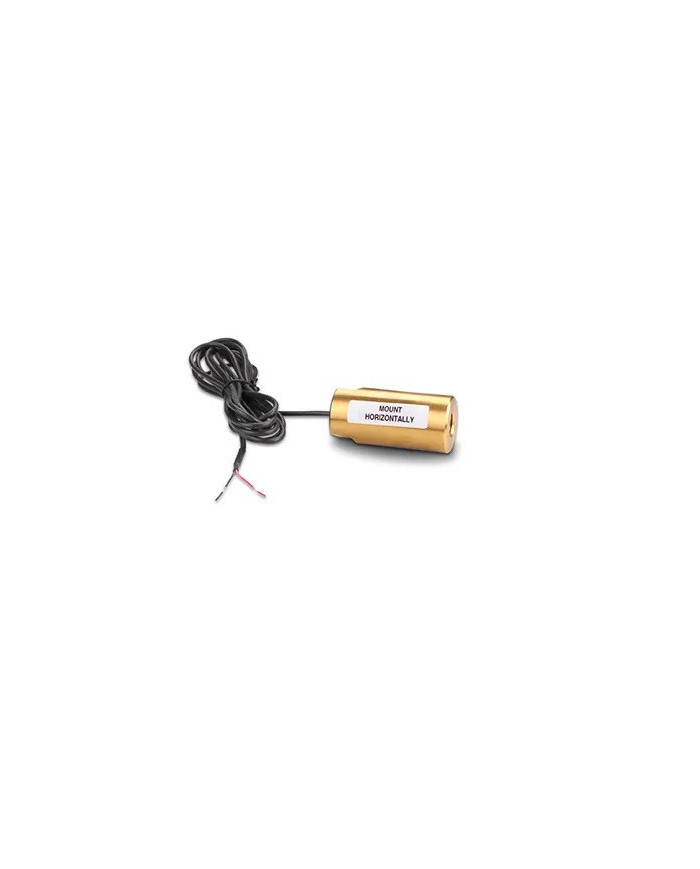

Shadow Drive

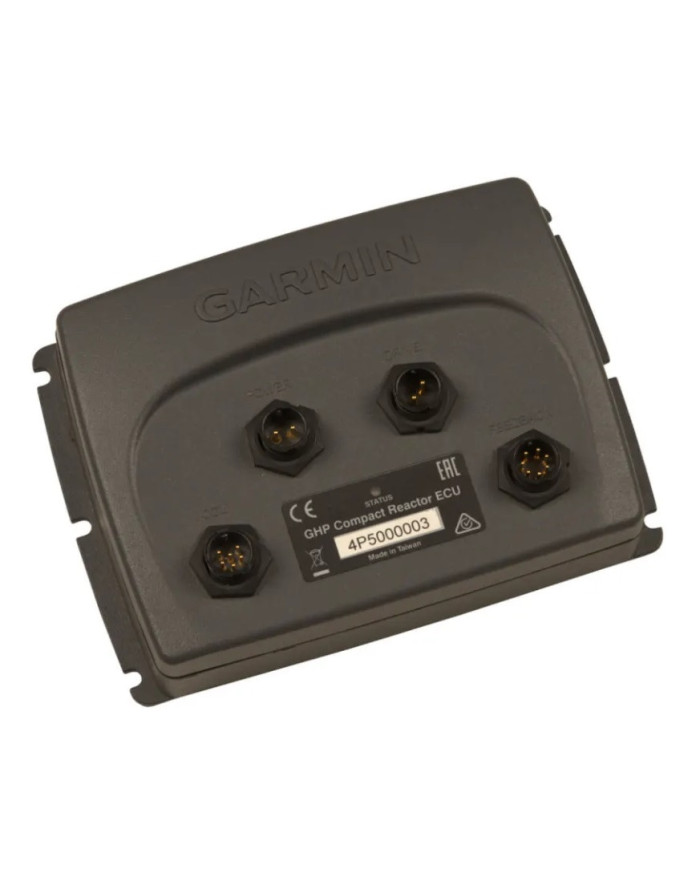

ECU (Electronic control unit)

ECU (Electronic control unit) power cable

Interconnect cable

ECU to CCU interconnect cable

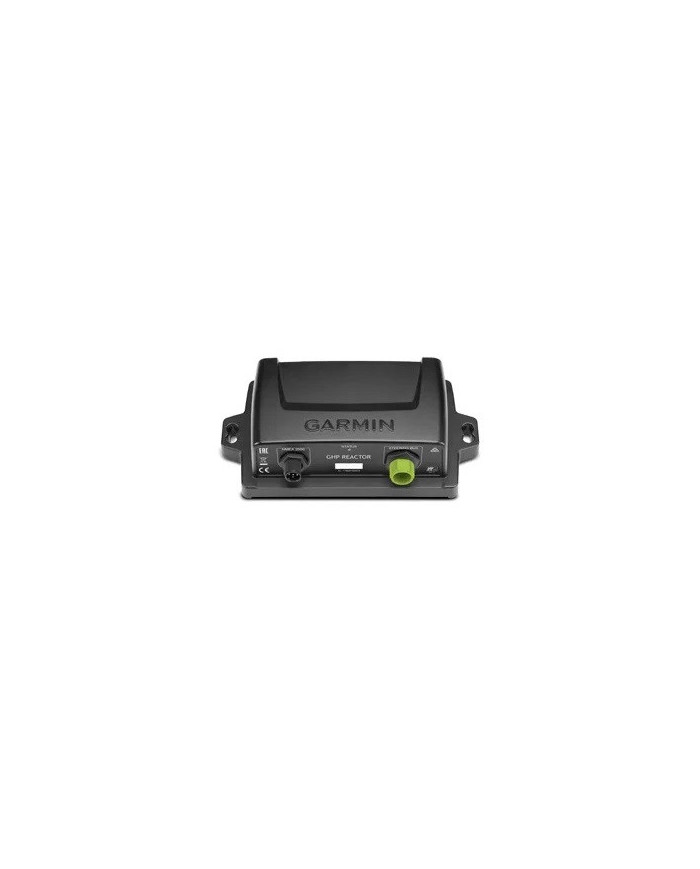

Reactor 40 CCU (Course Computer Unit)

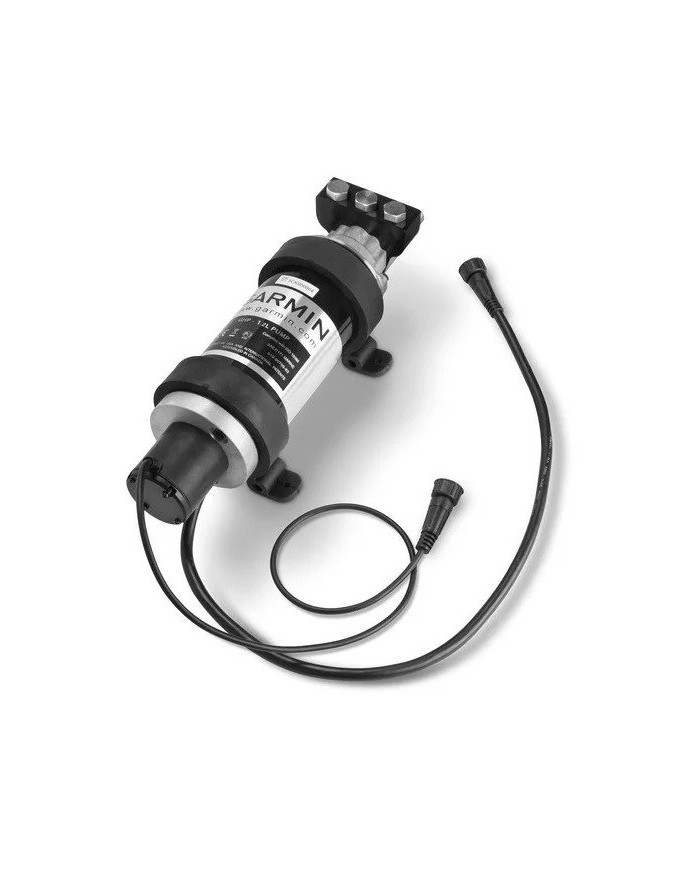

1.0 L Pump

Buzzer

NMEA 2000® drop cable (2 metres)

NMEA 2000 power cable

NMEA 2000 T-connectors

Male and female terminators

Documentation

SPECIFICATIONS

Compact Reactor

Unit dimensions, WxHxD: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)

Pump dimensions, LxWxH: 6.6 " x 3.9 " x 3.3 " (16.8 x 10.0 x 8.5 cm)

NMEA output: NMEA 2000

Supply voltage: 10V to 20V

Operating temperature: -15° C to 70 C° (5° F to 158° F)

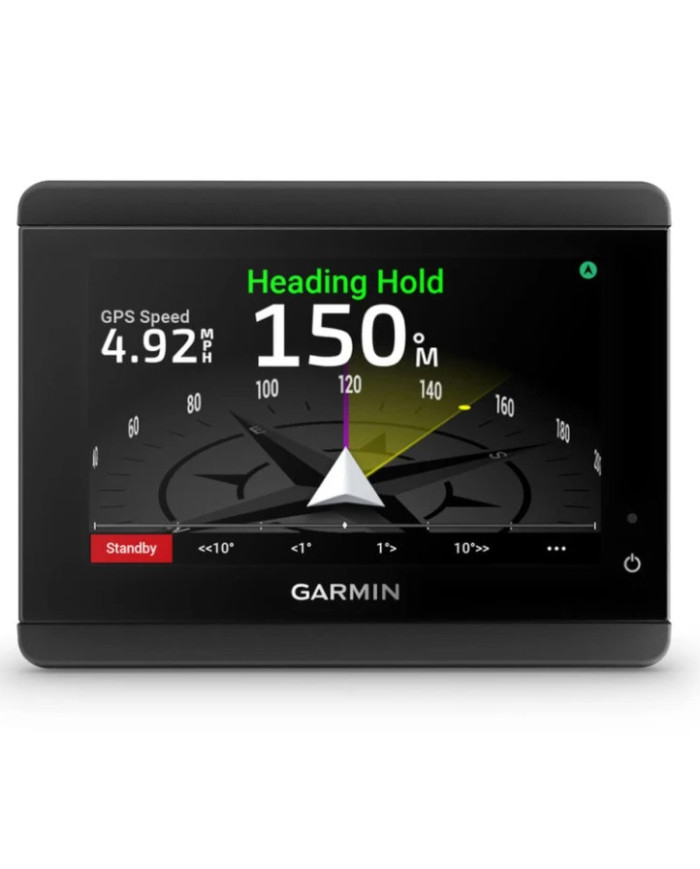

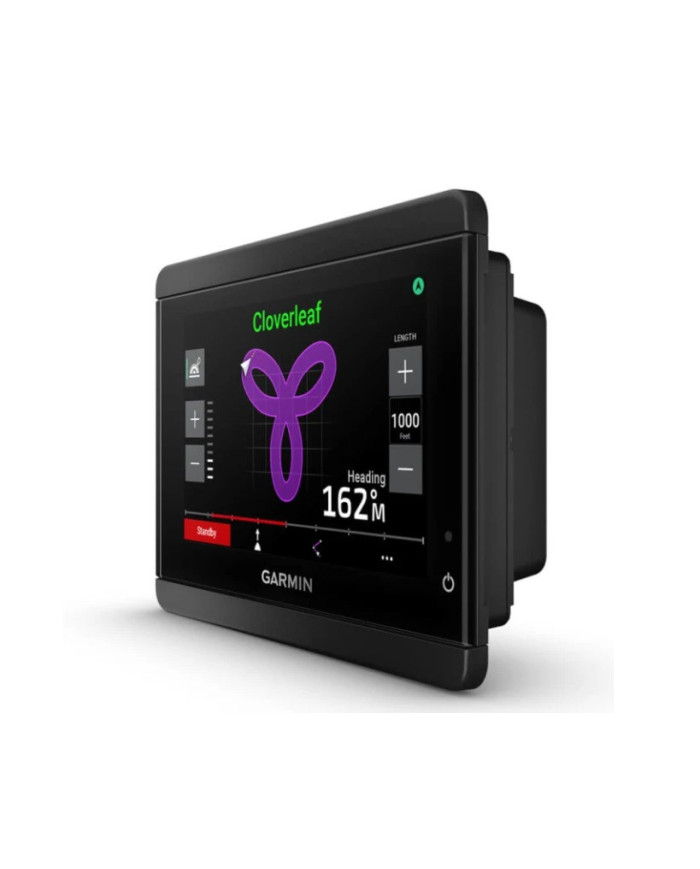

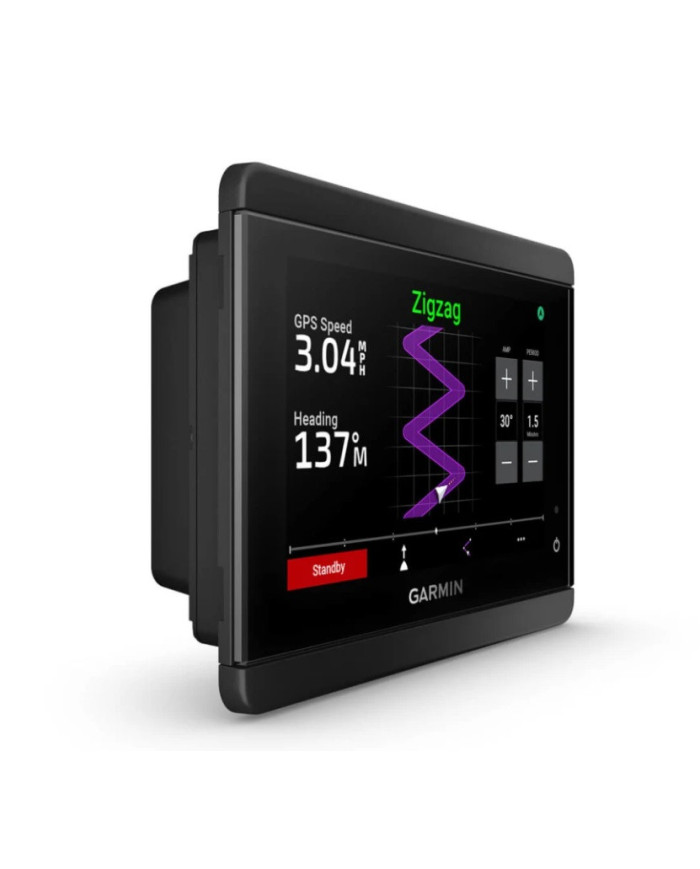

GHC 50 Instrument

General

Dimensions 5.5” x 4.1” x 2.0” (140 x 105 x 51 mm)

Touchscreen Yes

Display resolution 800 x 480

Display type WVGA

Weight 11.57 oz (328 g)

Water rating IPX7

Mounting options Flat or flush

Connections

NMEA 2000 ports 1

Garmin Marine Network ports 1

ANT+ (Connectivity) Yes

Garmin Wi-Fi Network (local connection) Yes

Electrical Features

Power input 9 to 32 Vdc

Typical current draw at 12 VDC 220 mA

Maximum current draw at 12 VDC 400 mA

Maximum power usage at 10 VDC 4.9 W
