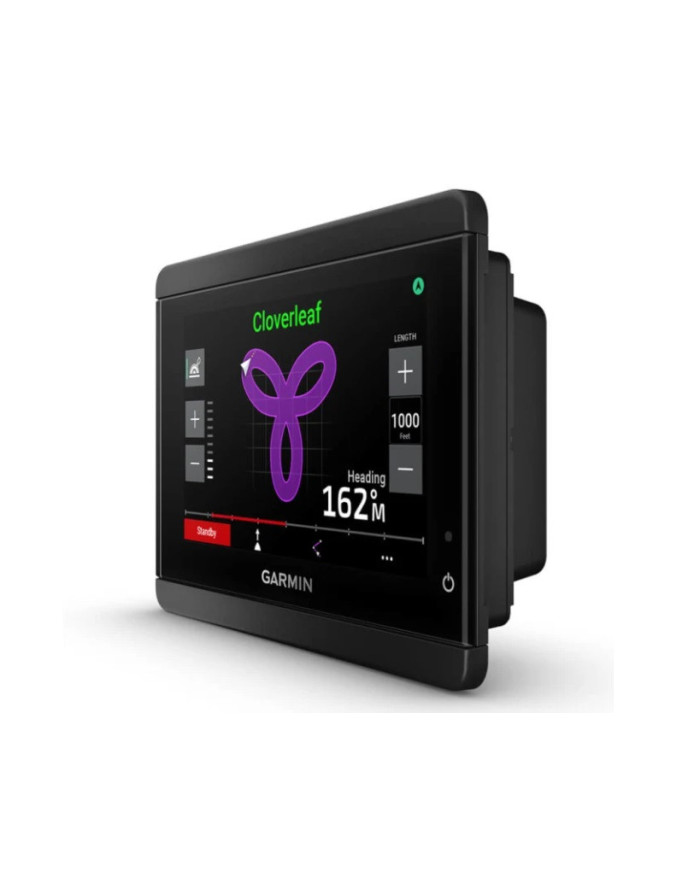

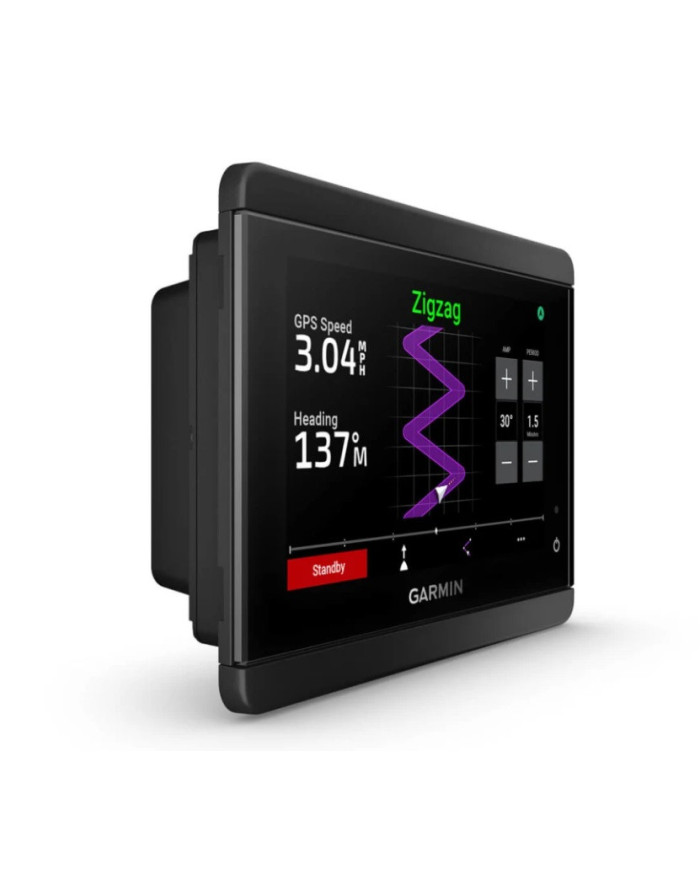

Garmin Reactor 40 Mechanical-Retrofit Solenoid Corepack with GHC 50 Instrument Pack

Garmin Reactor 40 Mechanical-Retrofit Solenoid Corepack with GHC 50 Instrument Pack

The Reactor 40 mechanical/retrofit/solenoid corepack works with a wide variety of steering systems equipped with Class A to Class C Linear Steering Drives (Sold Separately) on vessels of Displacement Capacity up to 79 000 Pounds

Includes Compact Reactor 40 CCU, ECU, GHP 12 Solenoid Control Unit & GSD 50 Instrument and other autopilot components needed to add to your compatible chartplotter

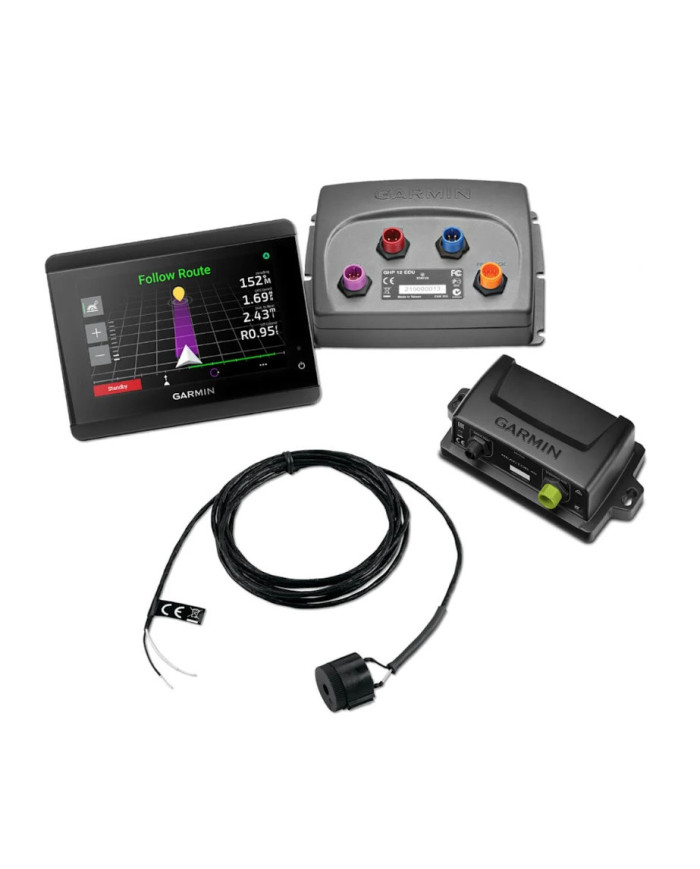

IN THE BOX

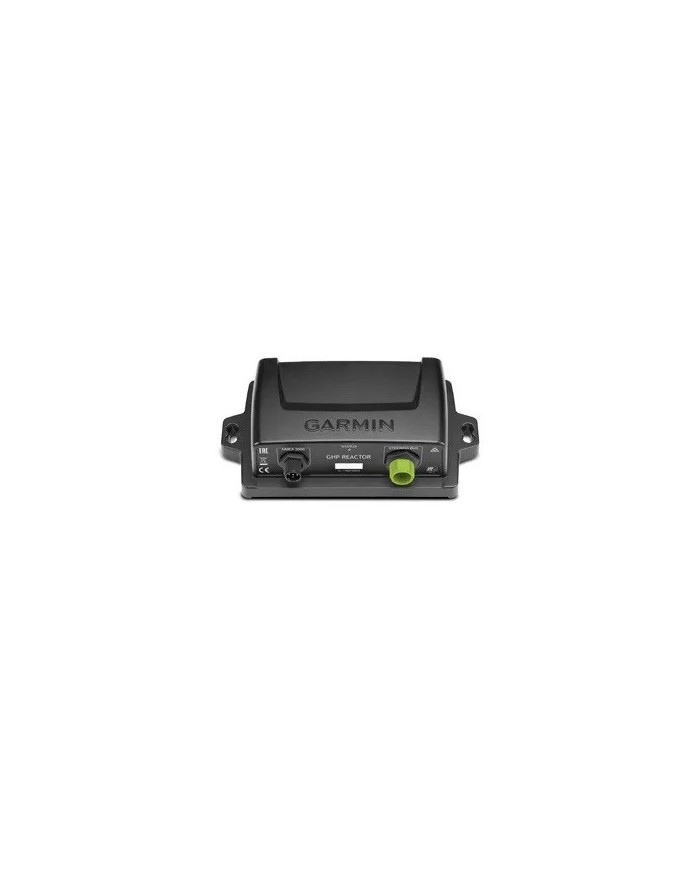

Reactor 40 CCU (Course Computer Unit)

GHP-12 Solenoid Control Unit

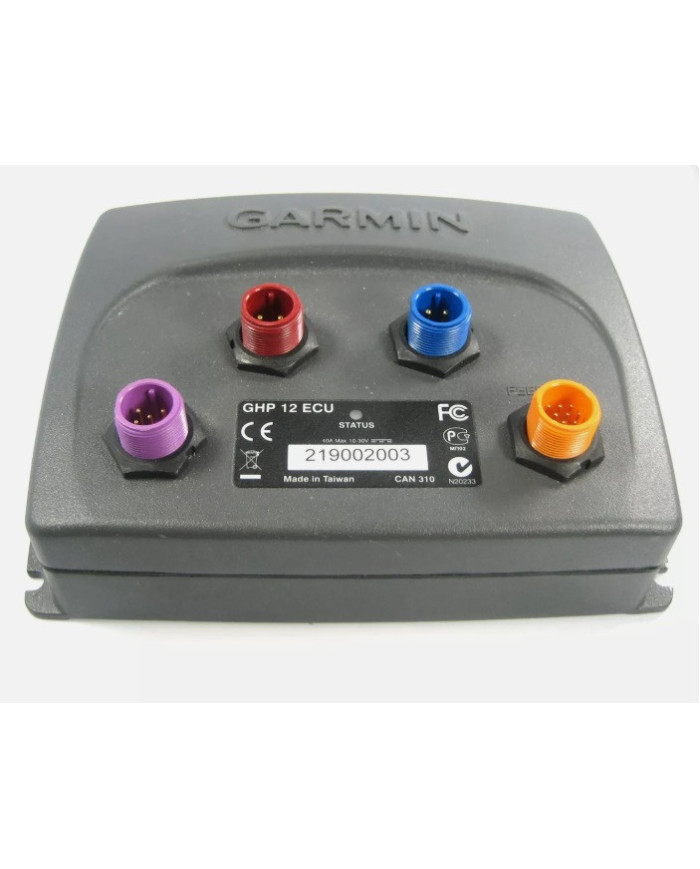

ECU (Electronic Control Unit)

ECU power cable

GHC-50 Instrument

Interconnect cable

Buzzer

NMEA 2000® drop cables (2 meters)

NMEA 2000 power cable

NMEA 2000 T-connectors

Male and female terminators

Documentation

GHP-12

Dimensions (L x Diameter): 29/32" x 1" (23 mm x 25 mm)

Weight: 2.4 oz (68 g)

Temperature range: from 5°F to 131°F (from -15°C to 55°C)

Cable length: 10 ft (3.0 m)

CCU dimensions: 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)

ECU dimensions: 6.6" x 4.6" x 2.1" (16.8 x 11.7 x 5.3 cm)

Supply voltage: 10 V to 30 V

Operating temperature: -15° C to 60 C° (5° F to 140° F)

Maximum sustained motor current: 15A

Maximum instantaneous motor current: 40A

Maximum clutch current: 2.5A (for drives requiring higher current than 2.5A, a relay needs to be added to the clutch circuit)

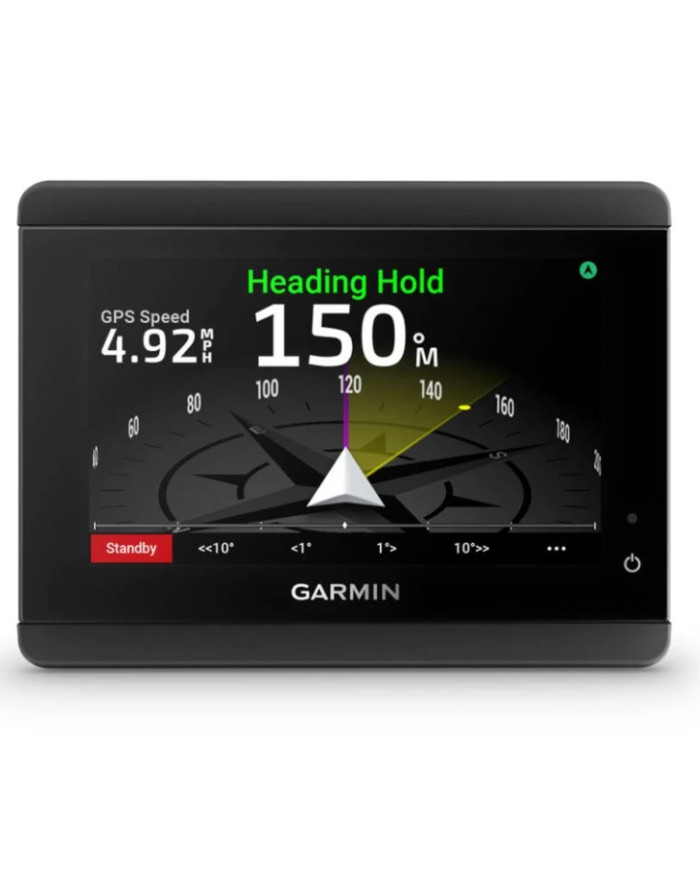

GHC-50 Instrument

General

Dimensions 5.5” x 4.1” x 2.0” (140 x 105 x 51 mm)

Touchscreen Yes

Display resolution 800 x 480

Display type WVGA

Weight 11.57 oz (328 g)

Water rating IPX7

Mounting options Flat or flush

Connections

NMEA 2000 ports 1

Garmin Marine Network ports 1

ANT+ (Connectivity) Yes

Garmin Wi-Fi Network (local connection) Yes

Electrical Features

Power input 9 to 32 Vdc

Typical current draw at 12 VDC 220 mA

Maximum current draw at 12 VDC 400 mA

Maximum power usage at 10 VDC 4.9 W
