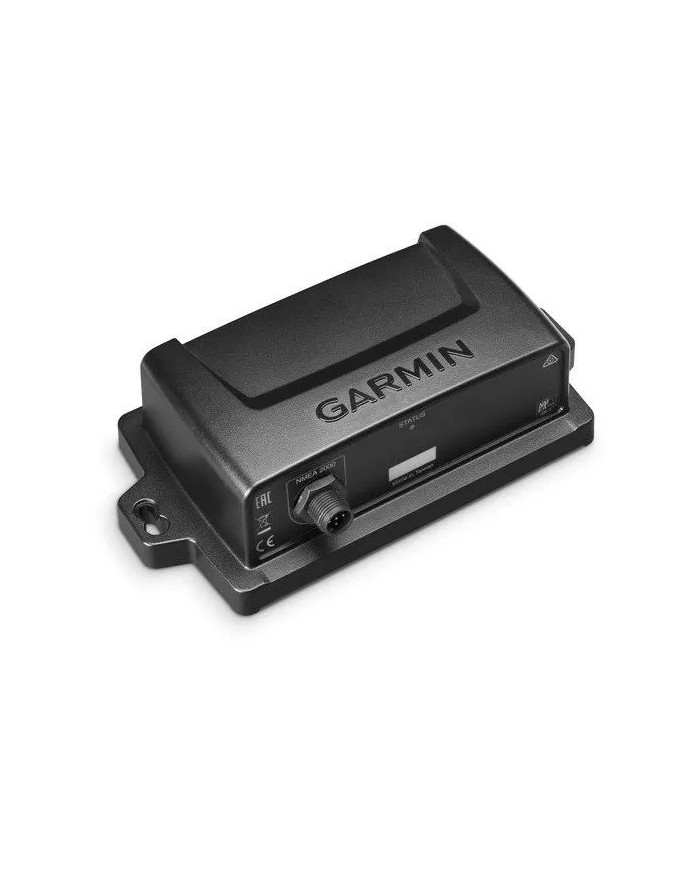

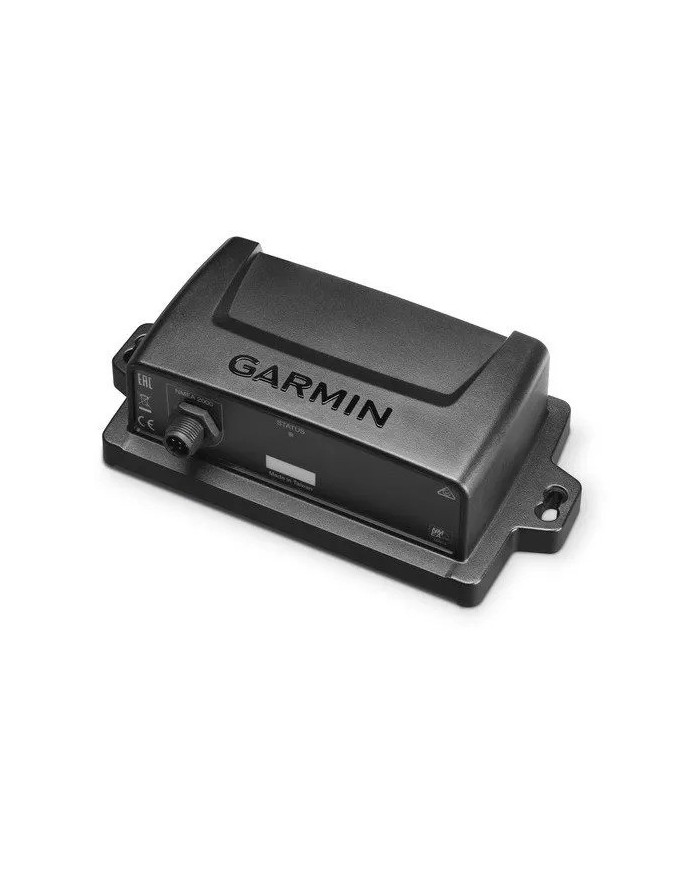

Garmin 9-axis Heading Sensor

• 9-axis Heading Sensor
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 meters)
• Documentation

Premium Solution for Exceptional Heading Accuracy

• Provides exceptional heading accuracy, even at lower speeds or when bow is pitching, rolling or heeling over
• Heading accuracy of plus or minus 2 degrees
• Heading and rate-of-turn output at 10 Hz; trim and heel output at 1 Hz
• Simple 2-step calibration process
• 9-axis MEMS technology allows installation in any orientation located away from magnetic interference

The 9-axis heading sensor is our premium solution that is easy to install and provides fast calibration and exceptional heading accuracy.

Accurate Heading Even at Low Speed

Its heading output at 10 Hz and accuracy of plus or minus 2 degrees ensures your chart orientation and boat heading line match up with reality, even at lower speeds. It also allows for MARPA tracking and improves radar overlay experience.

Effective in Rough Waters

You can also be confident your heading information will remain accurate, even in rough sea conditions where your bow is pitching and rolling or — in sailboat applications — when heeled over. Provides heading and rate-of-turn output at 10 Hz and trim and heel output at 1 Hz.

Easy Installation, Fast Calibration

The 9-axis heading sensor installs easily with NMEA 2000® plug-and-play interface and a simple 2-step precision calibration process for compatible Garmin chartplotters. For displays other than Garmin, basic calibration is also supported. The heading sensor’s 9-axis MEMS technology allows installation in any orientation located away from magnetic interference. All of our heading sensors are built to withstand bilge environments.

• Dimension (LxWxH): 50 x 171 x 88 mm
• Weight: 0.4 lb (180 g)
• Default heading output: 10 Hz
• Output heading with +/-2 degree accuracy
• Water rating: IPx7
• LEN = 4
• Operating voltage: 8 VDC to 30 VDC

ACCESSORIES

NMEA 2000® Backbone/Drop Cable (2 m/6 ft)

NMEA 2000® Backbone/Drop Cable (6 m/19 ft)

NMEA 2000® Backbone/Drop Cable (10 m/32 ft)

NMEA 2000® Backbone/Drop Cable (0.3 m/1 ft)

NMEA 2000® Backbone/Drop Cable, Right Angle (2 m/6 ft)

NMEA 2000® Field-installable Connectors, Male

NMEA 2000® Field-installable Connectors, Female

NMEA 2000® In-line Terminator

NMEA 2000® Network Switch

NMEA 2000® Network Updater

NMEA 2000® Power Cable

NMEA 2000® Power Isolator

NMEA 2000® Starter Kit

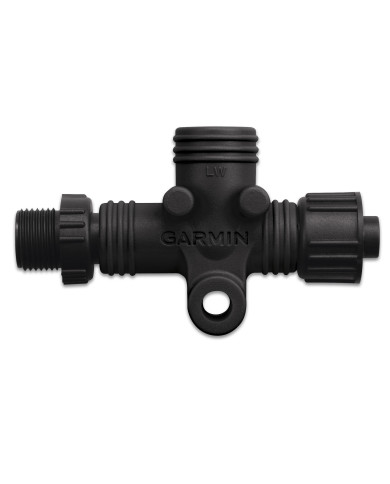

NMEA 2000® T-connector, 1 Port

NMEA 2000® Terminators, Male

NMEA 2000® Terminators, Female

NMEA 2000® Multi-port T-connector, 4 Ports
