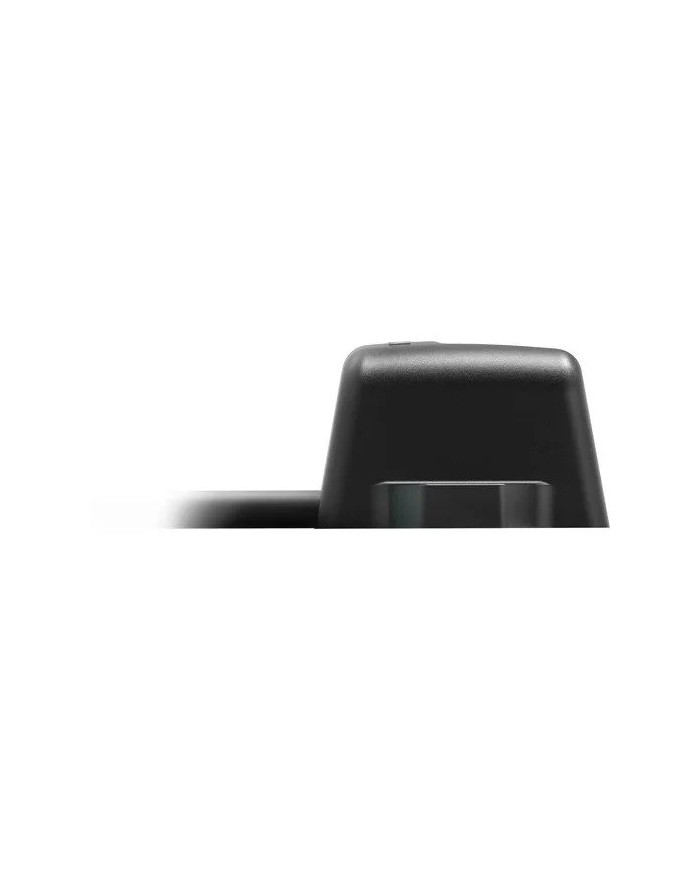

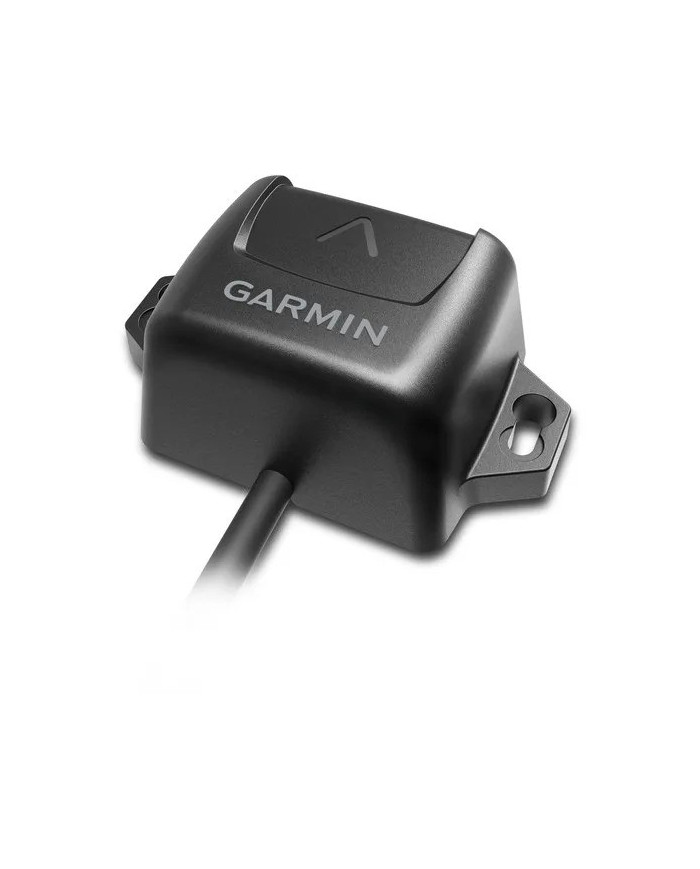

Garmin SteadyCast Heading Sensor

• SteadyCast heading sensor with integrated NMEA 2000® drop cable (1.8 m)
• NMEA 2000® T-connector
• Documentation

Know Where You’re Actually Casting

• Ensures bow orientation on your chartplotter matches your heading
• Heading accuracy of plus or minus 3 degrees
• Easy NMEA 2000® plug-and-play interface
• Simple 2-step calibration process
• 9-axis MEMS technology allows installation in any orientation located away from magnetic interference

SteadyCast heading sensor is a simple, easy-to-install solution that provides fast calibration and premium heading accuracy. It aligns your boat bow to its actual orientation so you know where you are casting according to your chartplotter screen.

Accurate Heading Even at Low Speed

Its heading output rate at 10 Hz and accuracy of plus or minus 3 degrees ensures your chart orientation and boat heading line match up with reality, even at trolling speeds or when dead in the water.

Effective in Rough Waters

You can also be confident your heading information will remain accurate, even in rough water.

Easy Installation, Fast Calibration

SteadyCast heading sensor installs easily with NMEA 2000® plug-and-play interface and a simple 2-step precision calibration process for compatible Garmin chartplotters. Basic calibration for Garmin echoMAP models and other NMEA 2000 displays is also supported. Its 9-axis MEMS technology allows installation in any orientation located away from magnetic interference, and it’s built to withstand bilge environments.

FEATURES

• Dimensions (LxWxH): 86.3 x 52.9 x 33.7 mm
• Default heading output: 10 Hz
• Output heading with +/-3 degree accuracy
• Water rating: IPX7
• LEN: 2
• Operating voltage: 9 VDC to 32 VDC

NMEA 2000® Backbone/Drop Cable (2 m/6 ft)

NMEA 2000® Backbone/Drop Cable (6 m/19 ft)

NMEA 2000® Backbone/Drop Cable (10 m/32 ft)

NMEA 2000® Backbone/Drop Cable (0.3 m/1 ft)

NMEA 2000® Backbone/Drop Cable, Right Angle (2 m/6 ft)

NMEA 2000® Field-installable Connectors, Male

NMEA 2000® Field-installable Connectors, Female

NMEA 2000® In-line Terminator

NMEA 2000® Network Switch

NMEA 2000® Network Updater

NMEA 2000® Power Cable

NMEA 2000® Power Isolator

NMEA 2000® Starter Kit

NMEA 2000® T-connector, 1 Port

NMEA 2000® Terminators, Male

NMEA 2000® Terminators, Female

NMEA 2000® Multi-port T-connector, 4 Ports

COMPATIBLE DEVICES

echoMAP^™ CHIRP 92sv

ECHOMAP Plus 62cv

ECHOMAP Plus 72cv

ECHOMAP Plus 72cv

ECHOMAP Plus 72sv

ECHOMAP Plus 72sv

ECHOMAP Plus 92sv

ECHOMAP Plus 92sv

ECHOMAP UHD 62cv

ECHOMAP^™ UHD 72cv

ECHOMAP^™ UHD 72sv

ECHOMAP^™ UHD 92sv

ECHOMAP^™ UHD2 6" Chartplotters

ECHOMAP^™ UHD2 7" Chartplotters

ECHOMAP^™ UHD2 9" Chartplotters

ECHOMAP^™ Ultra 102sv

ECHOMAP^™ Ultra 122sv with GT56UHD-TM Transducer

GPSMAP^® 1020

GPSMAP^® 1020xs

GPSMAP^® 1022

GPSMAP^® 1022xsv

GPSMAP^® 1042xsv

GPSMAP^® 1042xsv

GPSMAP^® 1222

GPSMAP^® 1222 Plus

GPSMAP^® 1222xsv

GPSMAP^® 1222xsv Plus

GPSMAP^® 1223

GPSMAP^® 1223xsv

GPSMAP^® 1242xsv

GPSMAP^® 1242xsv

GPSMAP^® 1253xsv

GPSMAP^® 722 Plus

GPSMAP^® 722xs Plus

GPSMAP^® 723

GPSMAP^® 723xsv

GPSMAP^® 7407xsv

GPSMAP^® 7408xsv

GPSMAP^® 7410xsv J1939

GPSMAP^® 7412xsv

GPSMAP^® 7416xsv

GPSMAP^® 743xsv

GPSMAP^® 8417 MFD

GPSMAP^® 8422 MFD

GPSMAP^® 8424 MFD

GPSMAP^® 8612xsv

GPSMAP^® 8616

GPSMAP^® 8617

GPSMAP^® 8622

GPSMAP^® 8624

GPSMAP^® 8700 Black Box

GPSMAP^® 922 Plus

GPSMAP^® 922xs Plus

GPSMAP^® 923

GPSMAP^® 923xsv

GPSMAP^® 953xsv
