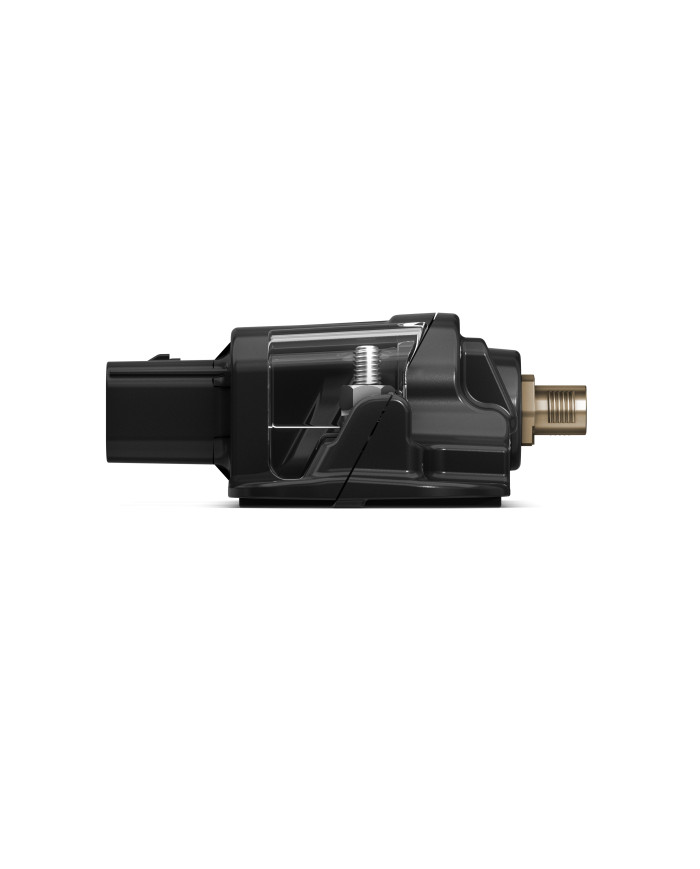

Garmin Boat Switch

Name: Garmin Boat Switch
Brand: Garmin
SKU: 010-02735-00
Price: 21779.1 ZAR
Availability: BackOrder
Rating: 0 (0 reviews)

Reviews (0)

R24,199.00 R21,779.10

Tax included

Garmin Boat Switch

Garmin Boat Switch
Garmin Boat Switch Harness X1
Garmin Boat Switch Harness X2
Installation instructions

Add to Compare Add to Wishlist

Description

Garmin Boat Switch

Garmin Boat Switch
Garmin Boat Switch Harness X1
Garmin Boat Switch Harness X2
Installation instructions

QUALITY SWITCHING. SIMPLE INSTALLATION.

Get the integrated-boat experience with digital switching that allows you to operate onboard electrical functions right from your GPSMAP® or ECHOMAP™ chartplotter.

Reduce reliance on traditional switches and fuses. Add digital control and software current monitoring.

Operate lights, pumps, horn and more. Just tap your compatible chartplotter.

Fill up or empty out? See levels in four tanks — such as fuel, freshwater, greywater, blackwater and livewell.

See system status. Monitor battery voltage, bilge pump operation and more.

Set it up your way. Position and name switches with the easy-to-use interface.

Retrofit into your boat. It requires no special tools or configuration.

Get integrated electrical control.

ALL-IN-ONE

Replace existing two-element systems — fuse box and switches — for easier control and operation of onboard functions.

DIGITAL CONTROL

Get control and protection of up to 20 circuits via your chartplotter rather than a physical button or switch.

ON/OFF SWITCHES

The toggle outputs operate bilge pump and nondimmable lights, such as nav lights and courtesy lights.

DIMMABLE OUTPUTS

Press-and-hold dimmers let you set your preferred brightness on board.

MOMENTARY OUTPUTS

Control horns and more. Simply press and release for desired length of horn beep.

LIVEWELL TIMER

A built-in timer turns the pump to cycle the water to keep fish alive — and keep pumps functioning longer.

Manage your inputs, too.

MONITOR TANKS

Experience built-in tank sender detection and calibration for as many as four tanks, such as fuel, freshwater, greywater, blackwater and livewell.

ADDITIONAL INPUTS

See analogue voltages on house and start battery, monitor bilge pump operation, and connect optional physical switches.

UPGRADE YOUR BOAT

Retrofit into existing boats without special tools or configuration by using the included 18″ flying leads and colour-coded channel wires.

Features

Misc

General
Dimensions (WxHxD) (unit only)	9.1″ x 4.2″ x 1.5″ (230 x 106 x 38 mm)
Weight (unit only)	14.1 oz (400 g)
Ambient temperature	-20° C to +55° C
Enclosure water rating	IP65
Communication	CAN-bus NMEA 2000® network, LEN-0
Output
High side	13 ch 10A, 7 ch 5A
Output
Ground contact switch input	15
Bilge pump monitor	2
Analog Input
Volt	3 @ 0-16 V +/-1%
Resistance	2 @ 0-1500 ohm +/- 5%
Power Supply
Maximum current	50A
Power off current consumption	60mA
Supply voltage (12V)	9-16VDC
Connector
NMEA 2000®	Micro 5-pin M12 male
Channels	Molex MX150 L 16 circuits
Power terminal	M6 bolt
