Airmar Mix & Match Cable MM1-DT-9N 1kW 50/200 Transducer Cable to Navico/Lowrance/Simrad 9-pin

Airmar Mix & Match Cable

Specification: for 1 kW NON CHIRP 50/200 Transducer Cable to Navico/Lowrance/Simrad 9-pin Socket

5 Pin Mix & Match for 1 KW 50 / 200 Transducers to Navico / Lowrance / Simrad 9 Pin Male Connector

Part No: MM1-DT-9N

MNF No: 33-1393-01

Navico SKU 10-20-031

Length: 8 m

5 Pin Mix & Match for 1 KW 50 / 200 Transducers to Navico / Lowrance / Simrad 9 Pin Male Connector

Mix and Match Cables for 1 kW Non CHIRP Transducers

Mix and Match 1 kW transducers are made as a common base transducer with a short (2m) cable attached,

The short pigtail attached to the transducer ends in an Airmar 5-pin female connector. The adapter cables have a matching Airmar 5-pin male connector (shown below) at one end and the correct connector for a Navico / Lowrance / Simrad 9 Pin Male Connector at the other.
Both parts are needed for an installation.

Mix and Match™ Cables 1kW

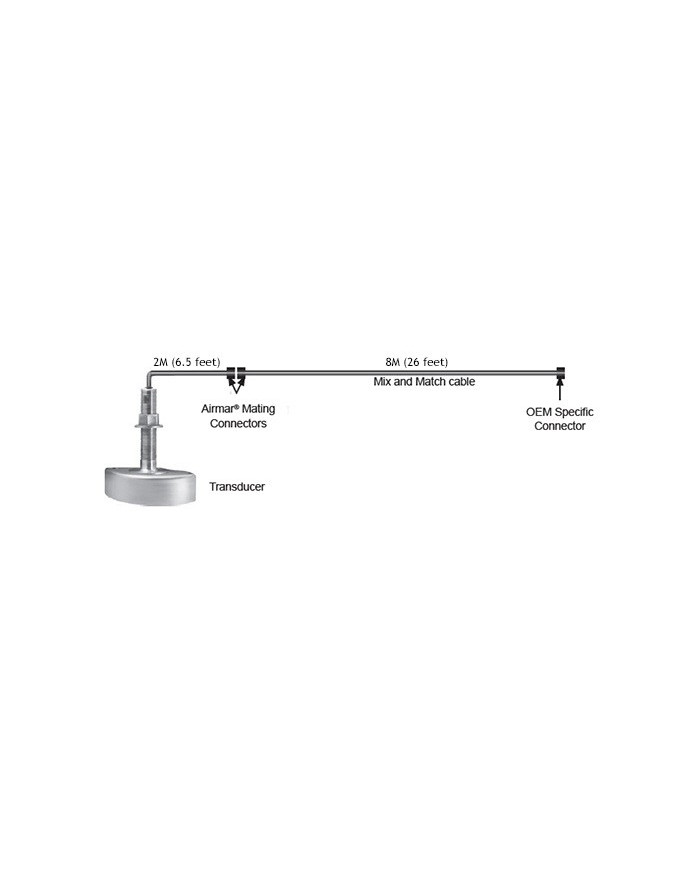

Mix and Match 1kW transducers are made as a common base transducer with a short (2m) cable attached, plus an interchangeable longer (8m) brand-specific adapter cable.

The short pigtail attached to the transducer ends in an Airmar 9-pin male connector.

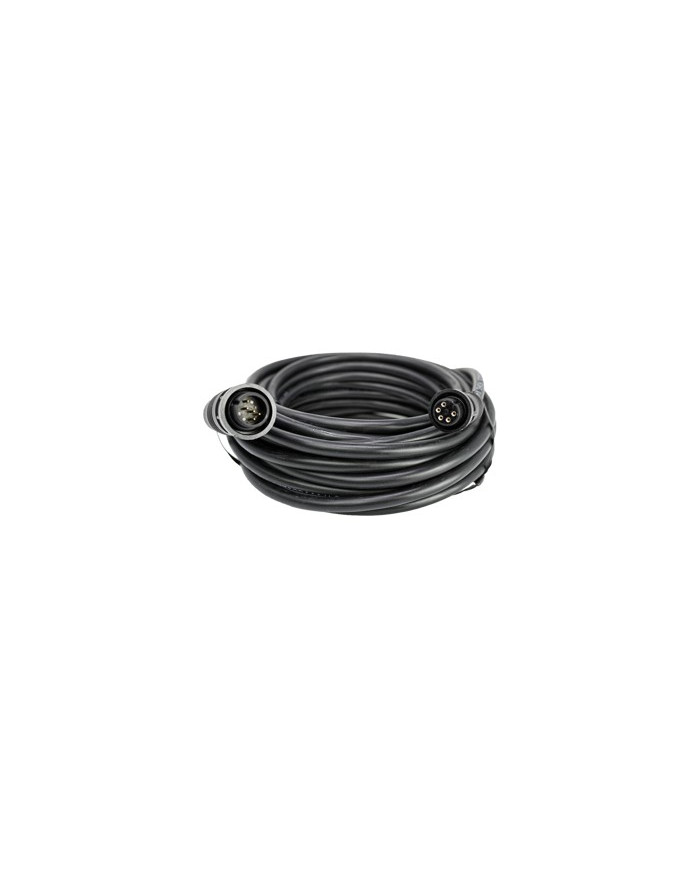

The adapter cables have a matching Airmar 9-pin female connector at one end and the correct connector for a specific brand of electronics at the other end.

Both parts are needed for an installation. If the user changes equipment brand at some later time, the transducer can be left in place and the adapter cable replaced.

Note that 1kW Mix and Match cables cannot be used with 600W transducers or CHIRP transducers.

SPECIFICATION
