Airmar SS60 12 Degree 50-200 khz Tilted Element Transducer for Navico Lowrance Simrad
000-13785-001
New
Airmar SS60 12 Degree 50-200 khz Tilted Element Thru Hull Transducer for Navico Lowrance Simrad
50-200 khz Through Hull Transducer
Step up to a 1kW—Without a Fairing! Airmar has taken our innovative Tilted Element™ technology to a higher power.
Can Collect Pre Paid or Ships to Your Door Ex Durban Warehouse
More info
Airmar SS60 12 Degree Tilted Element™ Thru-Hull Transducer
600 W - 50 / 200 kW with Temperature
With 9 Pin Airmar Navico "Black" Plug

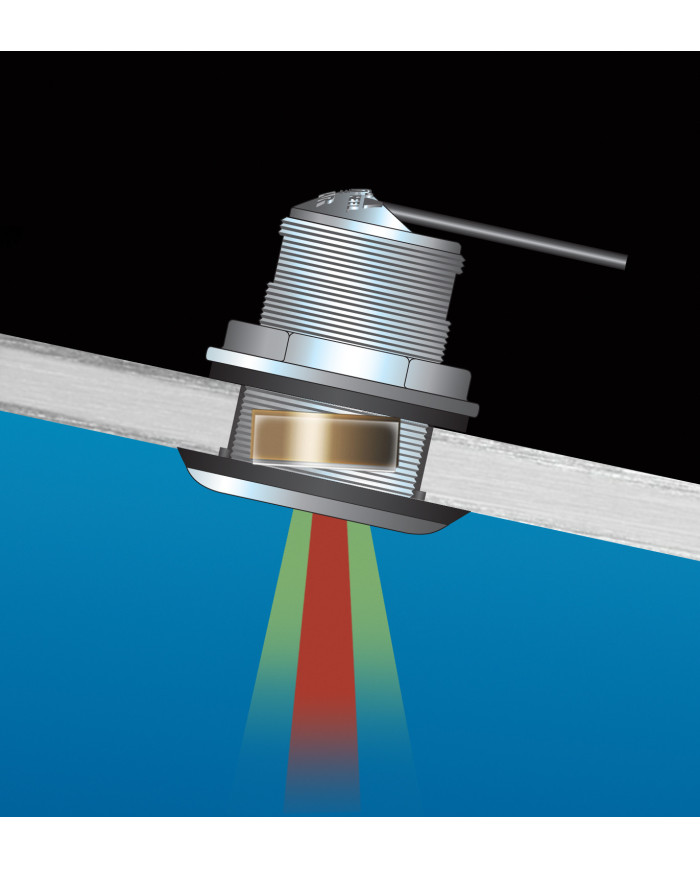

The SS60 is a 600 W, 50/200 kHz transducer which integrates Airmar’s popular tilted element feature. Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.
Available in three Tilted Element™ models:
- Fixed 20° tilted version for 16° to 24° hull deadrise
- Fixed 12° tilted version for 8° to 15° hull deadrise
- Fixed 0° tilted version for 0° to 7° hull deadrise
Features
- Depth and water temperature
- 600 W
- Dual-frequency elements:
- 50 kHz with a wide 45° beam for performance to 353 m (1200')
- 200 kHz with a 12° beam for performance to 206 m (700')
- Perfect for center-console, trailered boats
- Low-profile protrusion below the hull - only 3/16" (.476 cm) extends outside the hull
- No affect on your boats running performance
- Stainless steel transducer housing for use on all hull materials
- Recommended boat size: Up to 8 m (25')
- Also available in a bronze housing
Specifications
- Weight: 1.4 kg (3 lb)
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane

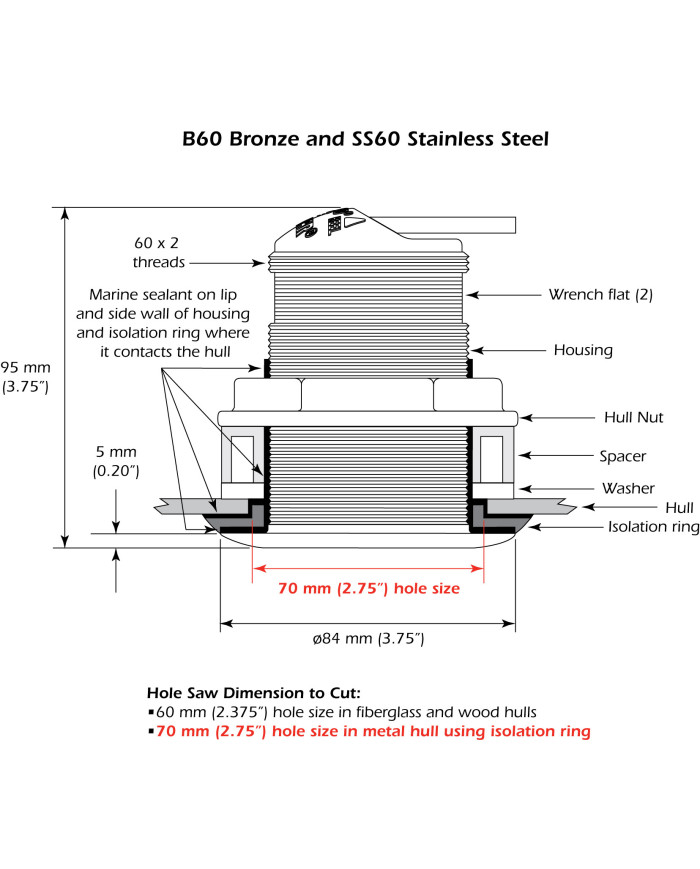

- Hole Size: 60 mm (2-3/8") for fiberglass or wood
- Hole Size: 70 mm (2-3/4") for metal hull using isolation ring
- Connector: Navico xSonic 9 Pin (Black)
- Cable Length: 5 m
| 200 kHz | 50 kHz | ||
|---|---|---|---|
| Beam | Max Depth | Beam | Max Depth |
| 12º | 700' | 45º | 1200' |
