Airmar TM275 LHW CHIRP 1 kW HD Transom Skimmer Transducer
Airmar xSonic TM-275 LHW 1 kW
Transom Mount Skimmer Transducer
LOW AND HIGH (WIDE CONE) CHIRP
Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town.
Airmar xSonic Lowrance TM-275 LHW 1 kW
Transom Mount Skimmer Transducer
LOW AND HIGH (WIDE CONE) CHIRP
Low frequency: 42 to 65 kHz- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- 25° constant beamwidth
- Maximum depth of 152 m (500')
REQUIRES Airmar Splice Junction Box for Lowrance / Simrad / Navico - 33-1230-01 (Separate Purchase)
CLICK HERE TO VIEW AND PURCHASE AIRMAR SPLICE BOX

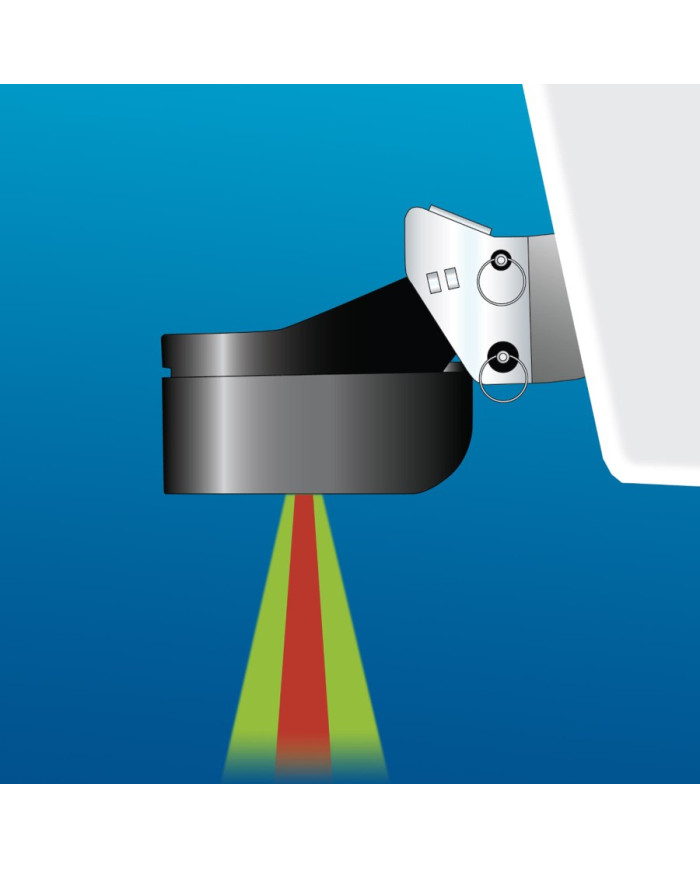

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready TM275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.
FEATURES
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance from the low frequency
- Low frequency: 42 to 65 kHz
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- High frequency: 150 to 250 kHz
- 25° constant beamwidth
- Maximum depth of 152 m (500')
- 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Stainless steel, kick-up bracket locks in the “up” position and will not damage the transom
- SEALCAST™, seamless, urethane housing for long life in the water
- Also available as thru-hull (B275LHW) and pocket (PM275LHW) mounts Patented Xducer ID® technology
SPECIFICATIONS
Power Rating: 1 kW
Transom Angle: 3° to 21°
Functions: Depth, Temperature
Max Vessel LOA: 10 m (33') and above
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
High Frequency: 150-250 kHz
High-Wide Beamwidth: 25°
Housing: Urethane/Stainless Steel
Low Frequency: 42-65 kHz
Low Frequency Beamwidth: 25°-16°
Max Depth: Low frequency- 914 m (3000'), High wide frequency- 914 m (3000')
Mounting Style: Transom
Retractable housing: No
Single or Dual Frequency: CHIRP-Ready Dual-Band
Tilted Element: No
Weight: 4 kg (8.9 lb.)
Link to Manufacturer's Brochure
Link to Airmar Transom Mount Transducer Comparison Chart
Requires 9 Pin (Black ) to 7 Pin (Blue) Transducer Adapter Cables for Units equiped with Legacy 7 Pin (Blue) Transducer Socket (HDS Carbon)
